3M 7000145519 Description

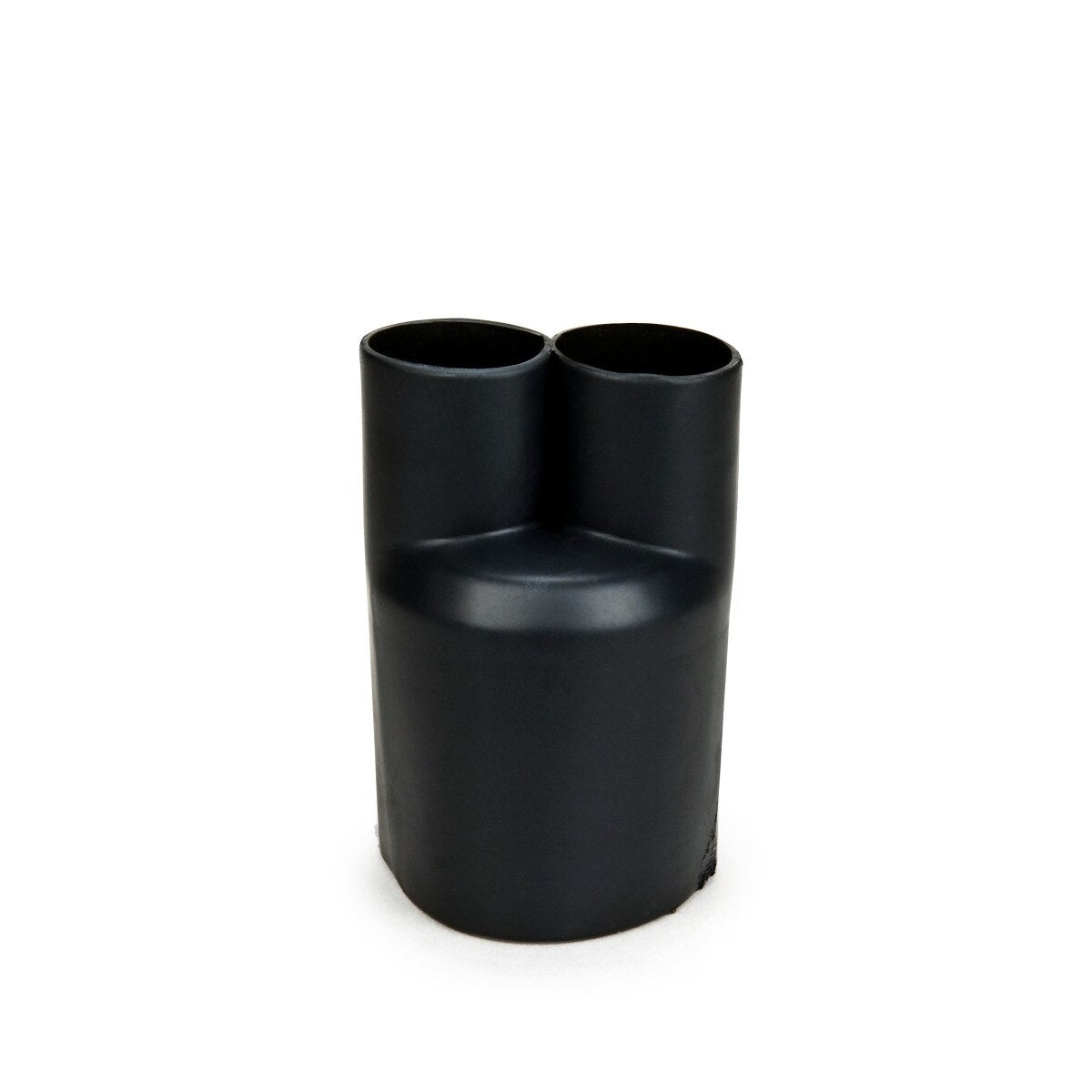

This 3M heat shrinkable cable breakout boot insulates and seals multi conductor cable breakouts, providing heavy duty electrical and mechanical protection. The semi rigid flame retardant polyolefin construction includes an internal adhesive coating to help ensure reliable environmental sealing.
3M 7000145519 Includes
- (1) Heat Shrinkable Cable Breakout Boot
3M 7000145519 Features
- Insulates and seals cable breakouts in multi conductor armored or sheathed cables
- Internal adhesive coating helps provide reliable environmental sealing
- Heavy duty electrical and mechanical protection
- Semi rigid flame retardant polyolefin construction
- RoHS 2011/65/EU compliant without exemption
- 2 way outlet style
- UV resistant for indoor or outdoor use
3M 7000145519 Specifications
| Product Type | Cable and Wire Accessory |
| Global Product Hierarchy | Cable Breakout Boots |
| Part Number | HDBB-205-1-250 |
| Product Color | Black |
| Outlet Style | 2-Way |
| Number of Outlets | 2 |
| Transition Type | 1-2 Breakout |
| Shrink Type | Heat Shrink |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Material | Semi-rigid, Flame Retardant Polyolefin |
| Flame Retardant | Yes |
| UV Resistant | Yes |
| Indoor/Outdoor | Both |
| Dielectric Strength | 10 kV / mm |
| Operating Temperature | -30 to +135 Degree Celsius |
| Maximum Operating Temperature | 135.0 Degree Celsius |
| Cable End Expanded | 0.8 in |
| Cable End Recovered | 0.37 in |
| Conductor Legs Expanded | 0.33 in |
| Conductor Legs Recovered | 0.11 in |
| Inner Diameter Before Shrink | 0.33 in |
| Inner Diameter After Shrink | 0.11 in |
| Outer Diameter Before Shrink | 0.8 in |
| Outer Diameter After Shrink | 0.37 in |
Toolup Part # :
849722
