At a Glance
Length
1.5 in
Max Temperature
275�F
Material
Polyolefin
Application
Electrical
Description
Description

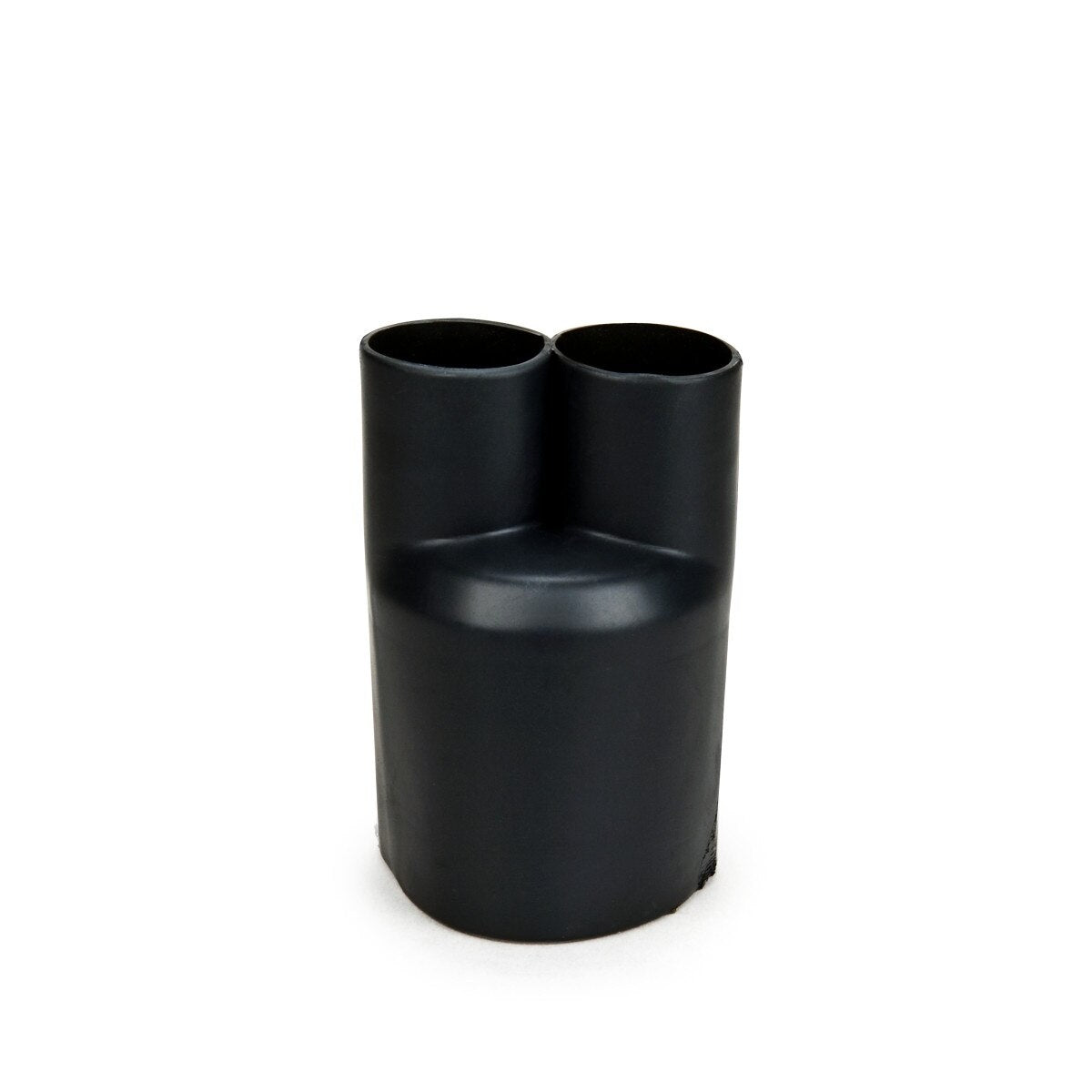

3M 7010293610 Description
3M heat shrinkable cable breakout boot designed to insulate and seal cable breakouts in multi conductor armored or sheathed cables. The adhesive lined, flame retardant polyolefin construction helps provide environmental sealing along with electrical and mechanical protection.
3M 7010293610 Includes
- (1) Heat Shrinkable Cable Breakout Boot
3M 7010293610 Features
- Insulates and seals cable breakouts in multi conductor armored or sheathed cables
- Adhesive lined interior helps provide reliable environmental sealing
- Provides electrical insulation and mechanical protection
- Semi rigid flame retardant polyolefin construction
- 2 way outlet style for 1 to 2 cable breakout transitions
- UV resistant
- RoHS 2011/65/EU compliant without exemption
3M 7010293610 Specifications
| Part Number | HDBB-230-1-250 |
| Color | Black |
| Outlet Style | 2-Way |
| Number of Outlets | 2 |
| Transition Type | 1-2 Breakout |
| Shrink Type | Heat Shrink |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Material | Semi-rigid, Flame Retardant Polyolefin |
| Dielectric Strength | 10 kV / mm |
| UV Resistant | Yes |
| Flame Retardant | Yes |
| Operating Temperature | -30 up to +135 Degree Celsius |
| Maximum Operating Temperature | 135.0 Degree Celsius |
| Outer Diameter Before Shrink | 3.0 in |
| Outer Diameter After Shrink | 1.5 in |
| Inner Diameter Before Shrink | 1.45 in |
| Inner Diameter After Shrink | 0.5 in |
| Cable End Expanded | 3.0 in |
| Cable End Recovered | 1.9 in |
| Conductor Legs Expanded | 1.45 in |
| Conductor Legs Recovered | 0.5 in |
| UPC | 051135359938 |
| Shelf Life | 1800 days |
Toolup Part # :
849732
