At a Glance
Max Temperature
275�F
Material
Polyolefin
Application
Electrical
Description
Description
3M 7000132576 Description

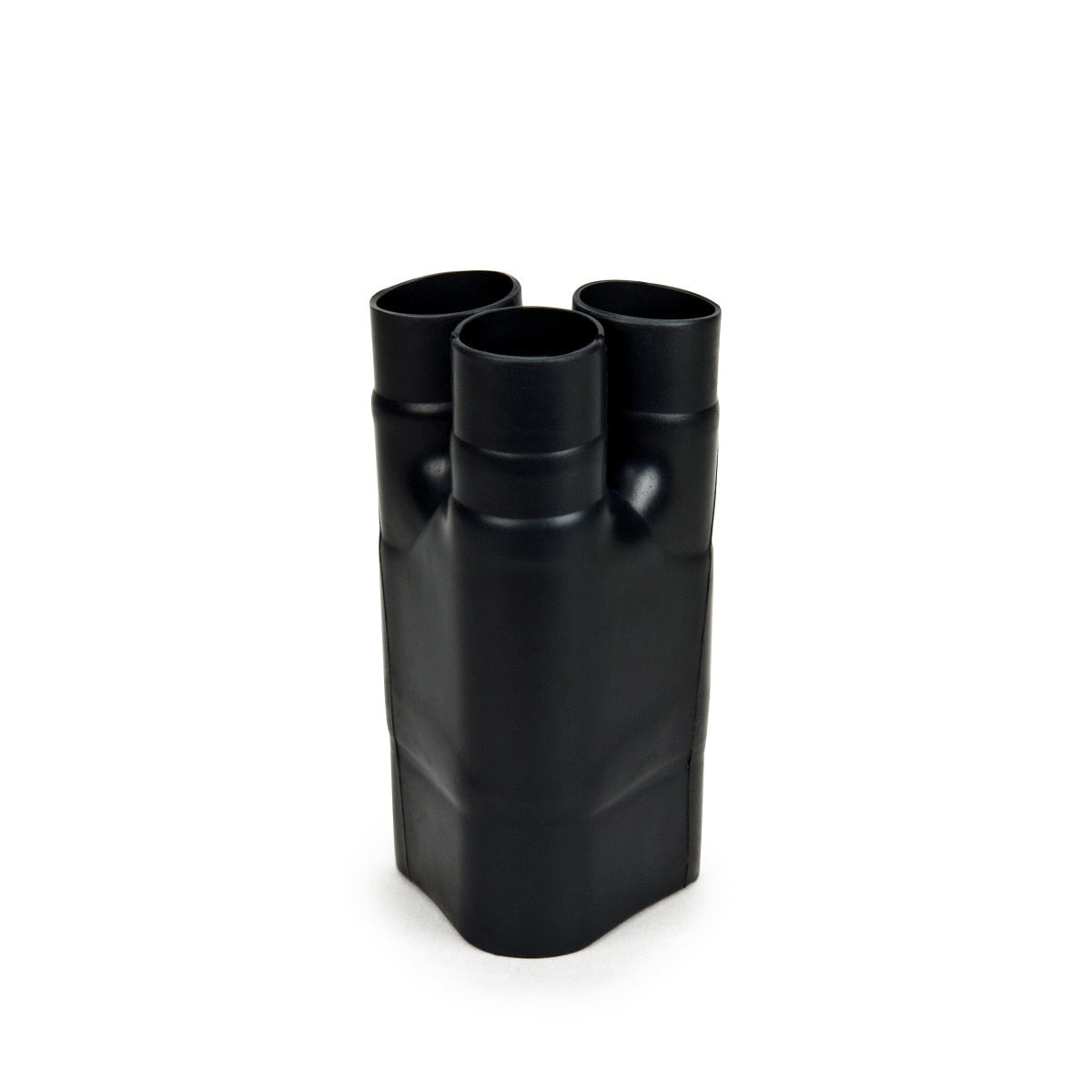

3M Heat Shrinkable Cable Breakout Boot helps insulate and seal cable breakouts in multi conductor armored or sheathed cables. The semi rigid flame retardant polyolefin construction with internal adhesive coating provides reliable environmental sealing and electrical and mechanical protection.
3M 7000132576 Includes
- (1) Heat Shrinkable Cable Breakout Boot
3M 7000132576 Features
- Helps ensure insulation and void free sealing of cable breakouts
- Internal adhesive coating helps provide reliable environmental sealing
- Provides electrical and mechanical protection
- Semi rigid flame retardant polyolefin construction
- RoHS 2011 65 EU compliant
- UV resistant
- 3 way outlet design
3M 7000132576 Specifications
| Part Number | HDBB-310-1-250 |
| Product Type | Cable and Wire Accessory |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Shrink Type | Heat Shrink |
| Outlet Style | 3 Way |
| Number of Outlets | 3 |
| Transition Type | 1 to 3 Breakout |
| Color | Black |
| Material | Semi rigid flame retardant polyolefin |
| Flame Retardant | Yes |
| UV Resistant | Yes |
| Indoor Outdoor | Both |
| Maximum Operating Temperature | 135 Degree Celsius |
| Operating Temperature | -30 to 135 Degree Celsius |
| Cable End Expanded | 0.9 in |
| Cable End Recovered | 0.36 in |
| Conductor Legs Expanded | 0.33 in |
| Conductor Legs Recovered | 0.12 in |
| Inner Diameter Before Shrink | 0.33 in |
| Inner Diameter After Shrink | 0.12 in |
| Outer Diameter Before Shrink | 0.9 in |
| Outer Diameter After Shrink | 0.36 in |
| Dielectric Strength | 10 kV per mm |
Toolup Part # :
849734
