At a Glance
Length
1.5 in
Max Temperature
275�F
Material
Polyolefin
Application
Electrical
Description
Description

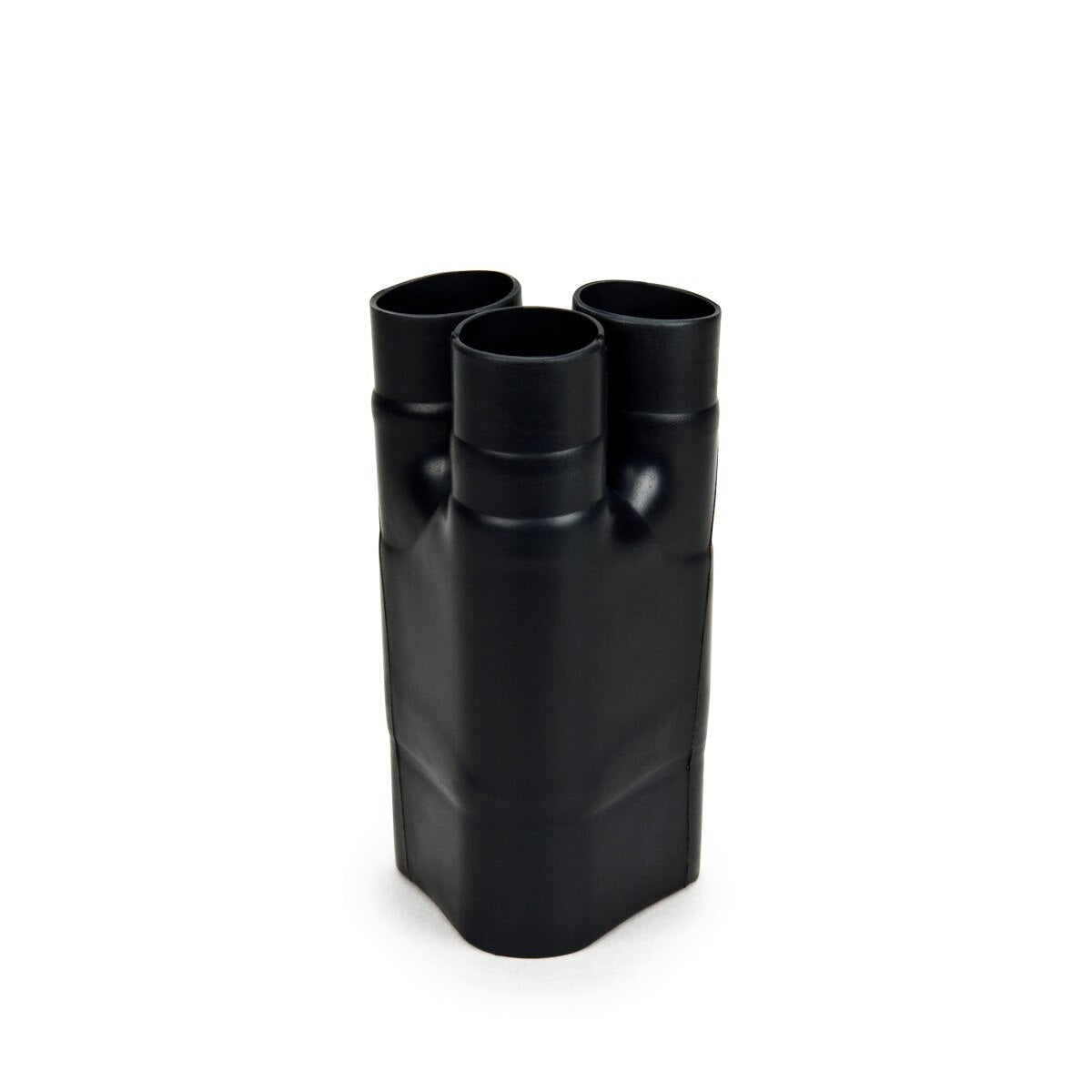

3M 7000132580 Description
Heat shrinkable cable breakout boot designed to insulate and seal multi conductor armored or sheathed cable breakouts, providing environmental sealing plus electrical and mechanical protection. Features a semi rigid, flame retardant polyolefin construction with internal adhesive coating for reliable void free sealing.
3M 7000132580 Includes
- (1) Heat Shrinkable Cable Breakout Boot (HDBB-340-1-250)
3M 7000132580 Features
- Heat shrinkable molded breakout boot for insulating and sealing cable breakouts
- Internal adhesive coating helps provide reliable environmental sealing
- Provides electrical and mechanical protection for multi conductor armored or sheathed cables
- Semi rigid flame retardant polyolefin construction
- 3 way outlet (1 to 3 breakout) design
- RoHS 2011/65/EU compliant
- UV resistant for indoor and outdoor use
3M 7000132580 Specifications
| Part Number | HDBB-340-1-250 |
| Color | Black |
| Number of Outlets | 3 |
| Outlet Style | 3 Way |
| Transition Type | 1 to 3 Breakout |
| Shrink Type | Heat Shrink |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Material | Semi rigid flame retardant polyolefin |
| Flame Retardant | Yes |
| UV Resistant | Yes |
| Indoor Outdoor | Both |
| Dielectric Strength | 10 kV per mm |
| Operating Temperature | -30 to 135 Degree Celsius |
| Maximum Operating Temperature | 135 Degree Celsius |
| Cable End Expanded | 3.2 in |
| Cable End Recovered | 2.0 in |
| Conductor Legs Expanded | 1.4 in |
| Conductor Legs Recovered | 0.75 in |
| Inner Diameter Before Shrink | 1.4 in |
| Inner Diameter After Shrink | 0.75 in |
| Outer Diameter Before Shrink | 3.2 in |
| Outer Diameter After Shrink | 2.0 in |
| Product Type | Cable and Wire Accessory |
| RoHS | RoHS 2011/65/EU compliant without exemption |
Toolup Part # :
849726
