At a Glance
Diameter
1-1/4 in
Max Temperature
275�F
Material
Polyolefin
Application
Electrical
Description
Description
3M 7000132581 Description

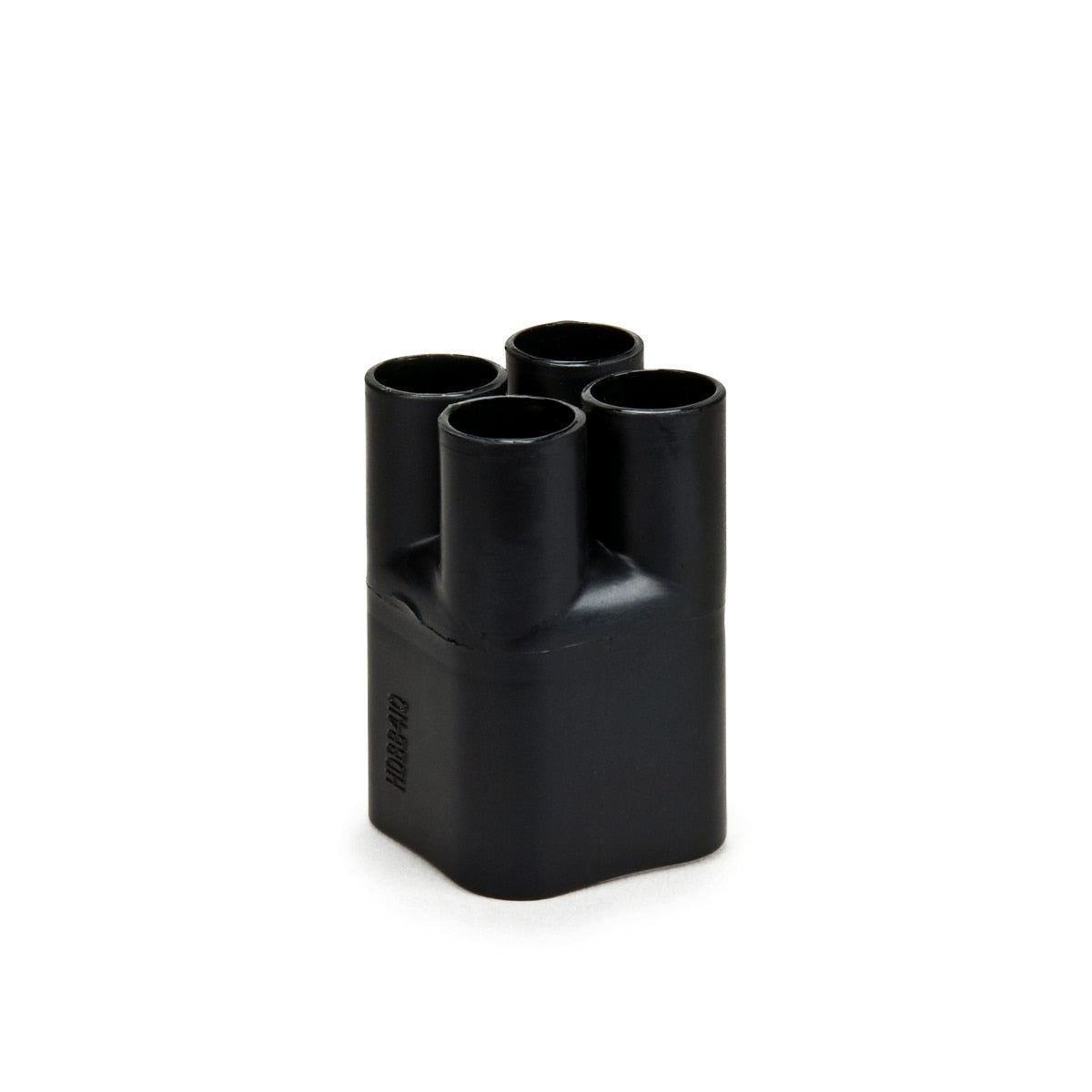

This heat shrinkable 3M cable breakout boot insulates and seals cable breakouts in multi conductor armored or sheathed cables. The semi rigid flame retardant polyolefin construction with an internal adhesive coating provides reliable environmental sealing and strong electrical and mechanical protection for indoor or outdoor applications.
3M 7000132581 Includes
- (1) Heat Shrinkable Cable Breakout Boot
3M 7000132581 Features
- Insulates and seals cable breakouts in multi conductor armored or sheathed cables
- Internal adhesive coating helps provide reliable environmental sealing
- Provides strong electrical and mechanical protection
- Semi rigid flame retardant polyolefin construction
- RoHS 2011/65/EU compliant without exemption
- UV resistant for demanding environments
- Suitable for indoor and outdoor use
- 4 way outlet style for 1 to 4 breakout transitions
3M 7000132581 Specifications
| Product Type | Cable and Wire Accessory |
| Global Product Hierarchy | Cable Breakout Boots |
| Part Number | HDBB-410-1-250 |
| Color | Black |
| Outlet Style | 4 Way |
| Number of Outlets | 4 |
| Transition Type | 1 - 4 Breakout |
| Shrink Type | Heat Shrink |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Material | Semi rigid flame retardant polyolefin |
| Flame Retardant | Yes |
| UV Resistant | Yes |
| Indoor Outdoor | Both |
| Dielectric Strength | 10 kV per mm |
| Operating Temperature | -30 to 135 Degree Celsius |
| Maximum Operating Temperature | 135 Degree Celsius |
| Cable End Expanded | 1.25 in |
| Cable End Recovered | 0.8 in |
| Conductor Legs Expanded | 0.5 in |
| Conductor Legs Recovered | 0.19 in |
| Inner Diameter Before Shrink | 0.5 in |
| Inner Diameter After Shrink | 0.19 in |
| Outer Diameter Before Shrink | 1.25 in |
| Outer Diameter After Shrink | 0.8 in |
Toolup Part # :
849730
