At a Glance
Length
6 in
Max Temperature
230�F
Material
Polyolefin
Application
Electrical
Description
Description
3M 7010350257 Description

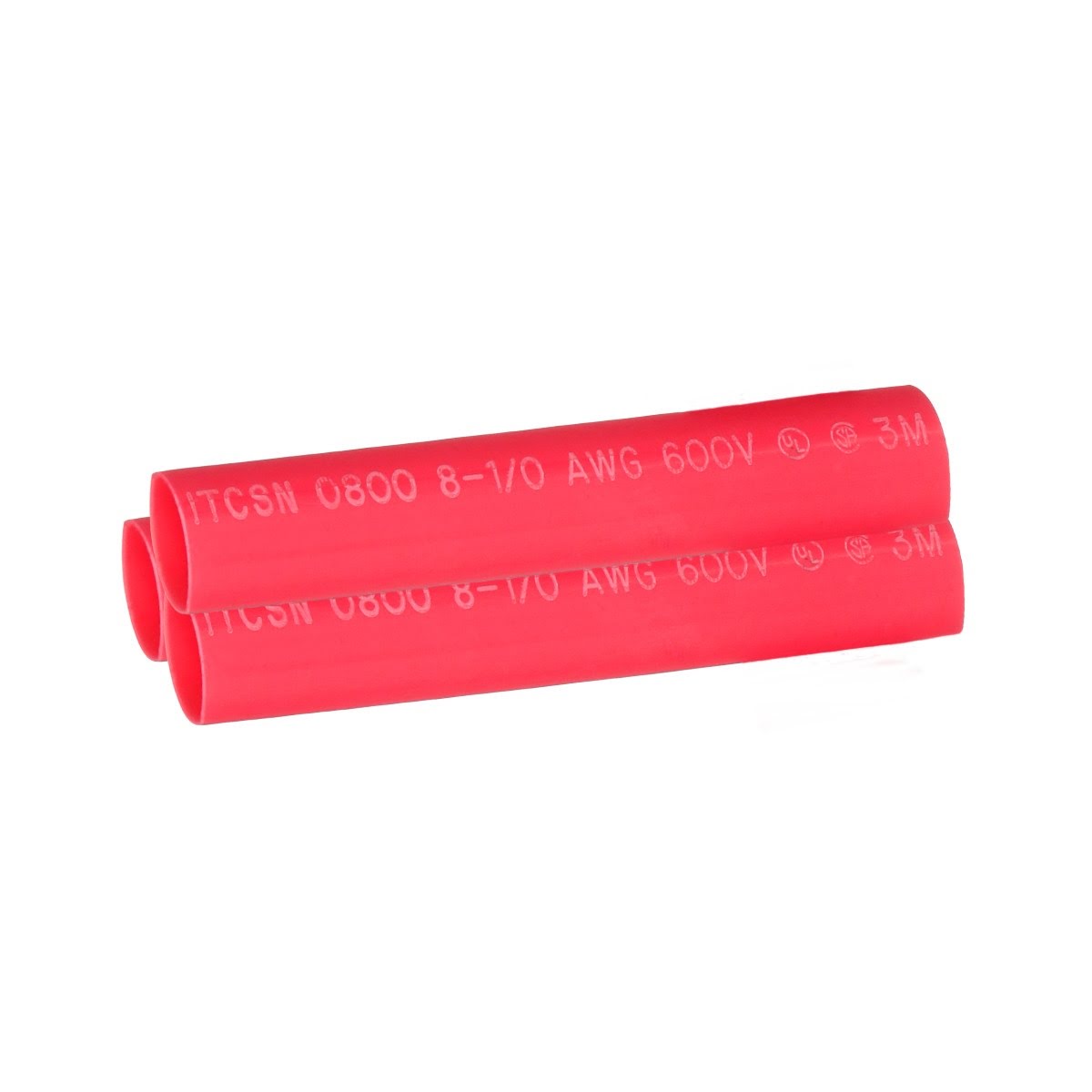

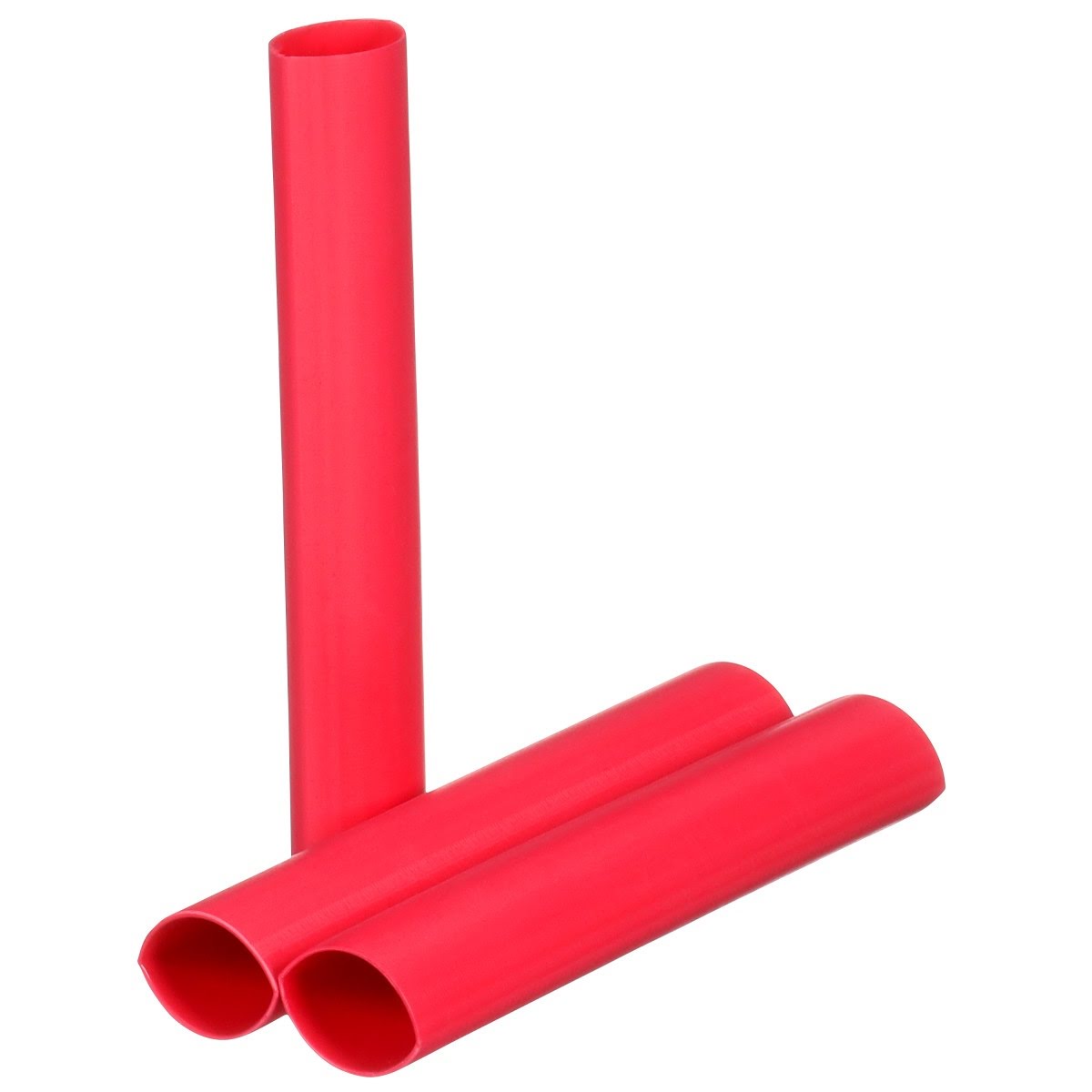

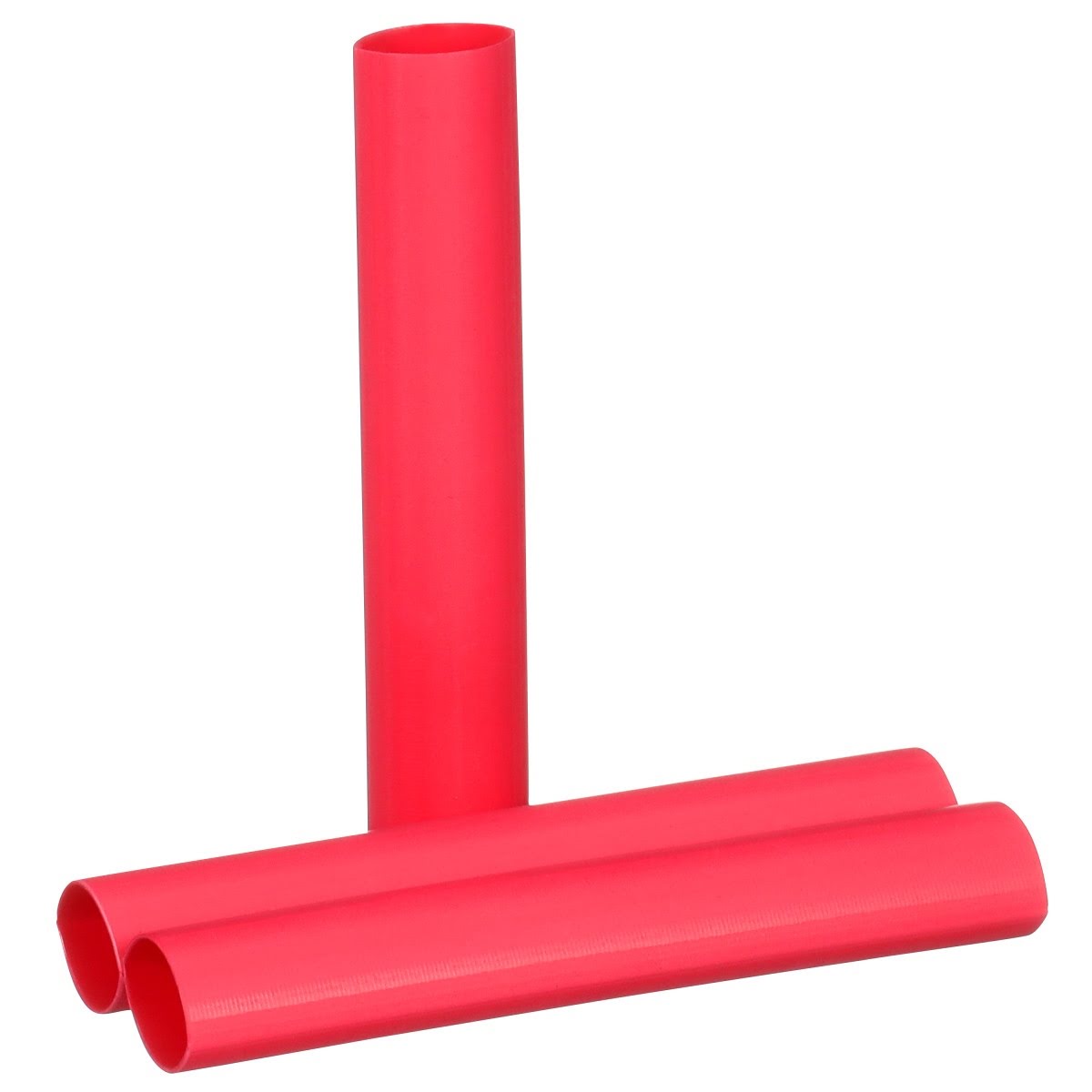

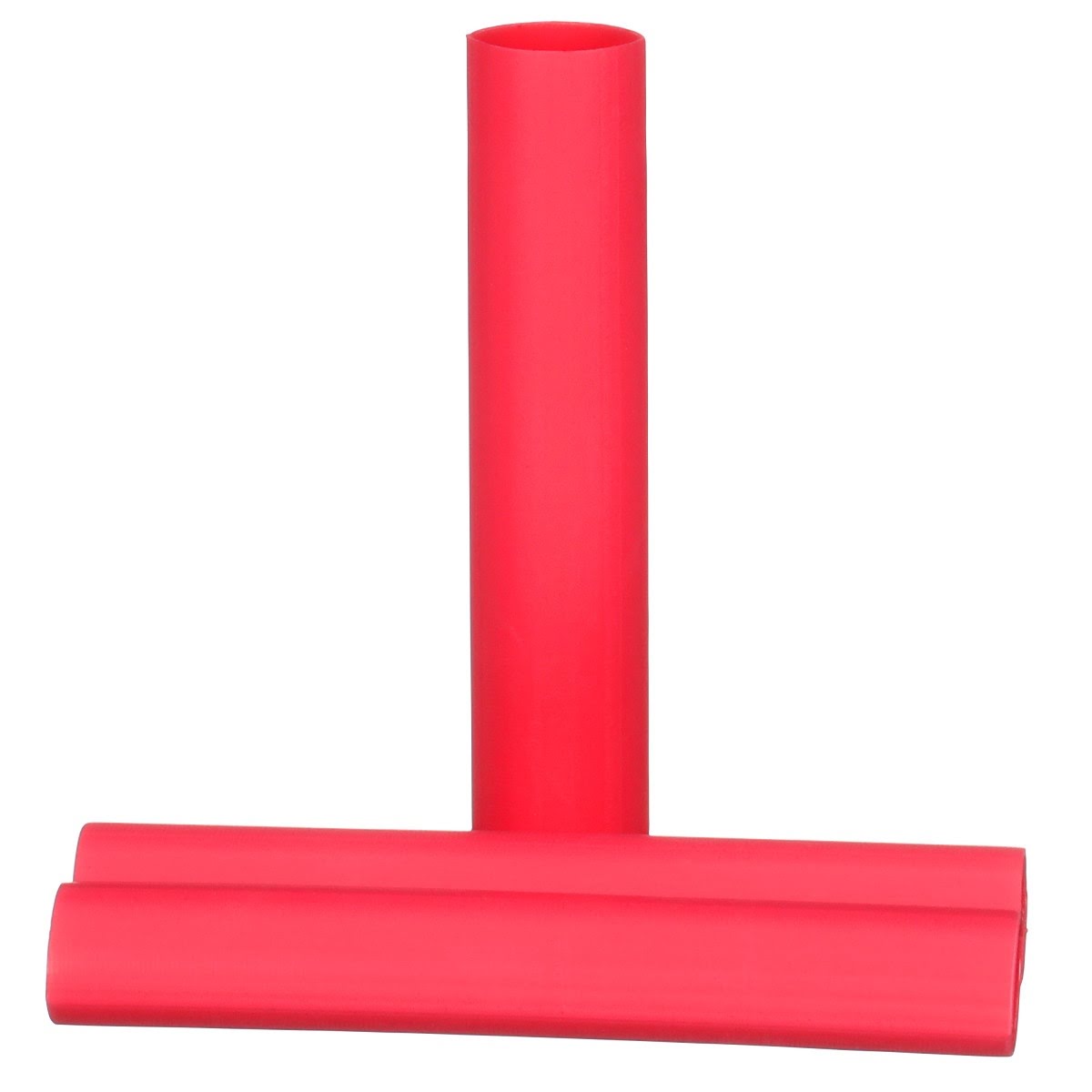

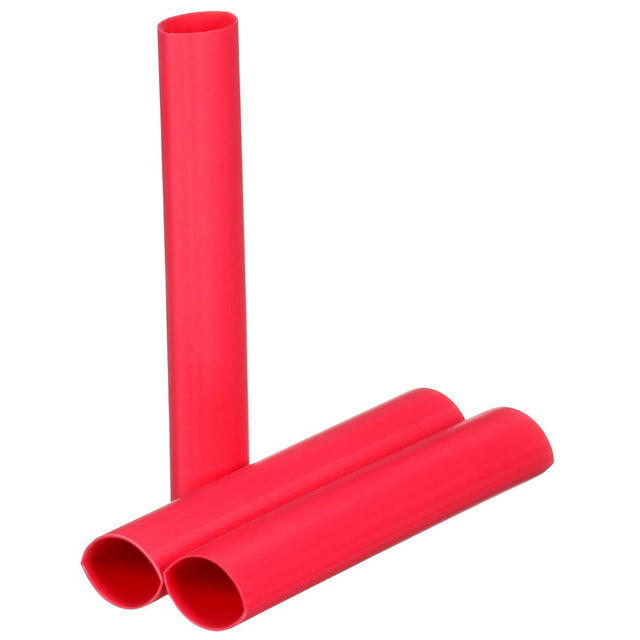

3M Heat Shrink Cable Sleeve ITCSN is a heavy wall, adhesive lined sleeve designed to provide electrical insulation and moisture seal protection for splices, connections, and terminations. The cross linked polyolefin construction helps resist abrasion, corrosion, and chemicals in indoor and outdoor applications.
3M 7010350257 Includes

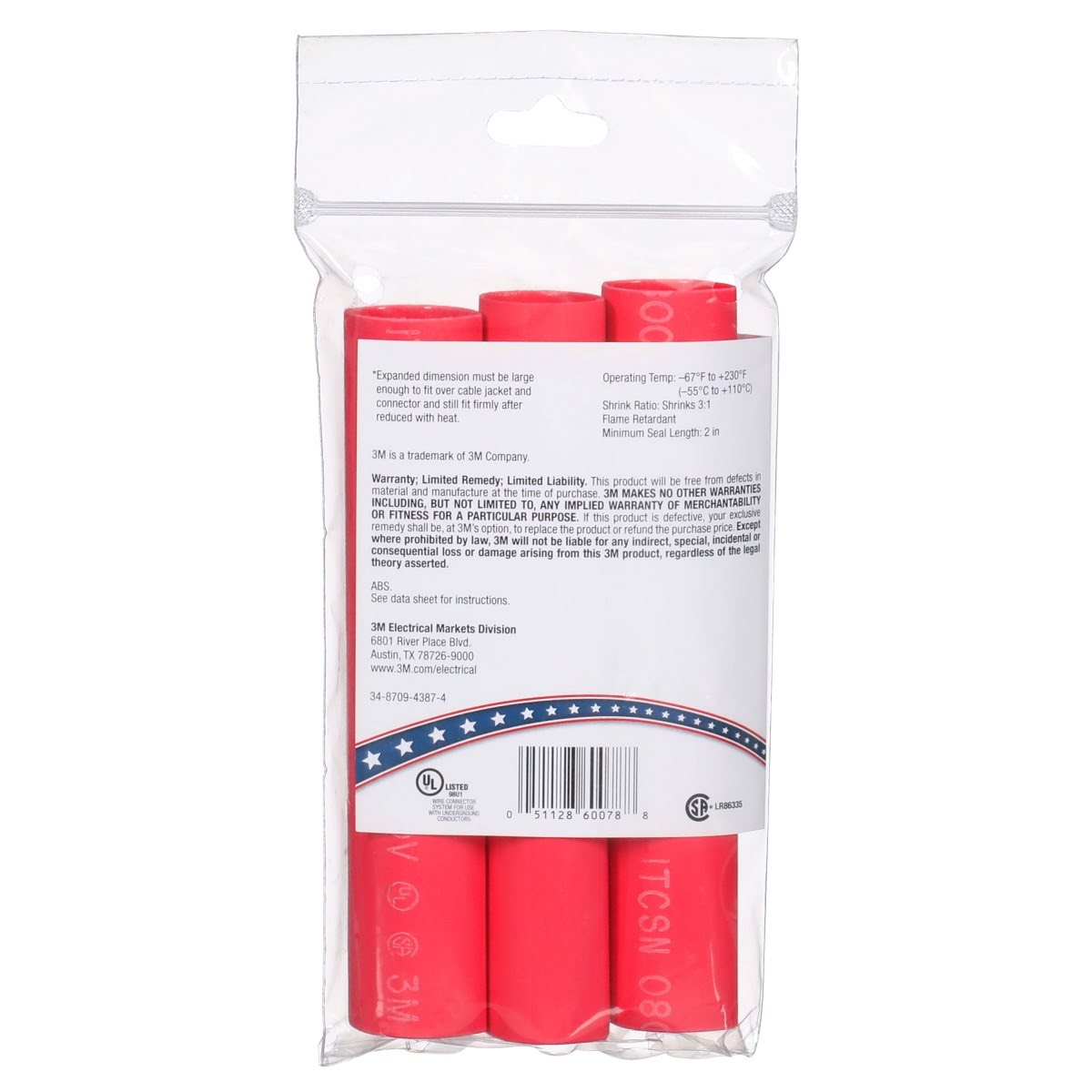

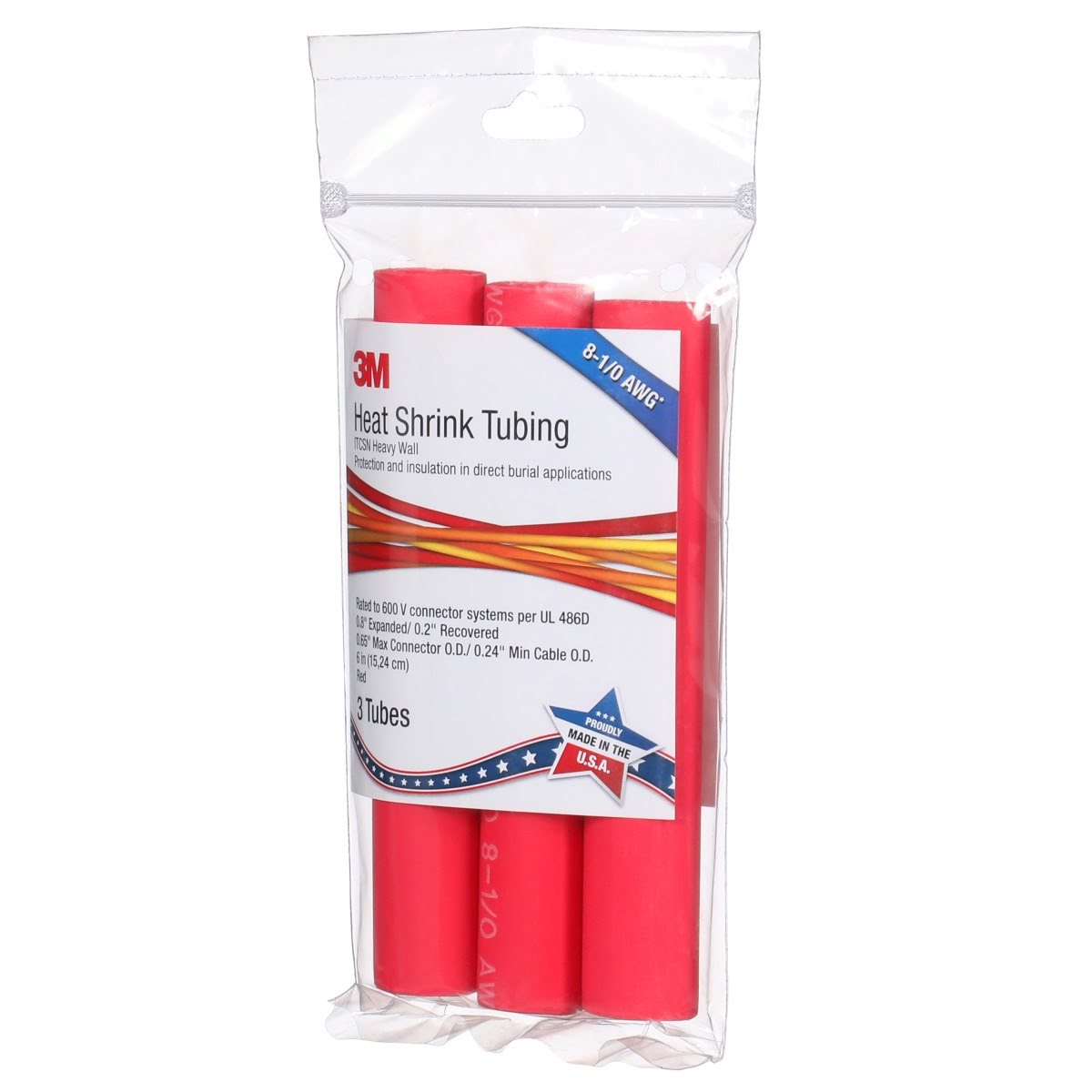

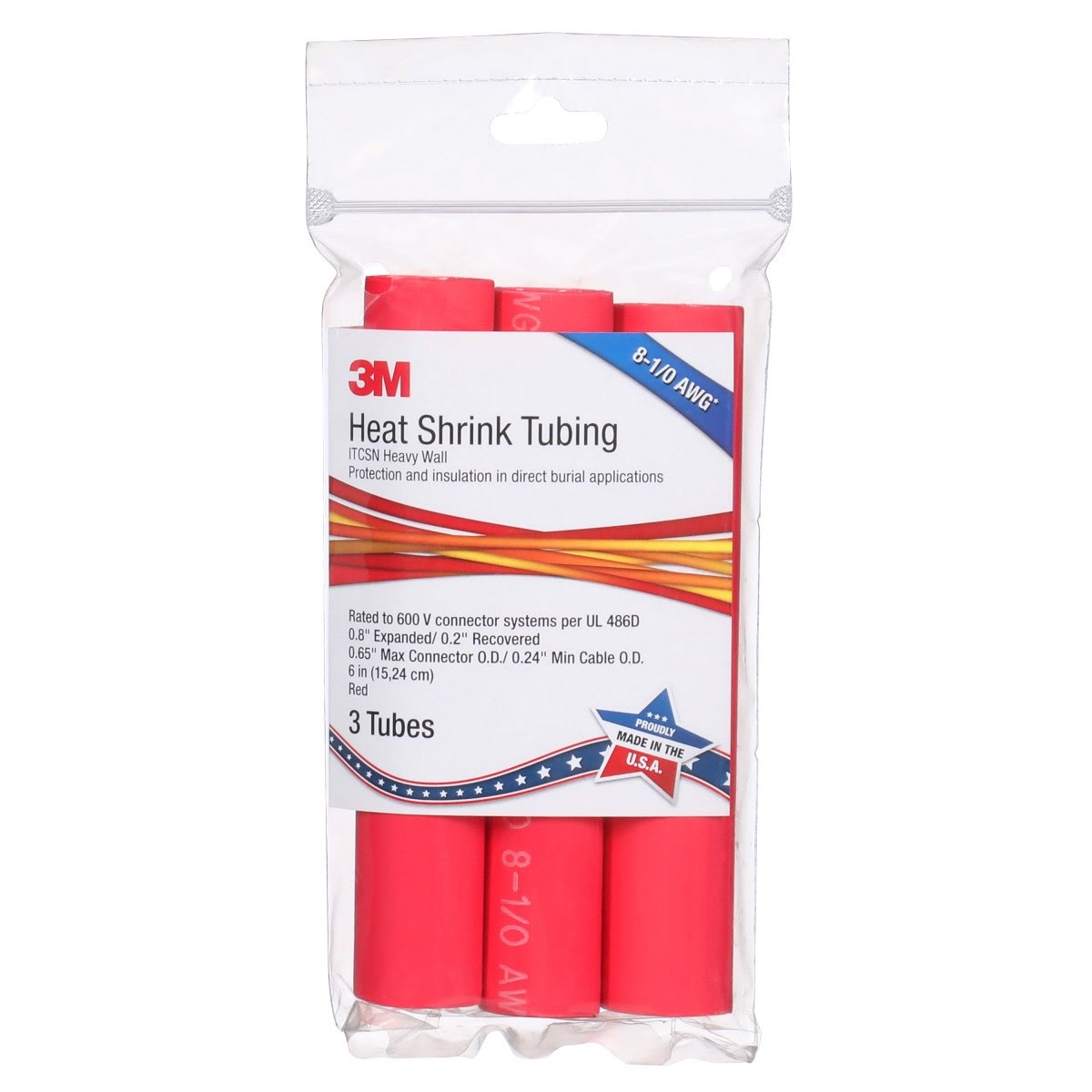

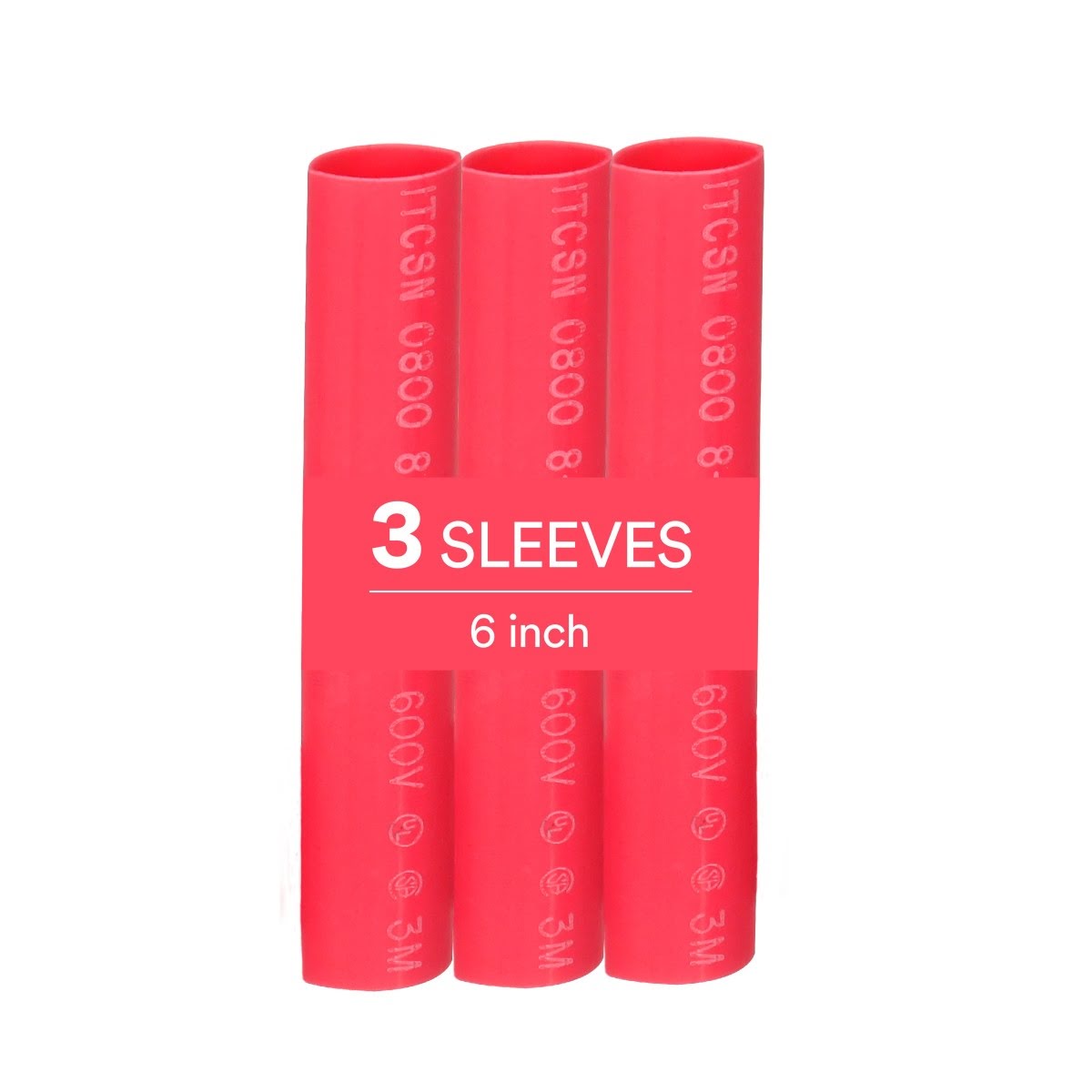

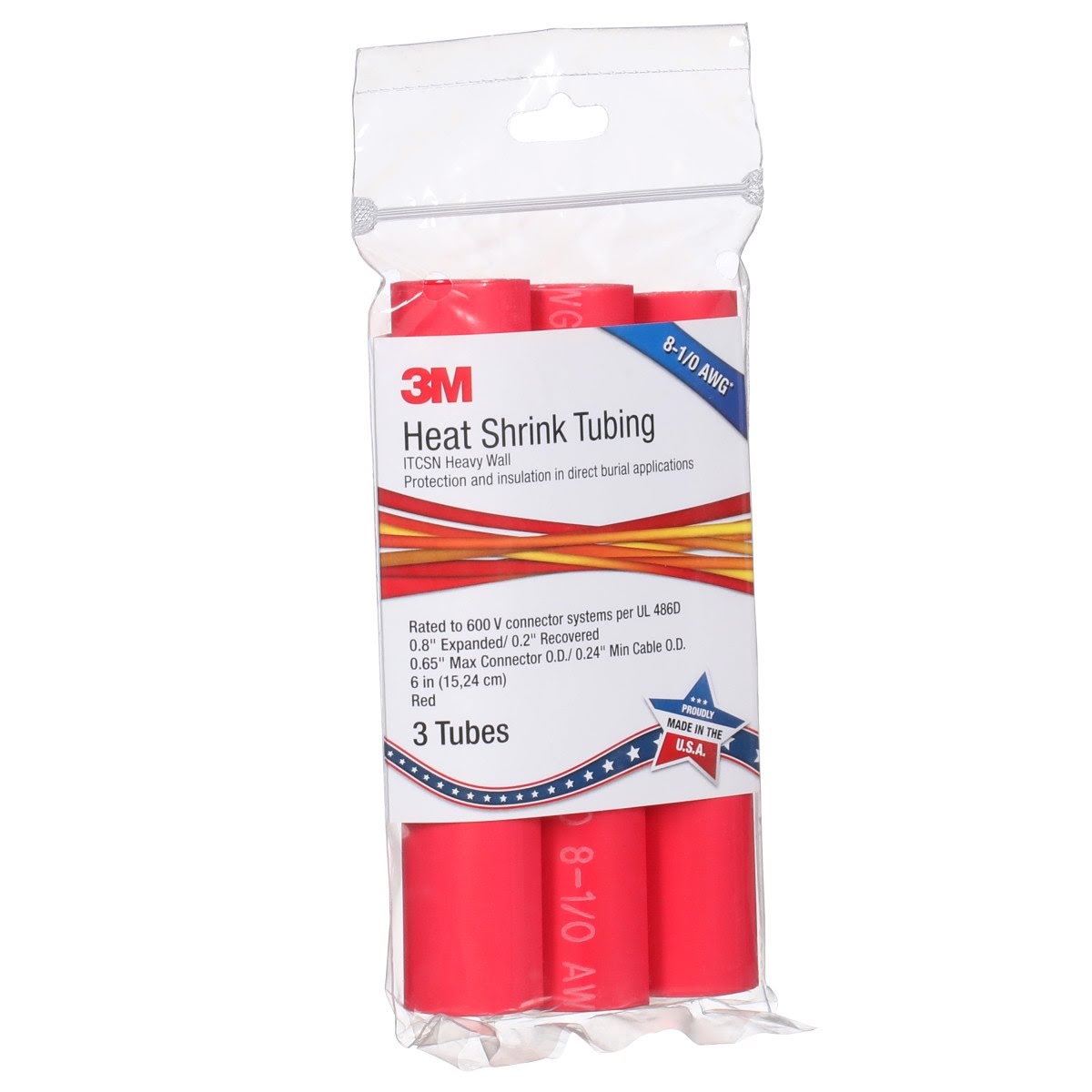

- (12) - 3M 7010350257 Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, Red Color, Polyolefin Tubing, Indoor, Outdoor, 6 In Length Pieces, 3 Pieces-Pack (IT0.800RD6P)
3M 7010350257 Features
- Heavy wall heat shrink sleeve for electrical splice and termination protection
- Adhesive lined for moisture seal protection
- Cross linked polyolefin construction
- 3:1 shrink ratio for secure recovery
- Split resistant design
- Helps protect against abrasion, corrosion, and chemicals
- Suitable for indoor and outdoor use
- Voltage rated up to 1 kV
- UL rated to 600 V per UL 486D
- Operating temperature range -67 Degree F to 230 Degree F
3M 7010350257 Specifications
| Model | ITCSN-0800 |
| Part Number | IT0.800RD6P |
| Material | Polyolefin |
| Adhesive Lined | Yes |
| Shrink Ratio | 3:1 |
| Color | Red |
| Overall Length | 6 in |
| Expanded Inner Diameter | 0.8 in |
| Recovered Inner Diameter | 0.2 in |
| Cable Size Range | 8 to 1/0 AWG |
| Maximum Voltage Rating | 1 kV |
| Operating Temperature | -67 Degree F to 230 Degree F |
Toolup Part # :
860258
