3M 7010305769 Description

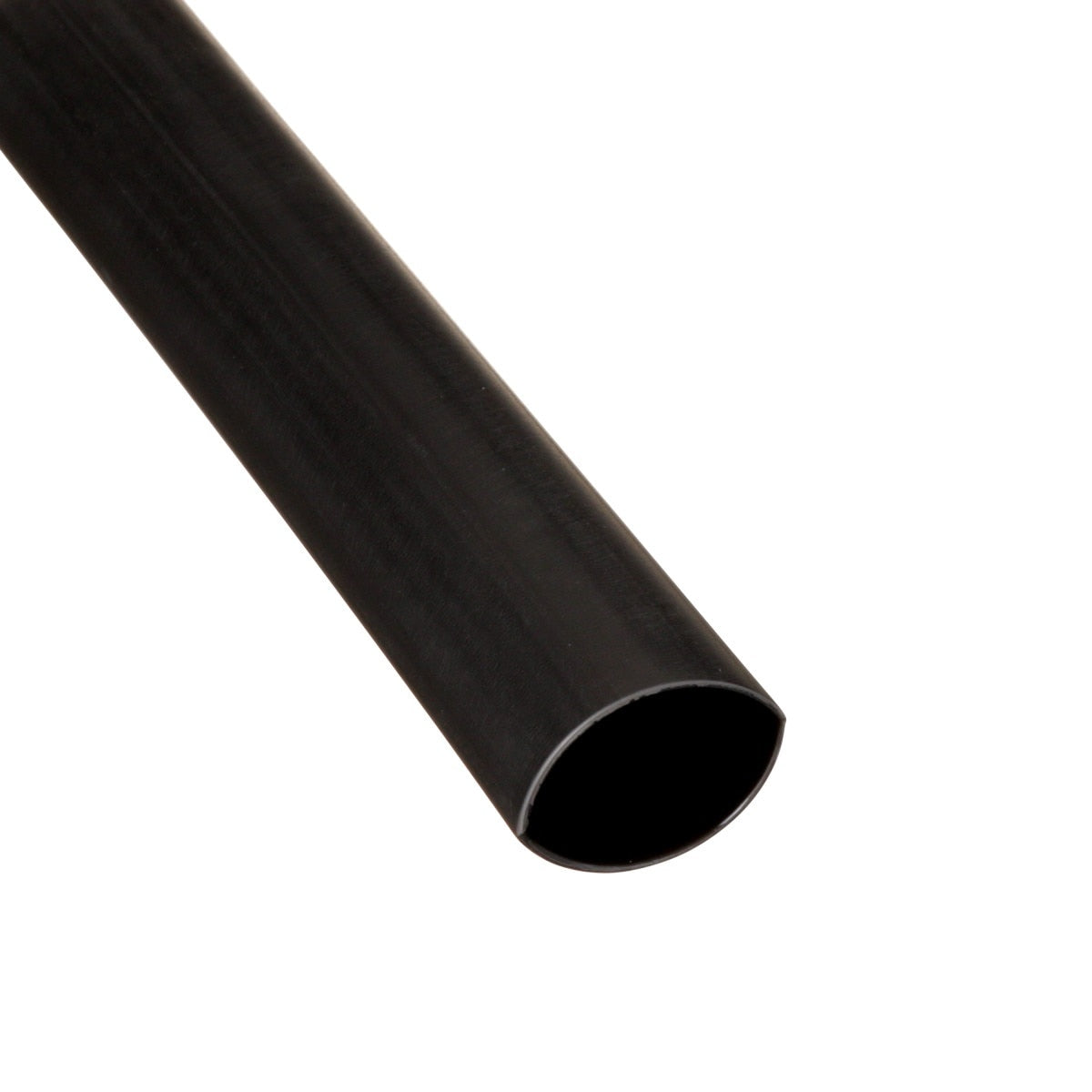

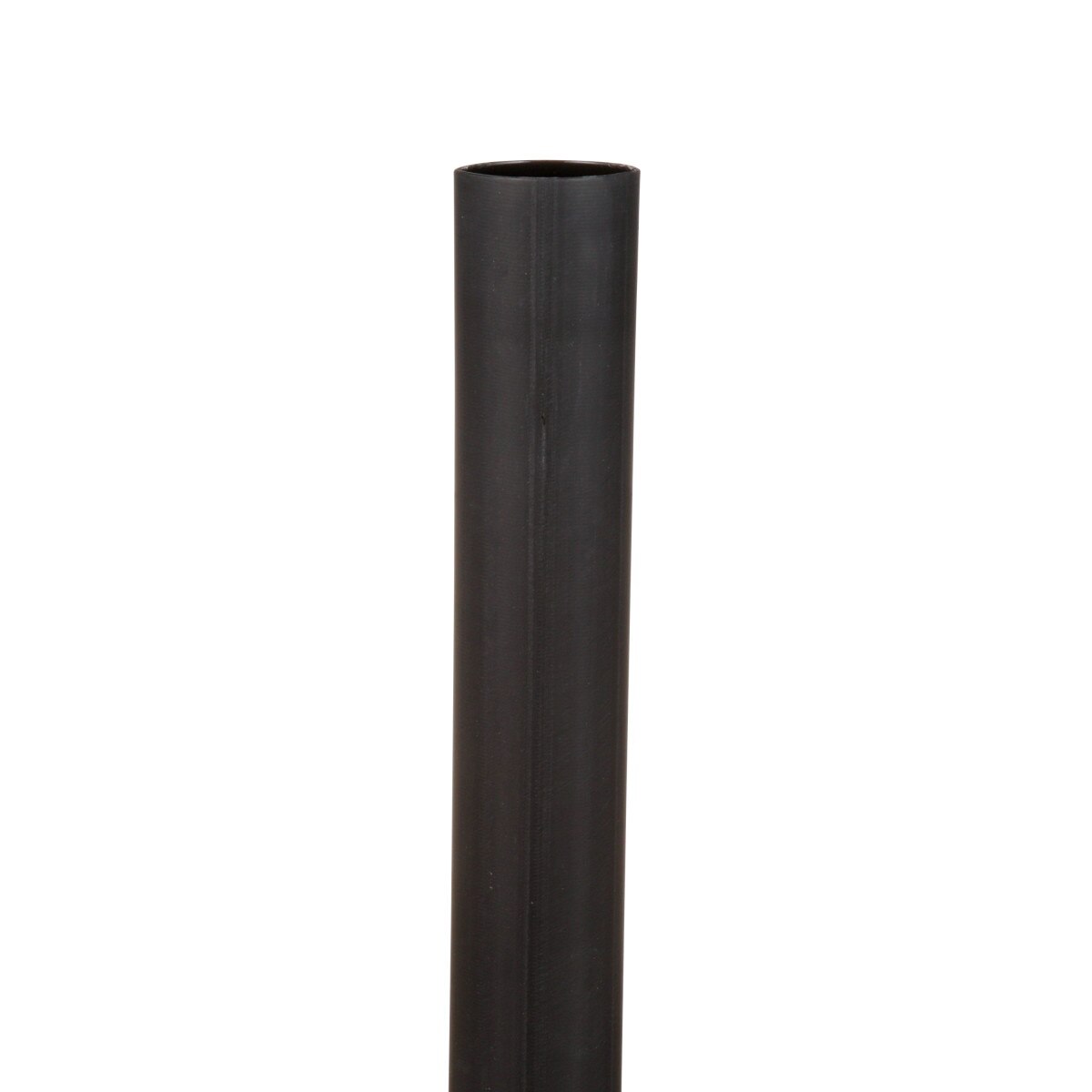

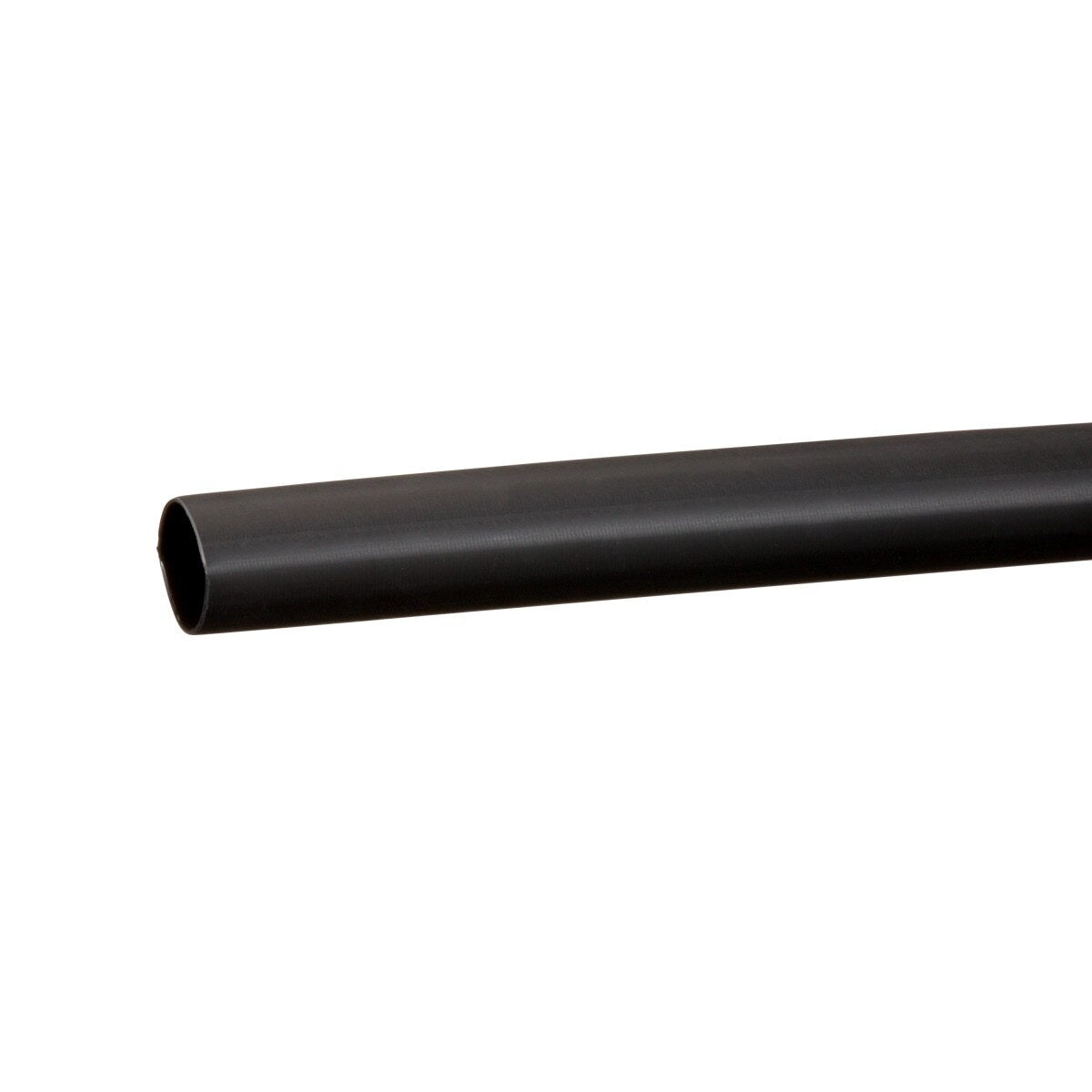

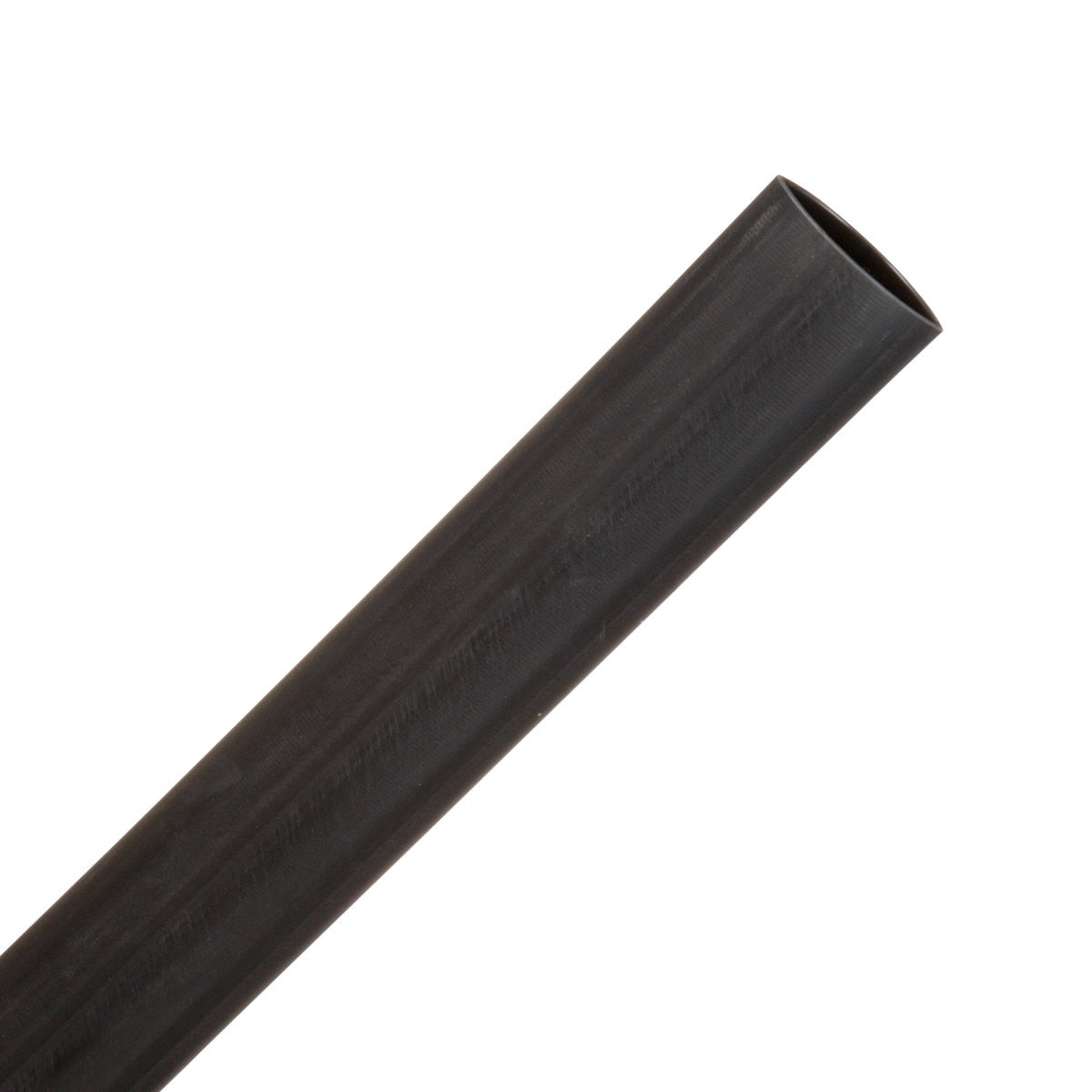

3M Heat Shrink Cable Sleeve ITCSN-1100 is a heavy wall, adhesive-lined polyolefin sleeve that provides mechanical and environmental protection for electrical splices, connections and terminations. It delivers abrasion, corrosion and chemical resistance with a moisture-sealing adhesive and a 3:1 shrink ratio for 1 kV rated applications.
3M 7010305769 Includes

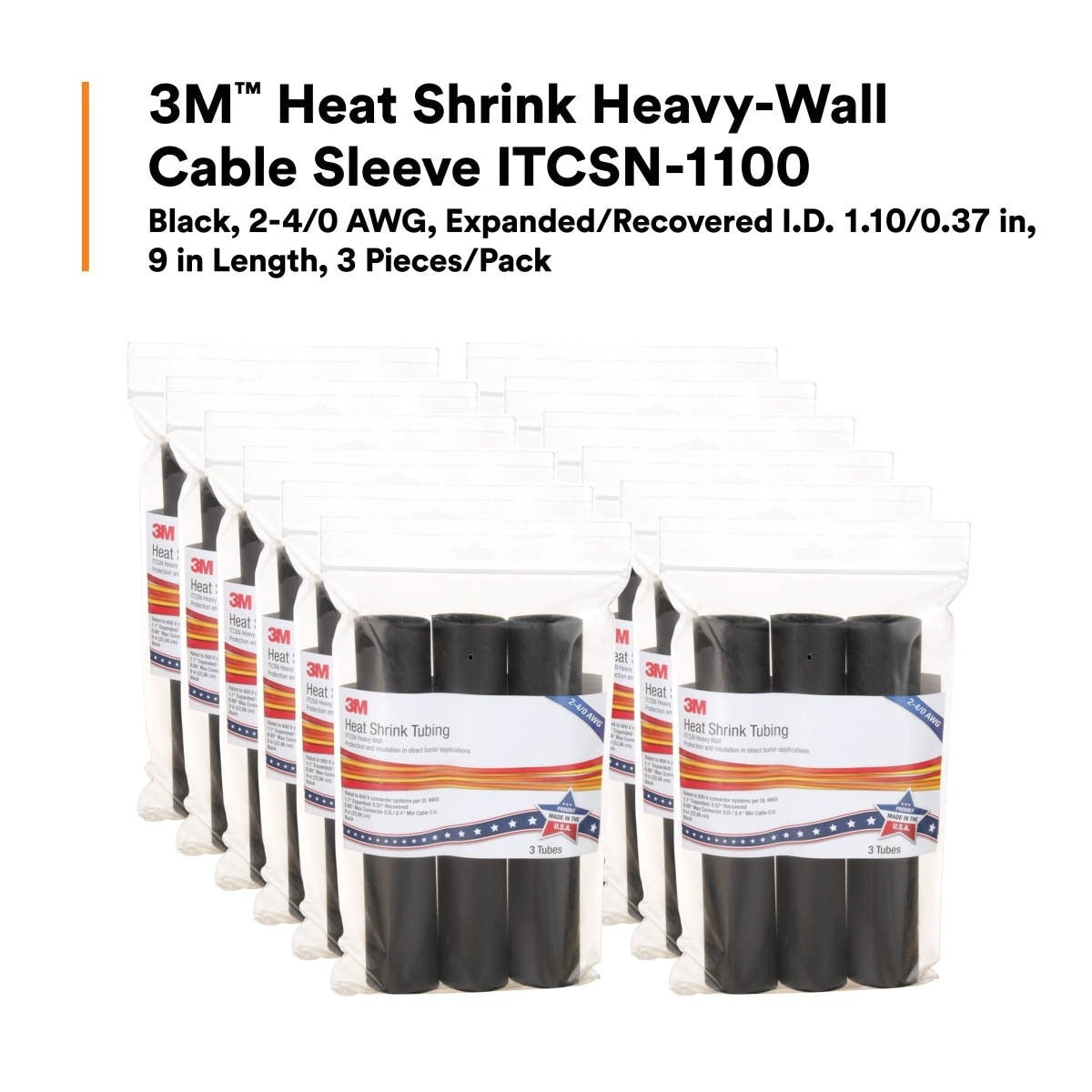

- (36) - 3M 7010305769 Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, Mechanical and Environmental Protection, Black, 2-4/0 AWG, Expanded/Recovered I.D. 1.10/0.37 in, 9 in Length, Pieces (IT1.100BK9P)
3M 7010305769 Features

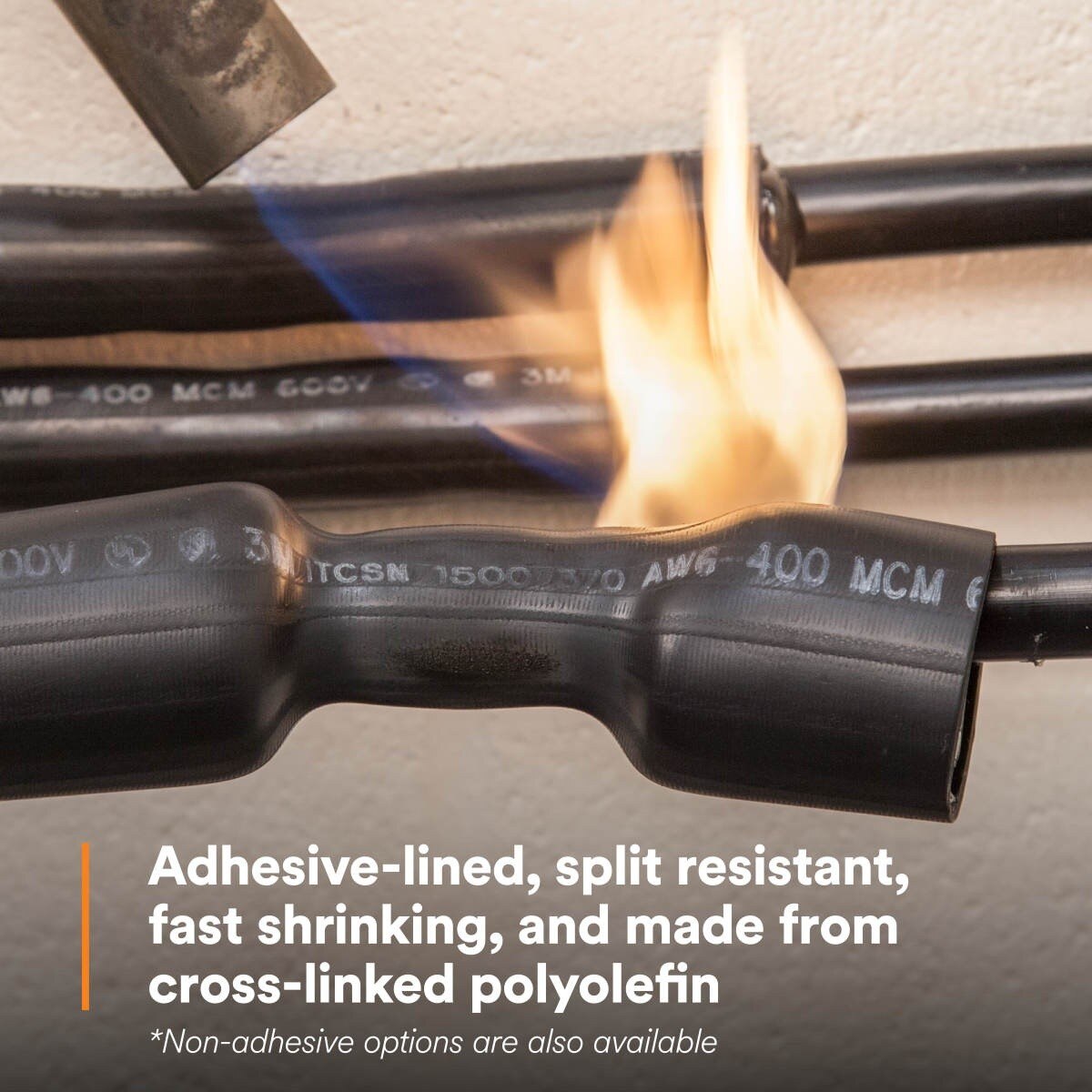

- Heavy-wall, adhesive-lined polyolefin heat shrink sleeve
- Split resistant design with factory applied adhesive sealant

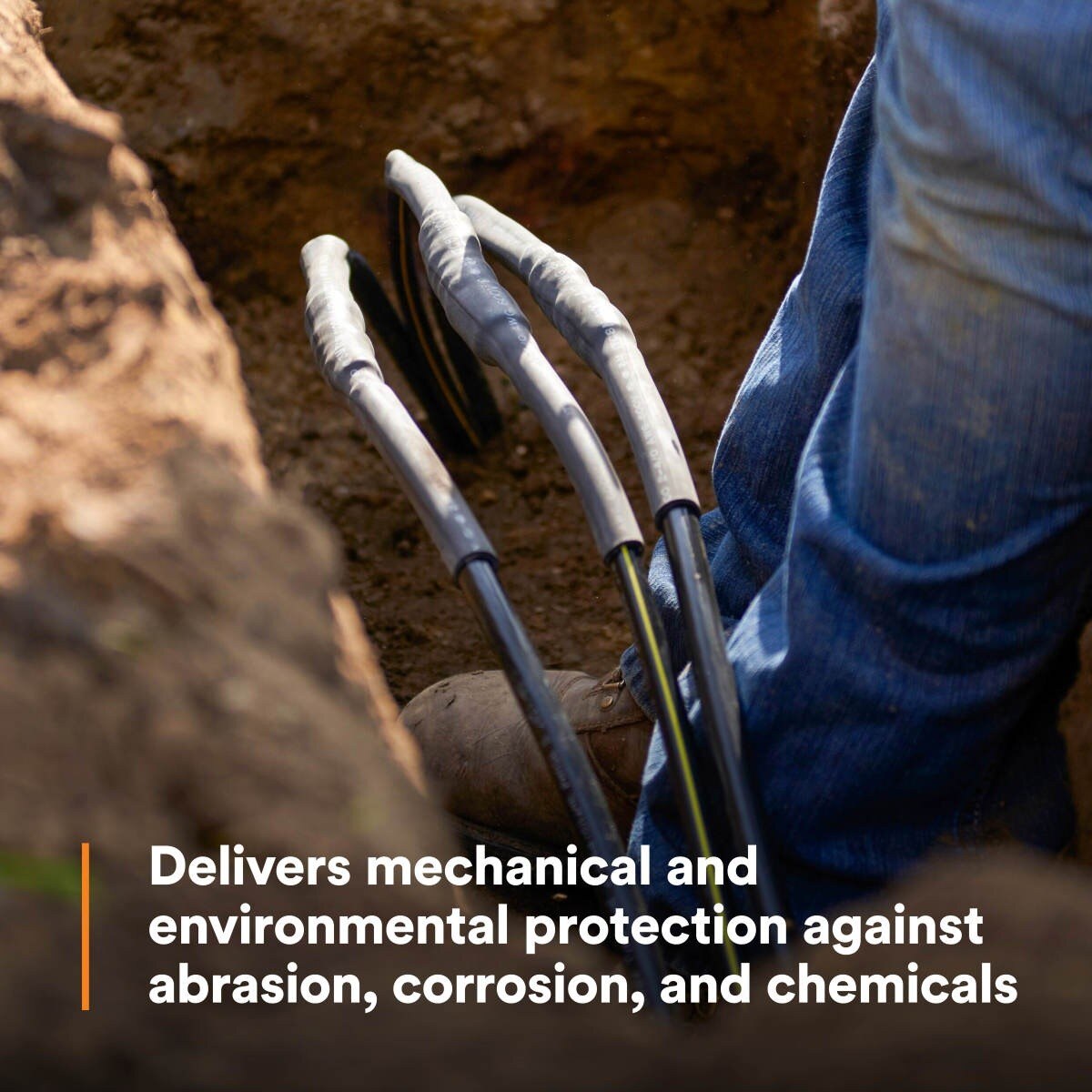

- Provides abrasion, corrosion and chemical resistance
- Moisture seal protection for splices, connections and terminations
- 3:1 shrink ratio

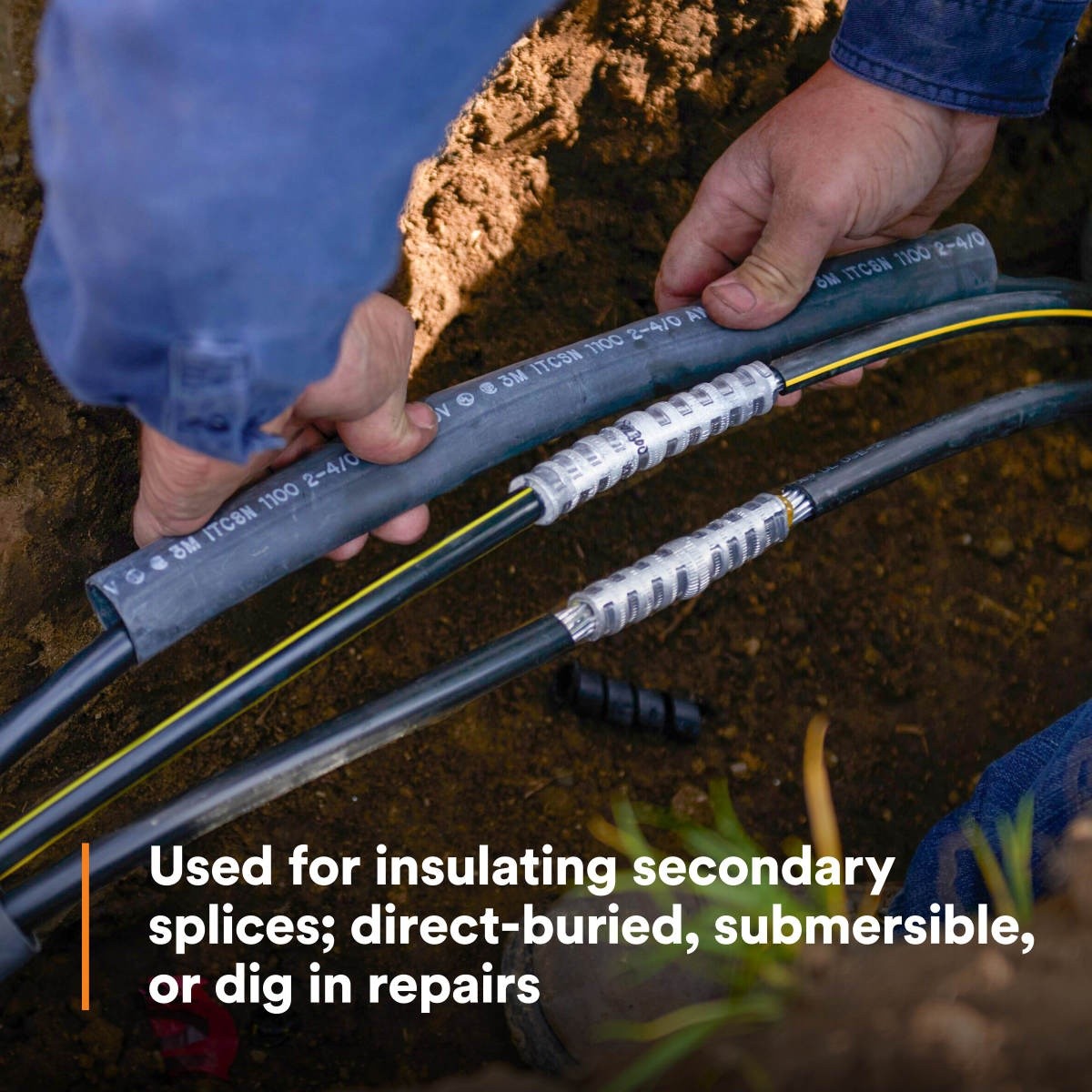

- For direct-buried, submersible and dig-in repair applications
- Voltage rating up to 1 kV (UL rated to 600 V)

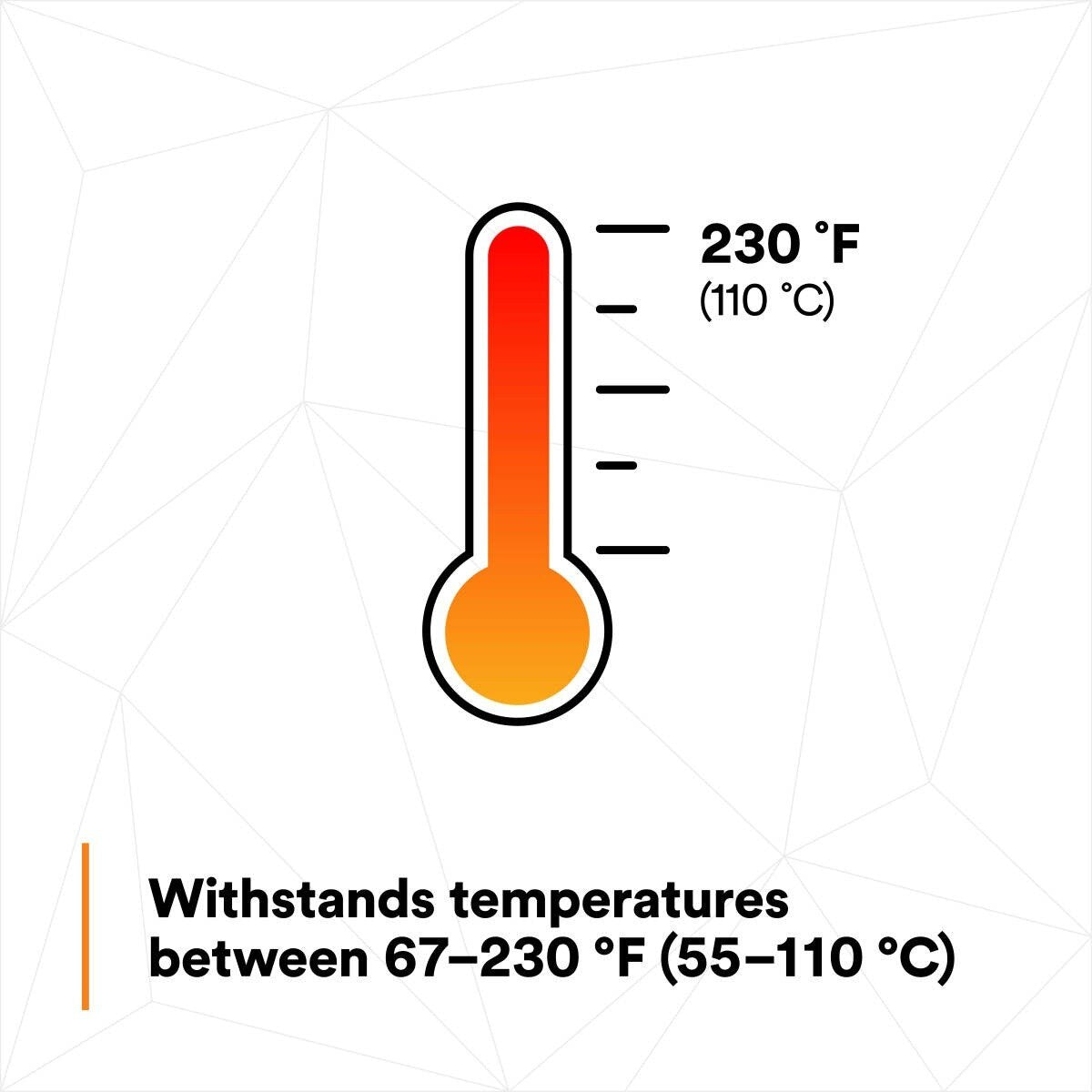

- Operating temperature range -67 to 230 Degree F

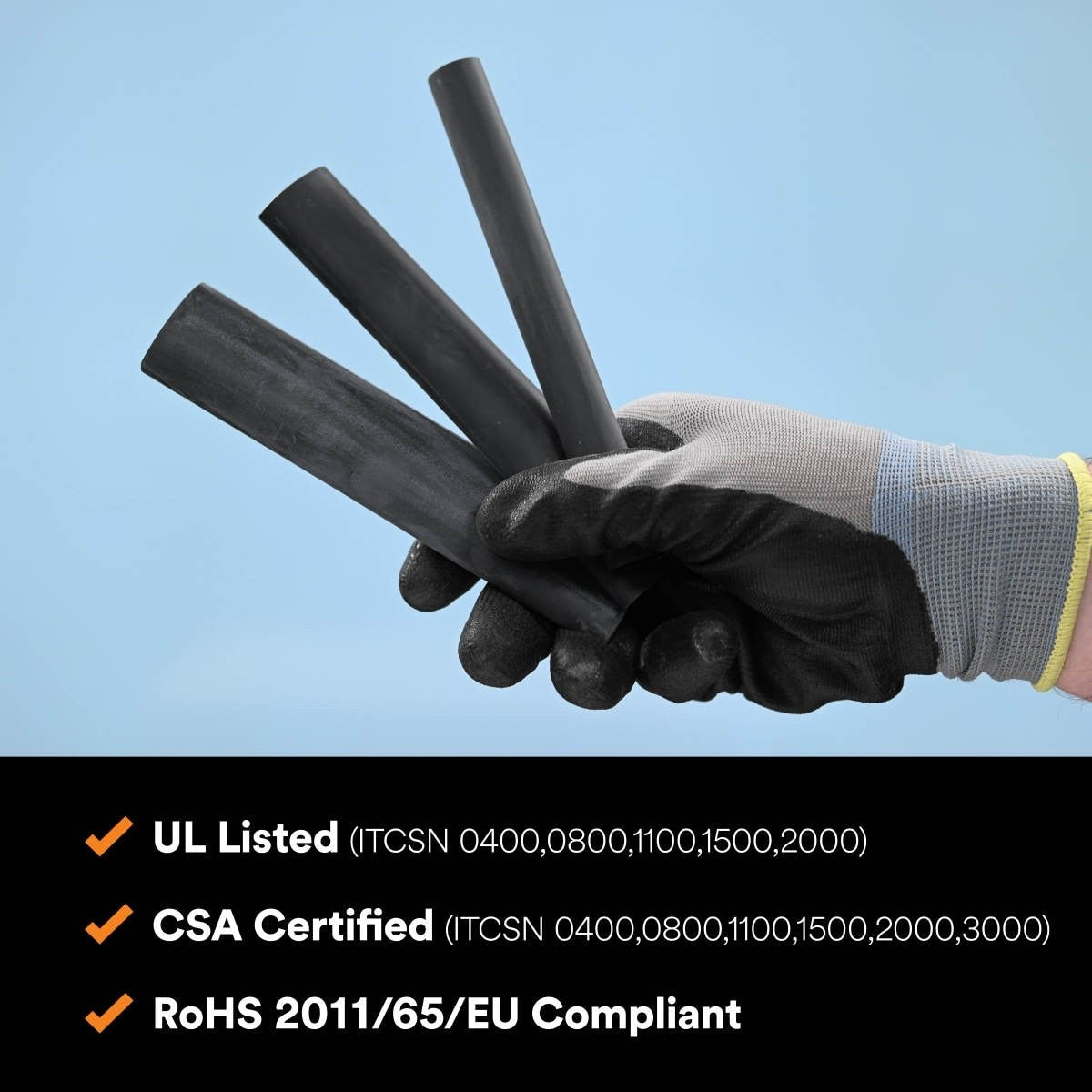

- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7010305769 Specifications
| Product Type | Heat Shrink Heavy-Wall Cable Sleeve |
| Model | ITCSN-1100 |
| Color | Black |
| Cable Size Range | 2-4/0 AWG |
| Overall Length | 9 in |
| Expanded Inner Diameter | 1.1 in |
| Recovered Inner Diameter | 0.37 in |
| Shrink Ratio | 3:1 |
| Material | Polyolefin |
| Adhesive Lined | Yes |
| Maximum Voltage Rating | 1 kV |
| Dielectric Strength | 500 V/mil |
| Maximum Operating Temperature | 110 Degree Celsius |
| Maximum Operating Temperature | 230 Degree Fahrenheit |
| Flame Retardant | No |
| Specifications Met | UL 486D |
| Direct Bury | Yes |
