Description
Description
3M 7100022418 Description

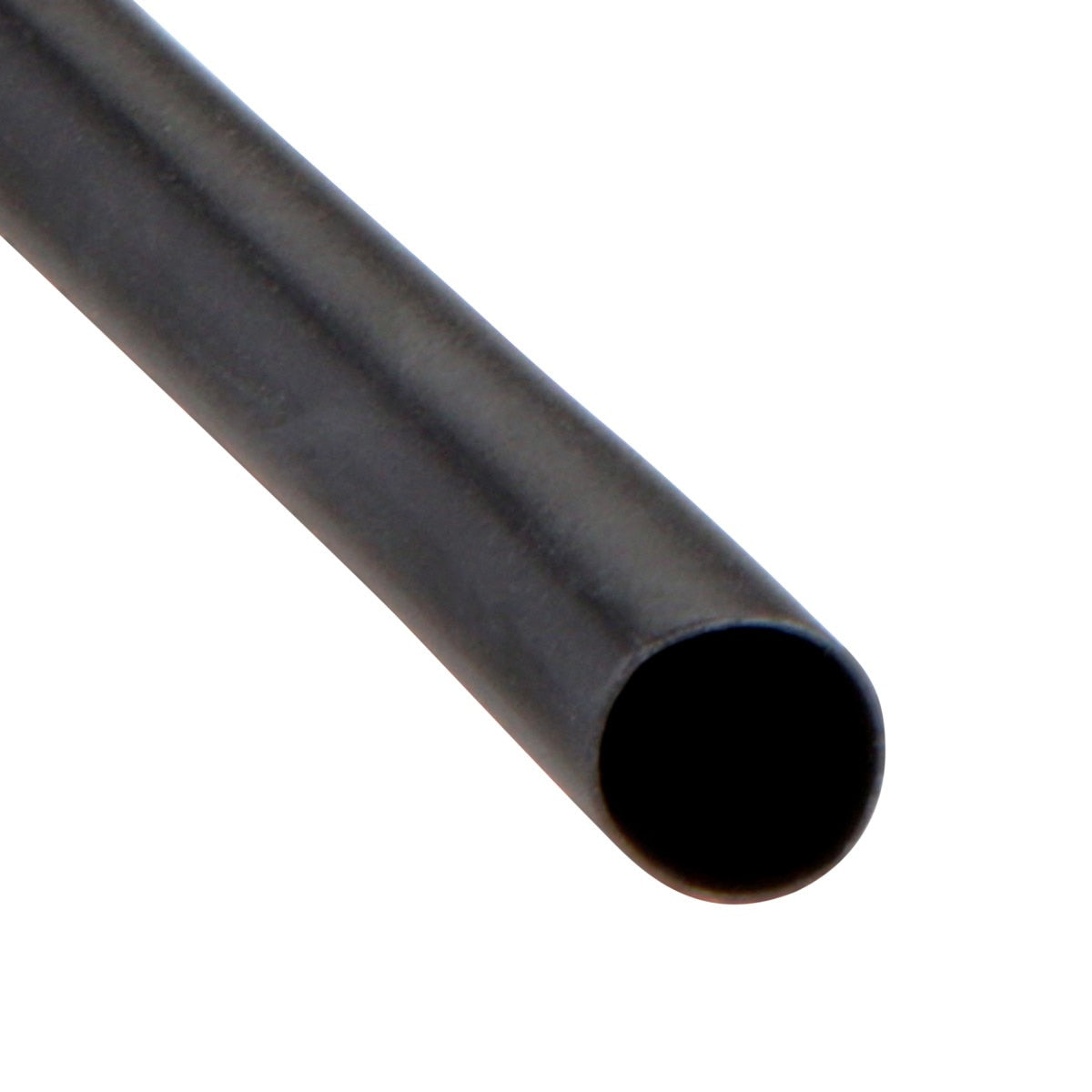

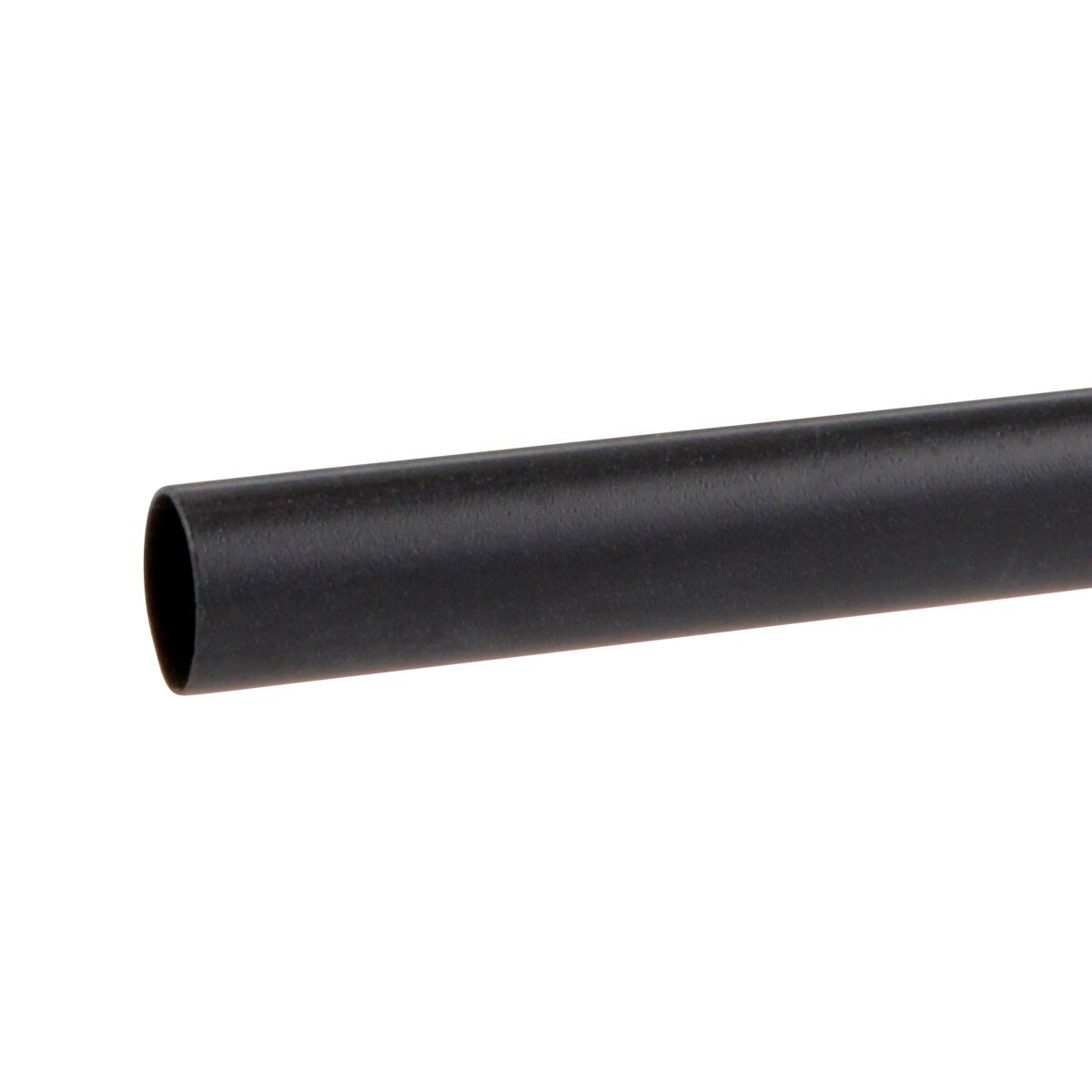

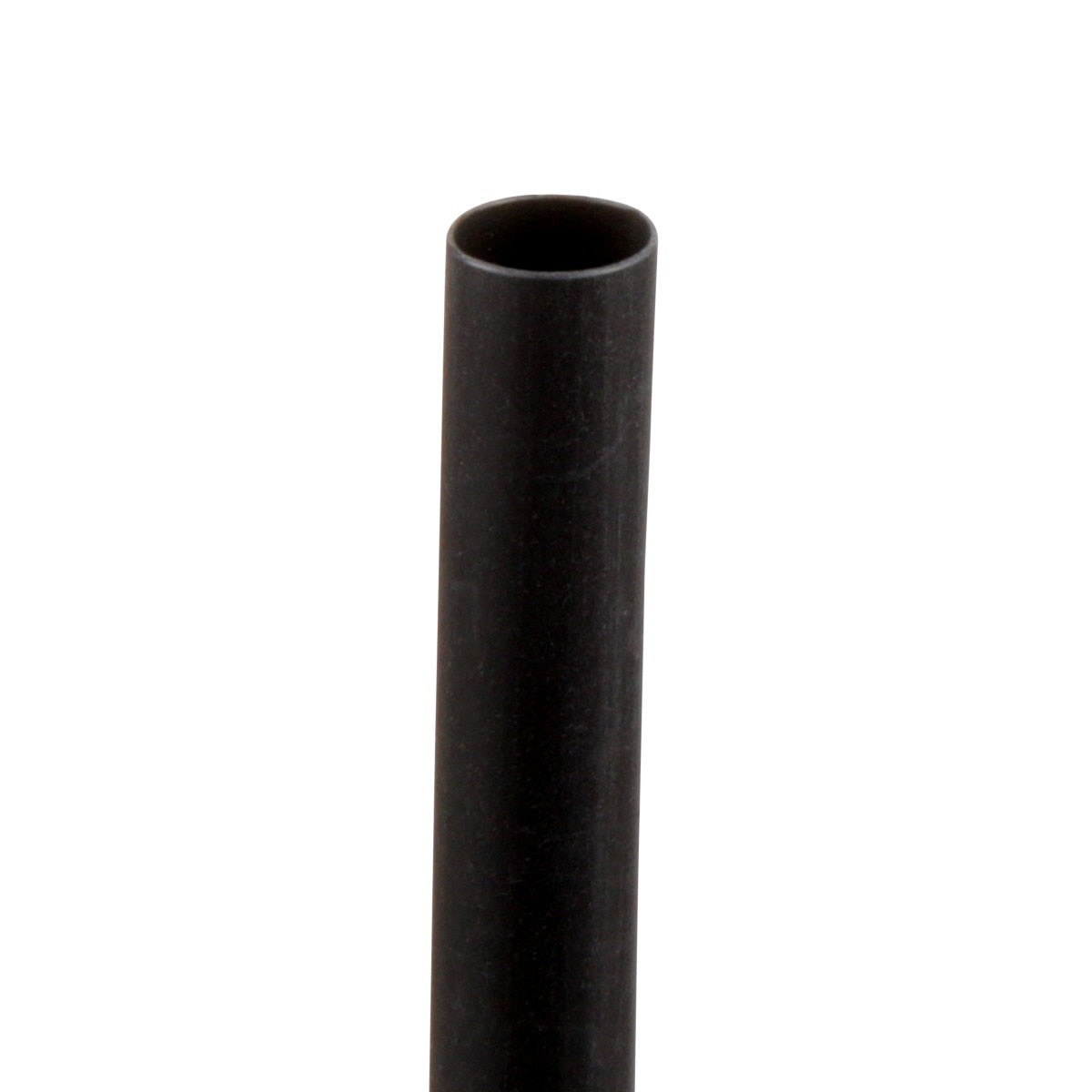

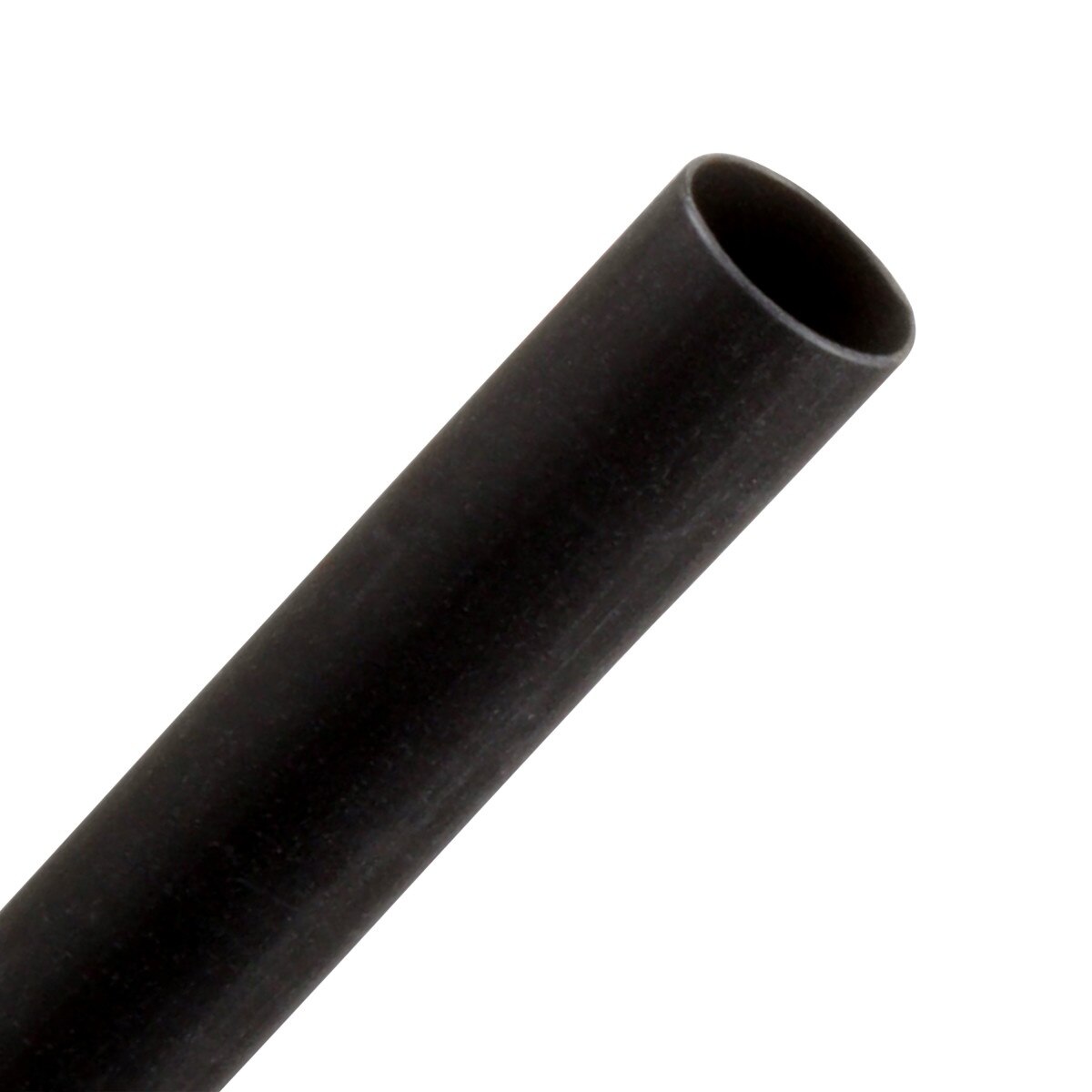

3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin tubing designed to provide flame retardant electrical insulation and moisture seal protection for industrial and military wire and cable applications.
3M 7100022418 Includes

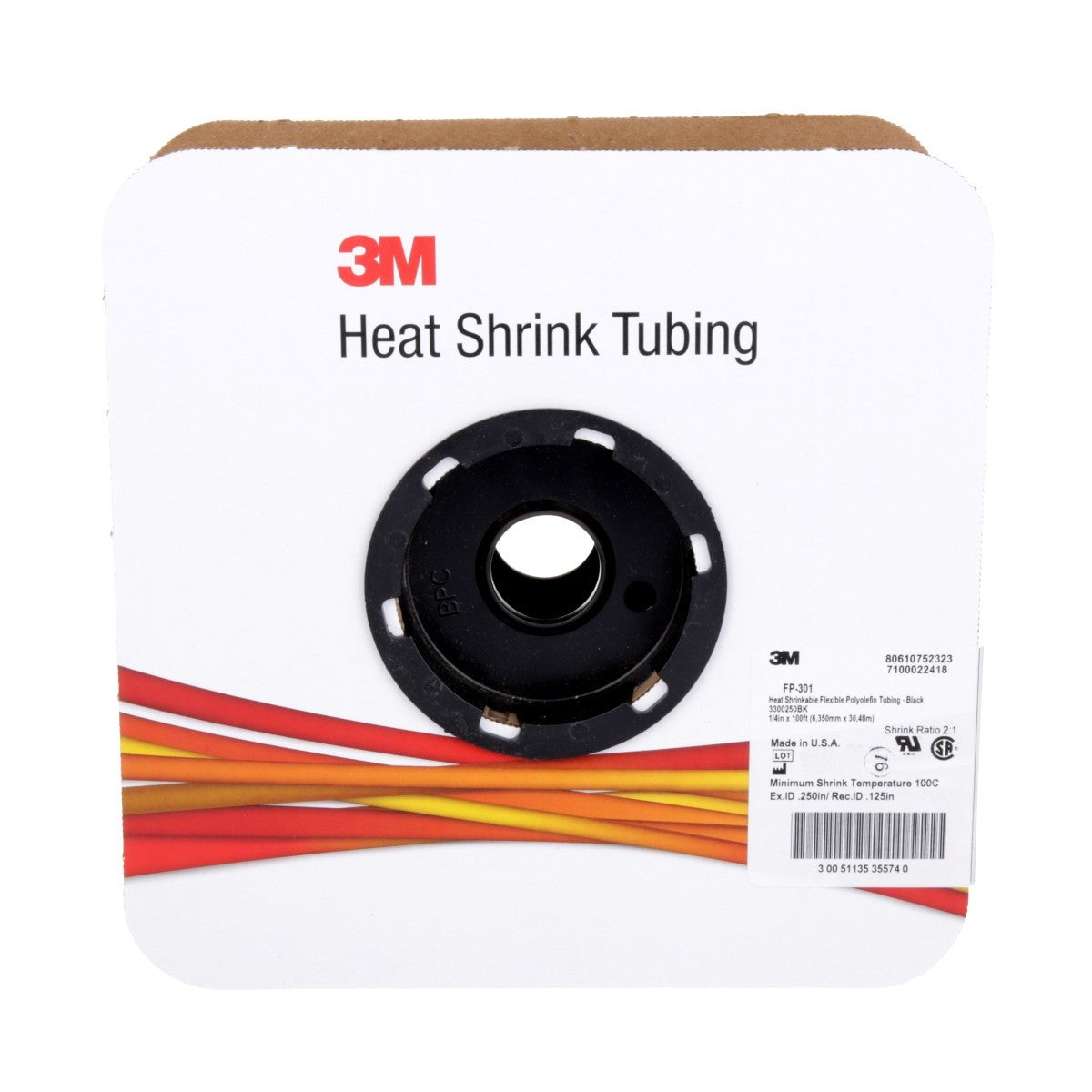

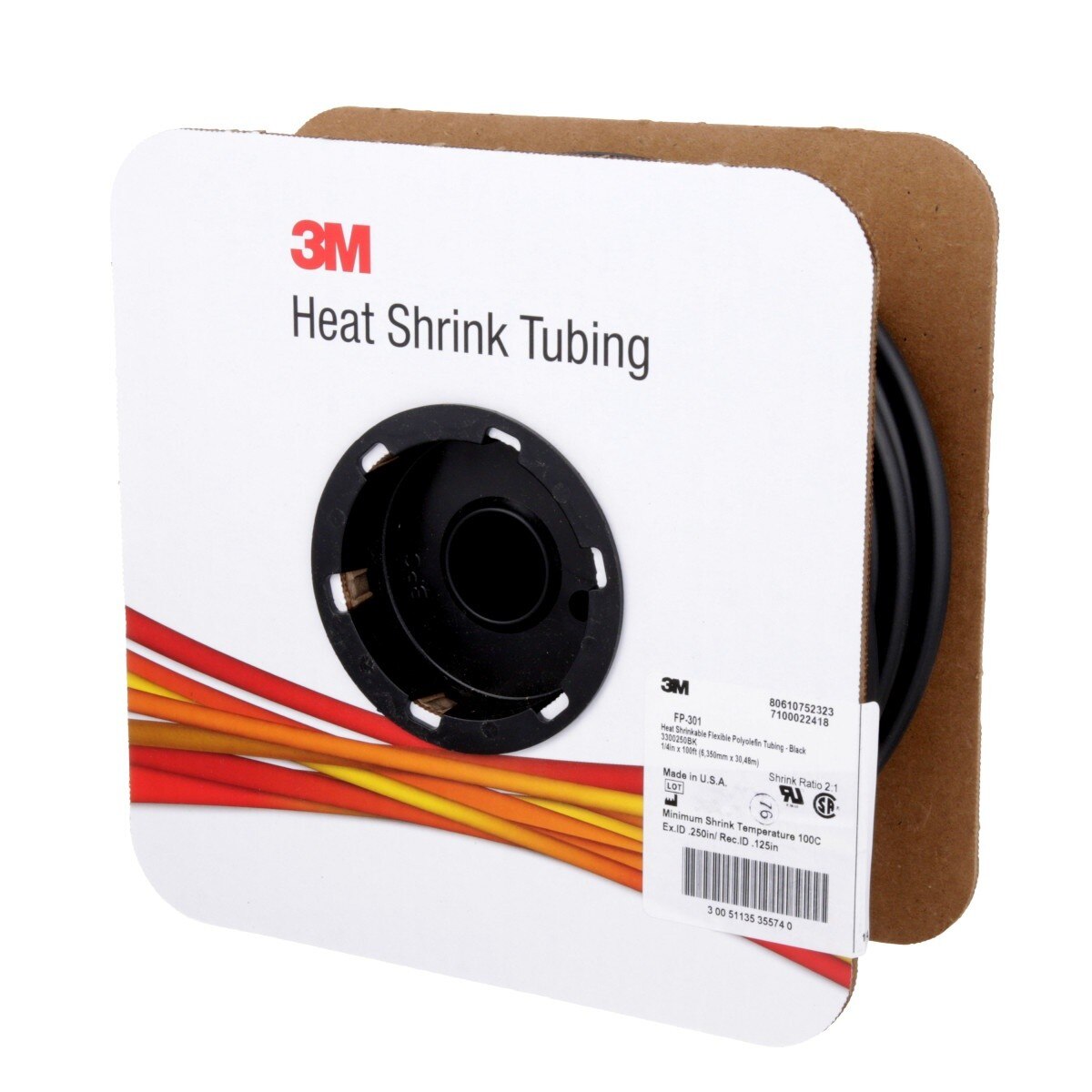

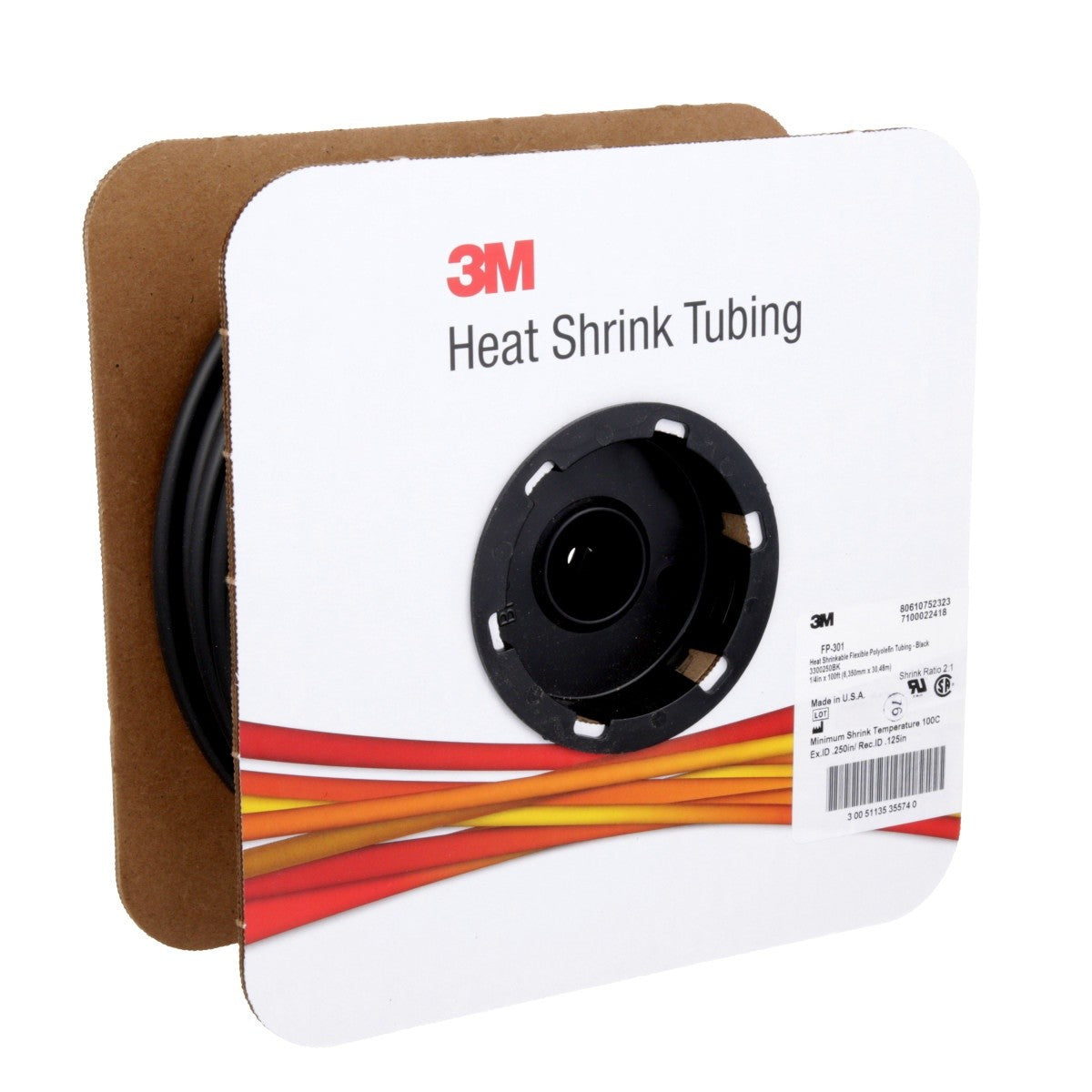

- (3) - 3M 7100022418 Heat Shrink Thin-Wall Tubing FP-301-1/4-Black-100 ft spool length (FP0.250BK100'S)
3M 7100022418 Features

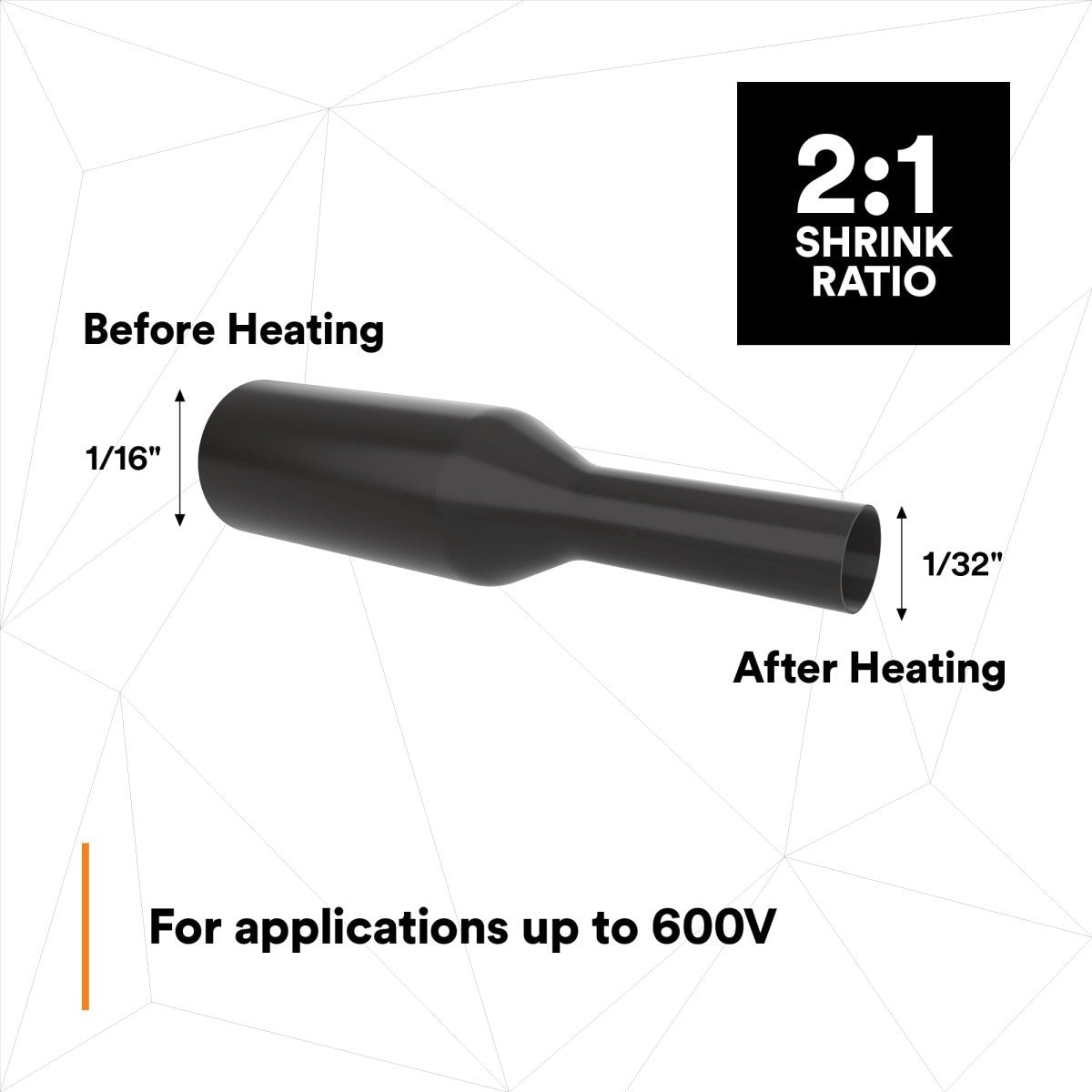

- 2 to 1 heat shrink ratio for secure insulation over splices and terminations
- Flame retardant tubing suitable for applications up to 600V
- Flexible polyolefin construction helps provide moisture seal protection
- Operating temperature range minus 67 to 275 Degree Fahrenheit
- Mechanically tough and split resistant; easily markable and resists cold flow
- Suitable for wire harness covering, wire marking, wire bundling, and component packaging

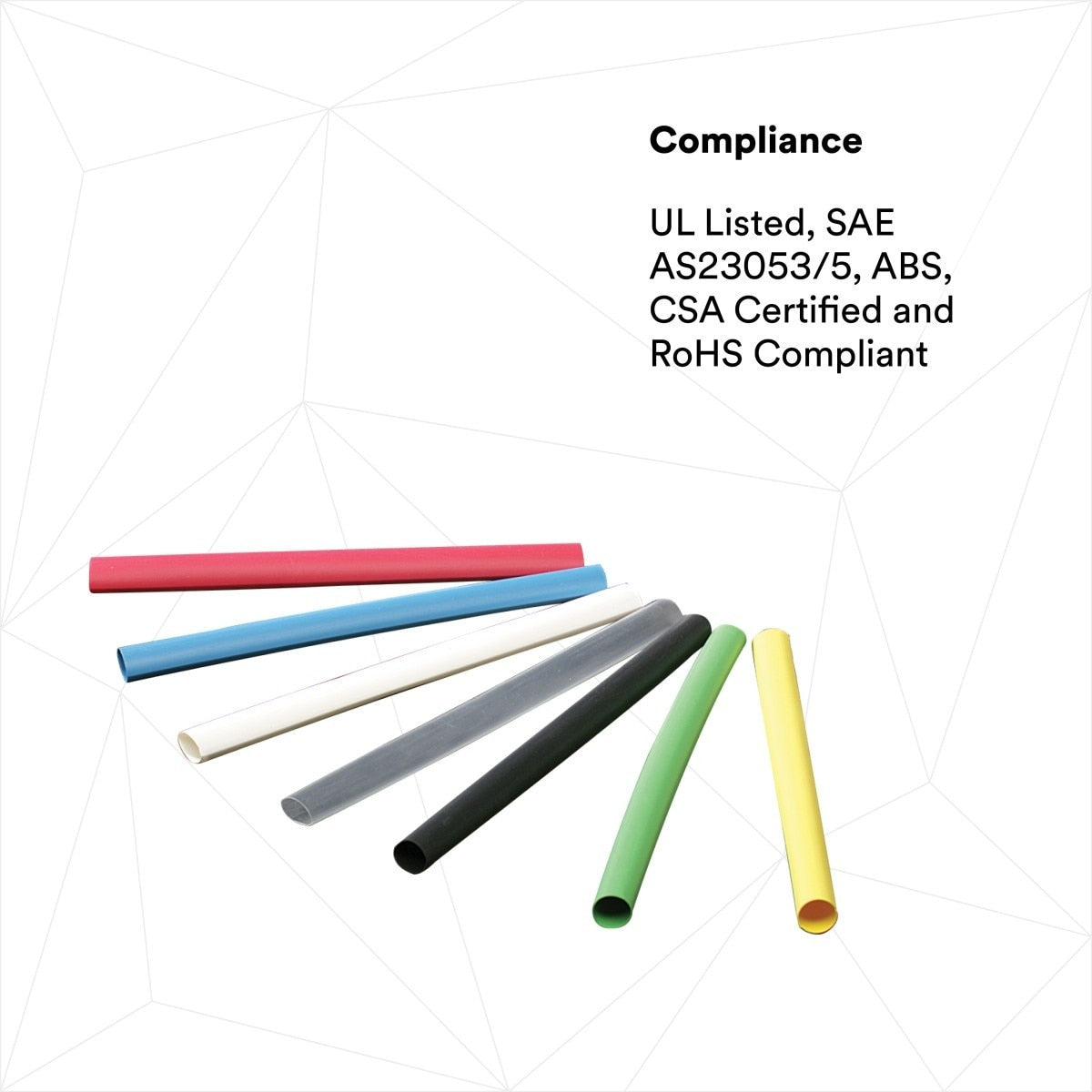

- UL Listed and CSA Certified; RoHS 2011/65/EU compliant
3M 7100022418 Specifications
| Product Type | Heat Shrink Thin Wall Tubing |
| Series | FP-301 |
| Color | Black |
| Material | Flexible Polyolefin |
| Heat Shrink Type | Single Wall Polyolefin Heat Shrink Tubing |
| Tubing Type | Single Wall Thin |
| Shrink Ratio | 2 to 1 |
| Expanded Inner Diameter | 0.25 in |
| Recovered Inner Diameter | 0.125 in |
| Overall Length | 100 ft |
| Flame Retardant | Yes |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | minus 67 to 275 Degree Fahrenheit |
| Elongation | 400 percent |
| Tensile Strength | 2400 psi |
| UL Approval | Yes |
| UL File Number | E-39100 |
| Mil Spec | AMS-DTL-23053/5 Class 1 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
Toolup Part # :
859492
