3M 7100025699 Description

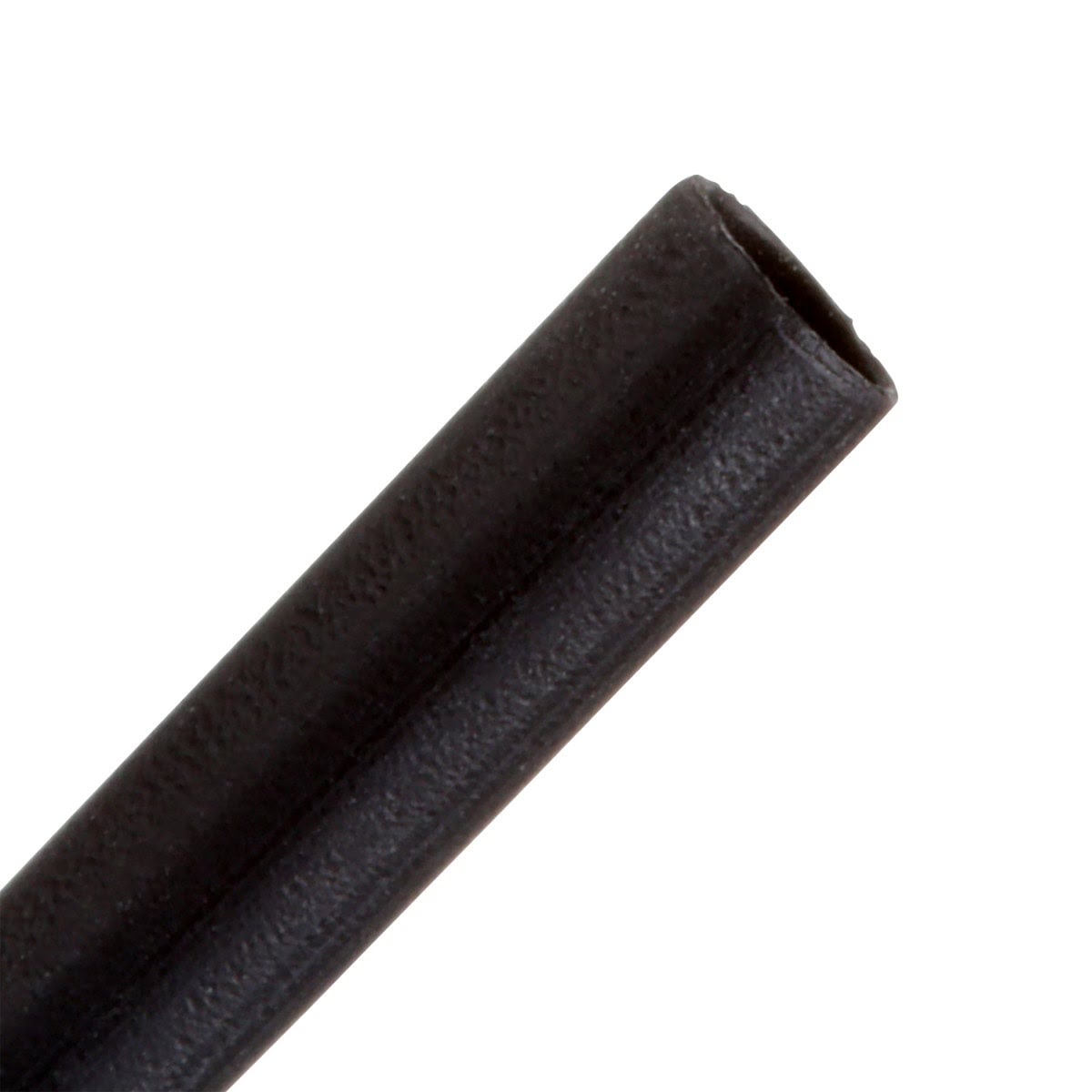

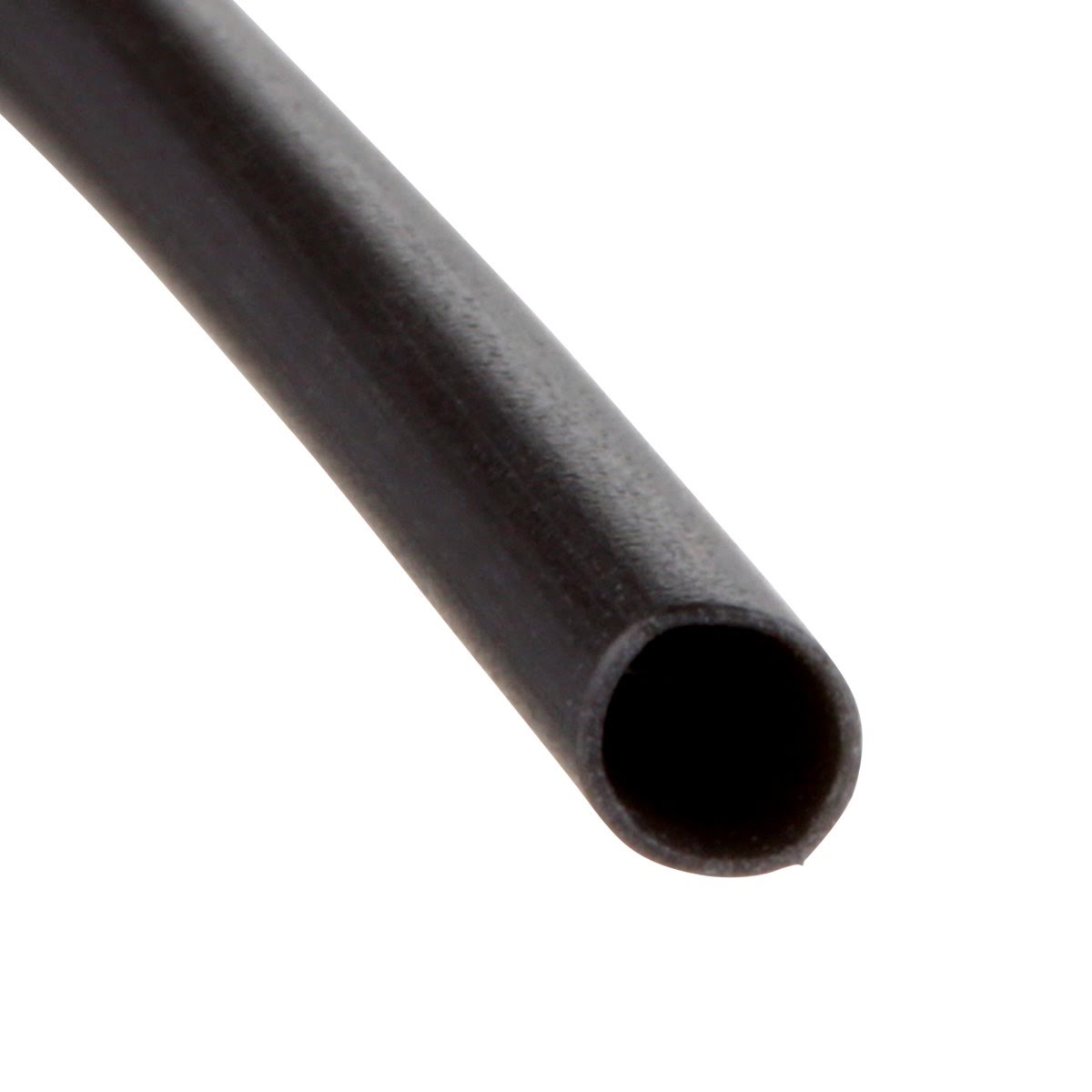

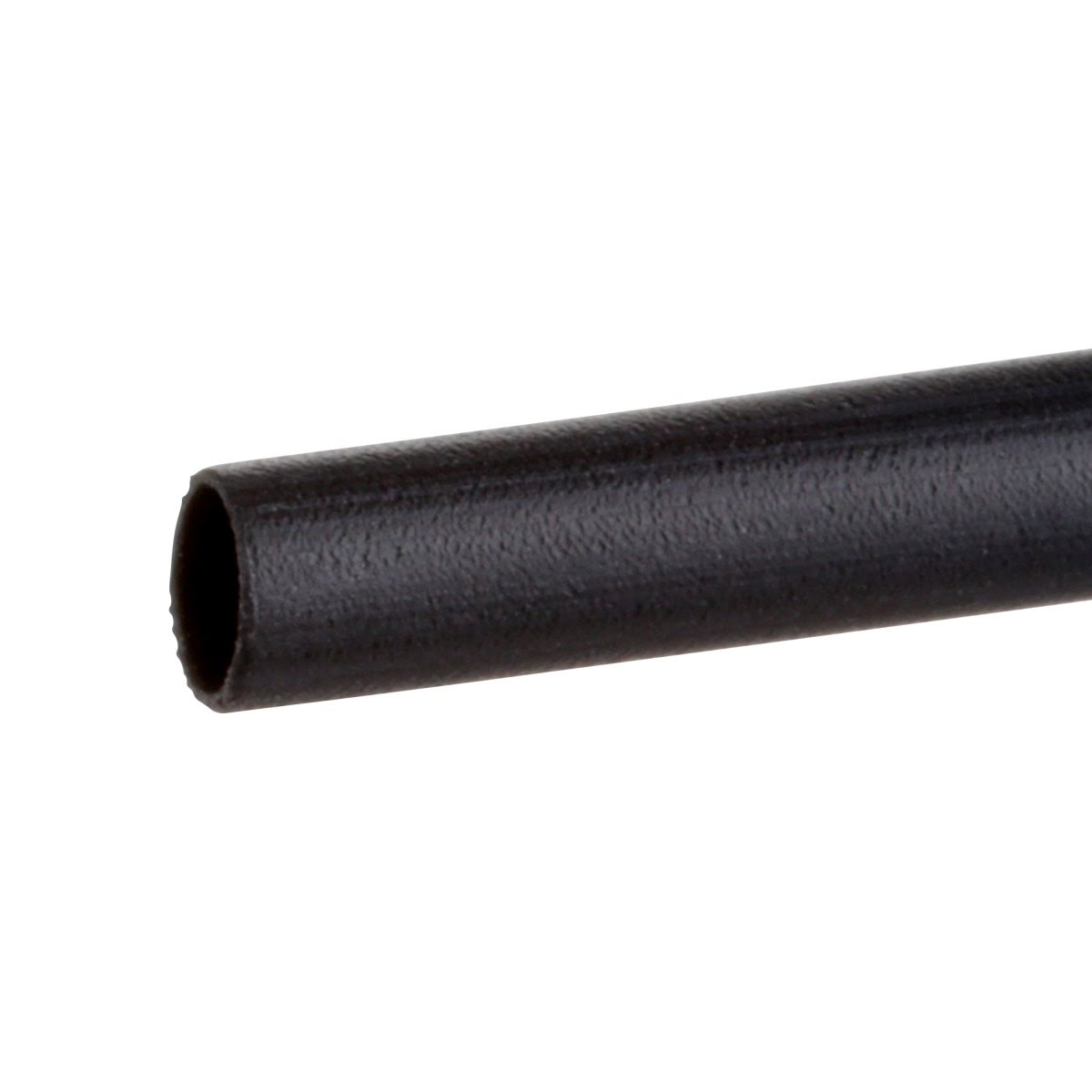

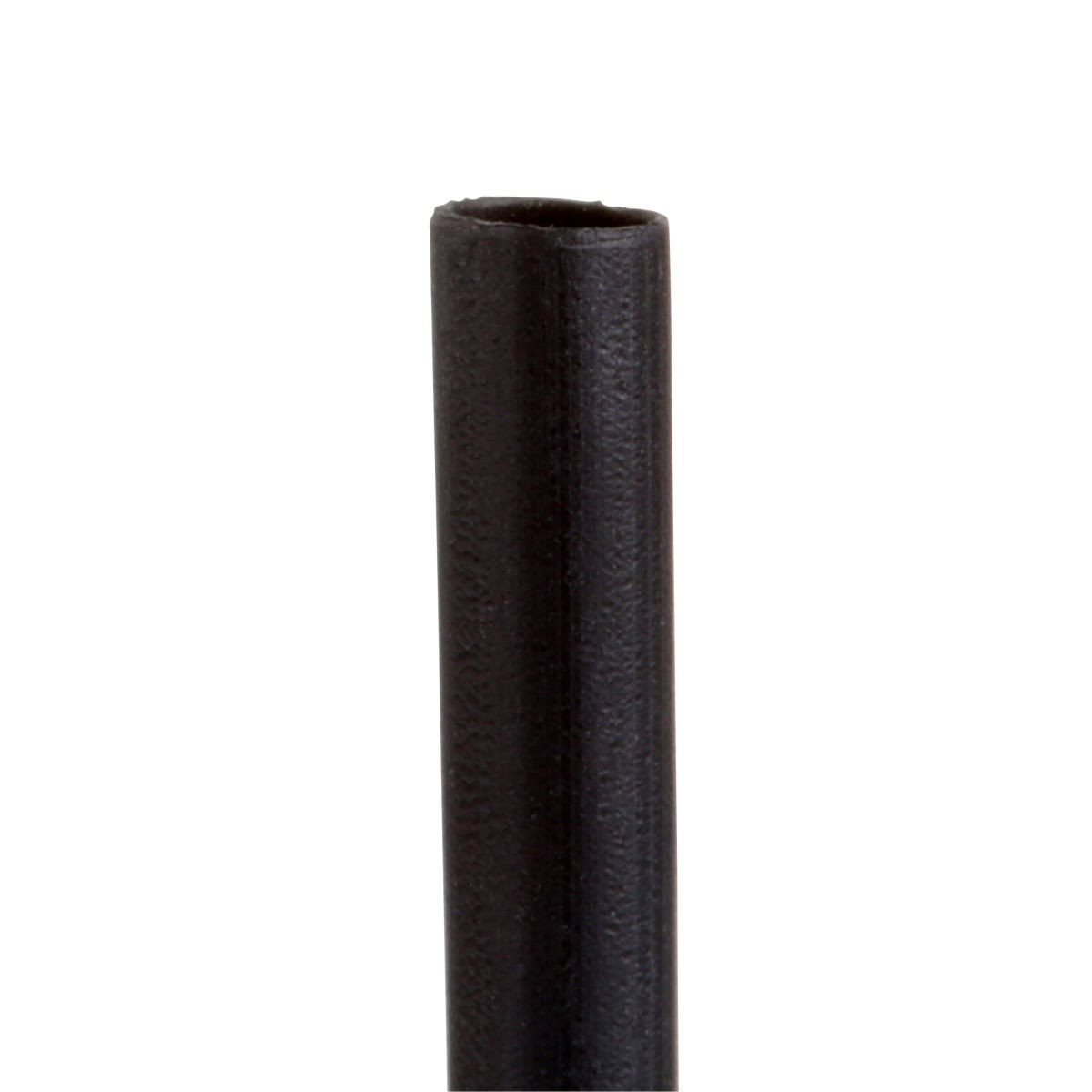

3M FP-301 heat shrink thin-wall tubing is a general purpose, flame retardant polyolefin tube designed to provide reliable electrical insulation and protection for wires, splices, and terminations. It features a 2 to 1 shrink ratio, is suitable for applications up to 600V, and comes in a black 100 ft spool with a 3/32 in expanded inner diameter.
3M 7100025699 Includes

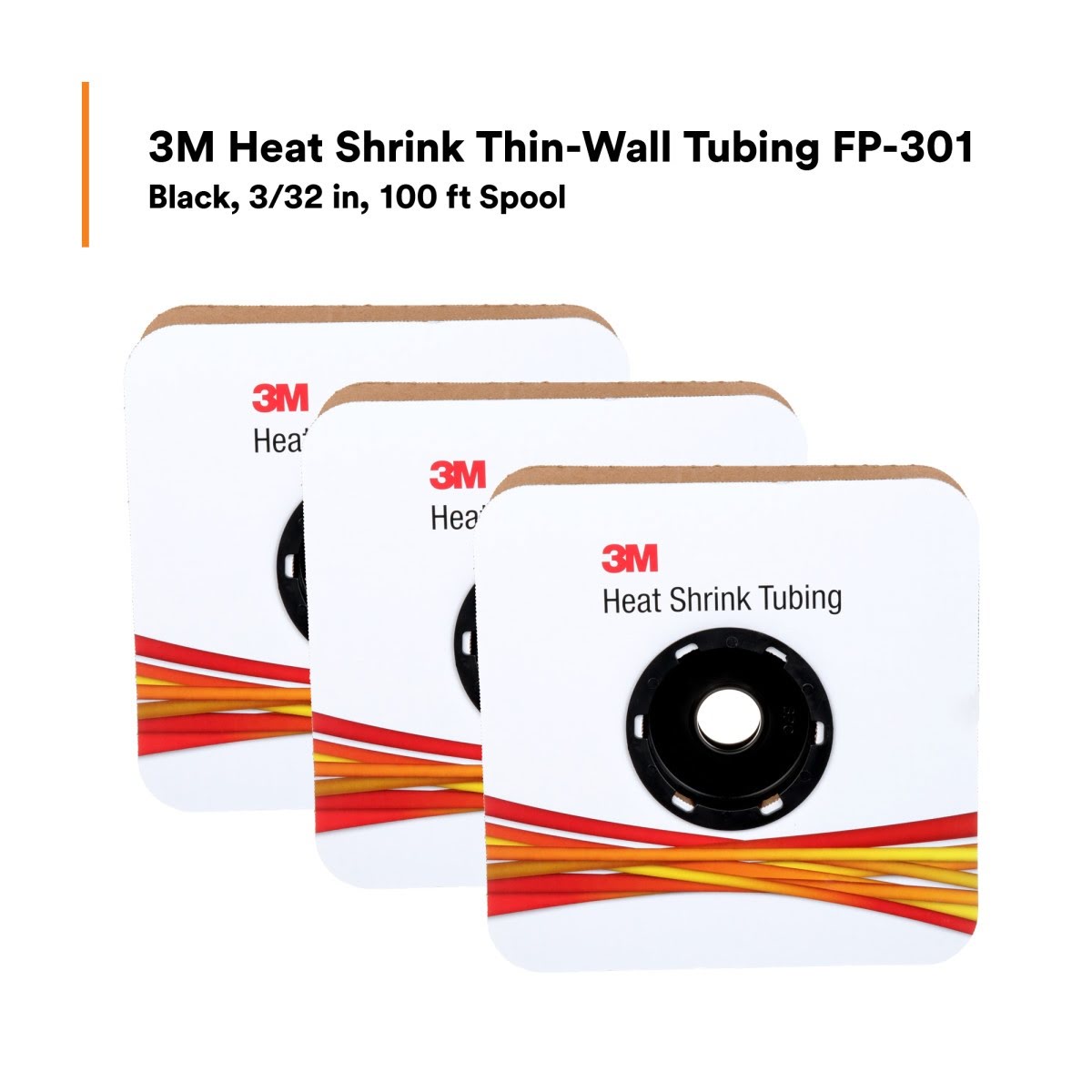

- (3) - 3M 7100025699 FP-301 Heat Shrink Thin-Wall Tubing, 3/32 in x 100 ft Length Spool, Black (FP0.094BK100'S)
3M 7100025699 Features
- General purpose thin-wall heat shrink tubing for electrical insulation and protection
- 2 to 1 shrink ratio for secure shrink fit coverage

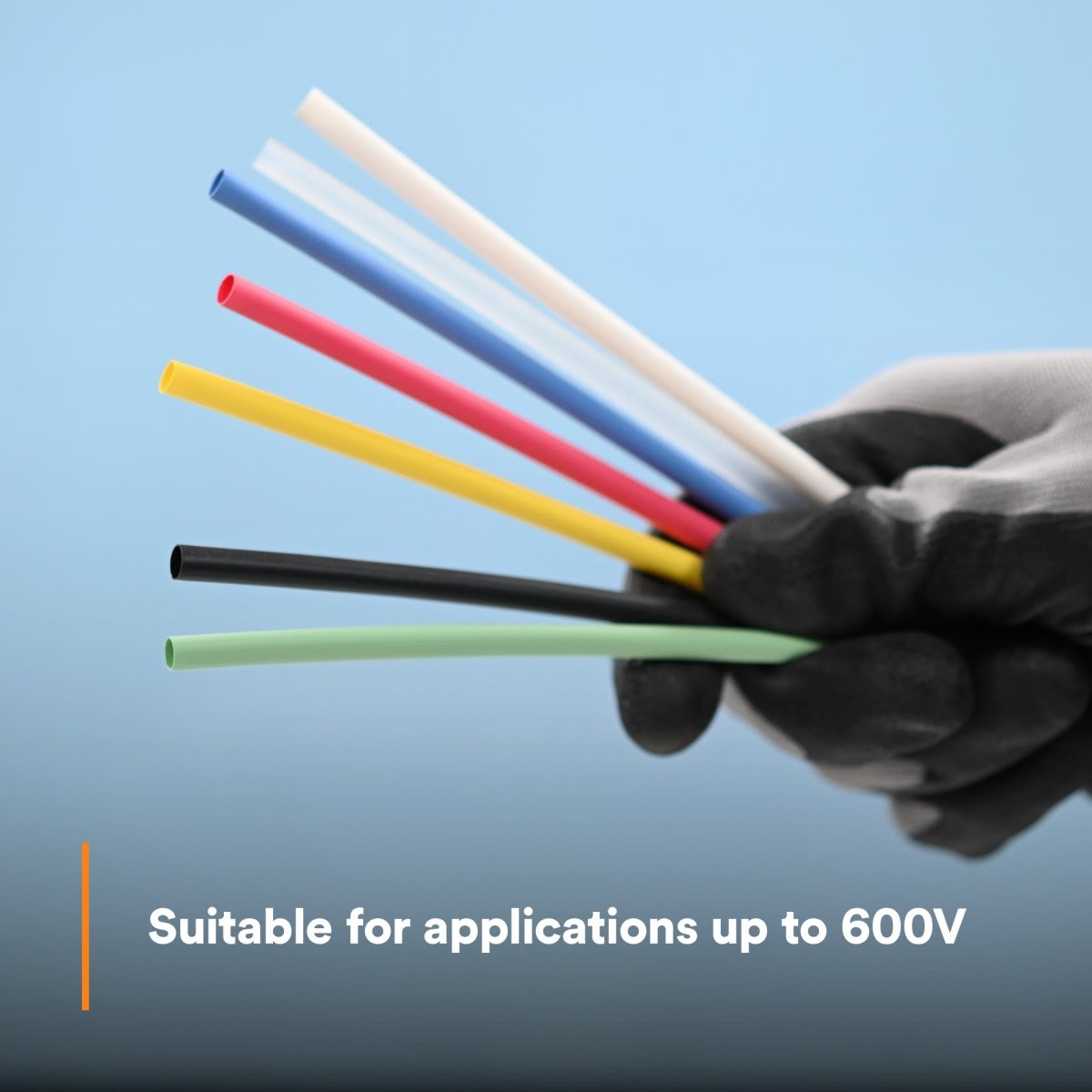

- Flame retardant tubing suitable for applications up to 600V
- Flexible polyolefin construction helps provide moisture seal protection
- Operating temperature range from -55 Degree Celsius to 135 Degree Celsius
- Maximum operating temperature 275 Degree Fahrenheit (135 Degree Celsius)
- UL listed and CSA certified for demanding applications
- Resists cold flow and is easily markable for identification

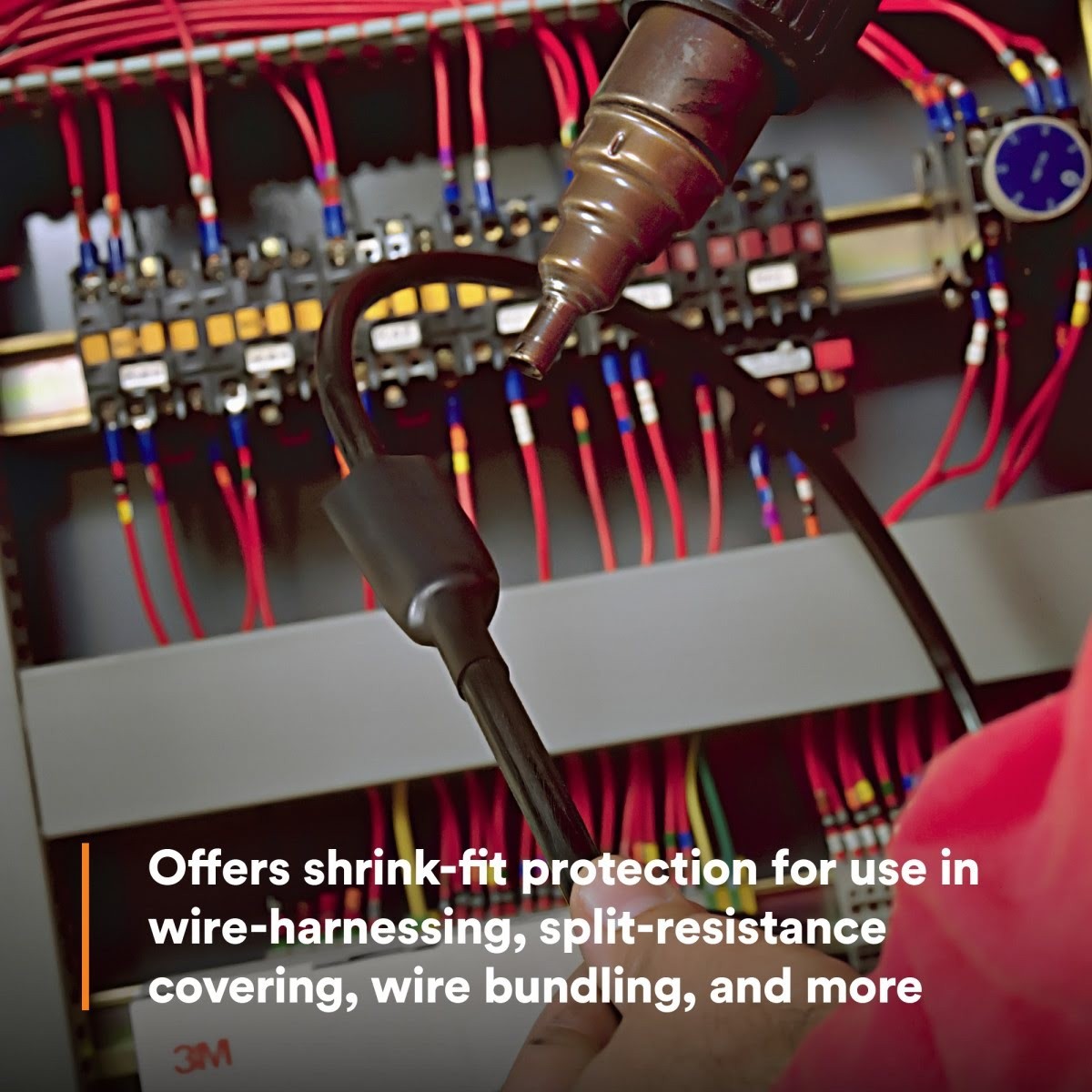

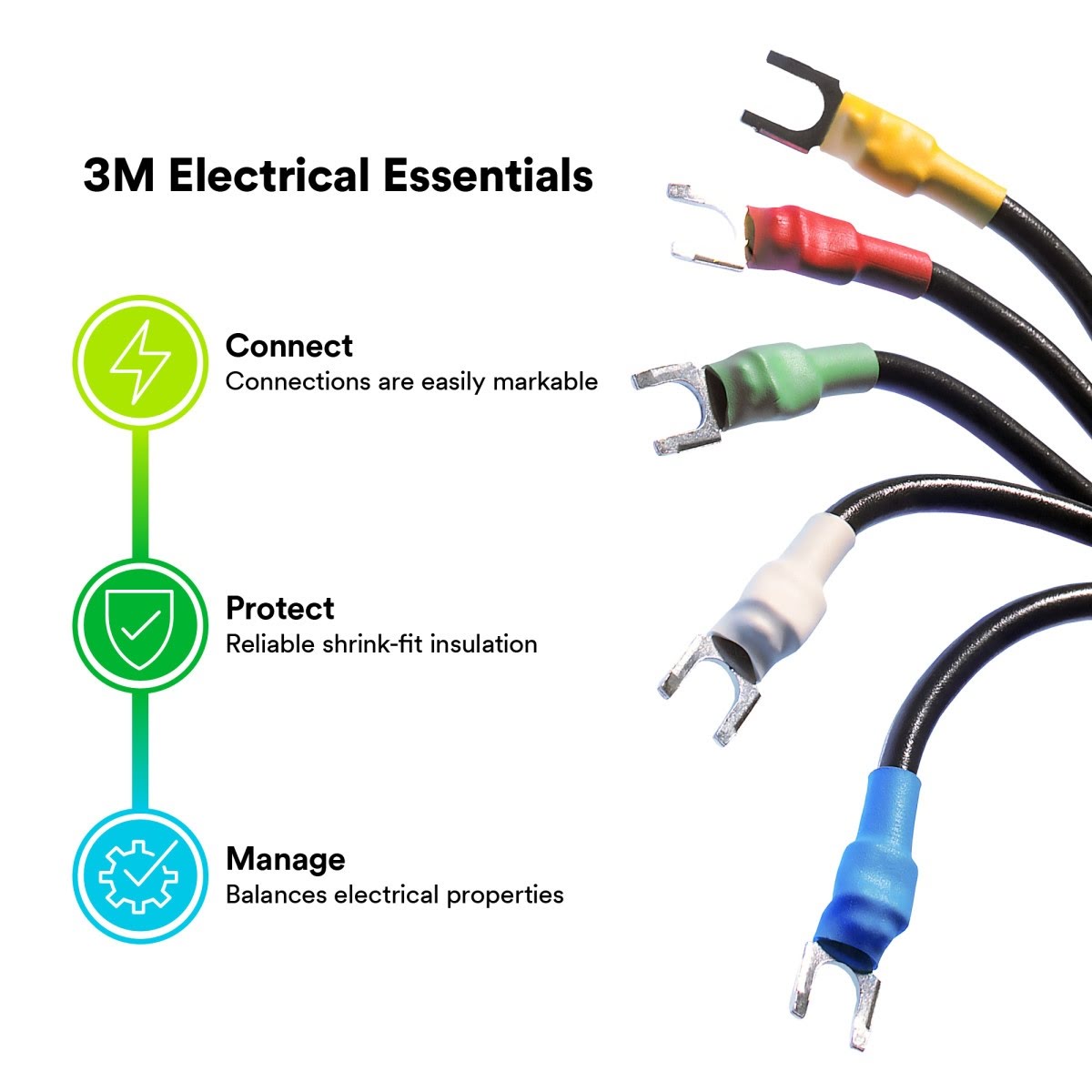

- Suitable for wire harness covering, wire marking, wire bundling, and component packaging
- RoHS 2011/65/EU compliant
3M 7100025699 Specifications
| Product Type | Heat Shrink Thin-Wall Tubing |
| Series | FP-301 |
| Color | Black |
| Material | Flexible Polyolefin |
| Tubing Type | Single Wall (Thin) |

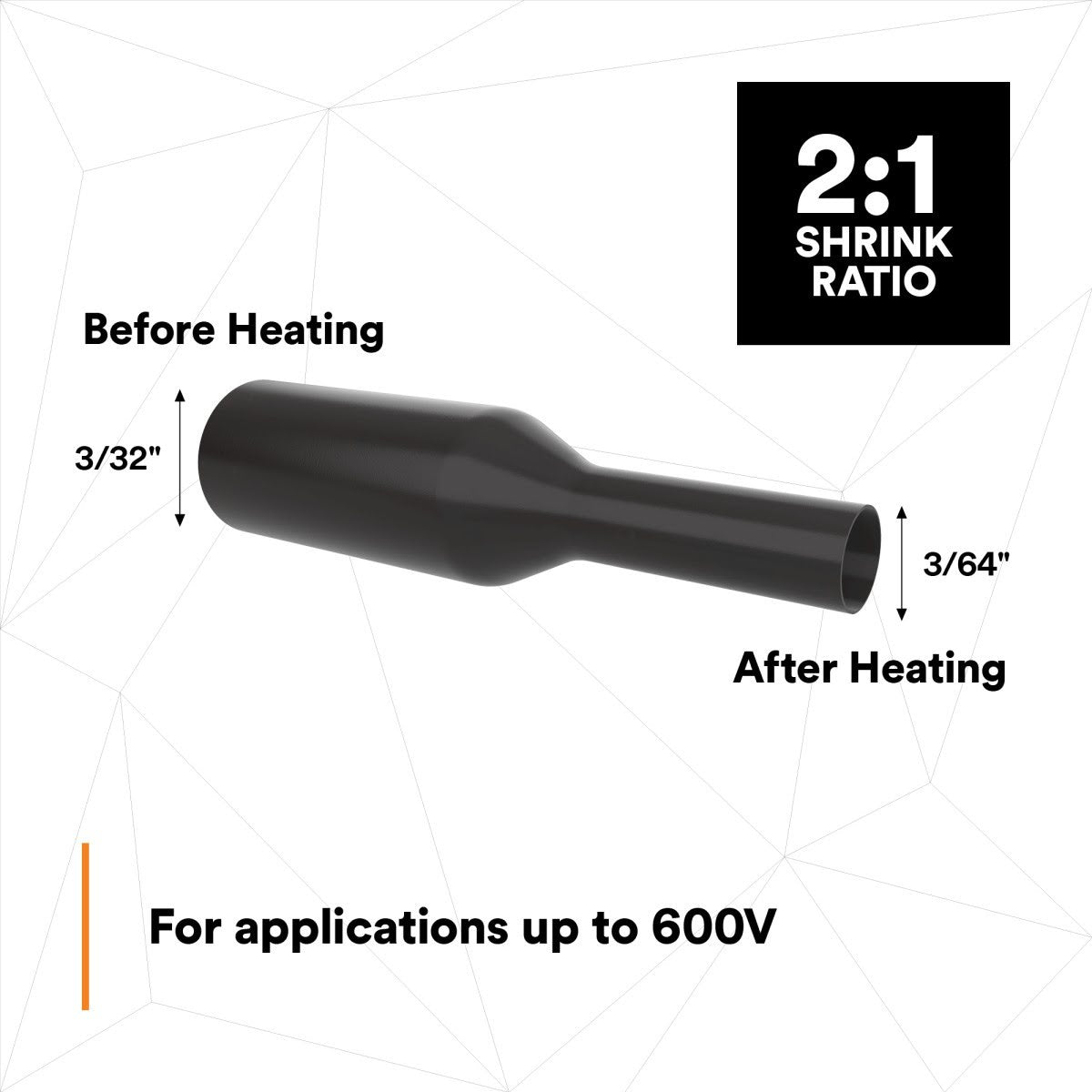

| Shrink Ratio | 2:1 |
| Overall Length | 100 ft |
| Expanded Inner Diameter | 0.093 in |
| Recovered Inner Diameter | 0.05 in |
| Inner Diameter After Shrink | 0.046 in |
| Flame Retardant | Yes |
| Voltage Rating | 600V |
| Operating Temperature Range (Fahrenheit) | -67 F to 275 F |
| Operating Temperature Range (Celsius) | -55 Degree Celsius to 135 Degree Celsius |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Elongation | 400 percent |
| Tensile Strength | 2400 psi |
| UL Approval | Yes |
| UL File Number | E-39100 |
| Mil Spec | AMS-DTL-23053/5, Class 1 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
Toolup Part # :
859484
