3M 7000133690 Description

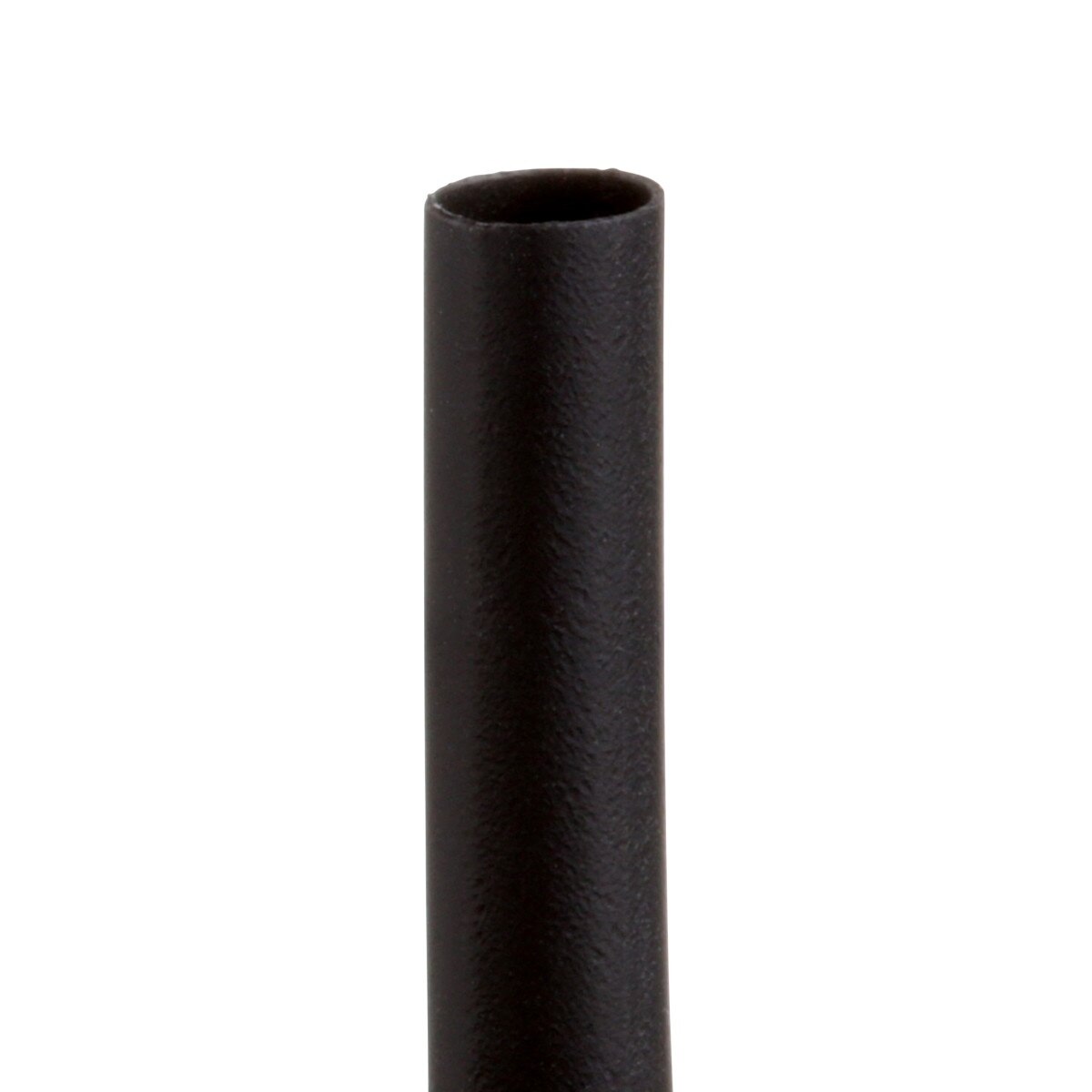

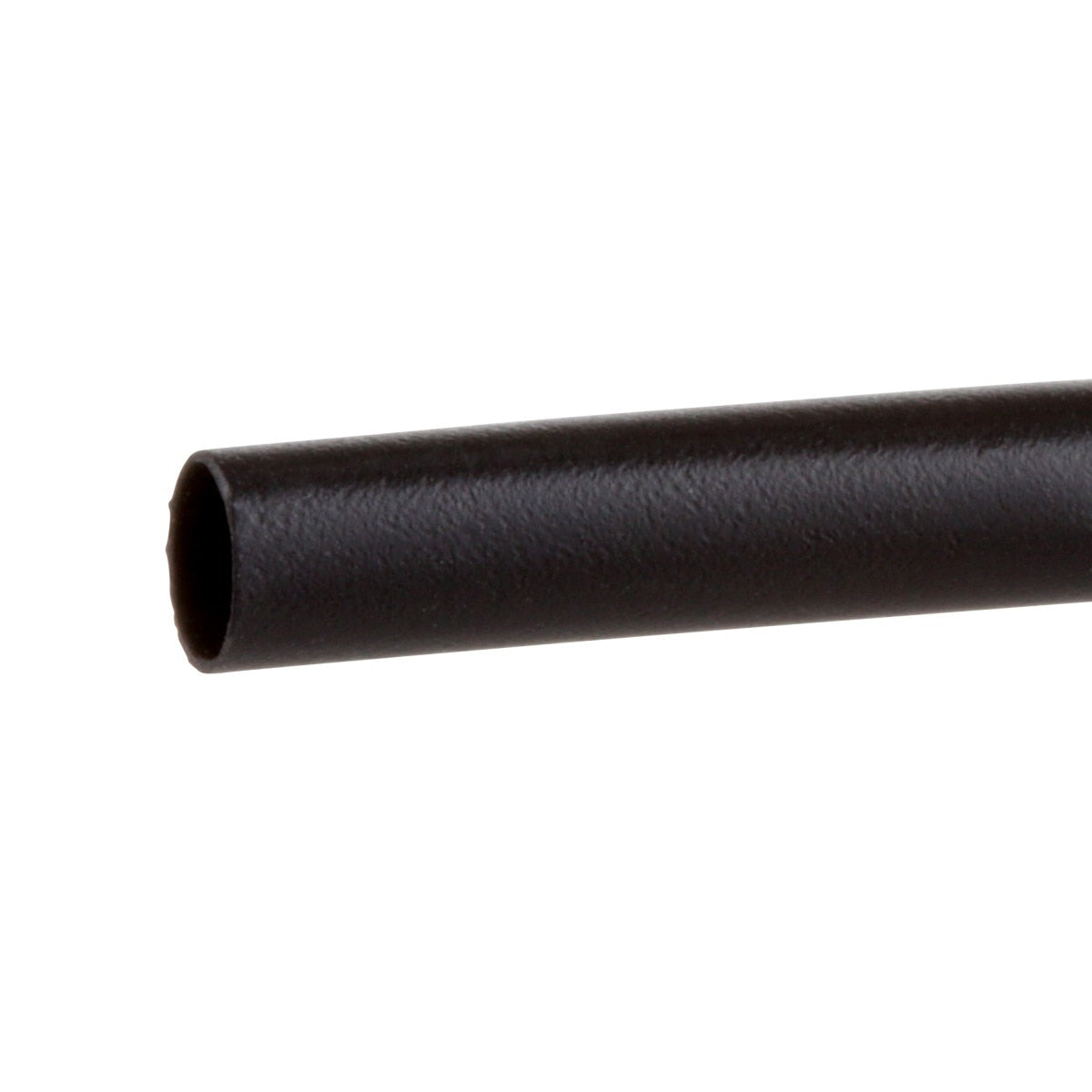

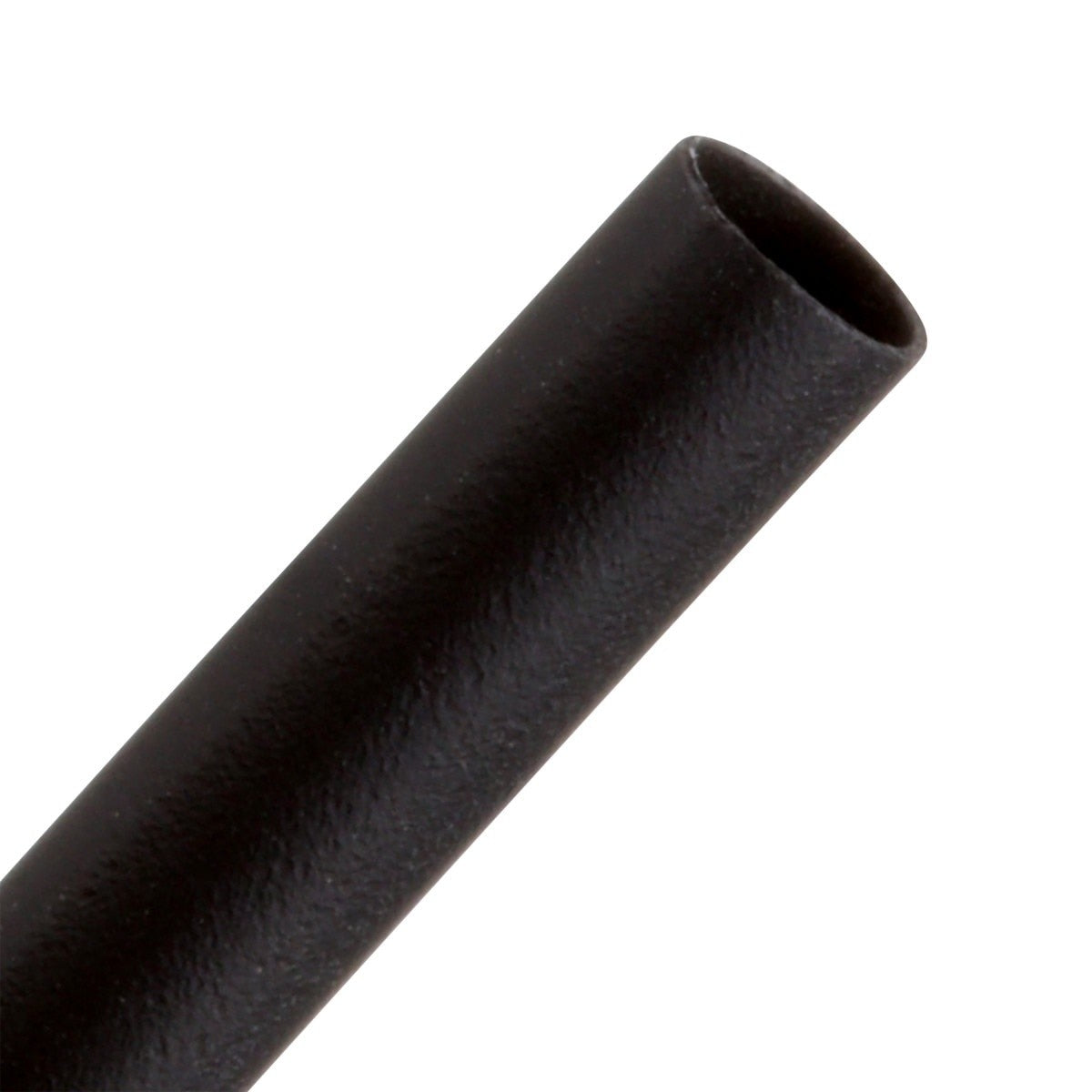

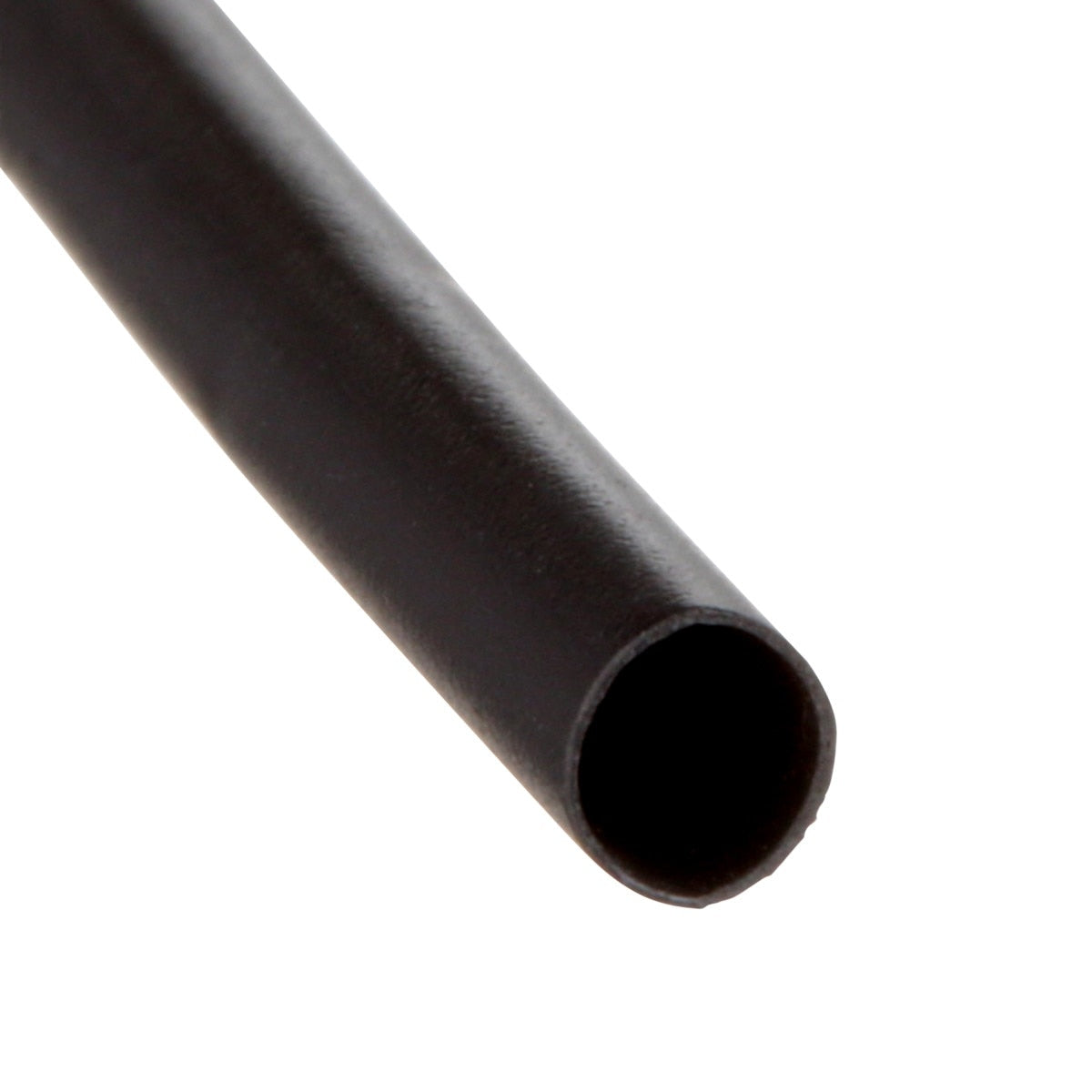

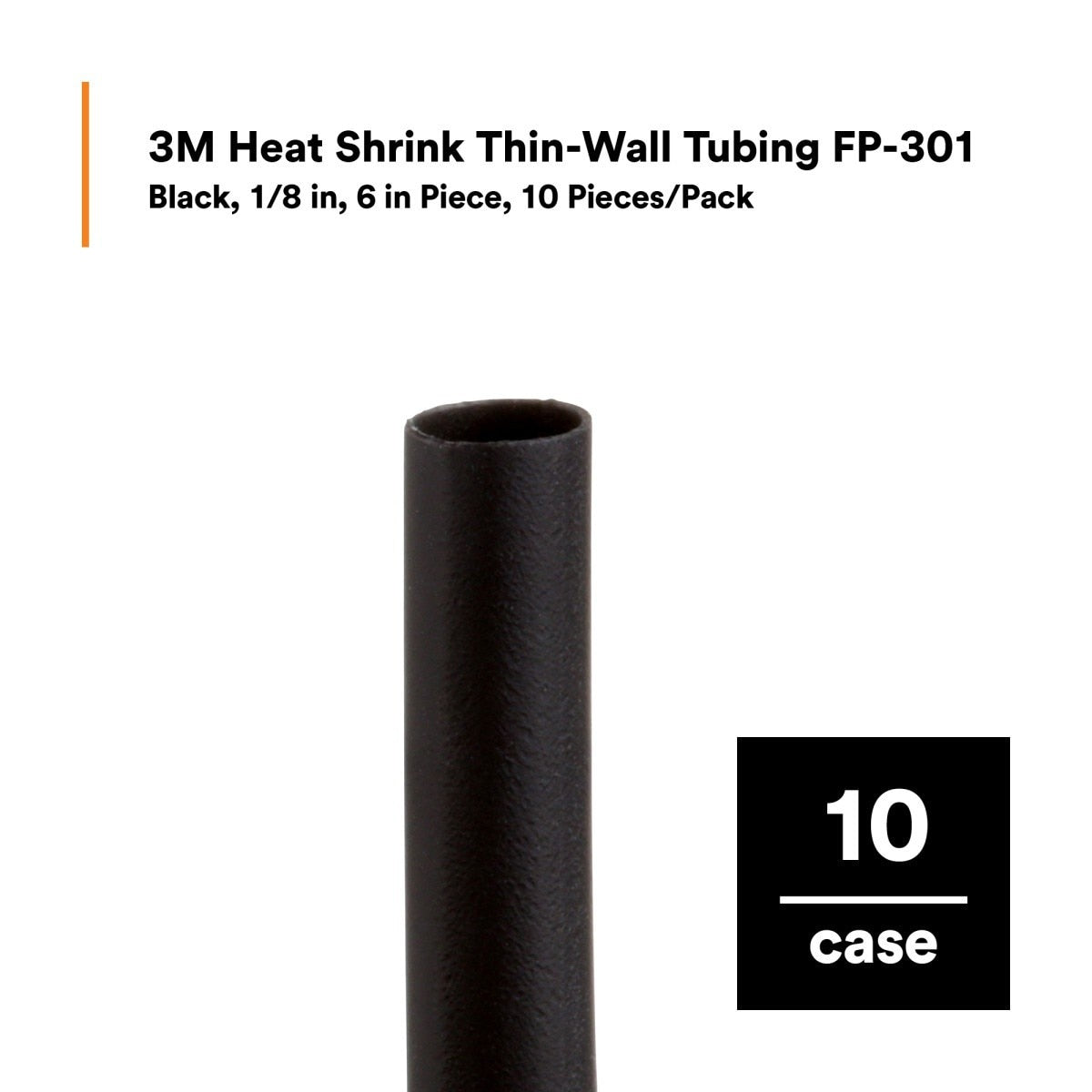

3M Heat Shrink Tubing FP-301 is a general purpose thin-wall polyolefin heat shrink tubing designed to provide shrink-fit electrical insulation, moisture protection, and durable abrasion resistance for wire splices, terminations, and wire harnessing. It features a 2:1 shrink ratio, is flame retardant, and supports applications up to 600V.
3M 7000133690 Includes
- (100) - 3M 7000133690 Heat Shrink Thin-Wall Tubing FP-301 1/8 in x 6 in Black (FP0.125BK6"P)
3M 7000133690 Features
- General purpose thin-wall heat shrink tubing for electrical insulation and protection
- 2:1 shrink ratio for secure shrink-fit coverage
- Flame retardant for applications up to 600V
- Moisture seal protection with flexible polyolefin construction

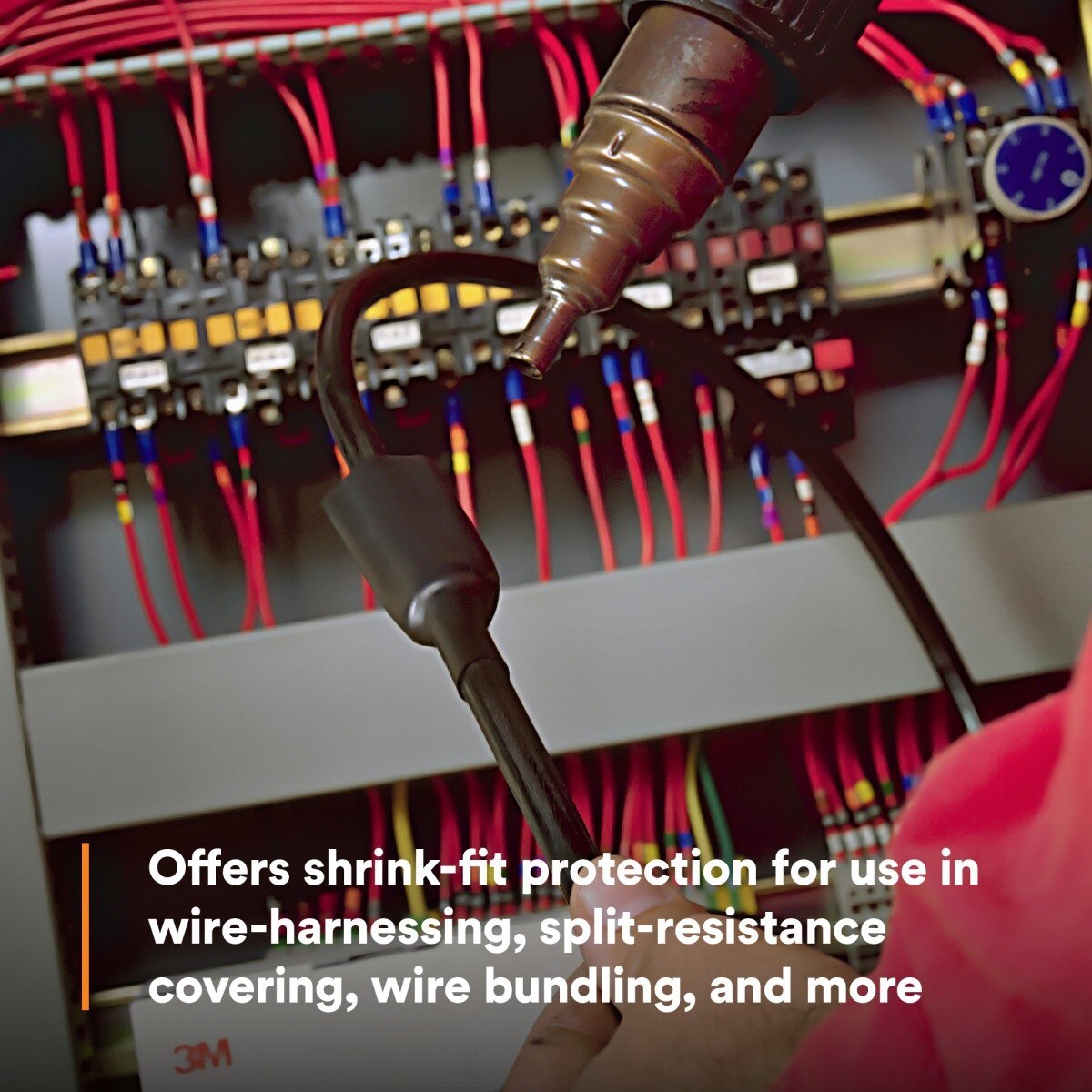

- Suitable for wire harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
- Operating temperature range: -67 F to 275 F (-55 C to 135 C)
- UL Listed (File E-39100)
- CSA Certified
- RoHS 2011/65/EU compliant
- SAE AS23053/5 Class 1 compliant
3M 7000133690 Specifications
| Product Type | Heat Shrink Tubing |
| Series | FP-301 |
| Tubing Type | Single Wall (Thin) |
| Material | Polyolefin |
| Color | Black |
| Length | 6 in |

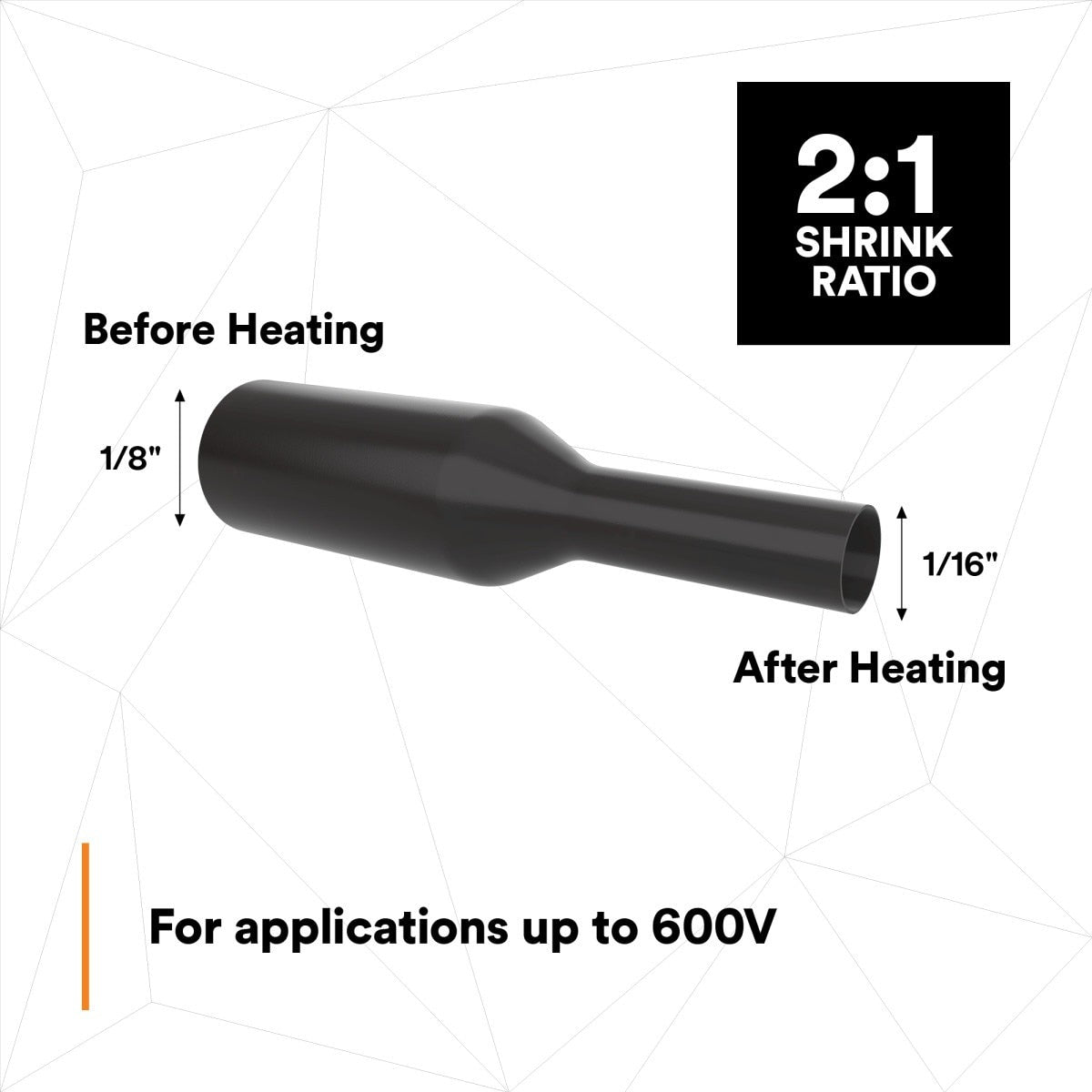

| Inner Diameter Before Shrink | 0.125 in |
| Inner Diameter After Shrink | 0.062 in |
| Shrink Ratio | 2:1 |
| Flame Retardant | Yes |
| Voltage Rating | 600 Volt |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | -67 Degree Fahrenheit to 275 Degree Fahrenheit |
| UL Approval | Yes |
| UL File Number | E-39100 |
| Mil Spec | SAE-AMS-DTL-23053/5, Class 1 |
Toolup Part # :
860215
