At a Glance
Length
50 ft
Max Temperature
275�F
Material
Polyolefin
Application
Electrical
Description
Description
3M 7100029979 Description

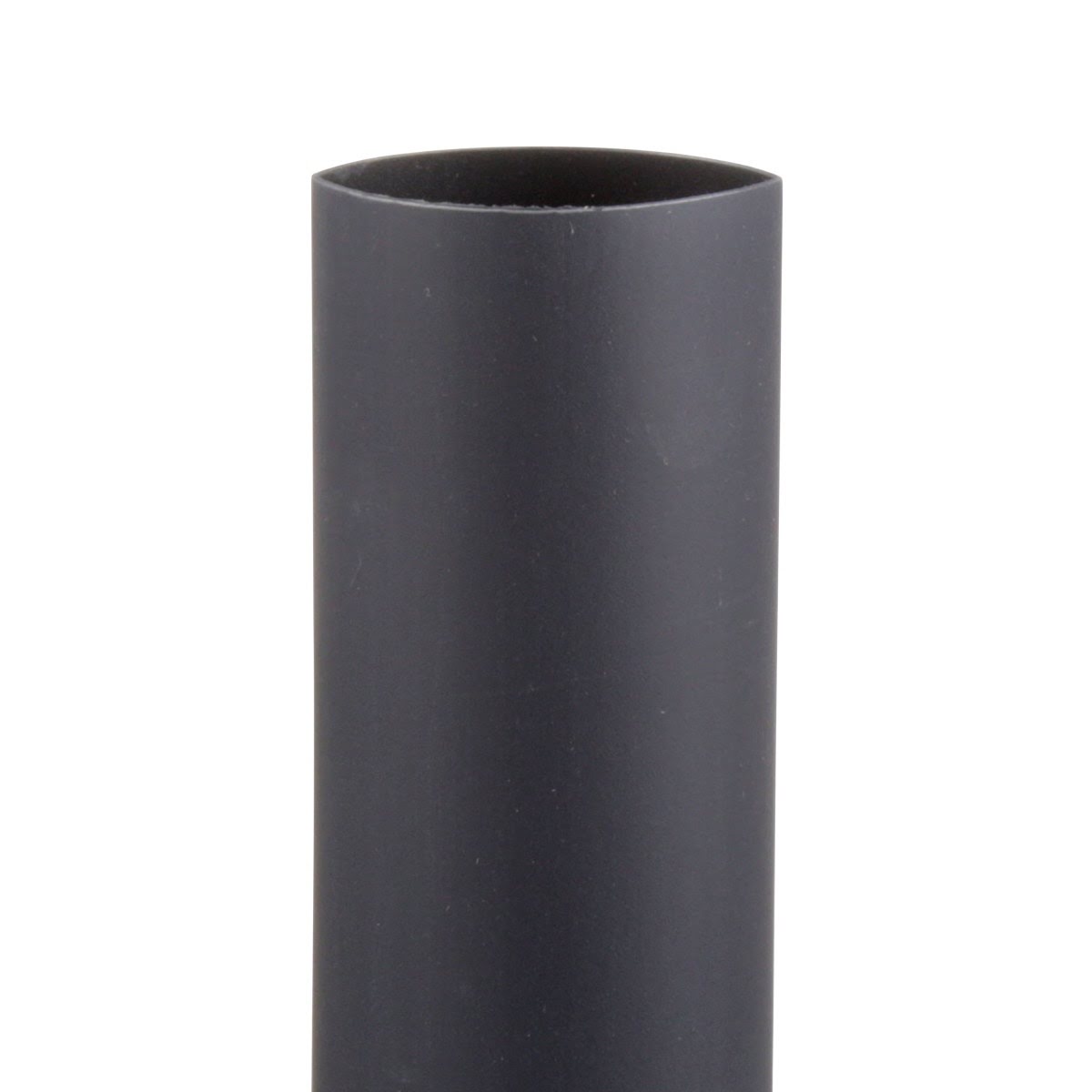

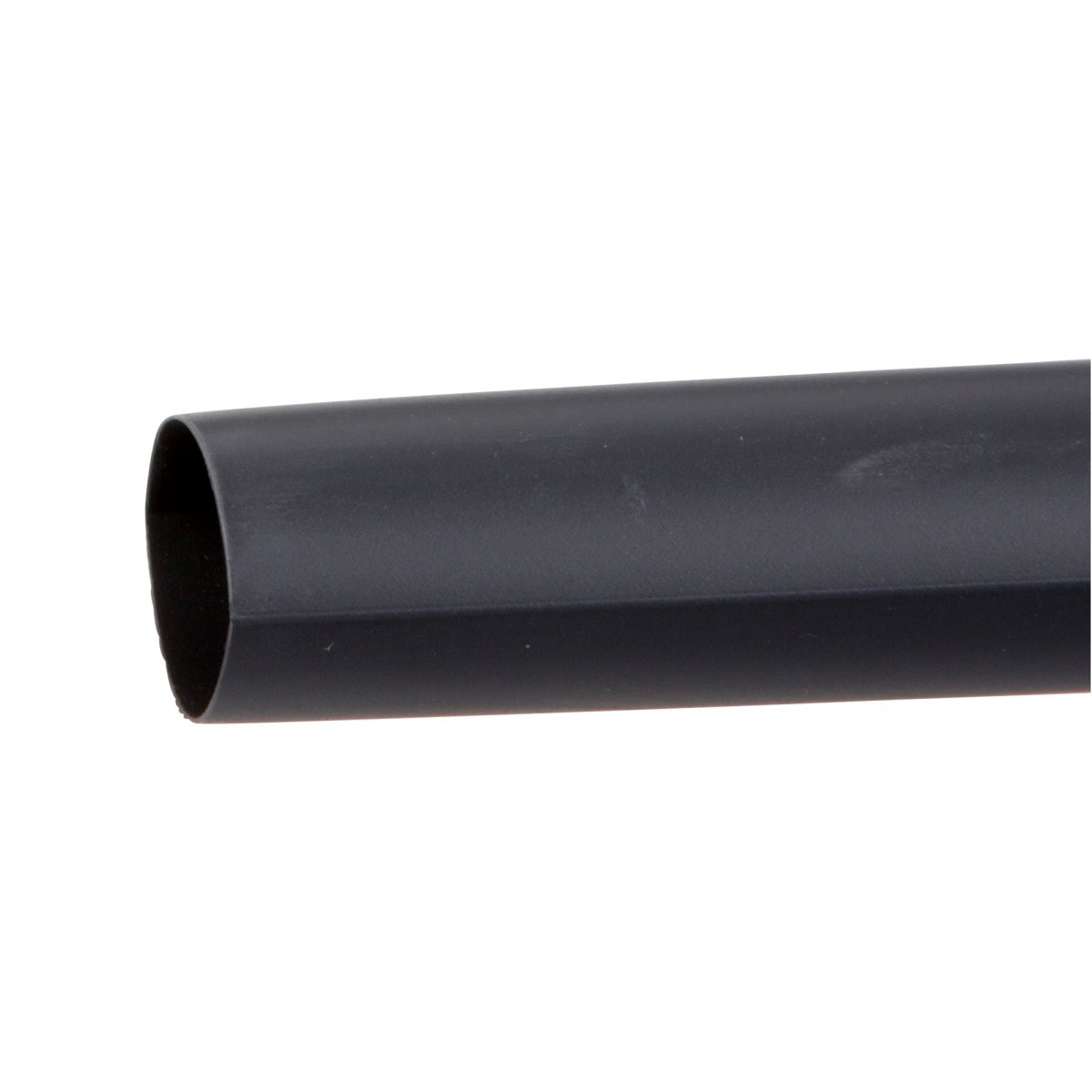

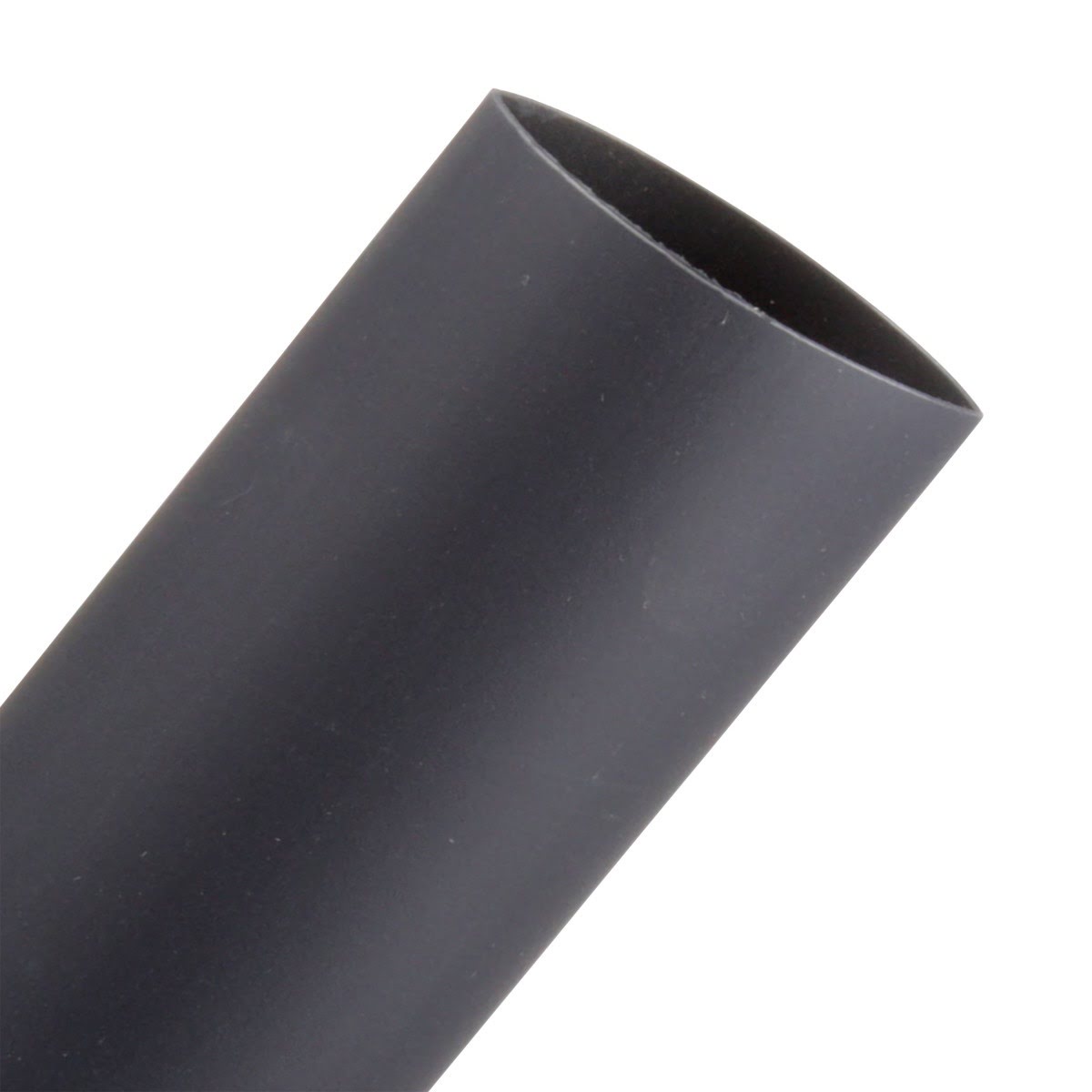

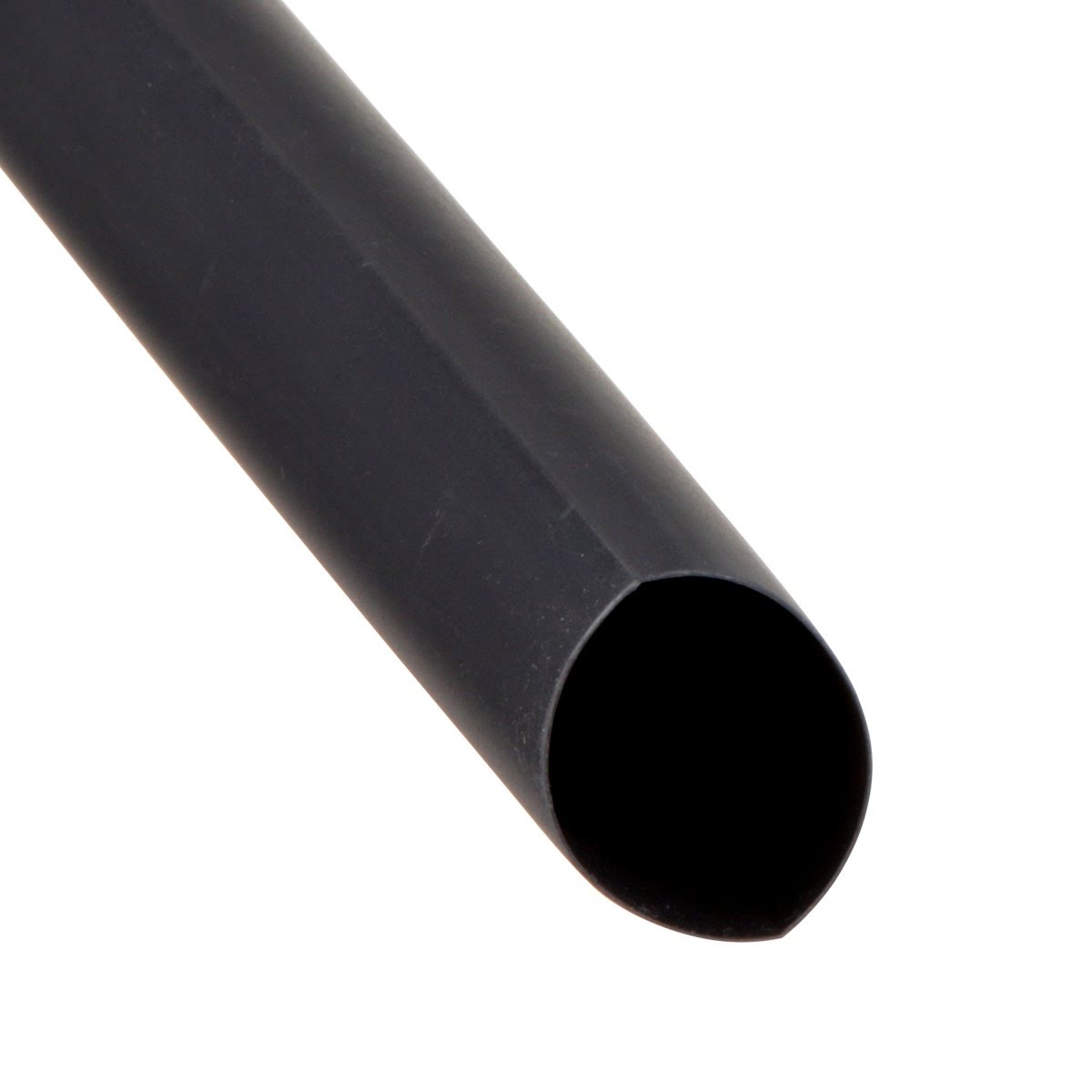

3M Heat Shrink Tubing FP-301 is a general purpose thin wall tubing designed to provide flame retardant electrical insulation for up to 600V rated applications. With a 2 to 1 shrink ratio and flexible polyolefin construction, it delivers durable moisture seal protection for industrial and military uses.
3M 7100029979 Includes

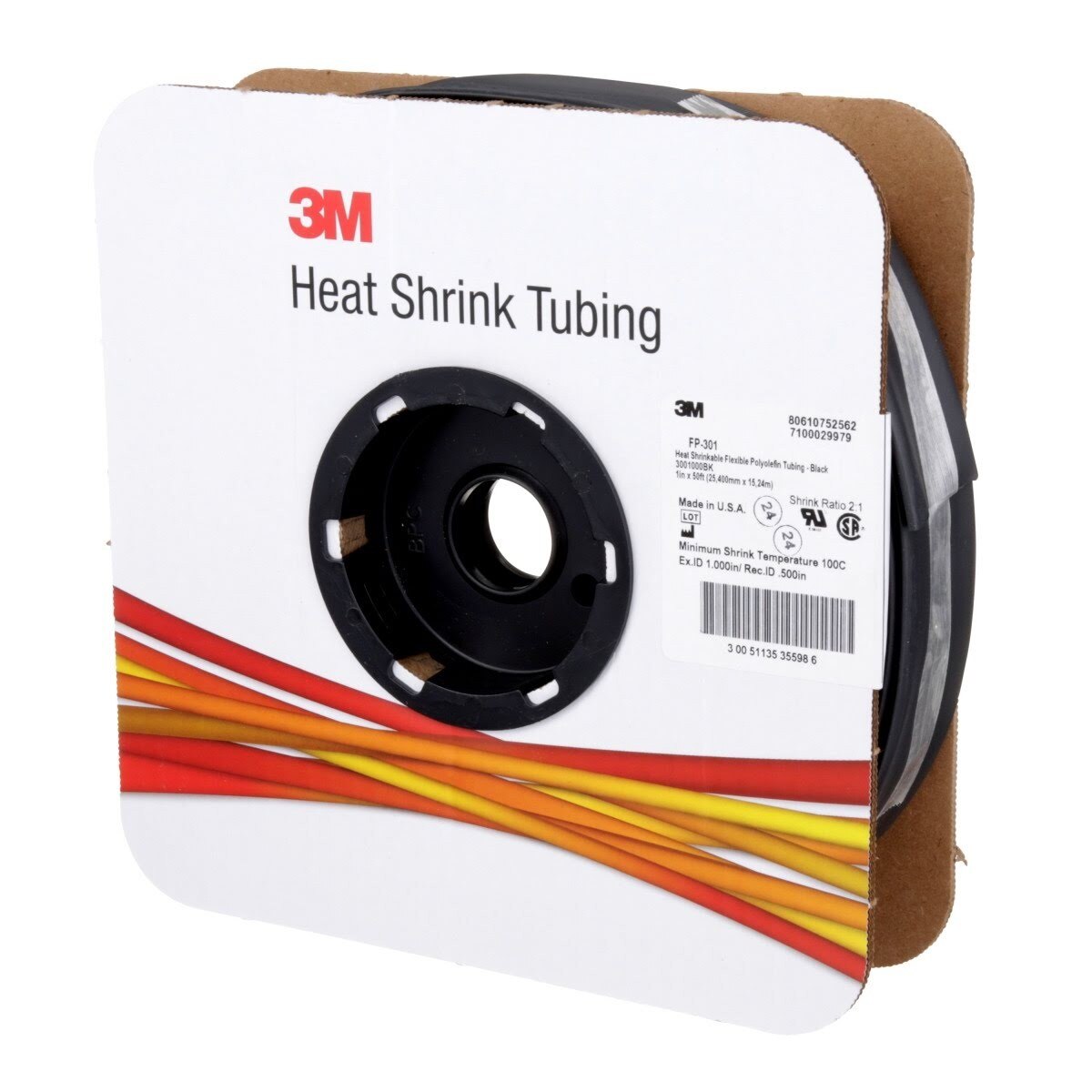

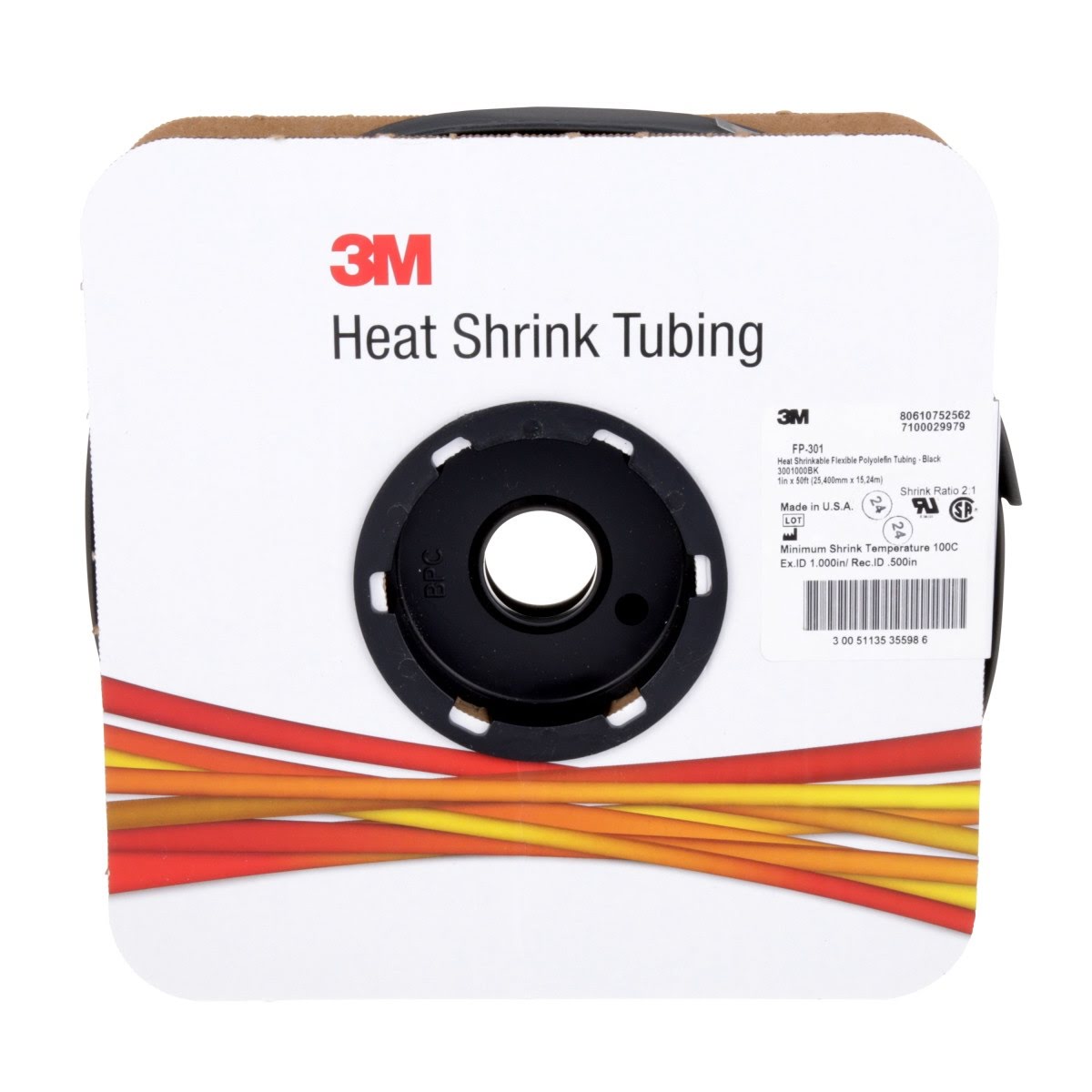

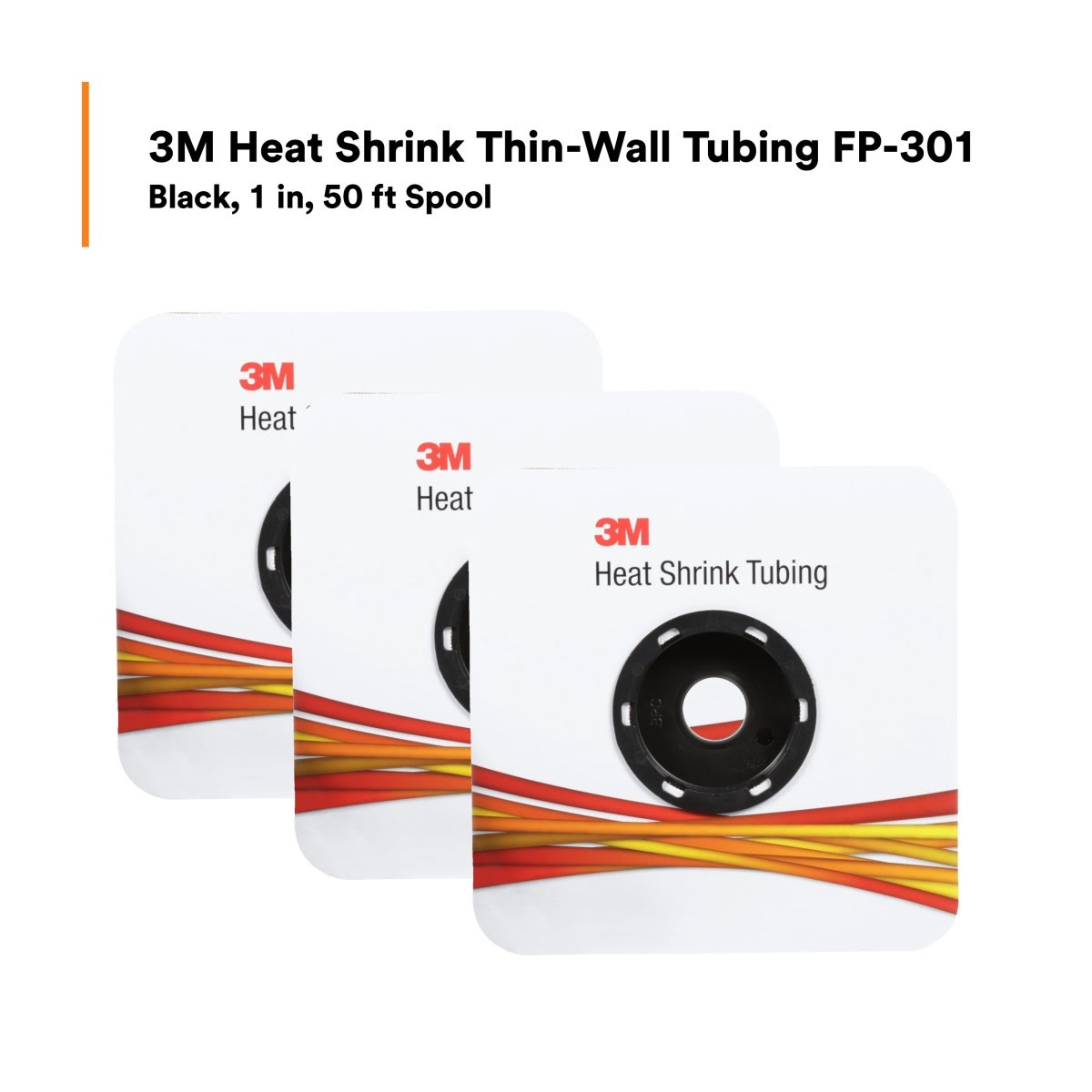

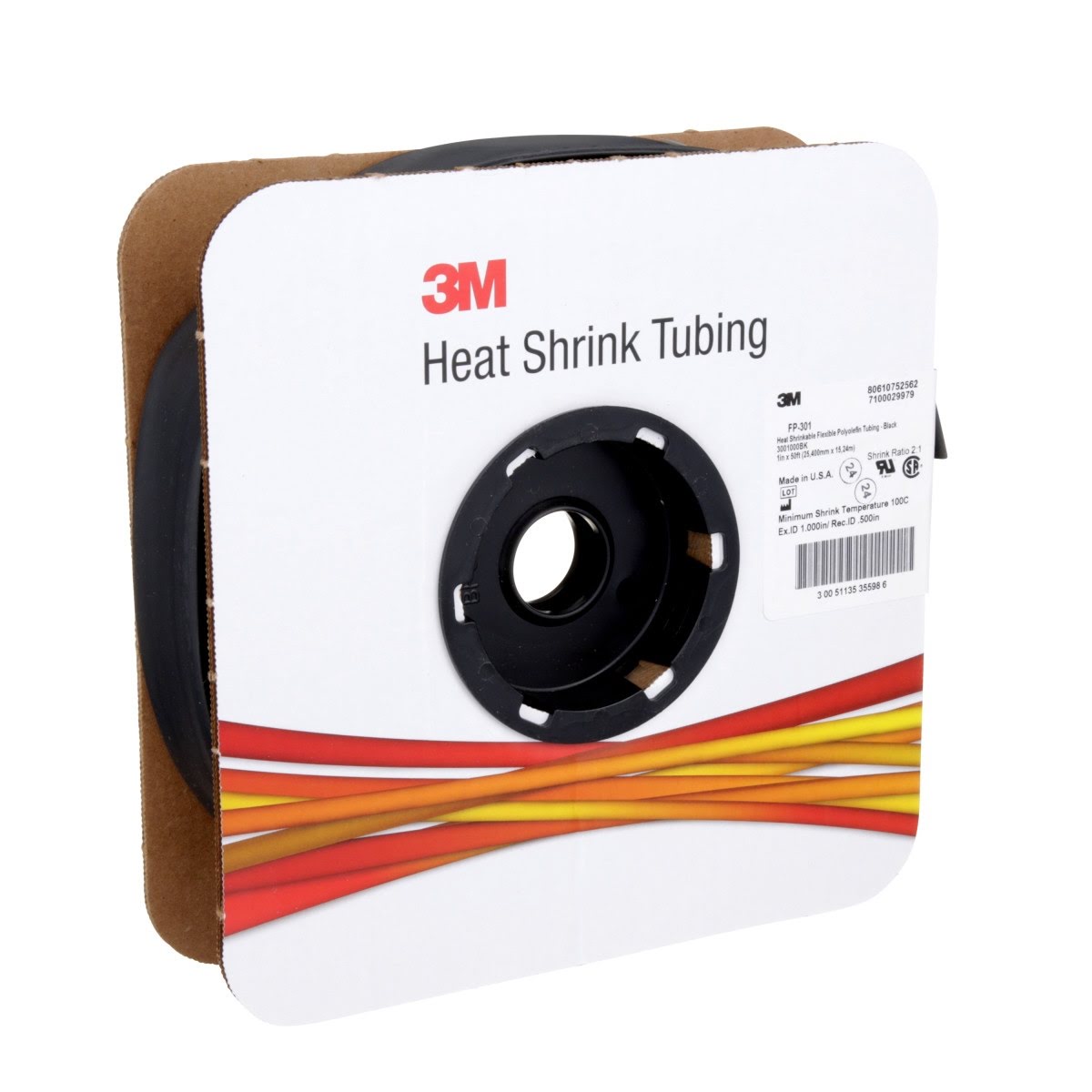

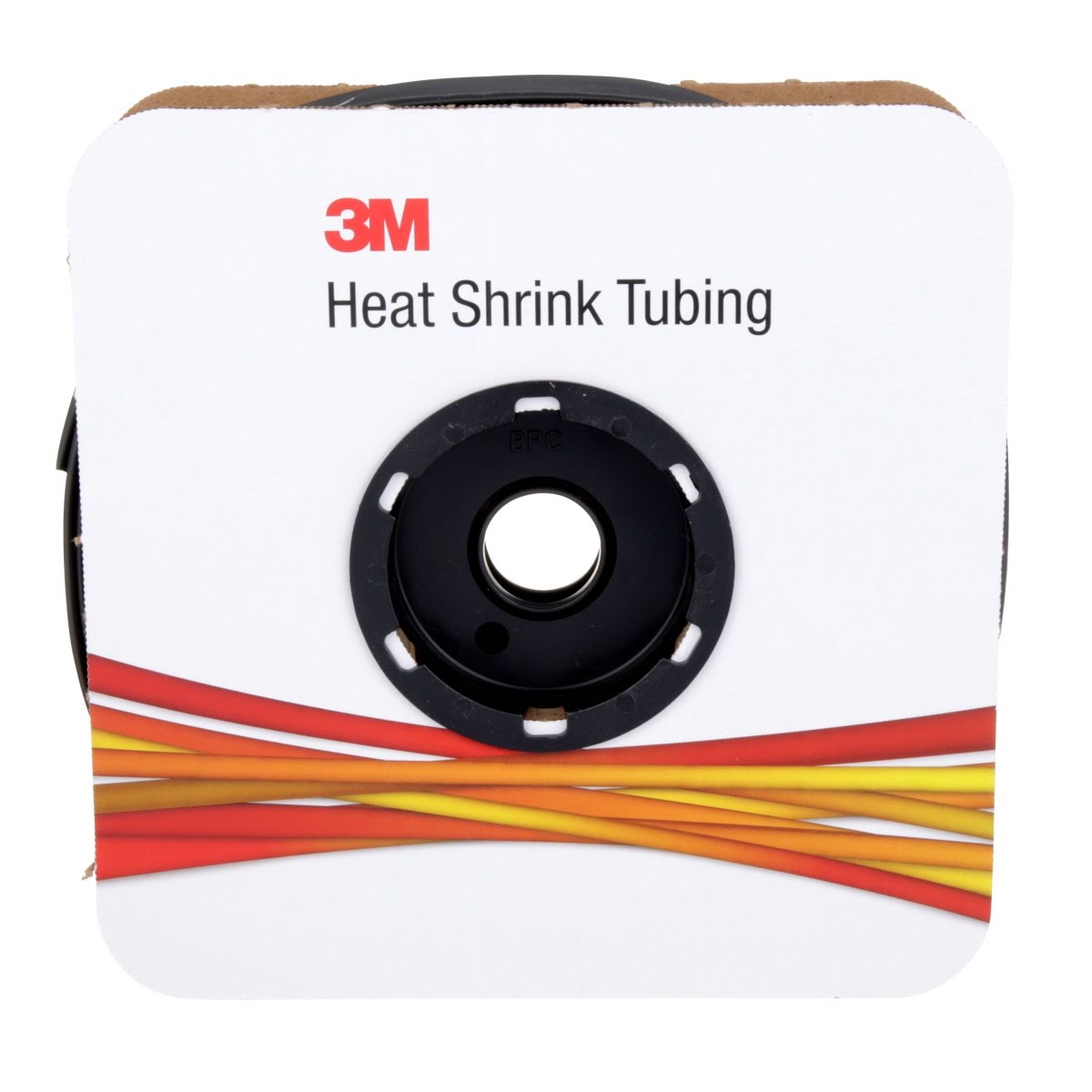

- (3) - 3M 7100029979 Heat Shrink Thin-Wall Tubing FP-301, Black Color, 2 to 1 Shrink, High Strength Protection, Electrical Insulation, 1 in, 50 ft Spool, 1 Spool (FP1.000BK50'S)
3M 7100029979 Features
- 2 to 1 shrink ratio for shrink fit protection
- Flame retardant tubing for applications up to 600V
- Flexible polyolefin construction provides moisture seal protection
- Operating temperature range from minus 67 Degree Fahrenheit to 275 Degree Fahrenheit
- Mechanically tough and split resistant for wire harness covering and insulation
- UL listed and CSA certified
- SAE AS23053 5 Class 1 compliant
- RoHS 2011 65 EU compliant without exemption
3M 7100029979 Specifications
| Color | Black |
| Material | Flexible Polyolefin |

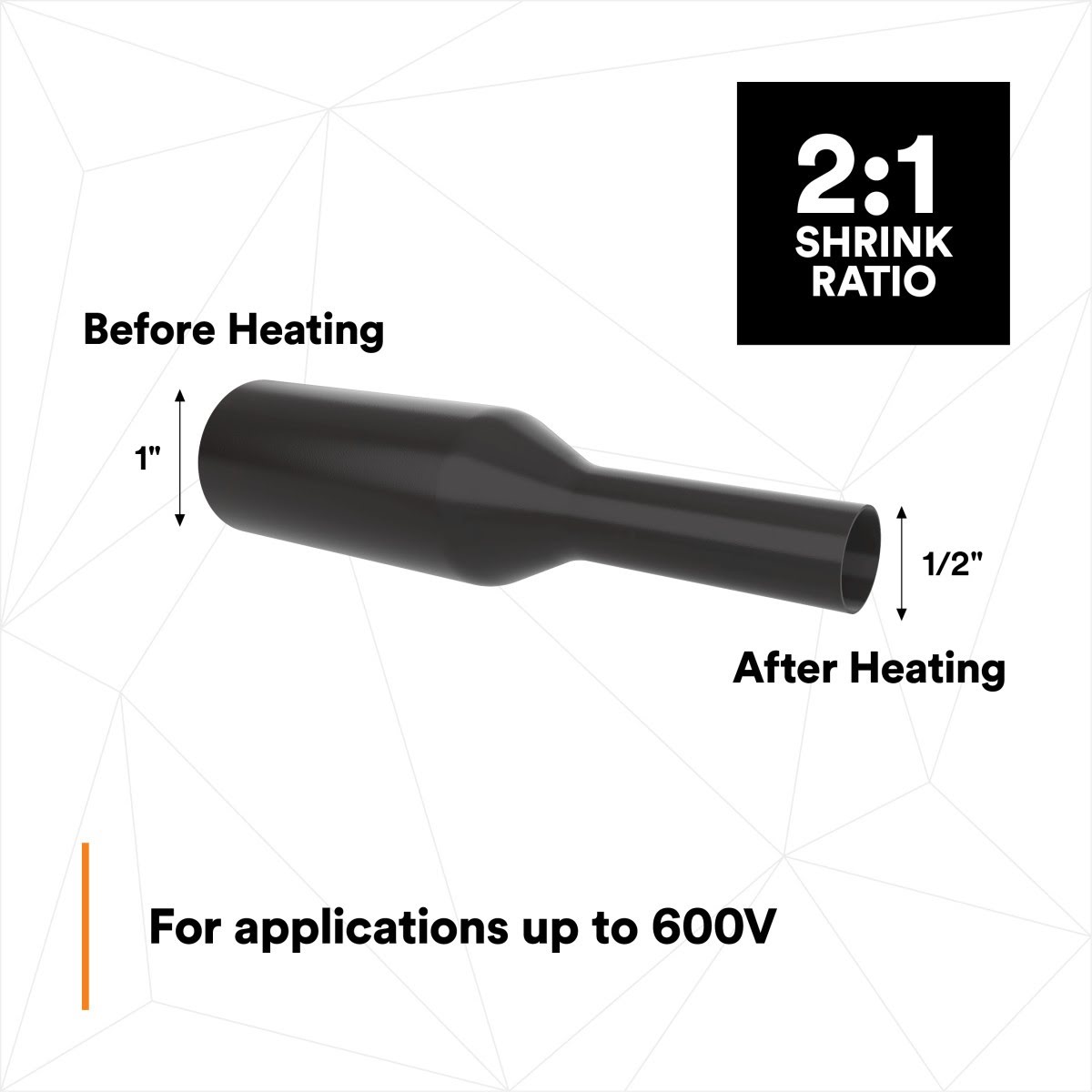

| Shrink Ratio | 2 to 1 |
| Inner Diameter Before Shrink | 1.0 in |
| Inner Diameter After Shrink | 0.5 in |
| Overall Length | 50 ft |
| Flame Retardant | Yes |
| Voltage Rating | 600V |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Minimum Shrink Temperature | 100 Degree Celsius |
| UL File Number | E 39100 |
| Mil Spec | AMS DTL 23053 5 Class 1 |
| RoHS | RoHS 2011 65 EU compliant |
Toolup Part # :
859487
