Description
Description
3M 7100030629 Description

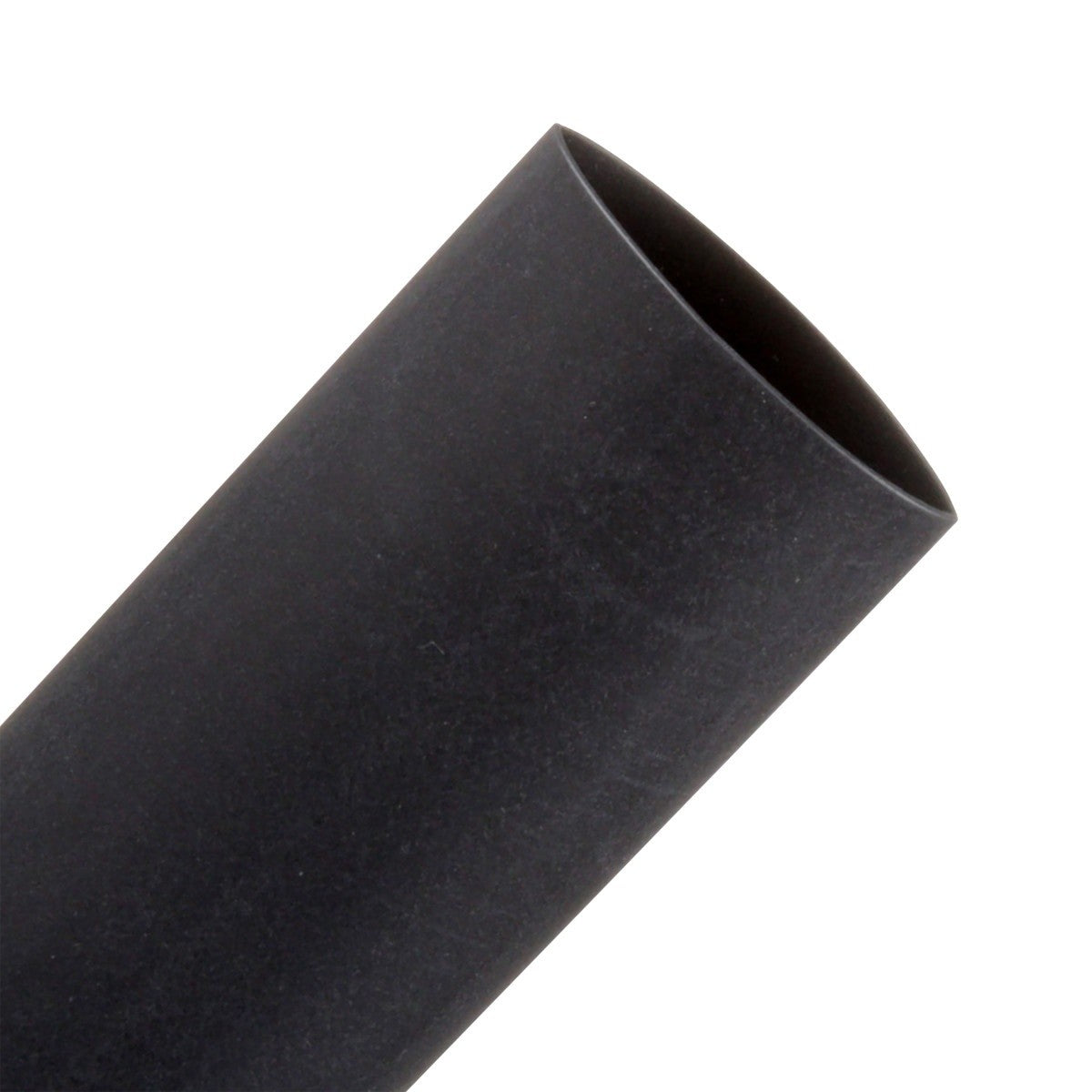

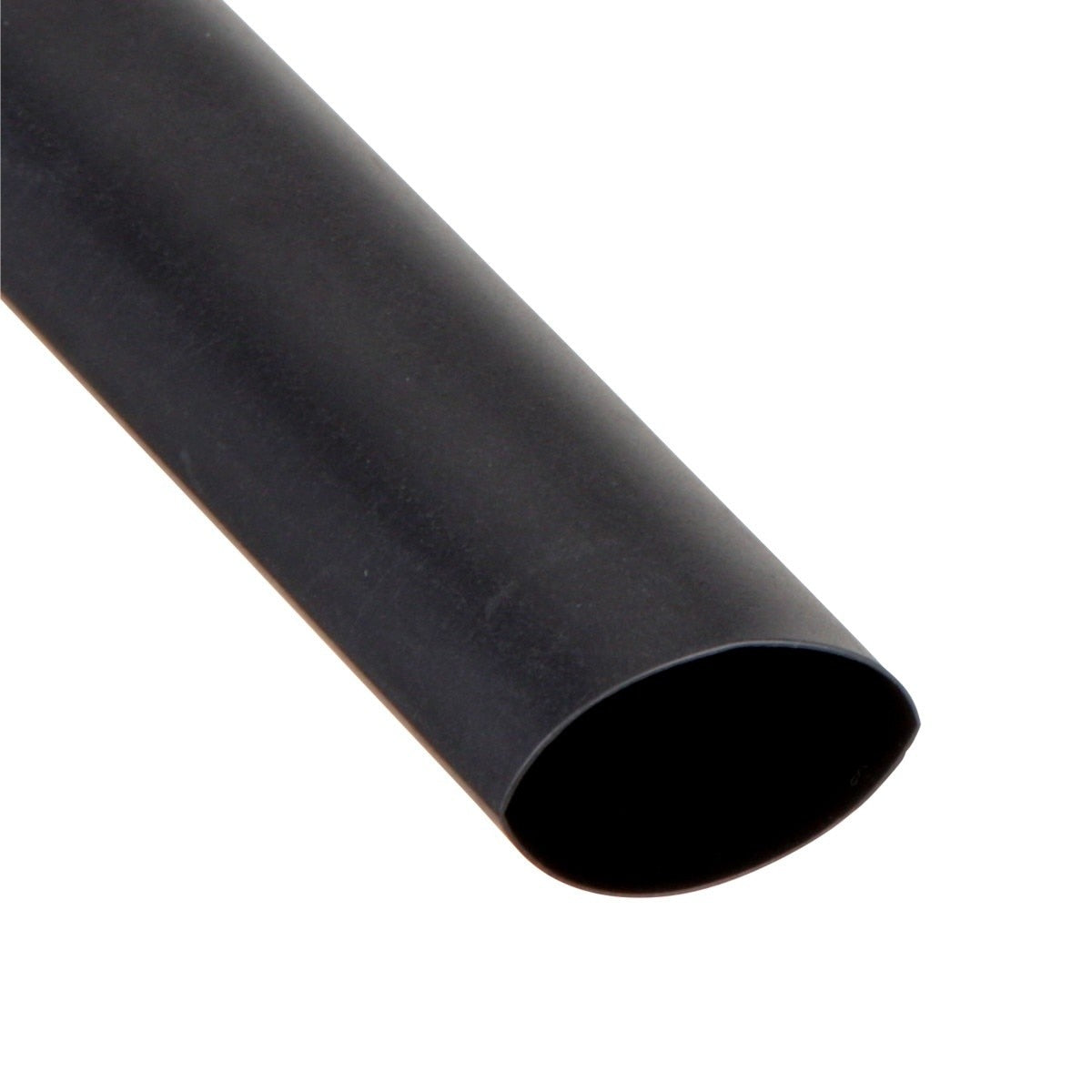

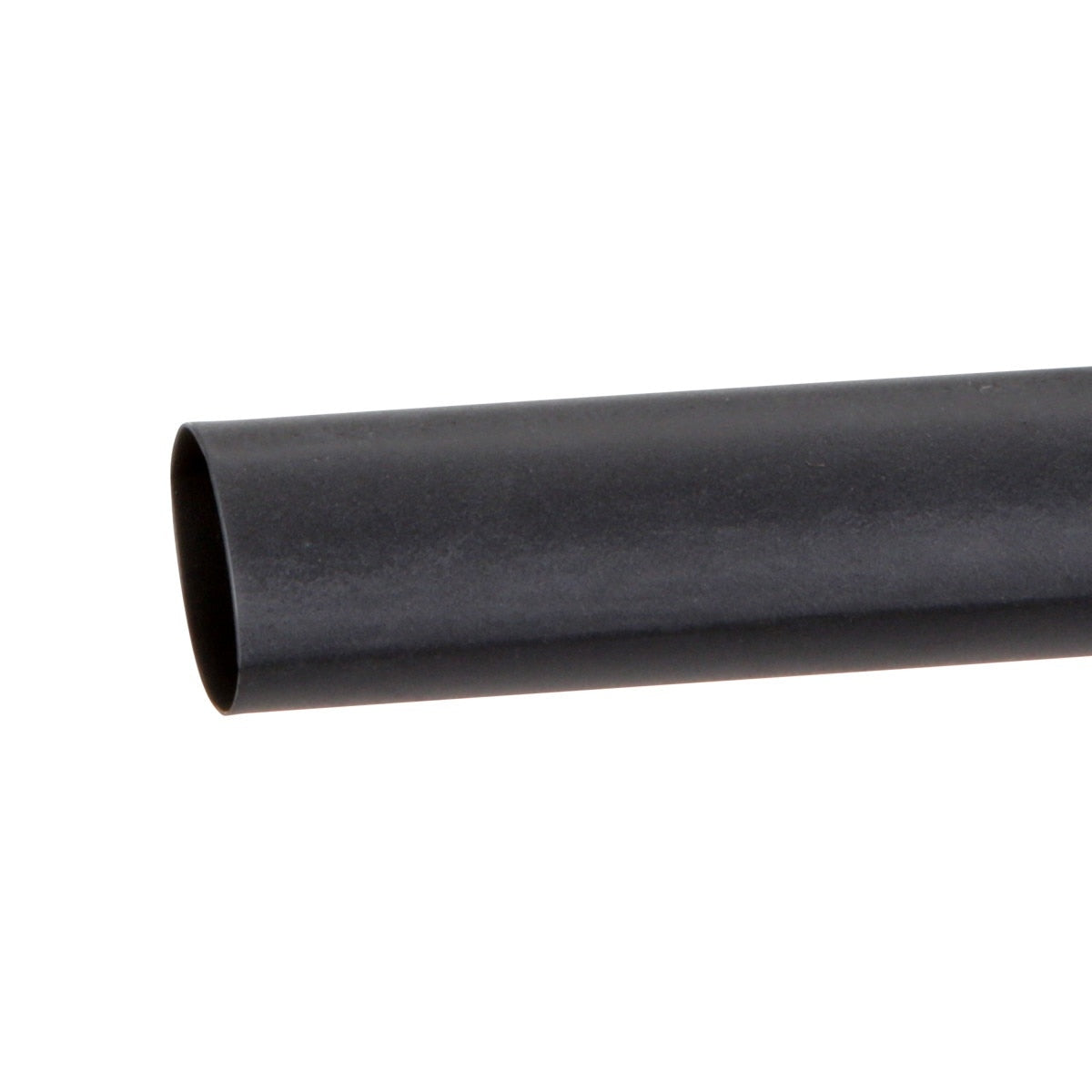

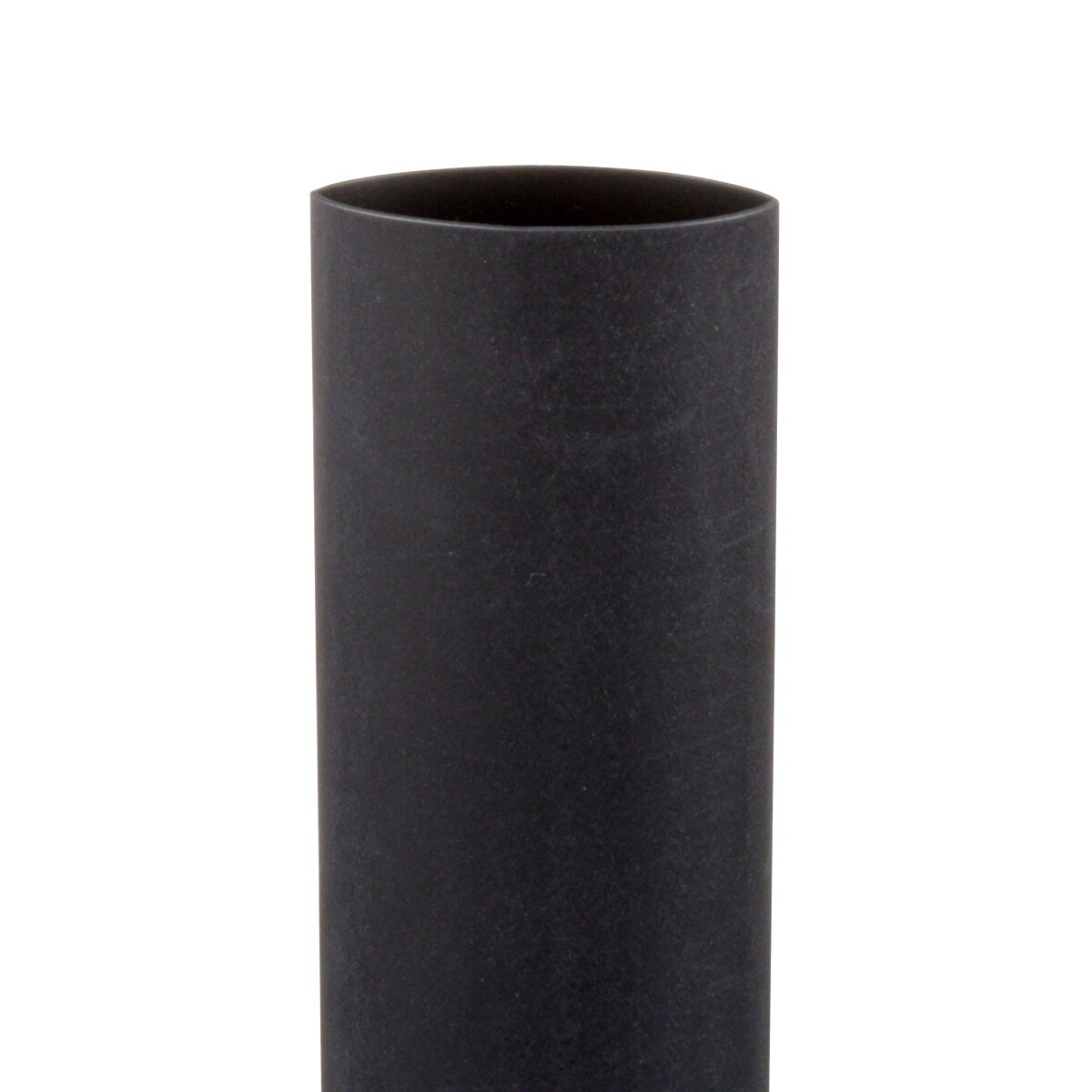

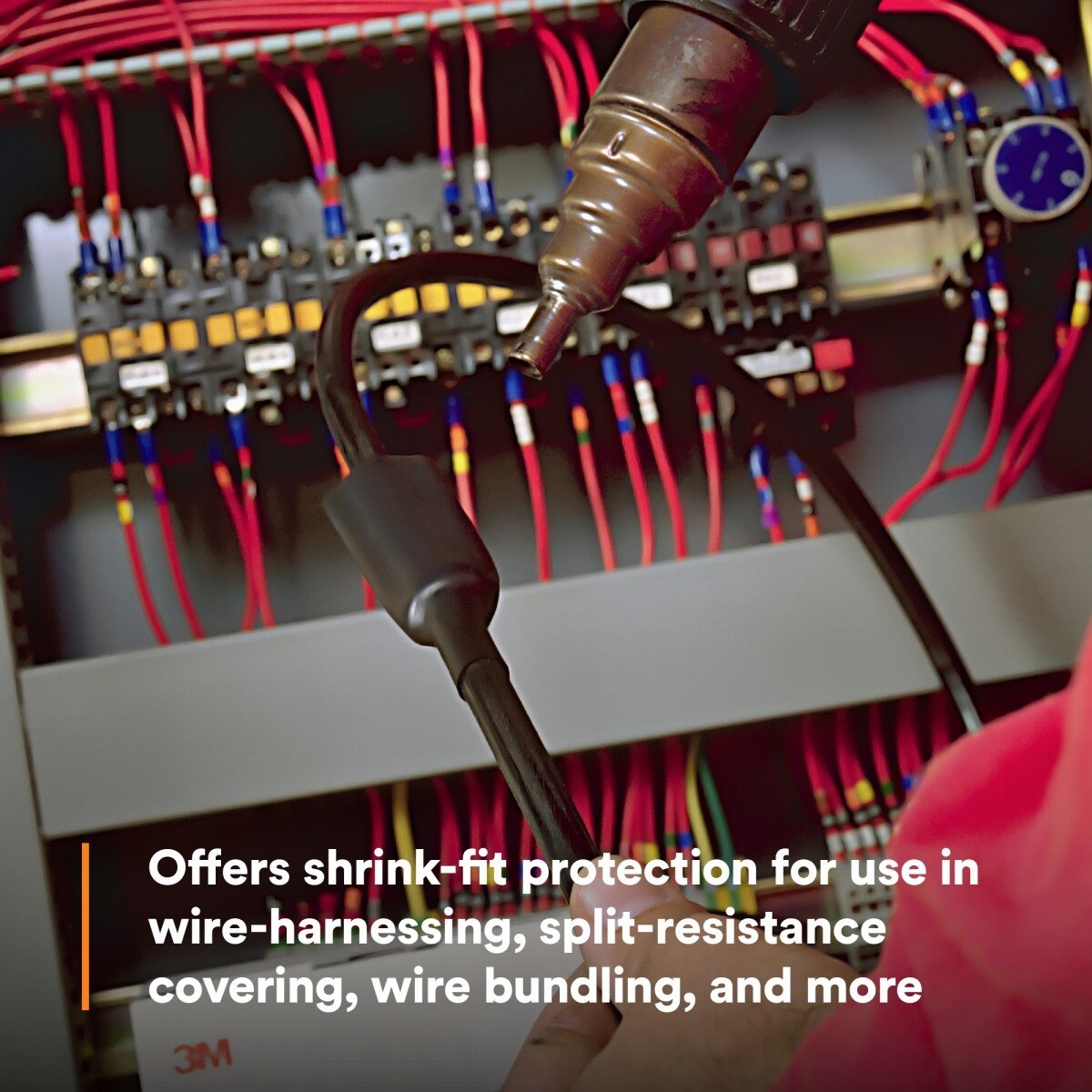

3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin heat shrink tubing that provides flame retardant electrical insulation and moisture seal protection for wire and cable applications up to 600V.
3M 7100030629 Includes

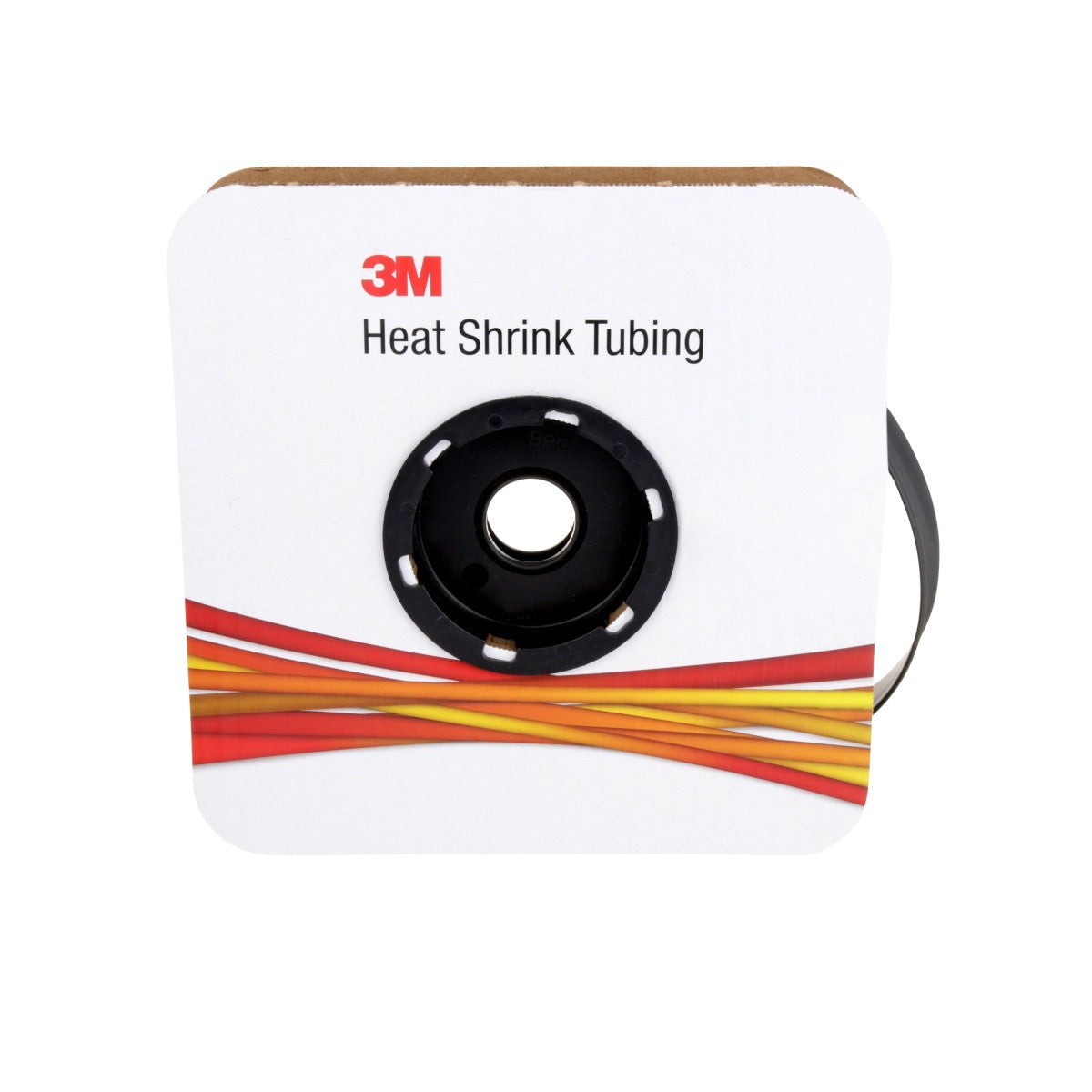

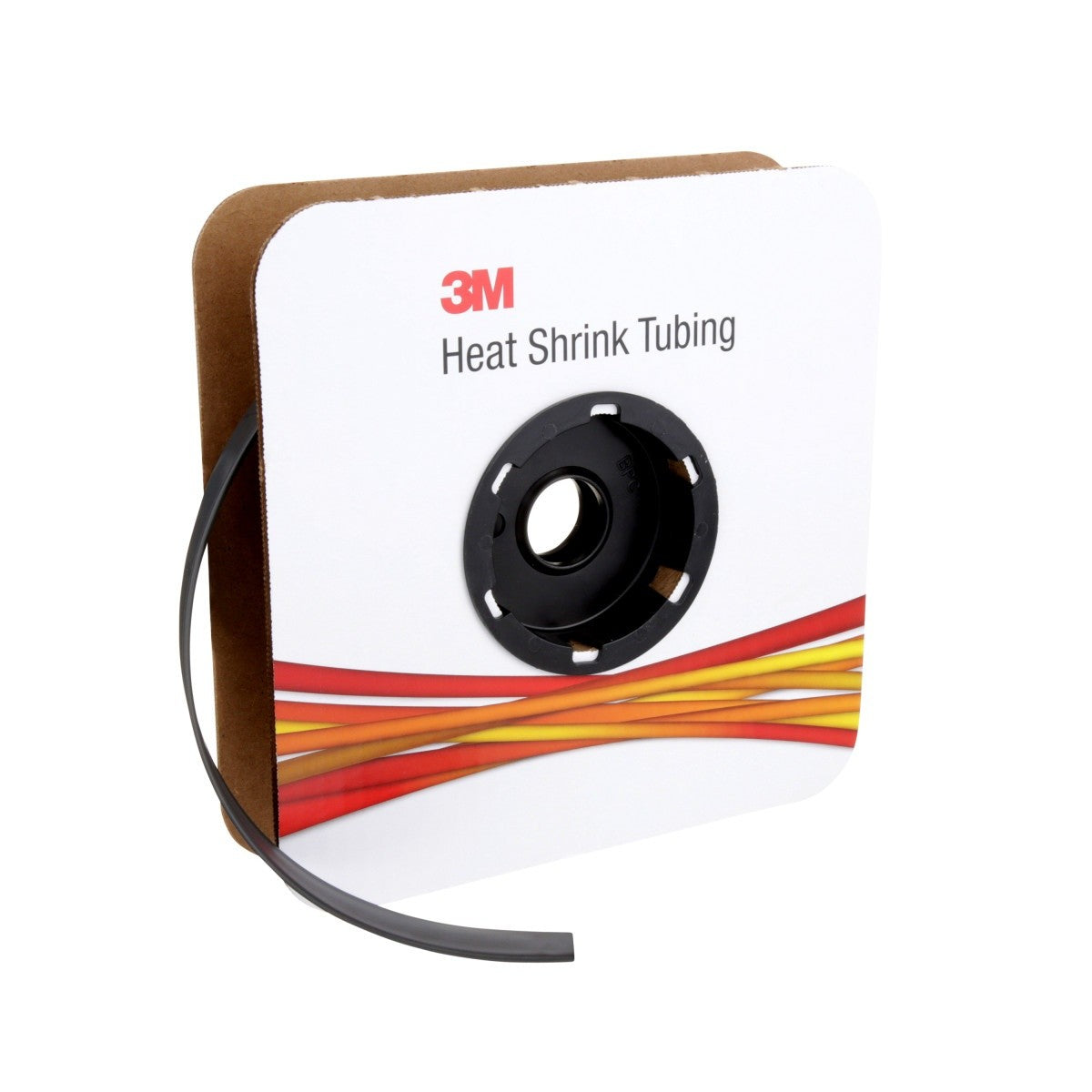

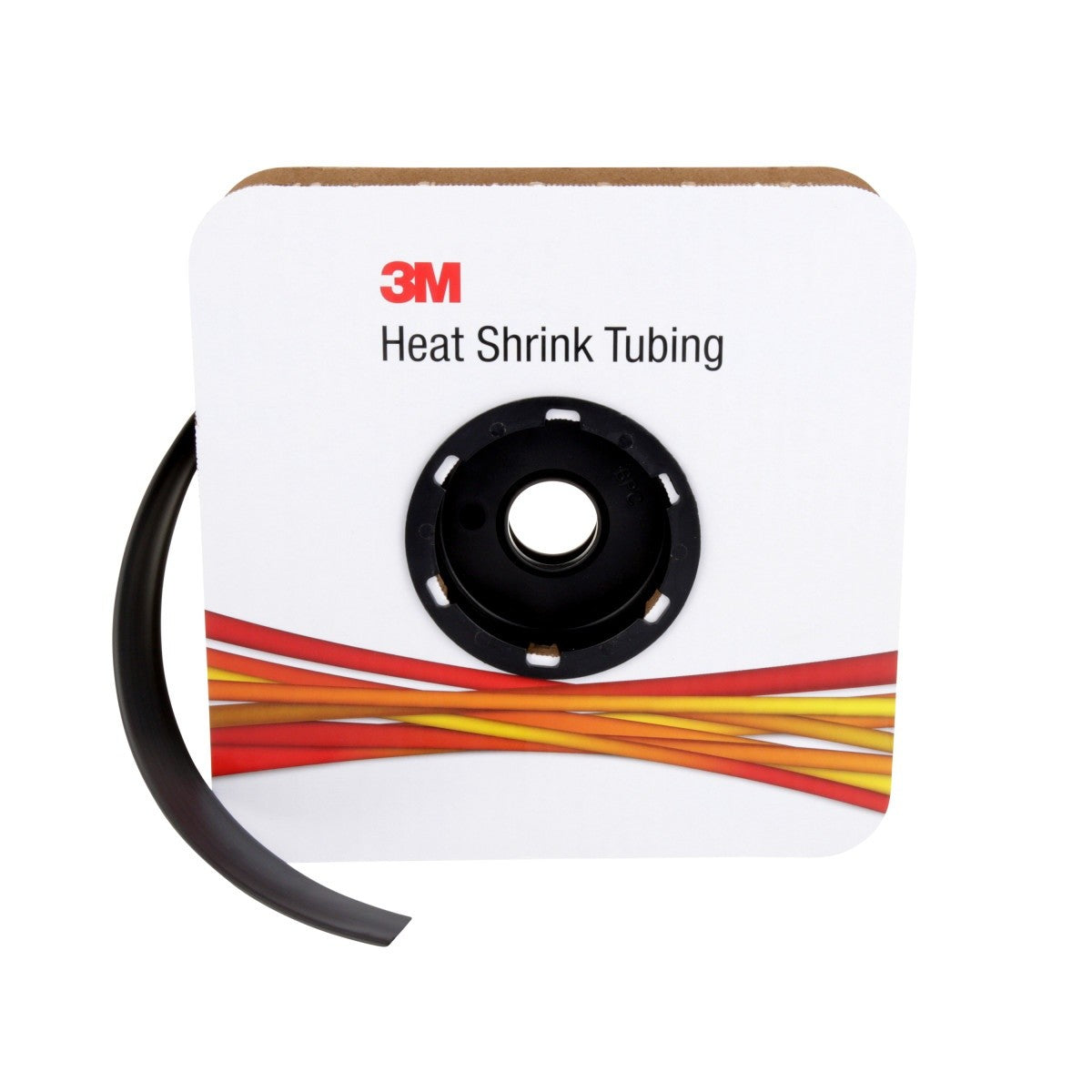

- (3) - 3M 7100030629 Heat Shrink Thin-Wall Tubing FP-301, Black Color, 2 to 1 Shrink, High Strength Protection, Electrical Insulation, 3/4 in, 50 ft Spool, 1 Spool (FP0.750BK50'S)
3M 7100030629 Features
- 2 to 1 shrink ratio for a snug shrink fit over splices and terminations
- Flame retardant insulation for applications up to 600V
- Flexible polyolefin construction helps provide moisture seal protection
- Operating temperature range -67 to 275 Degree F
- Meets key specifications including UL and CSA and RoHS compliant
3M 7100030629 Specifications
| Product Type | Heat Shrink Tubing |
| Tubing Type | Single Wall Thin |
| Heat Shrink Type | Single Wall Polyolefin Heat Shrink Tubing |
| Color | Black |

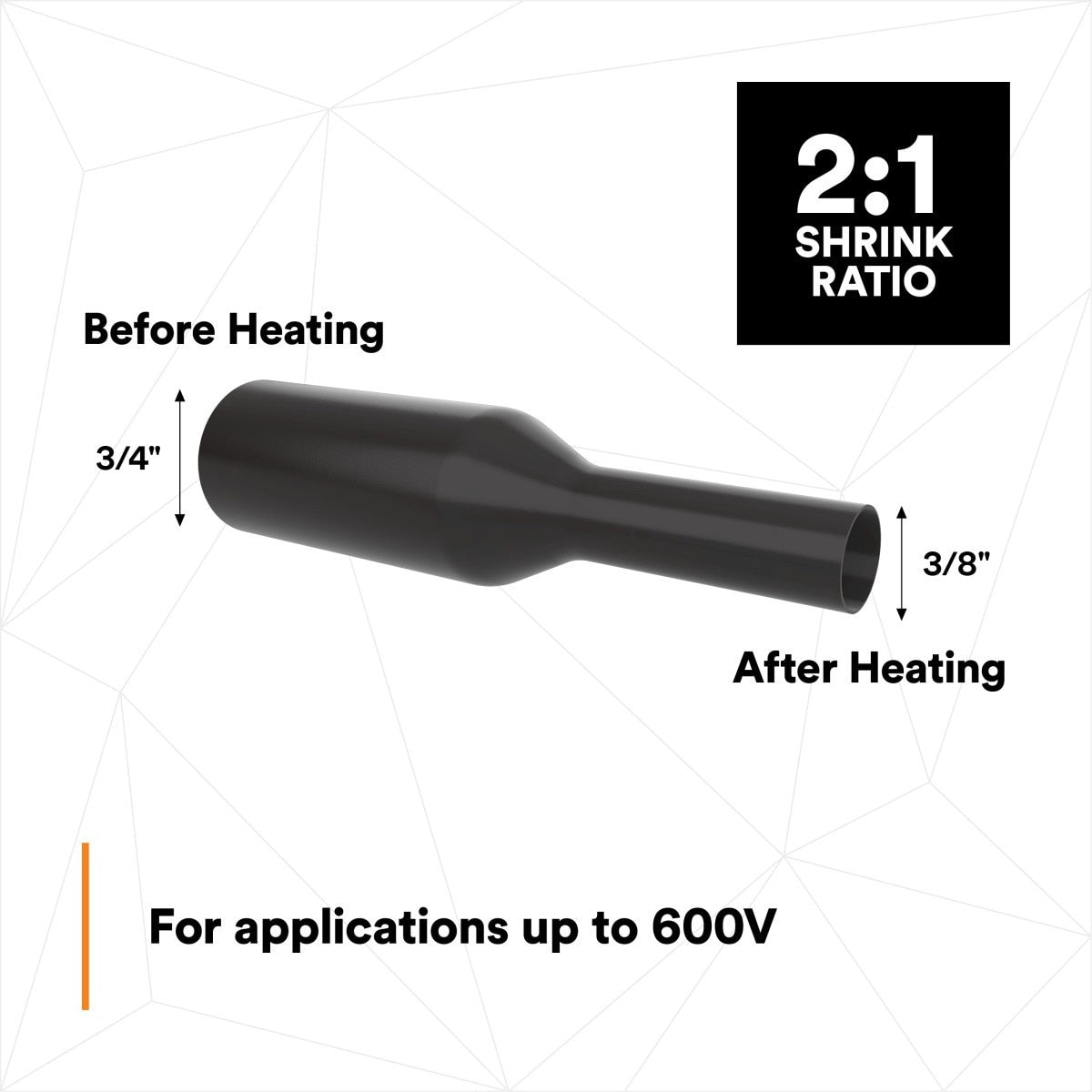

| Shrink Ratio | 2:1 |
| Inner Diameter Before Shrink | 0.75 in |
| Inner Diameter After Shrink | 0.375 in |
| Overall Length | 50 ft |
| Material | Flexible Polyolefin |
| Flame Retardant | Yes |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | -67 Degree Fahrenheit to 275 Degree Fahrenheit |
| Tensile Strength | 2400 Pound-Force Per Square Inch |
| Elongation | 400 Percent |
| UL Approval | Yes |
| UL File Number | E-39100 |
| Mil Spec | AMS-DTL-23053/5 Class 1 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
Toolup Part # :
859473
