3M 7100020270 Description

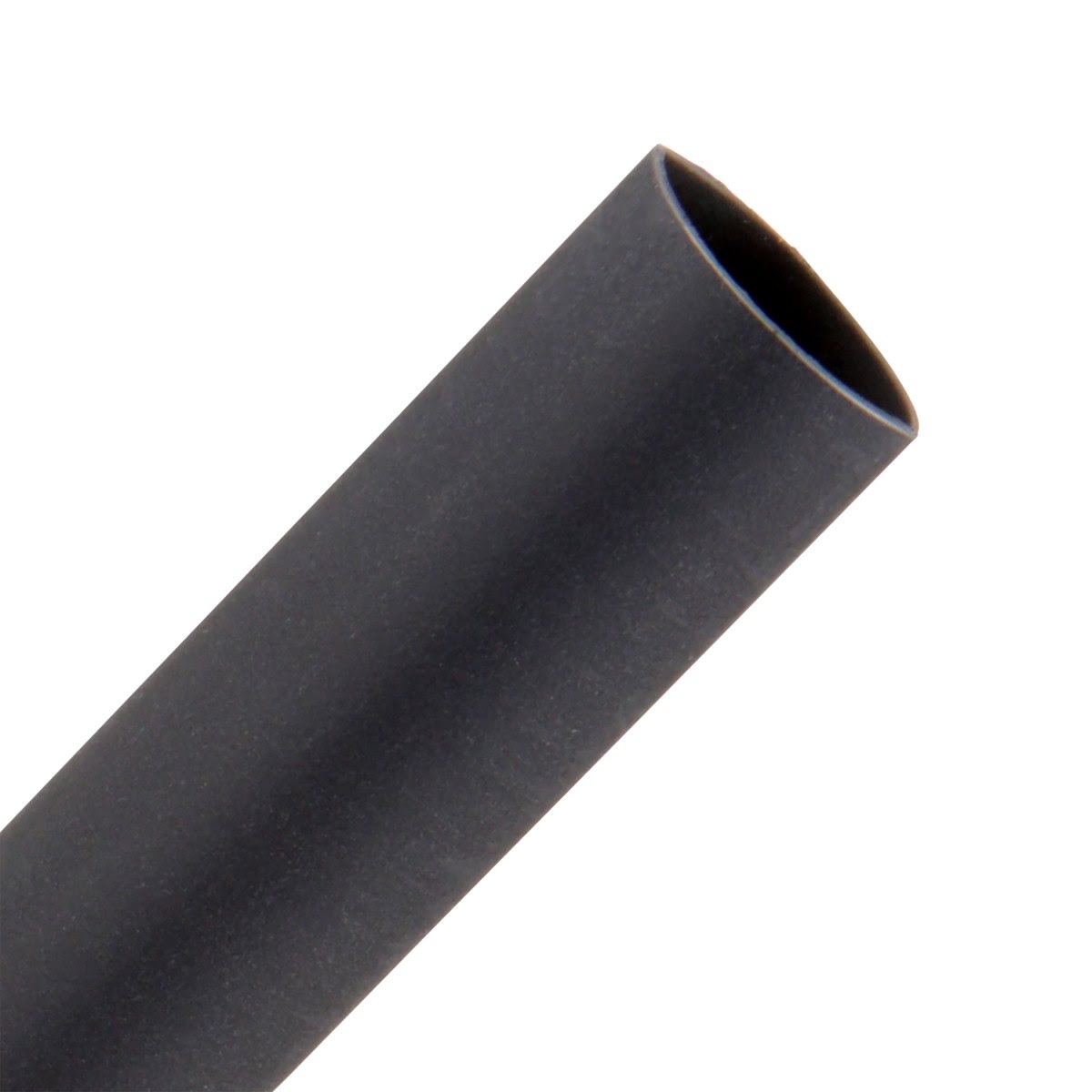

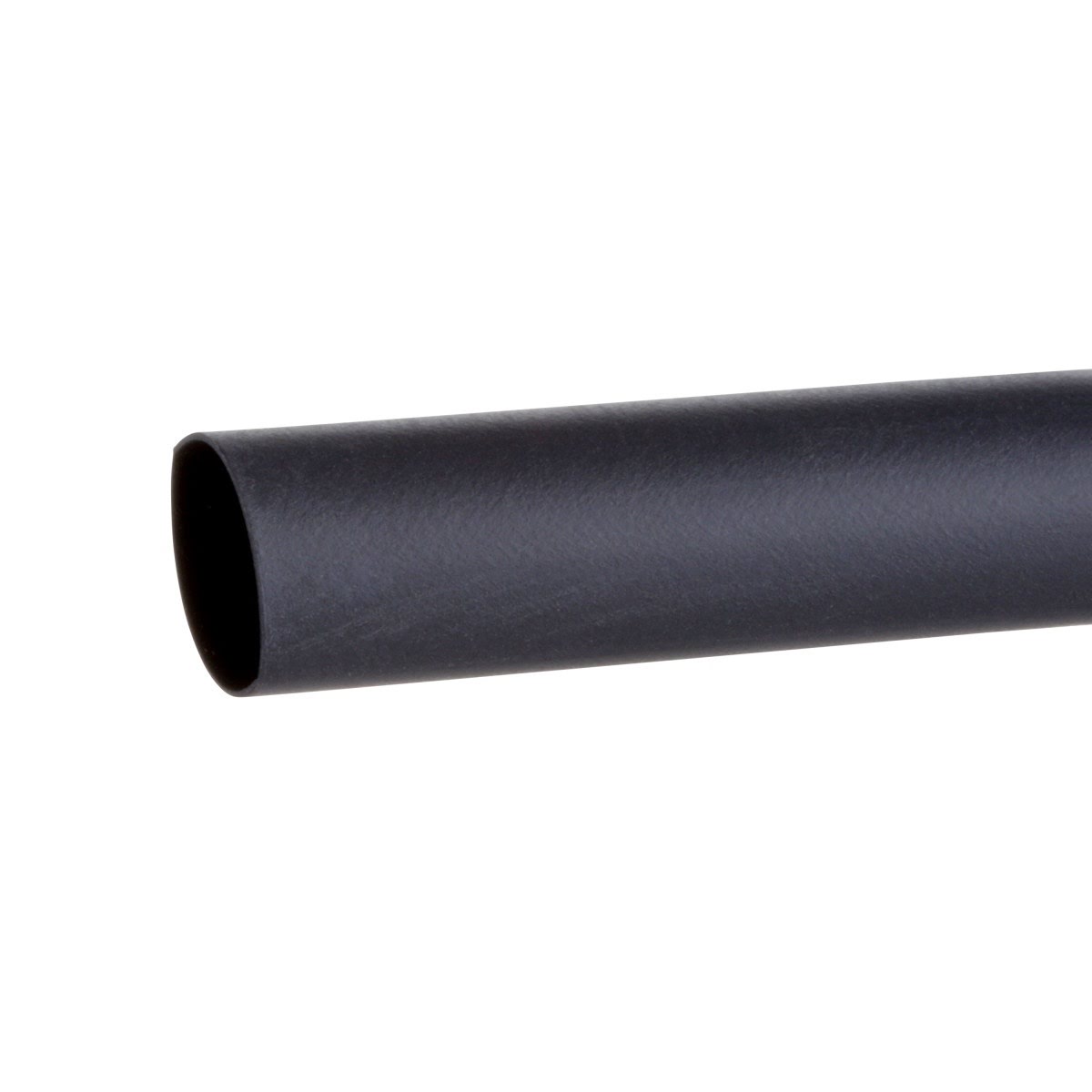

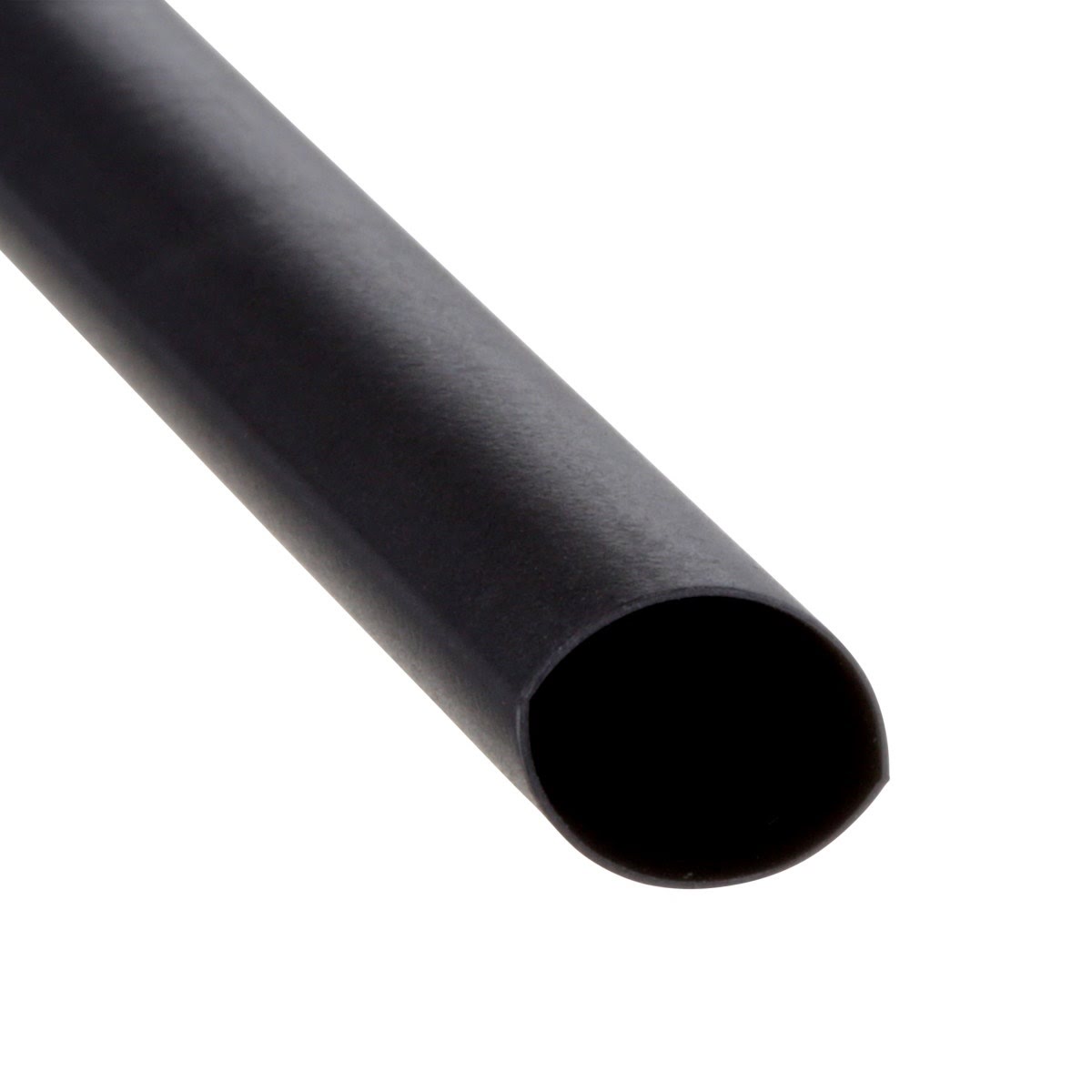

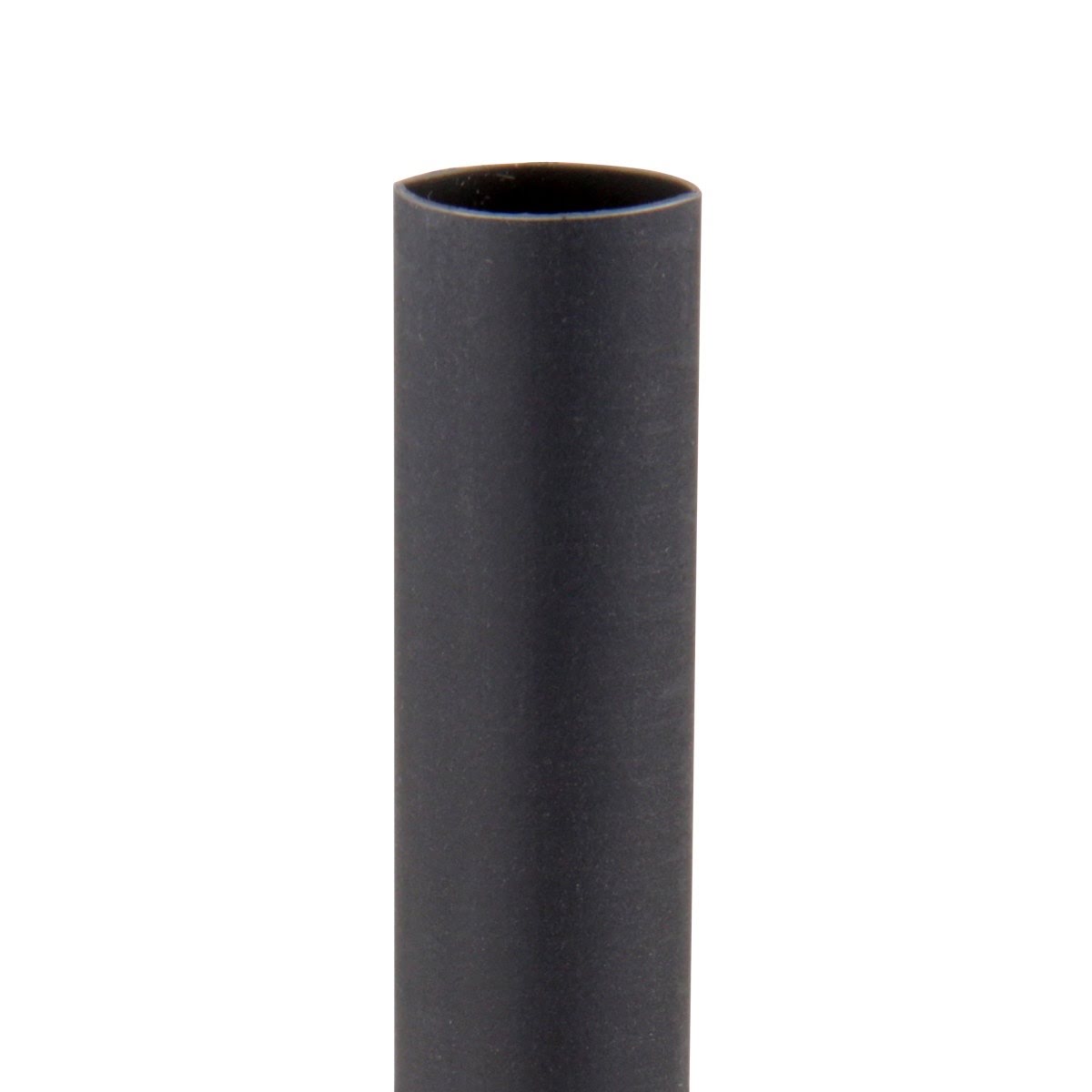

3M FP-301 heat shrink thin-wall tubing is a general purpose flexible polyolefin tubing designed to provide electrical insulation and protection for cable splices, terminations, and wire harnesses. It features a 2:1 shrink ratio, flame-retardant performance, and moisture seal protection for applications up to 600V.
3M 7100020270 Includes

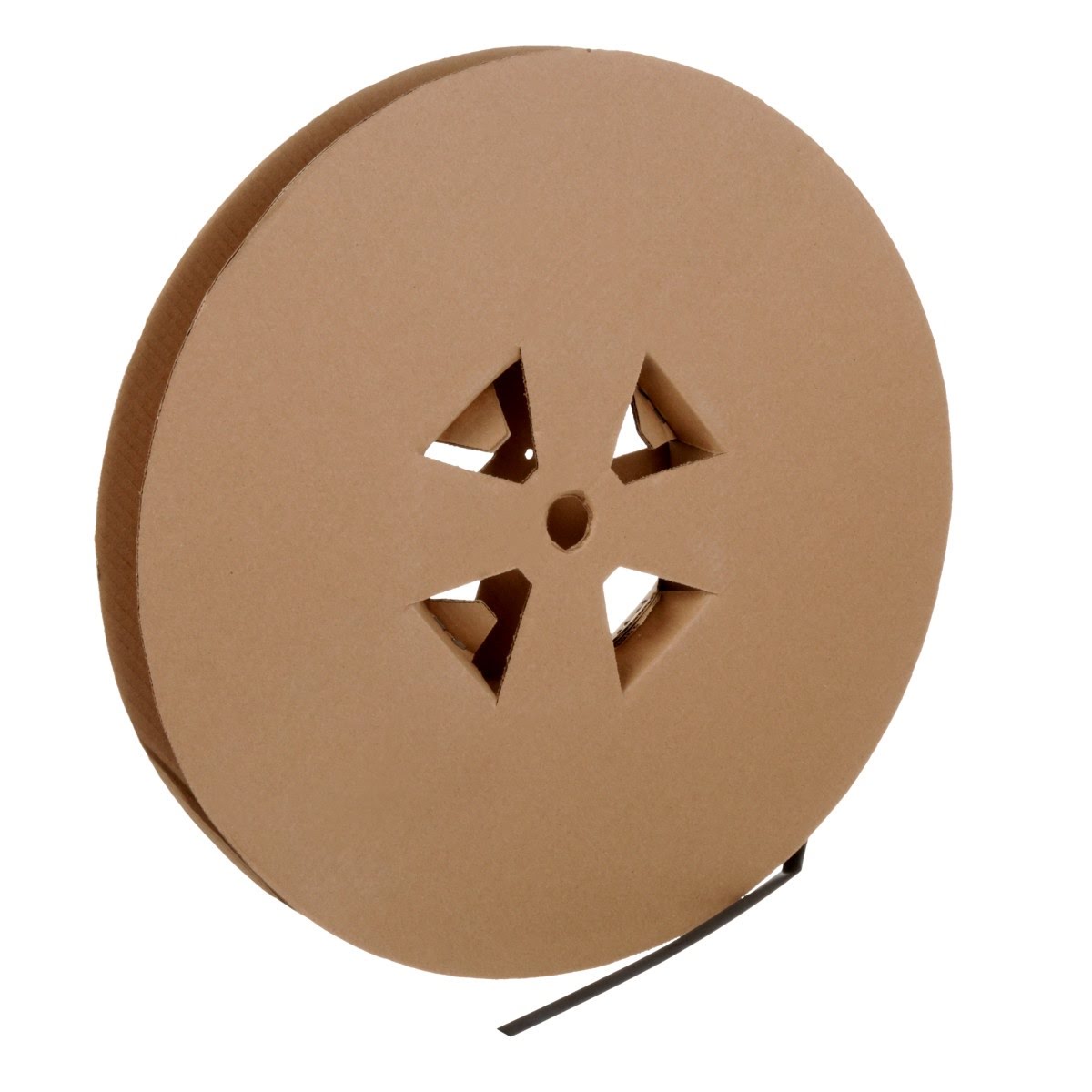

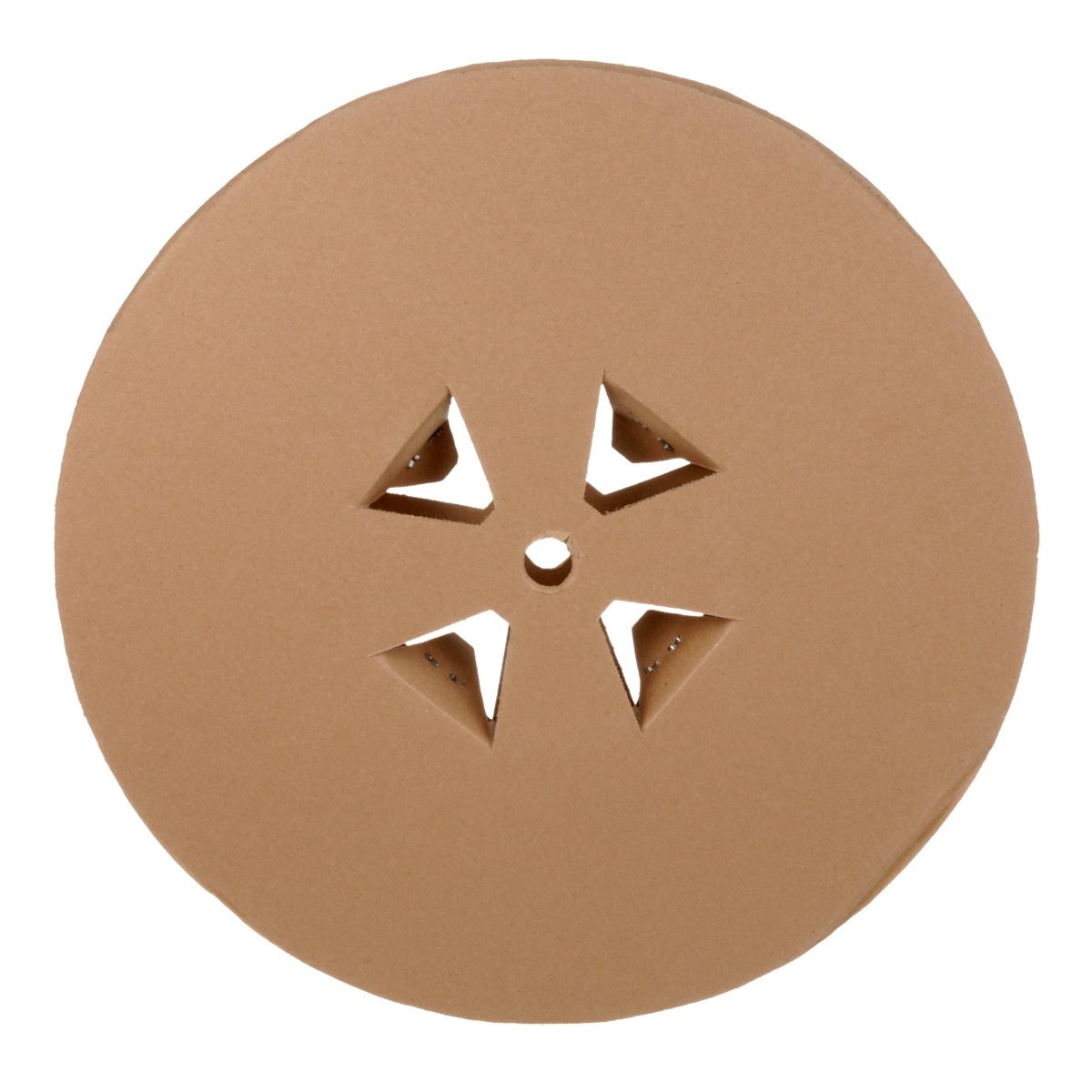

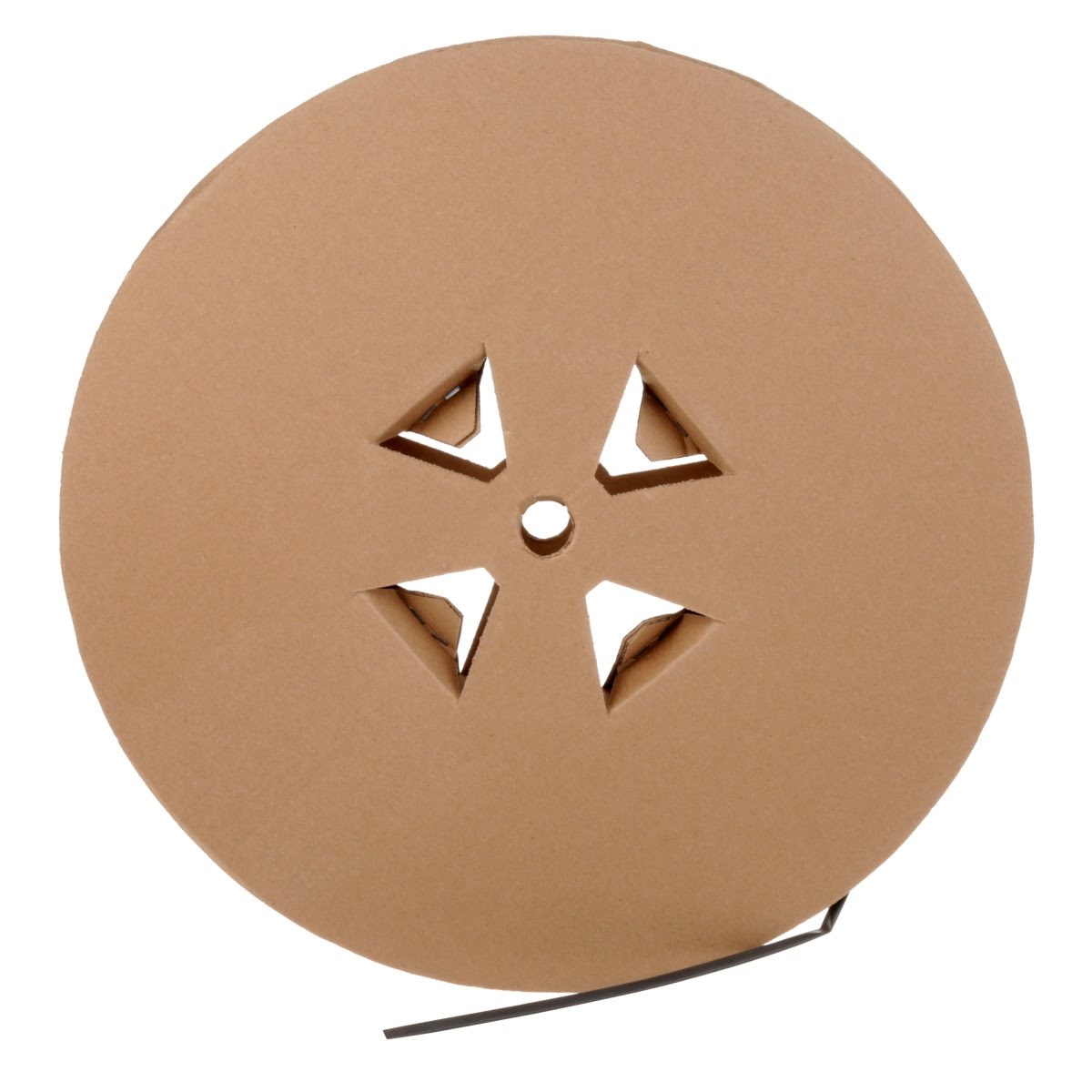

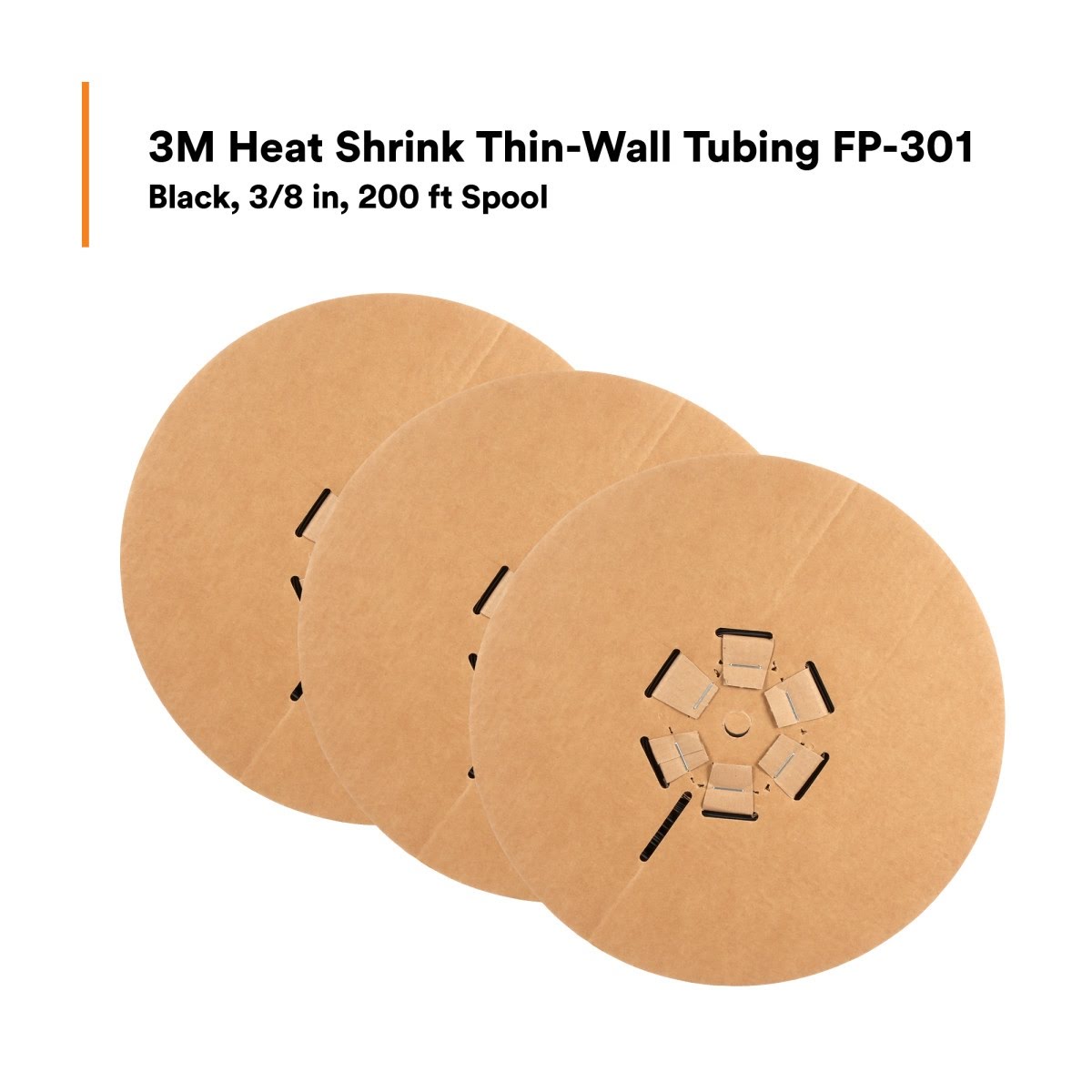

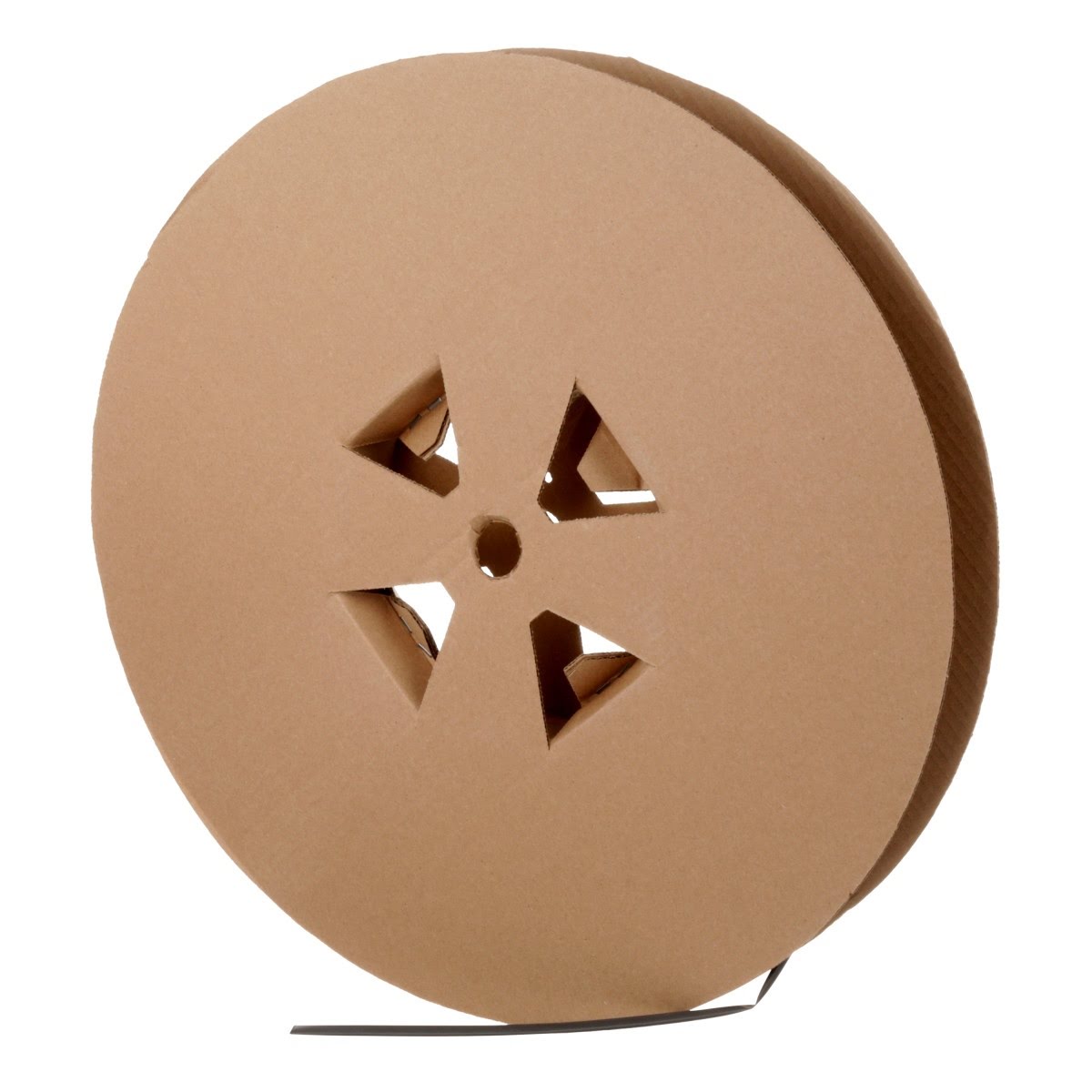

- (3) - 3M 7100020270 FP-301 Heat Shrink Thin-Wall Tubing, 3/8 in x 200 ft Length Spool, Black (FP0.375BK200'L)
3M 7100020270 Features
- General purpose thin-wall heat shrink tubing for electrical insulation and protection

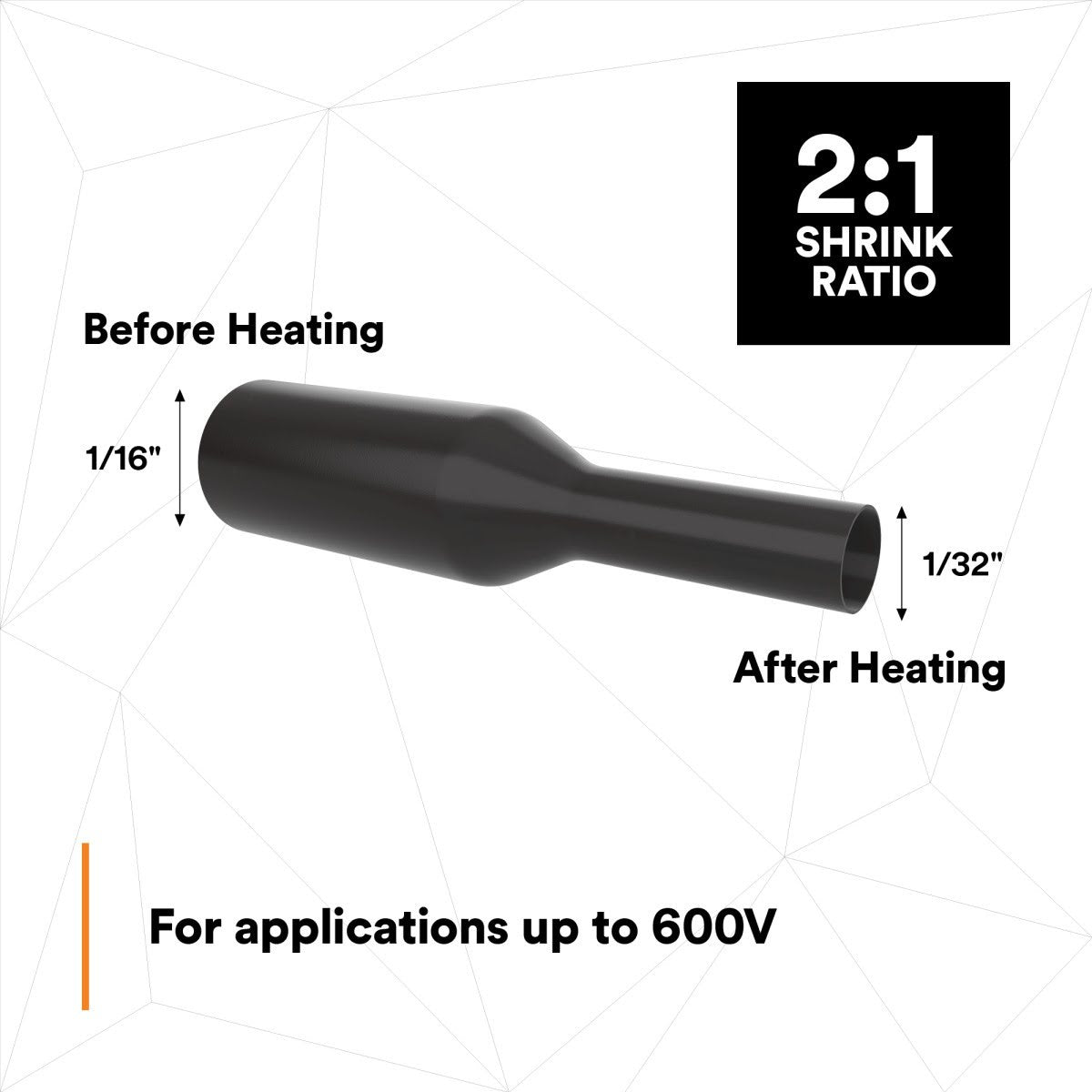

- 2:1 shrink ratio for secure fit over splices and terminations
- Flame-retardant tubing for applications up to 600V
- Flexible polyolefin construction helps provide moisture seal protection
- Mechanically tough and split resistant
- Operating temperature range of -67 to 275 Degree Fahrenheit (-55 to 135 Degree Celsius)
- UL listed (UL File E-39100)
- Meets AMS-DTL-23053/5 Class 1 requirements
- RoHS 2011/65/EU compliant
3M 7100020270 Specifications
| Product type | Heat shrink thin-wall tubing |
| Series | FP-301 |
| Color | Black |
| Material | Flexible polyolefin |
| Shrink ratio | 2:1 |
| Expanded inner diameter | 0.375 in |
| Recovered inner diameter | 0.187 in |
| Overall length | 200 ft |
| Flame retardant | Yes |
| Voltage rating | 600V |
| Operating temperature range | -67 to 275 Degree Fahrenheit |
| UL approval | Yes |
| UL file number | E-39100 |
| Mil spec | AMS-DTL-23053/5 Class 1 |
| RoHS | RoHS 2011/65/EU compliant |
| Tensile strength | 2400 psi |
| Non-corrosive | Yes |
Toolup Part # :
860170
