3M 7010349739 Description

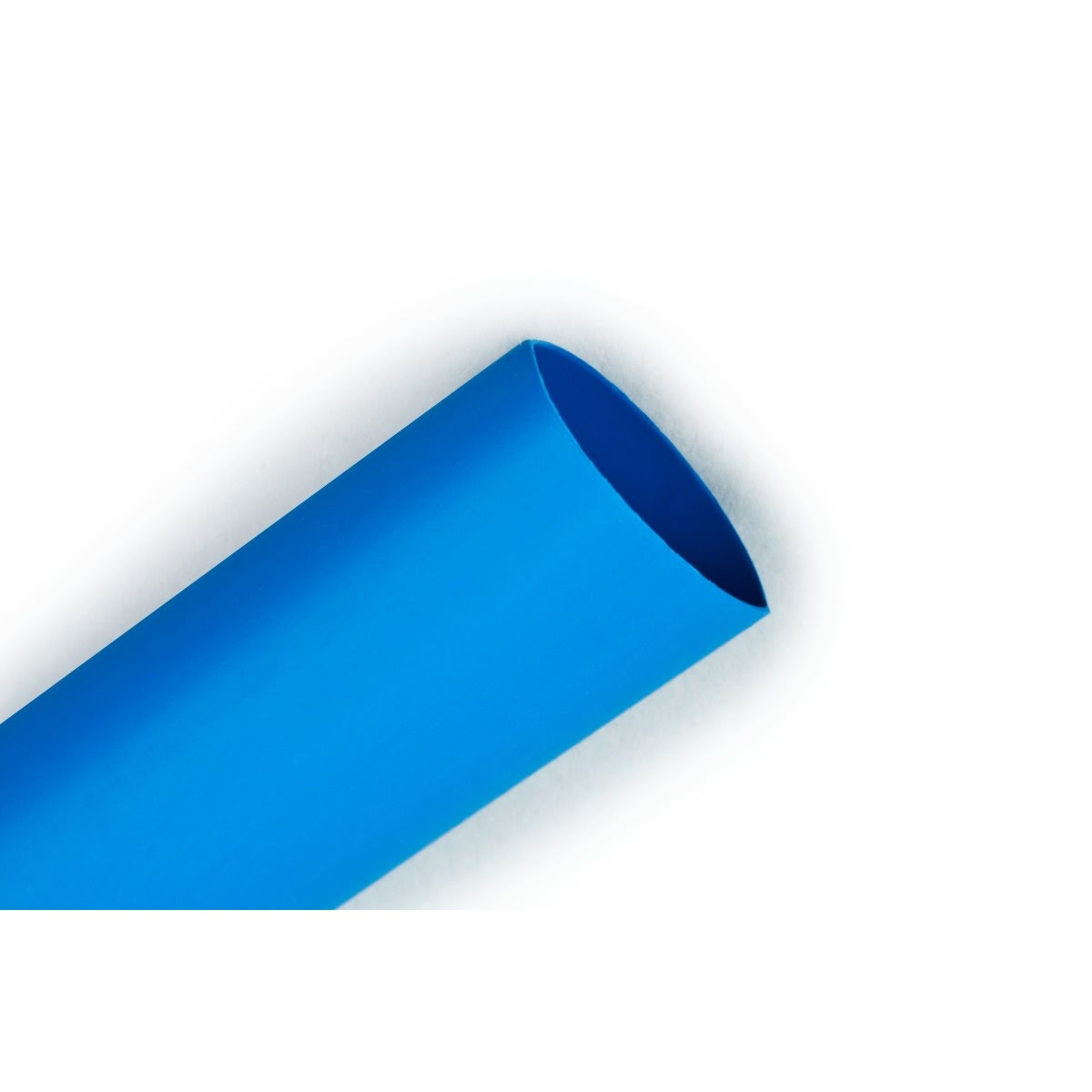

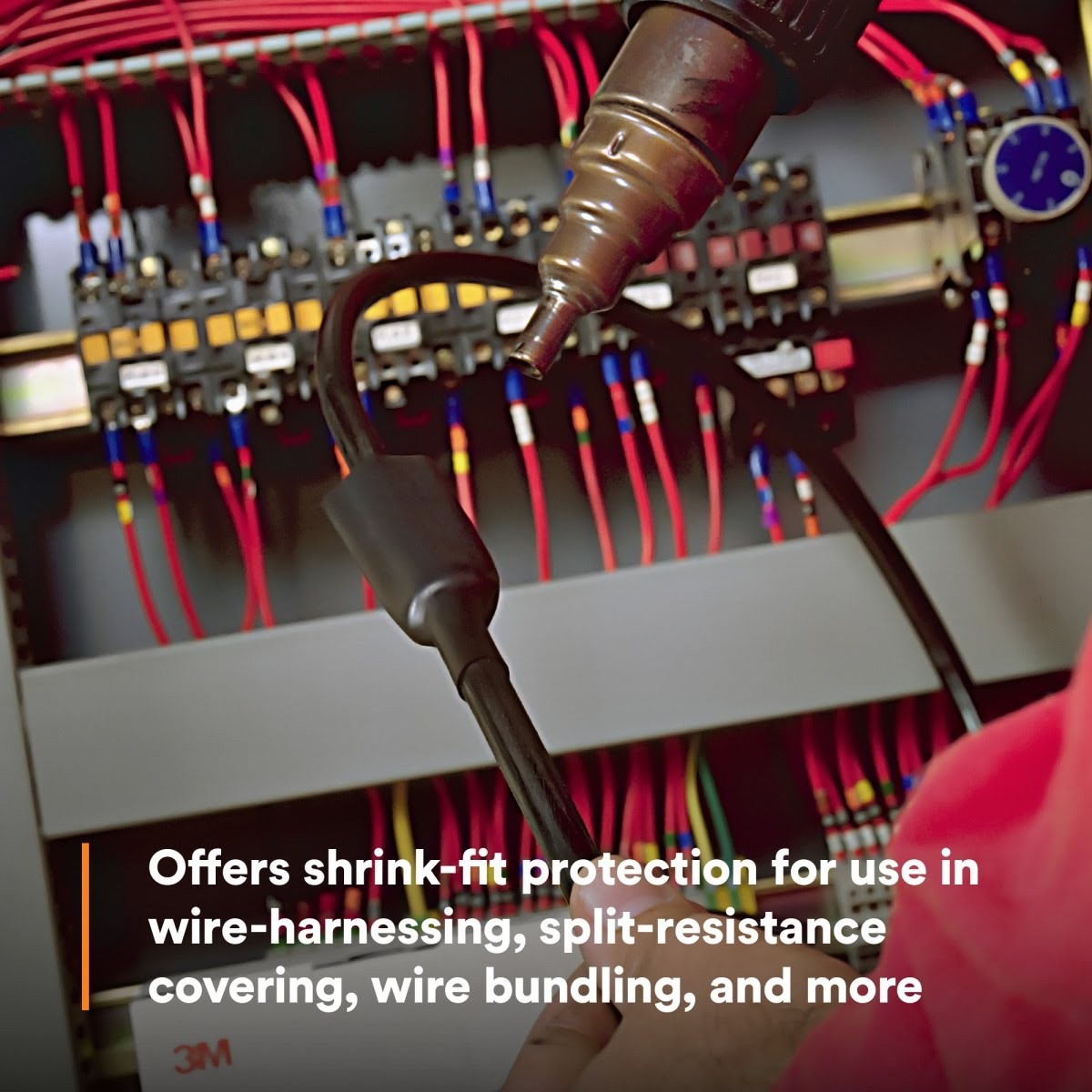

3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin tubing designed for electrical insulation and mechanical protection. The blue tubing provides a 2 to 1 shrink ratio, is flame retardant for applications up to 600V, and offers moisture seal protection for industrial and military wire and cable applications.
3M 7010349739 Includes

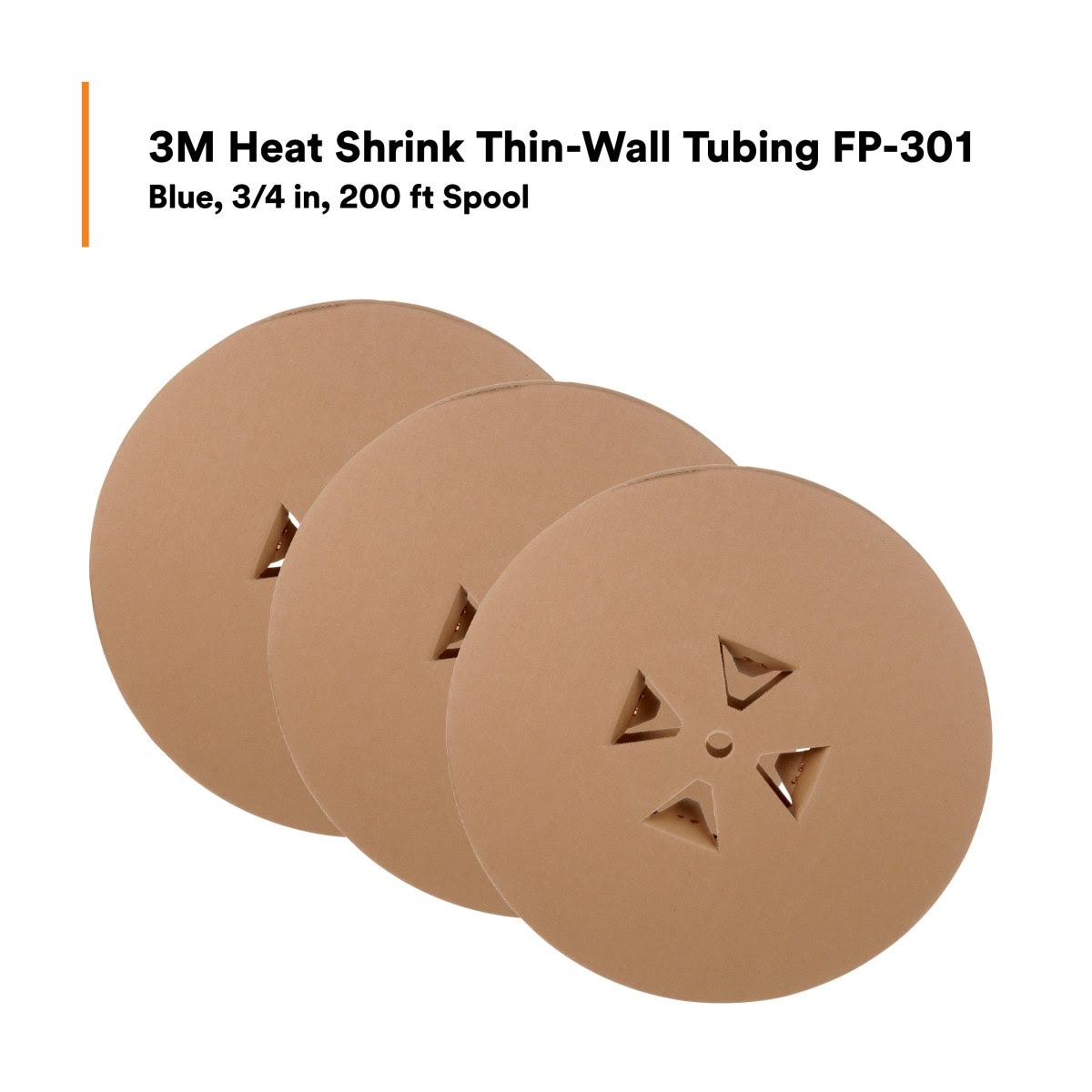

- (3) - 3M 7010349739 Heat Shrink Thin-Wall Tubing FP-301, Blue Color, 2 to 1 Shrink, High Strength Protection, Electrical Insulation, 3/4 in, 200 ft Spool (FP0.750BU200L)
3M 7010349739 Features

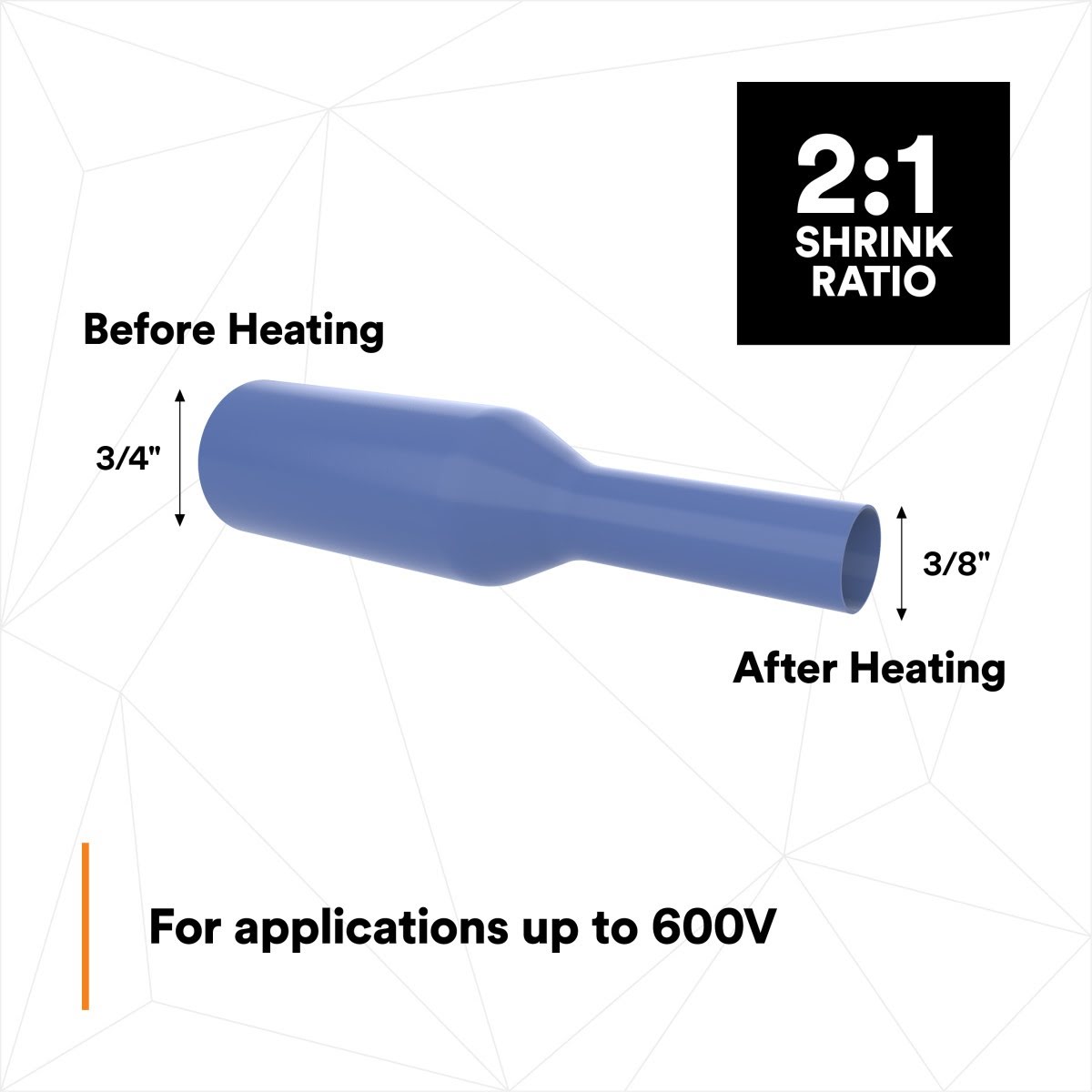

- 2 to 1 shrink ratio for snug fit over splices and terminations
- Thin wall single-wall polyolefin heat shrink tubing

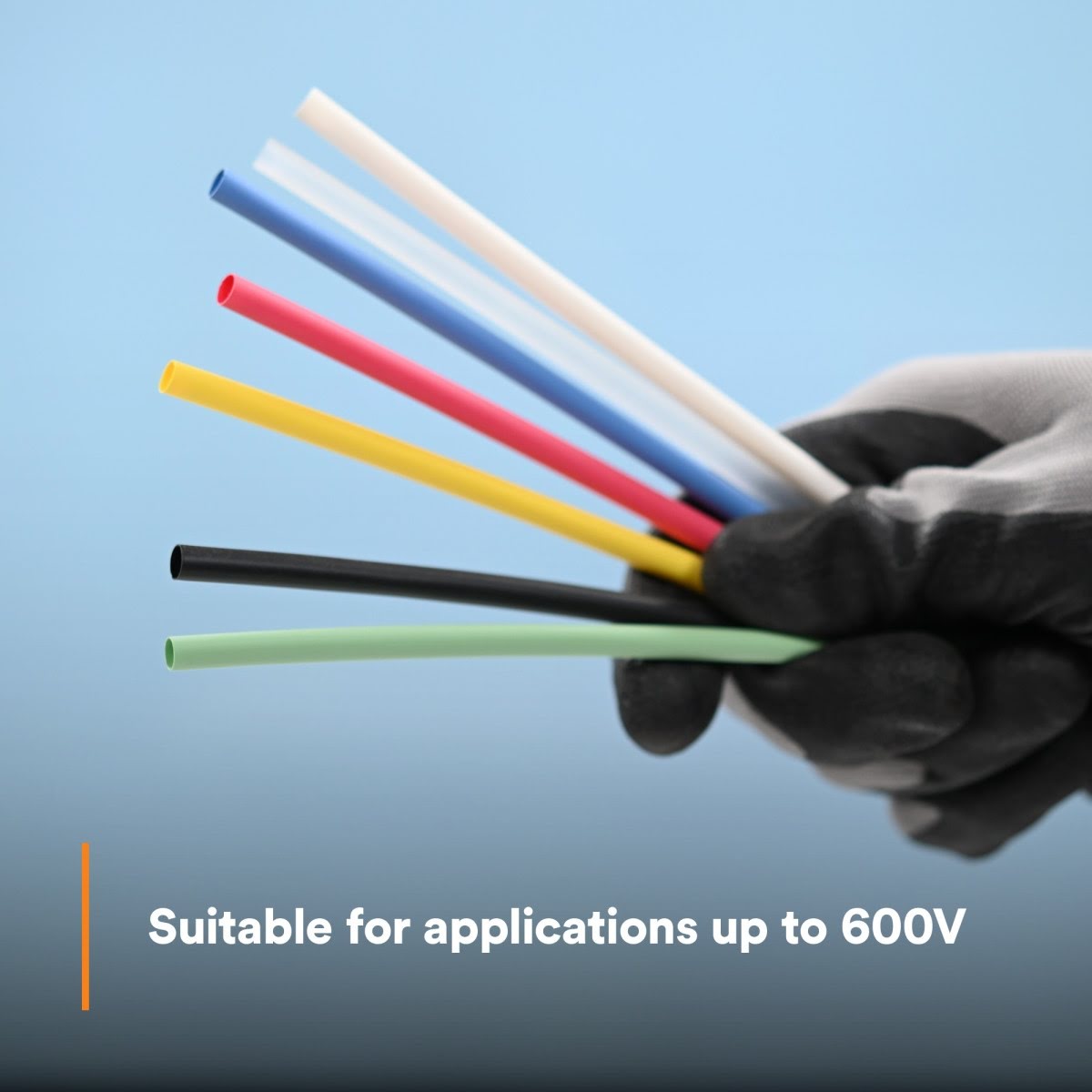

- Flame retardant insulation for applications up to 600V
- Helps provide moisture seal protection
- Color coded blue for quick wire identification
- Operating temperature range -55 to 135 Degree Celsius

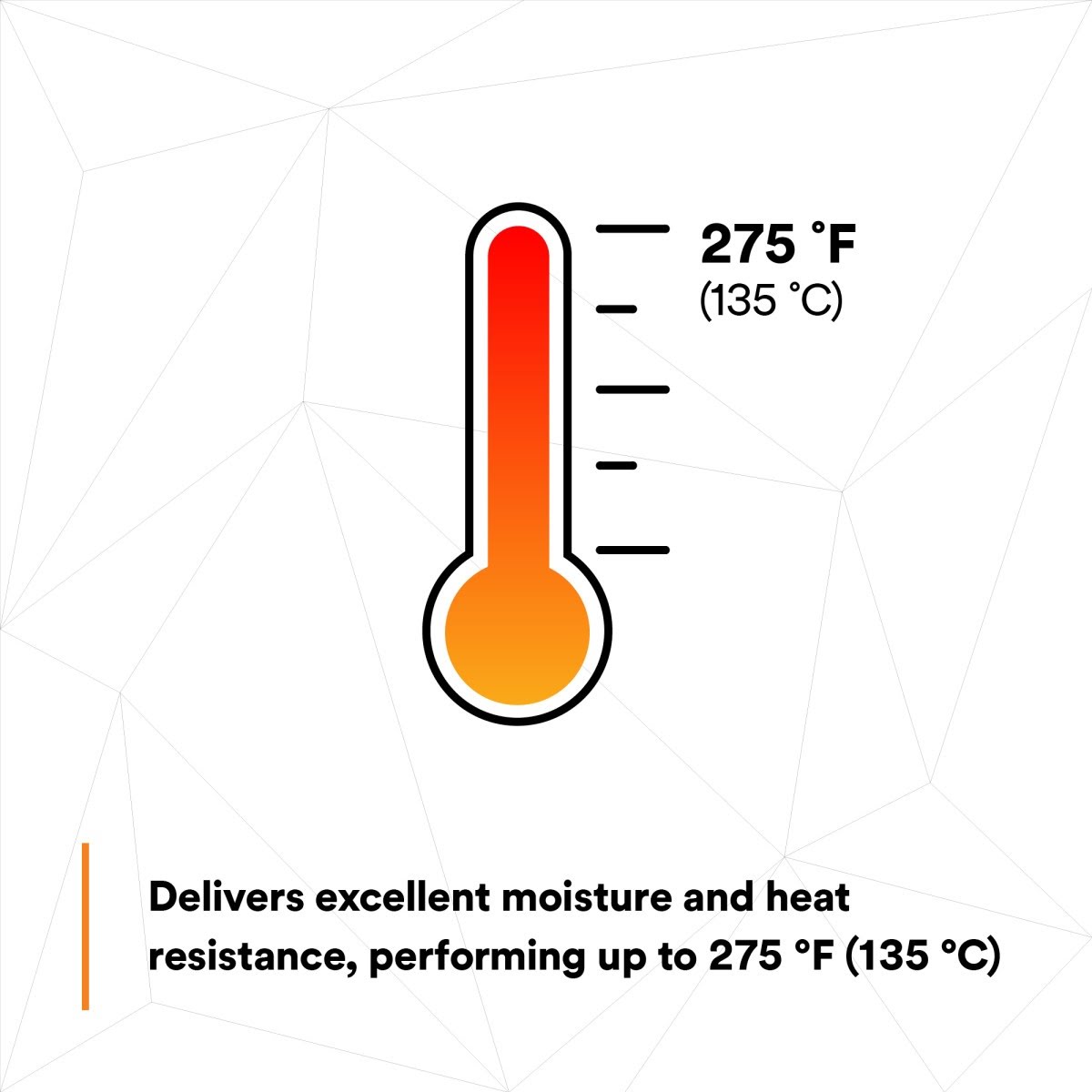

- Maximum operating temperature 275 Degree F (135 Degree C)
- Mechanically tough and split resistant

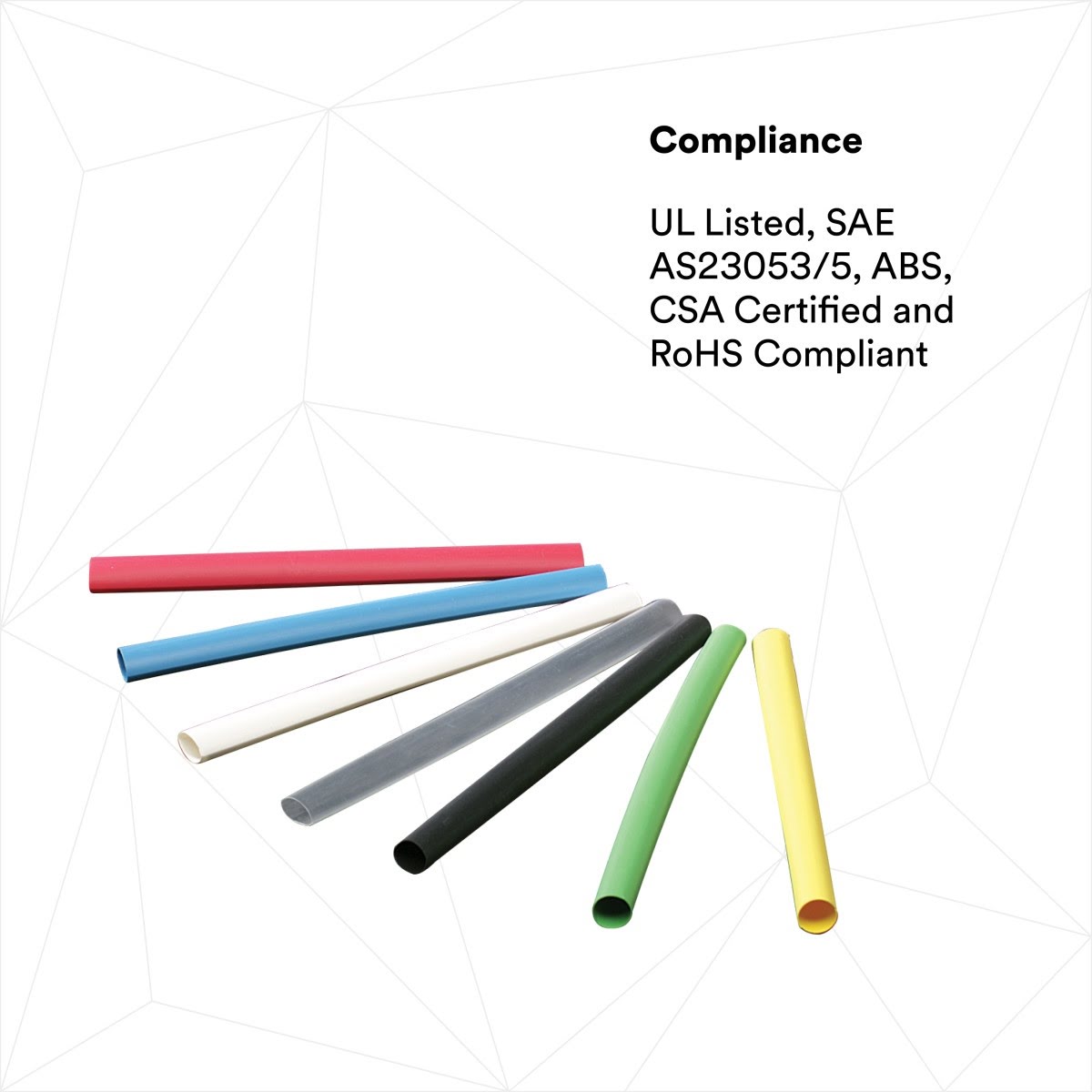

- UL Listed (File E-39100)
- SAE AS23053/5 compliant (Class 1)
- CSA Certified
- RoHS 2011/65/EU compliant
3M 7010349739 Specifications
| Color | Blue |
| Shrink Ratio | 2:1 |
| Inner Diameter Before Shrink | 0.75 in |
| Inner Diameter After Shrink | 0.375 in |
| Overall Length | 200 ft |
| Flame Retardant | Yes |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| UL File Number | E-39100 |
Toolup Part # :
859591
