3M 7100025599 Description

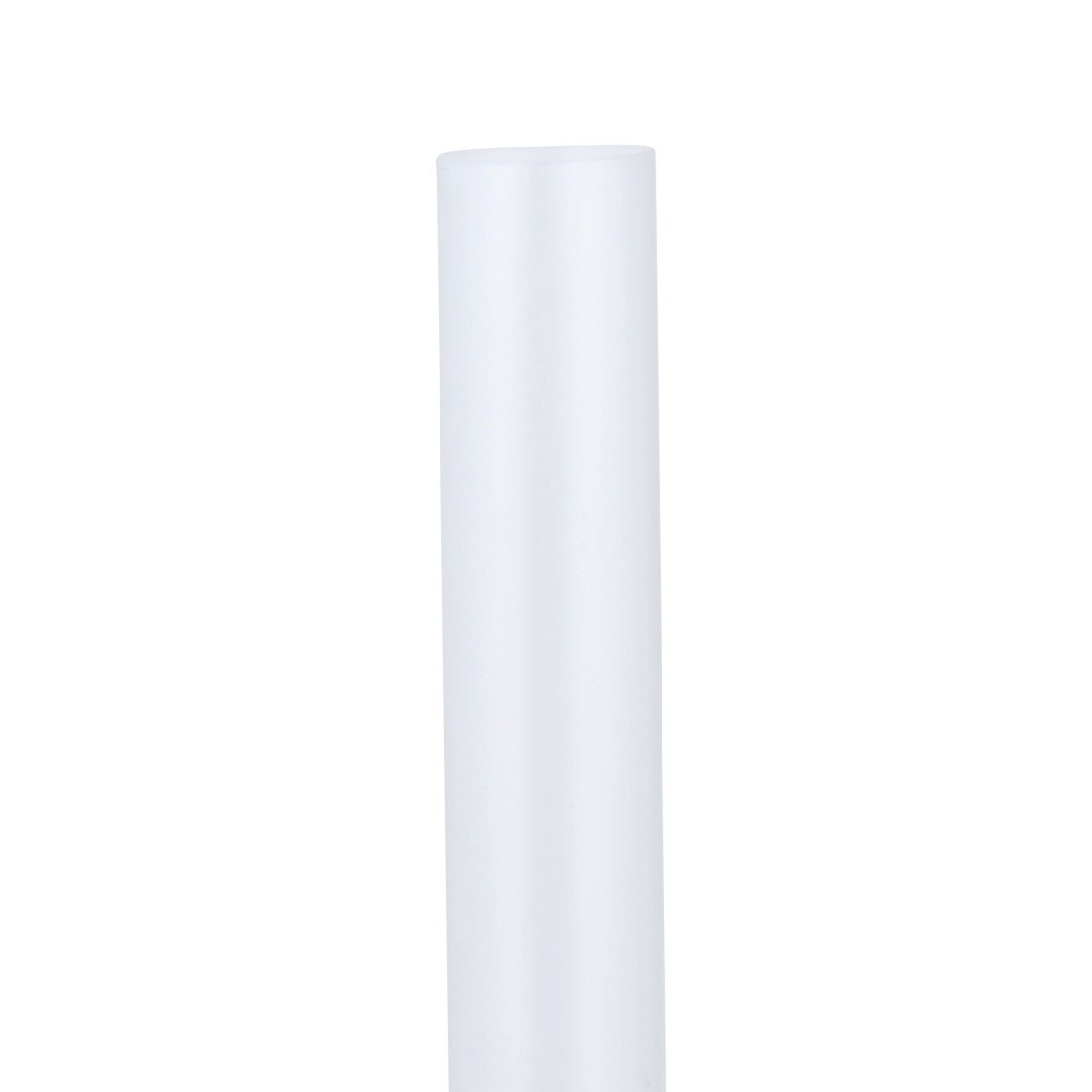

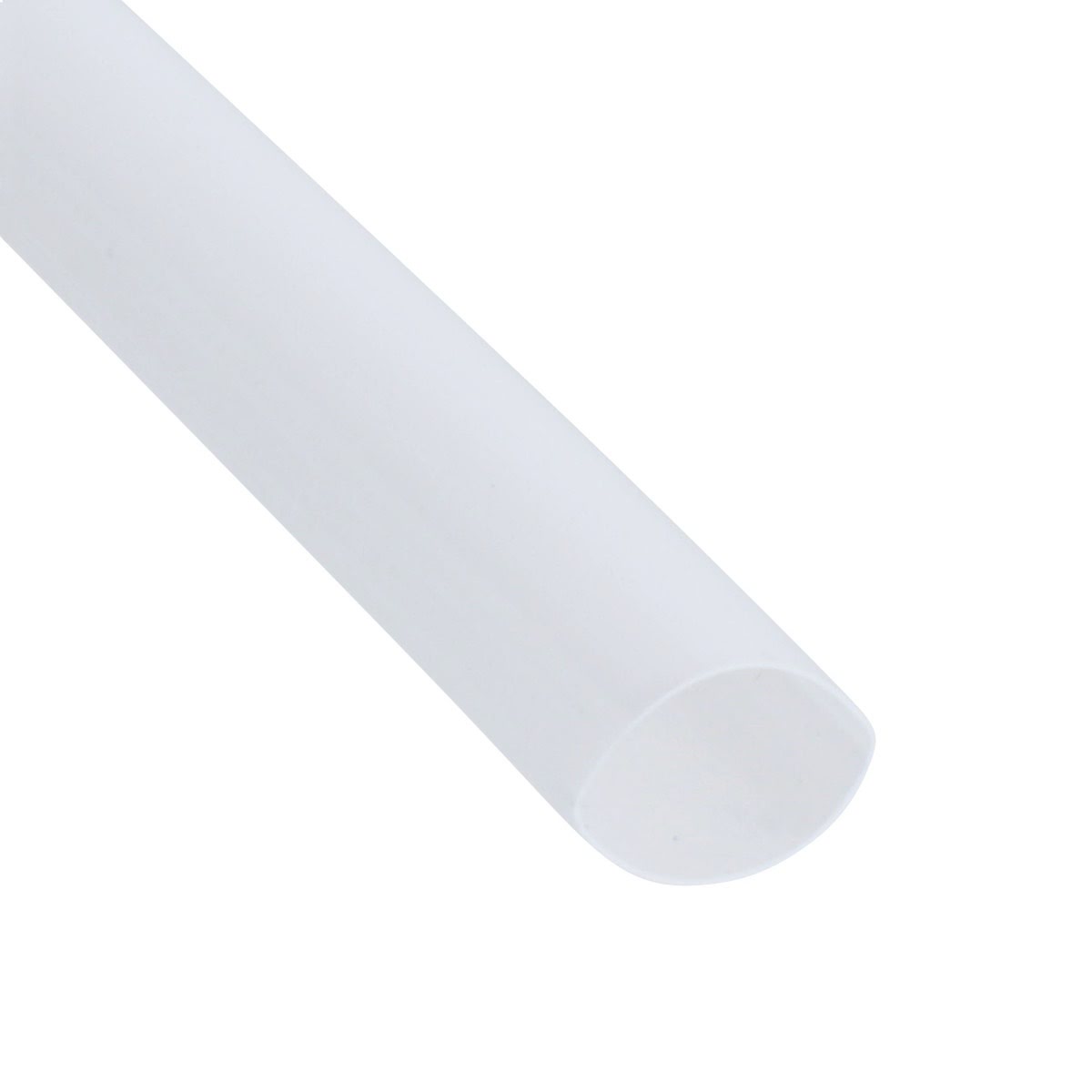

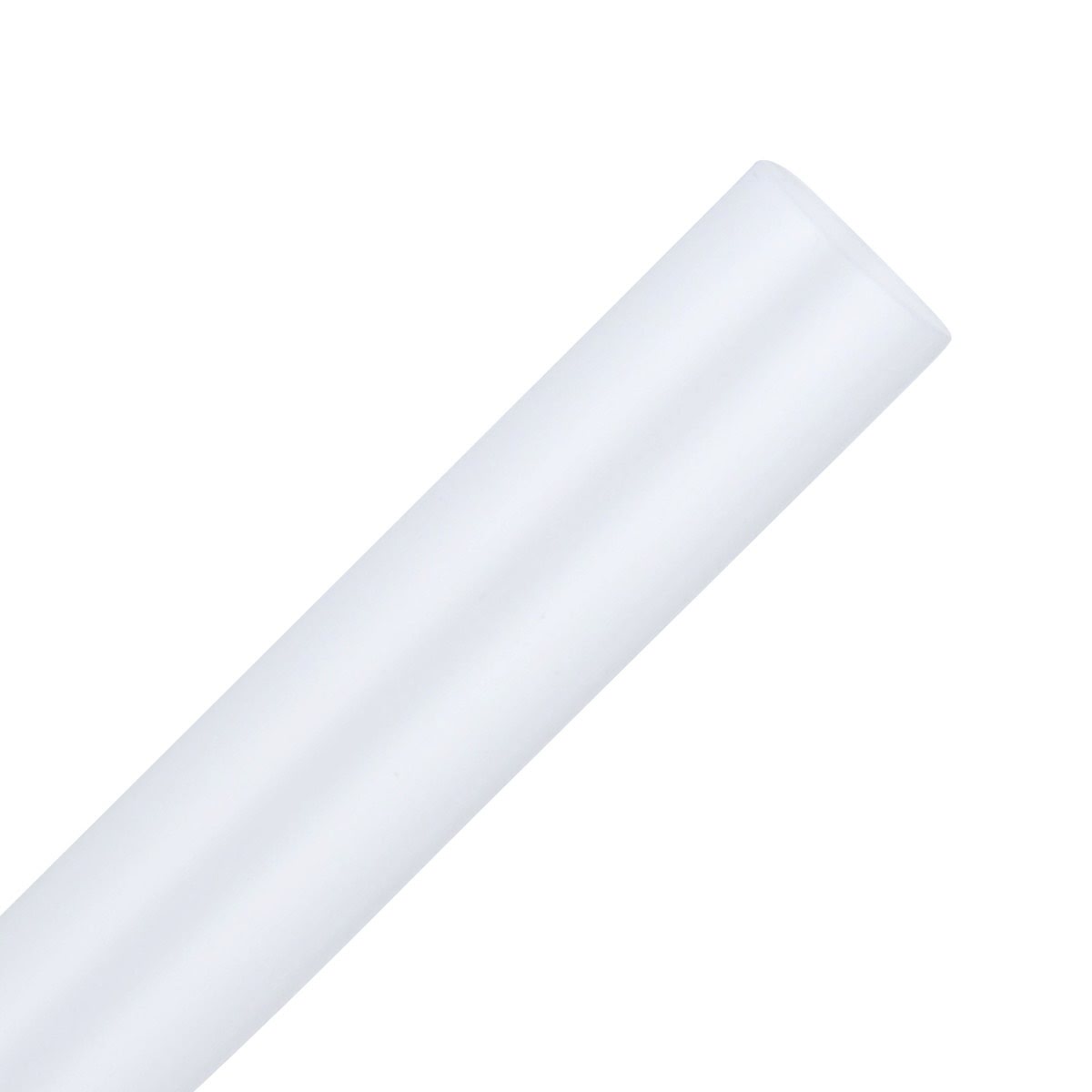

3M Heat Shrink Thin Wall Tubing FP 301 is a general purpose clear polyolefin tubing designed to provide electrical insulation and durable protection for wire splices, terminations, and wire harnessing. It features a 2 to 1 shrink ratio for a secure fit and is rated for applications up to 600V.
3M 7100025599 Includes

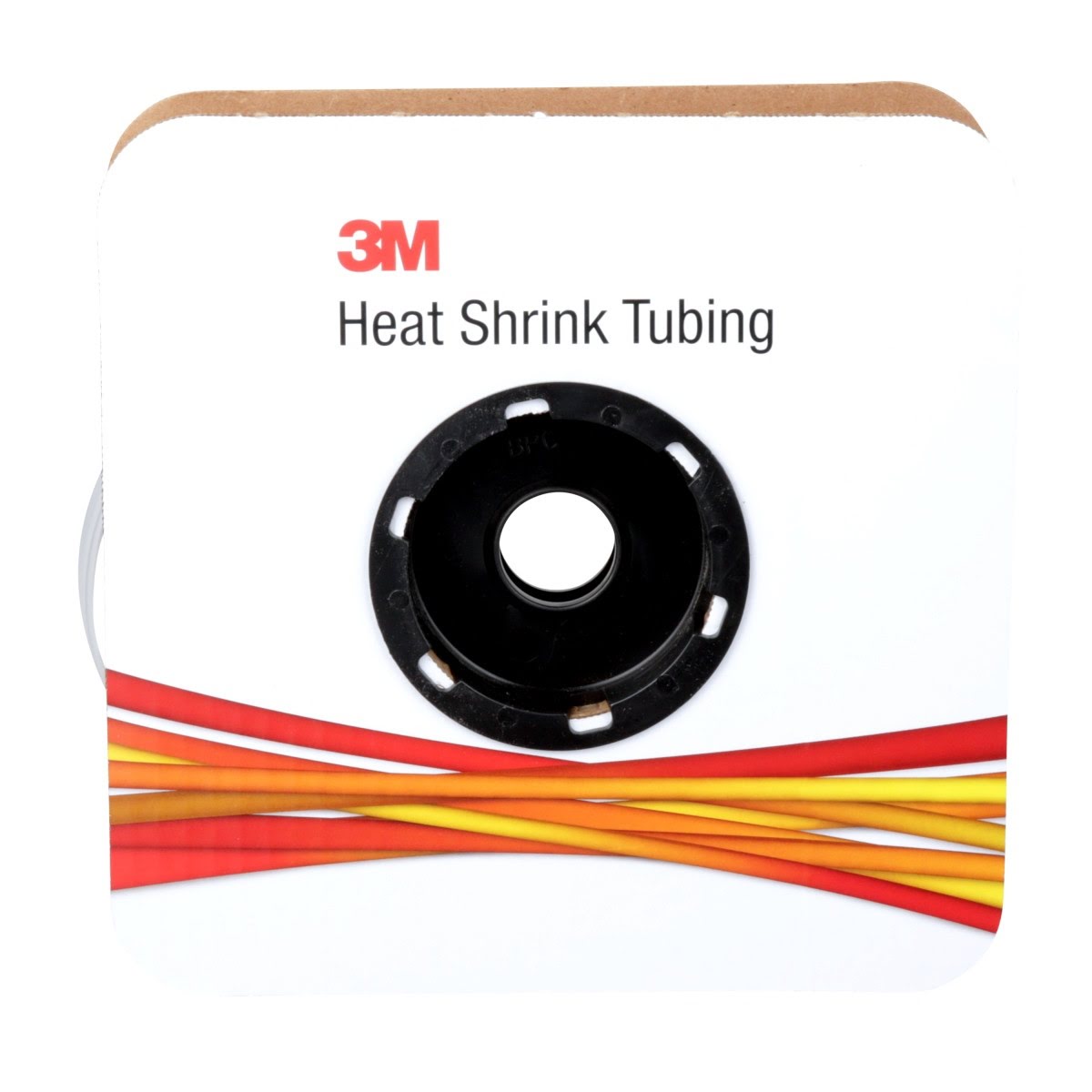

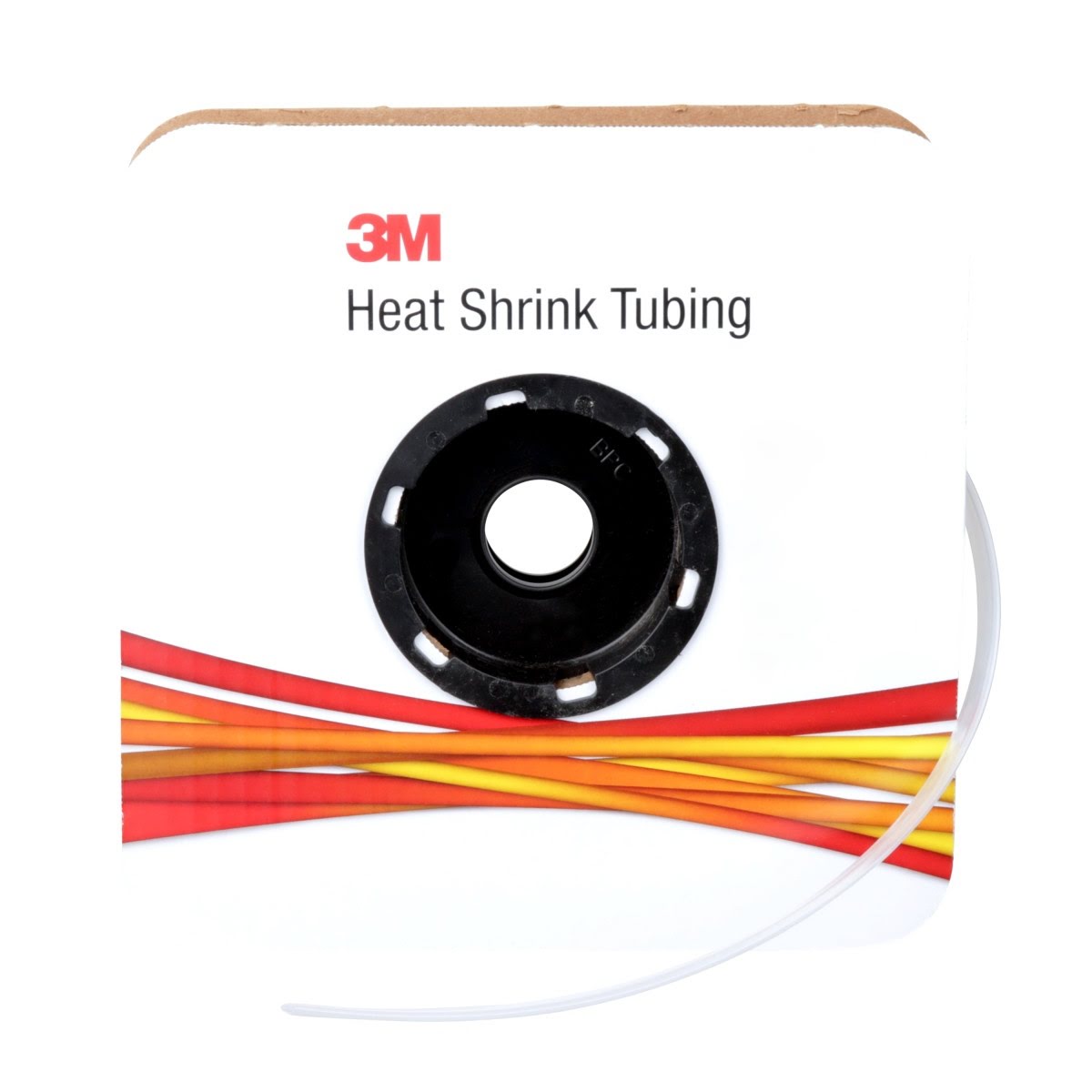

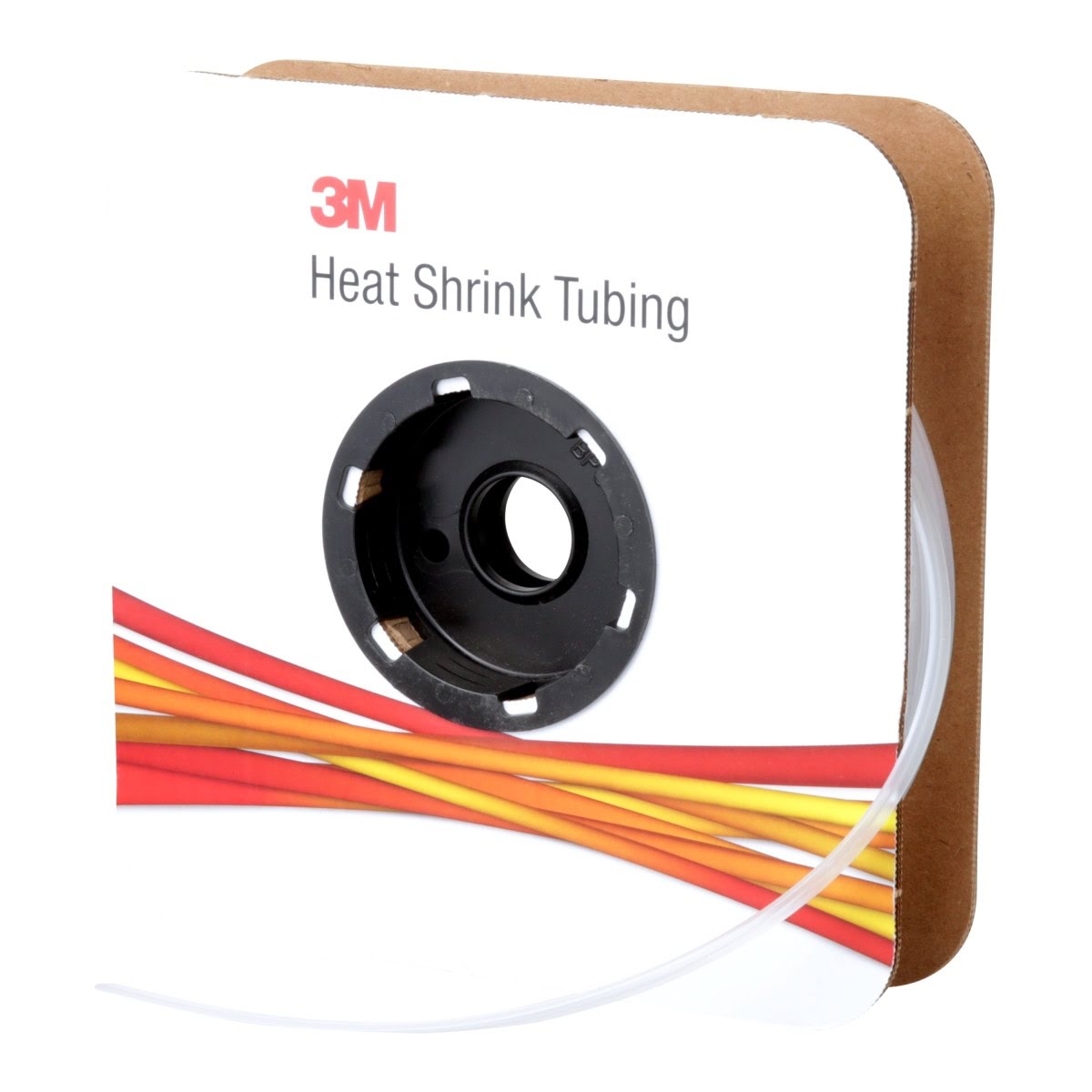

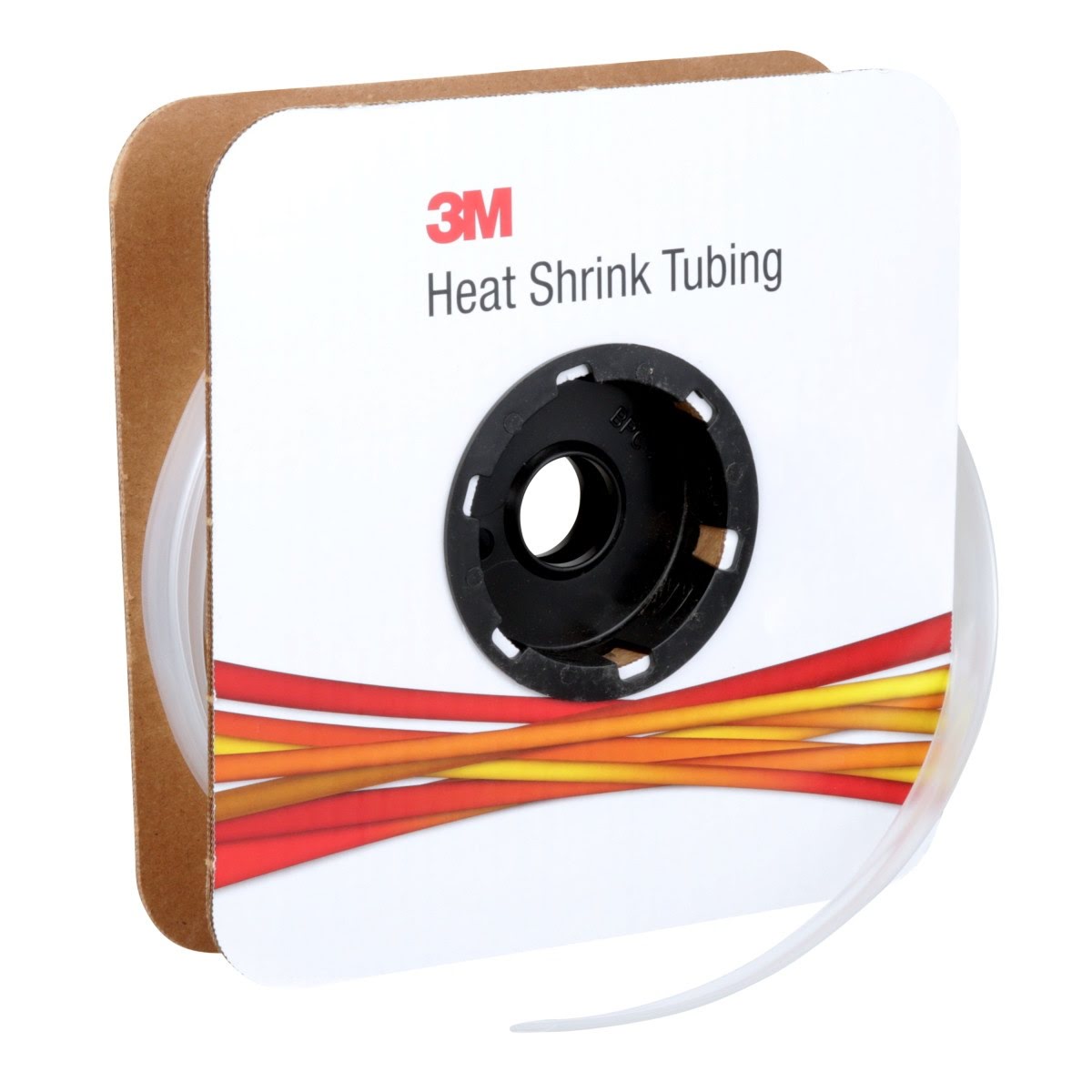

- (3) - 3M 7100025599 FP-301 Heat Shrink Thin-Wall Tubing, 3/8" x 100' Length Spool, Clear (FP0.375CR100'S)
3M 7100025599 Features
- General purpose thin wall heat shrink tubing for electrical insulation and protection

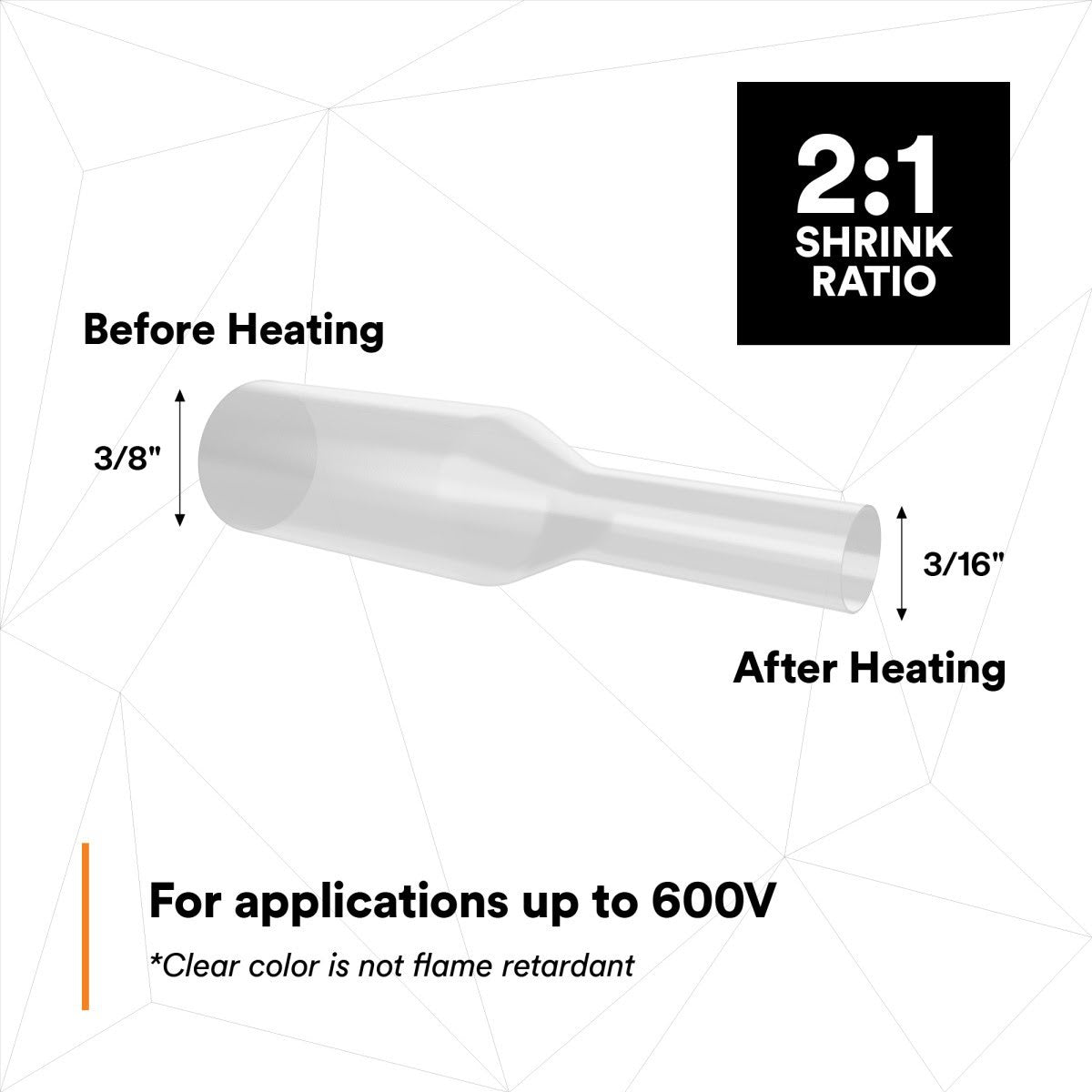

- 2 to 1 shrink ratio for a snug fit over splices and terminations
- Clear tubing for visual identification of underlying wire and components
- 600V rated for common electrical applications
- Flexible polyolefin construction provides a balance of electrical, physical, and chemical properties
- Operating temperature range -67 Degree Fahrenheit to 275 Degree Fahrenheit
- UL Listed (File E 39100) and CSA Certified
- RoHS 2011/65/EU compliant without exemption
- Single wall tubing with no inner adhesive
- Clear color is not flame retardant
3M 7100025599 Specifications
| Overall Length | 100 ft |
| Inner Diameter Before Shrink | 0.375 in |
| Inner Diameter After Shrink | 0.187 in |
| Shrink Ratio | 2:1 |
| Material | Flexible Polyolefin |
| Tubing Type | Single Wall (Thin) |
| Flame Retardant | No |
| Voltage Rating | 600V |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| UL File Number | E-39100 |
