3M 7100020271 Description

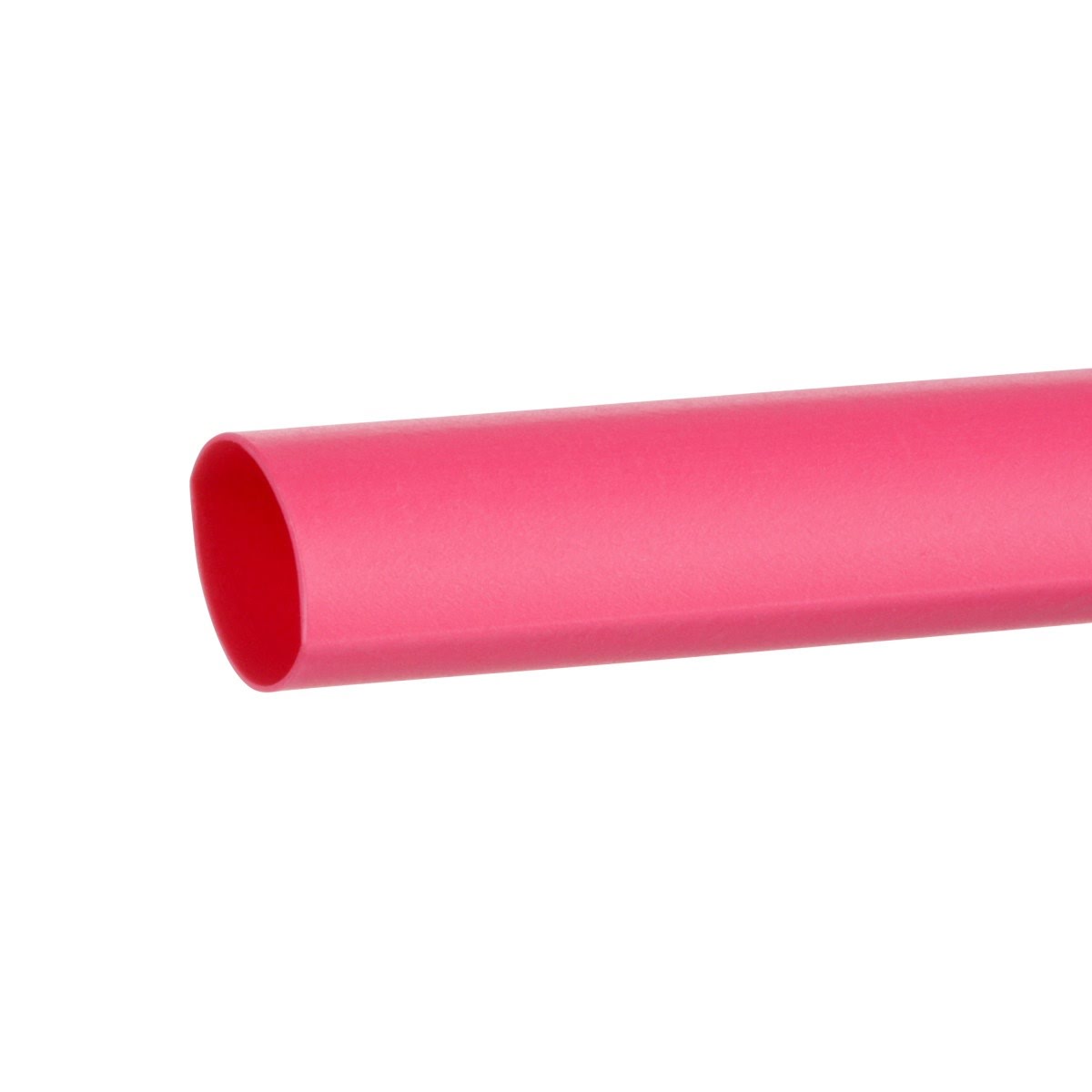

3M Heat Shrink Tubing FP-301 is a general purpose thin wall tubing that balances electrical, physical, and chemical properties for industrial and military applications. It features a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications with a flexible polyolefin construction that helps provide moisture seal protection.
3M 7100020271 Includes

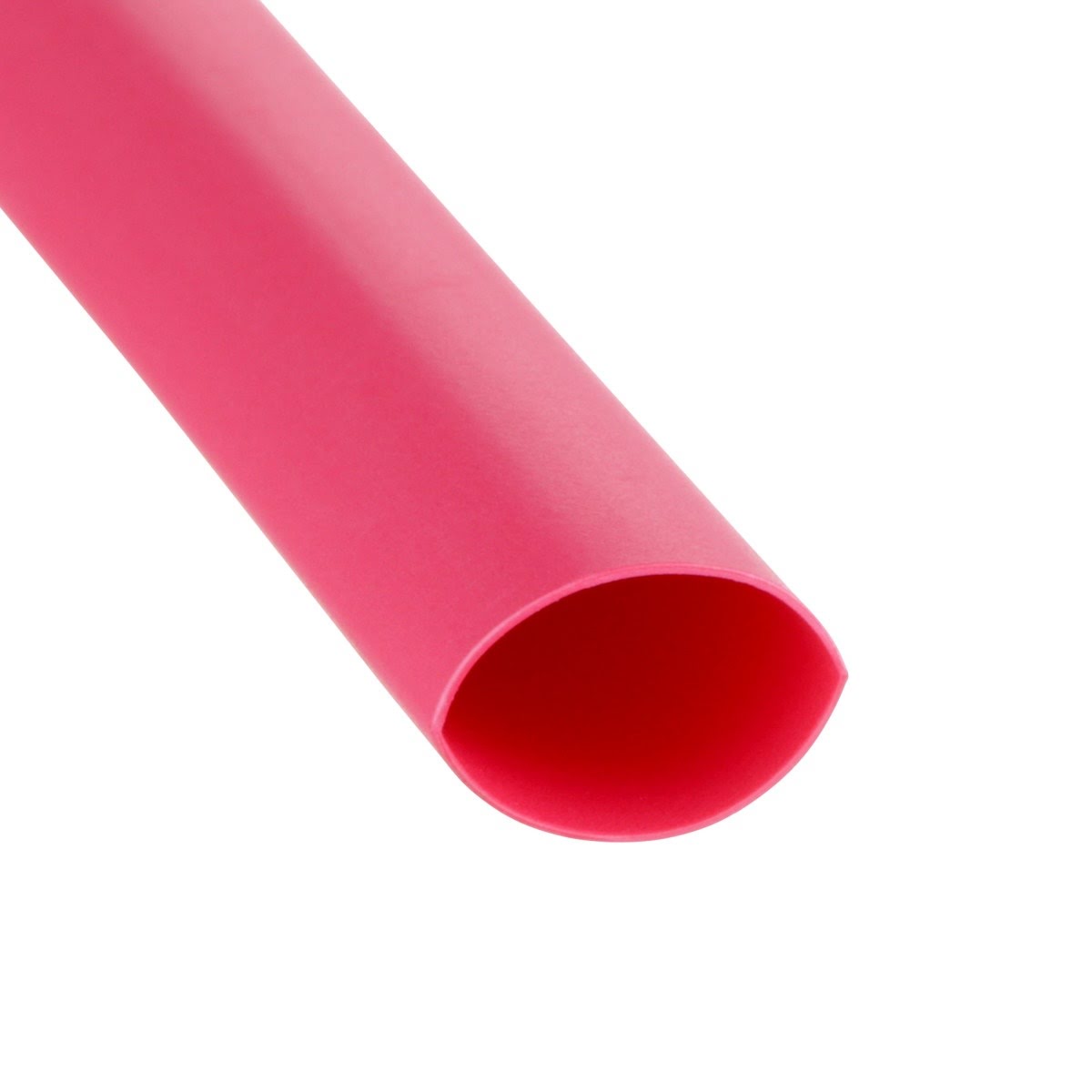

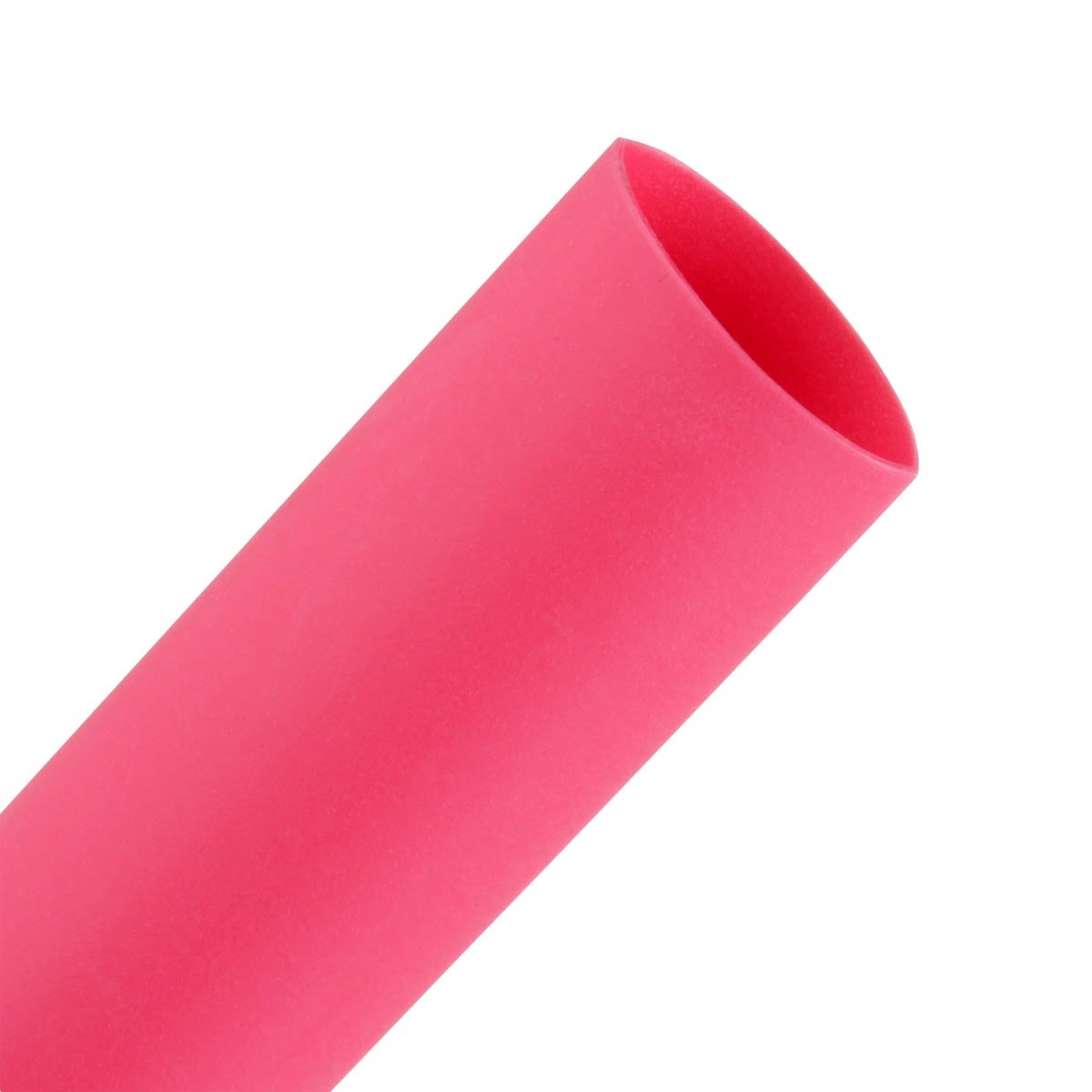

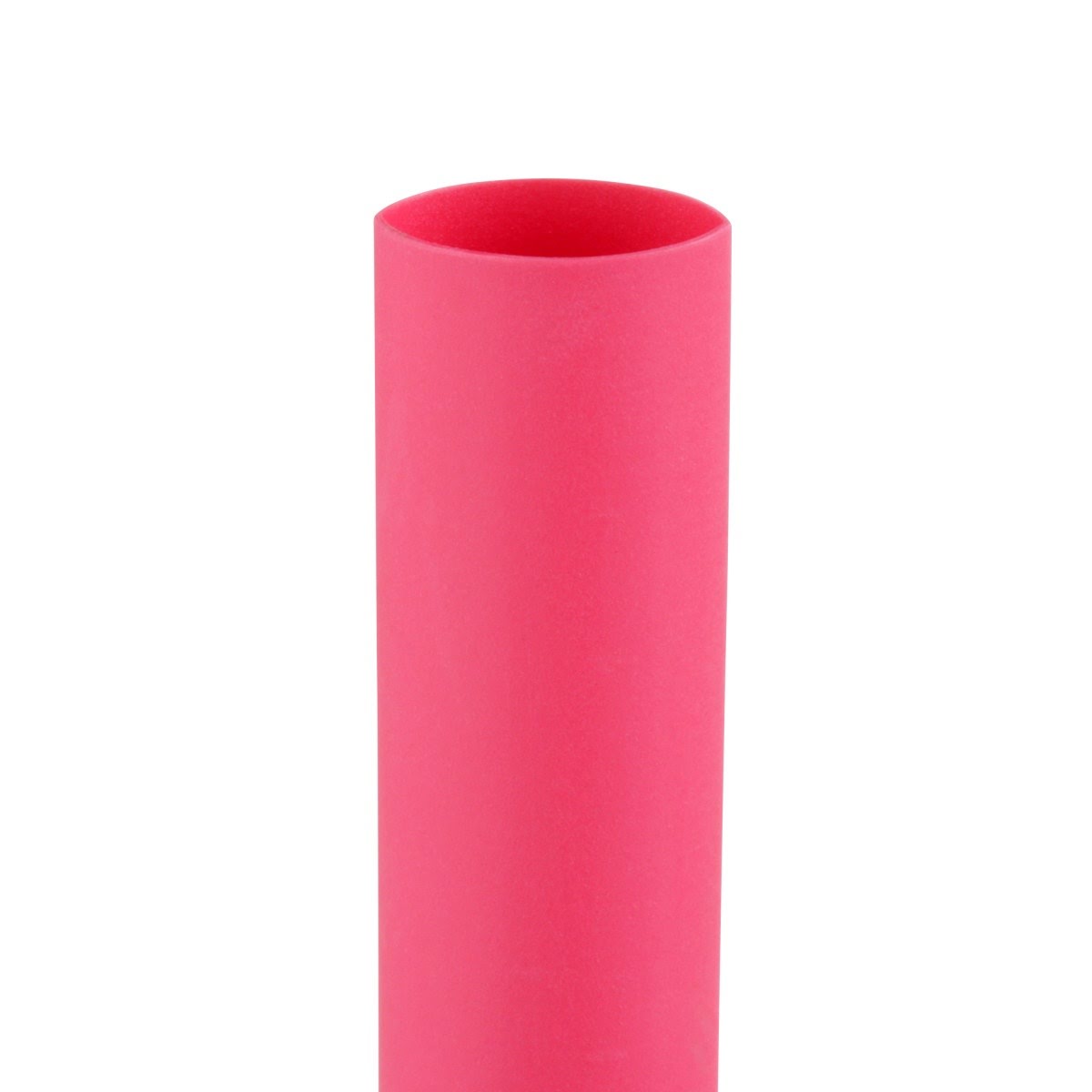

- (3) - 3M 7100020271 FP301-3/8-200'-Red-Spool Heat Shrink Thin-Wall Tubing (FP0.375RD200'L)
3M 7100020271 Features
- Thin wall single wall heat shrink tubing for general purpose electrical insulation
- 2:1 shrink ratio for secure shrink-fit coverage
- Flame retardant tubing suitable for applications up to 600V
- Flexible polyolefin material helps provide moisture seal protection
- Color coded red for quick wire identification

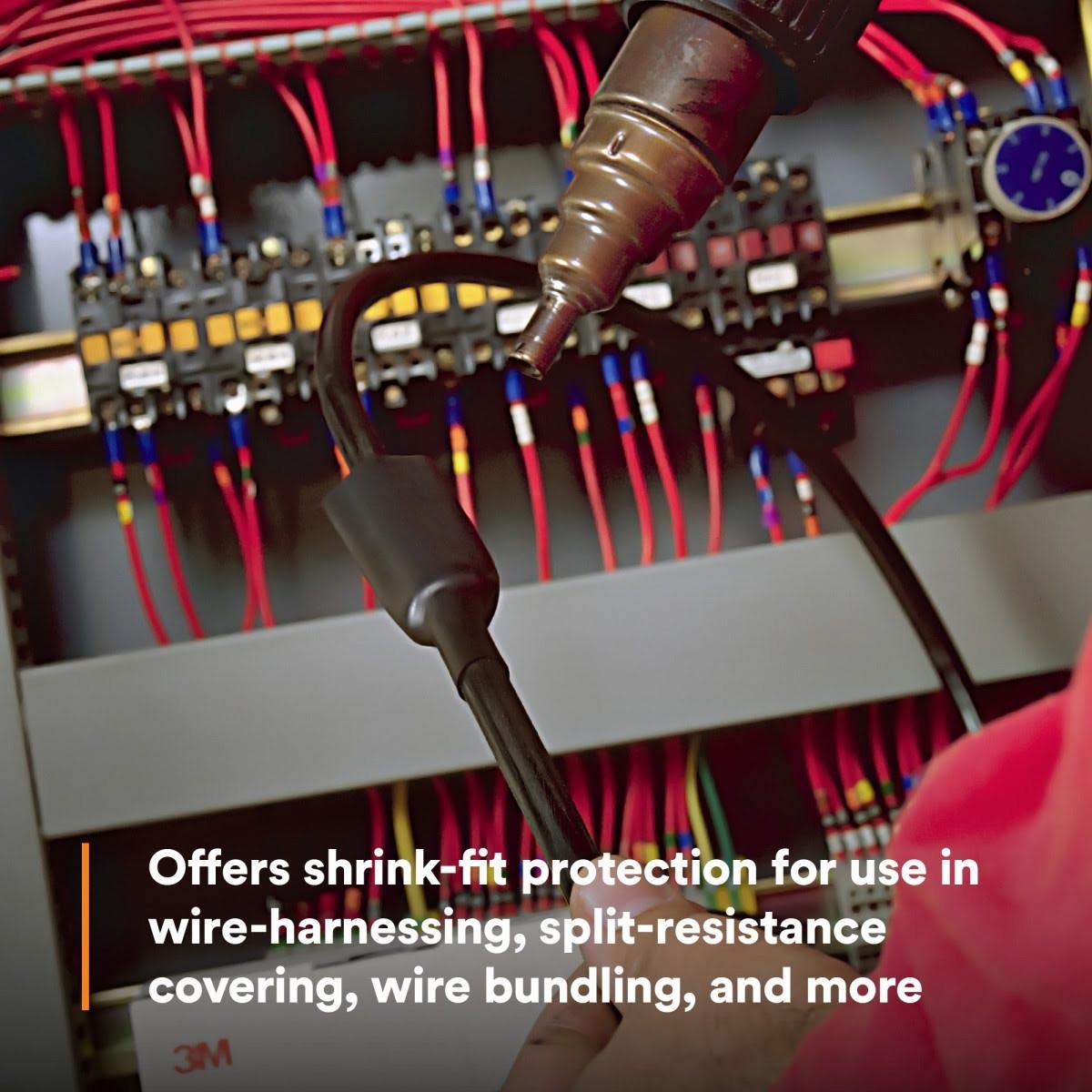

- Split resistant tubing for wire harnessing and protective covering

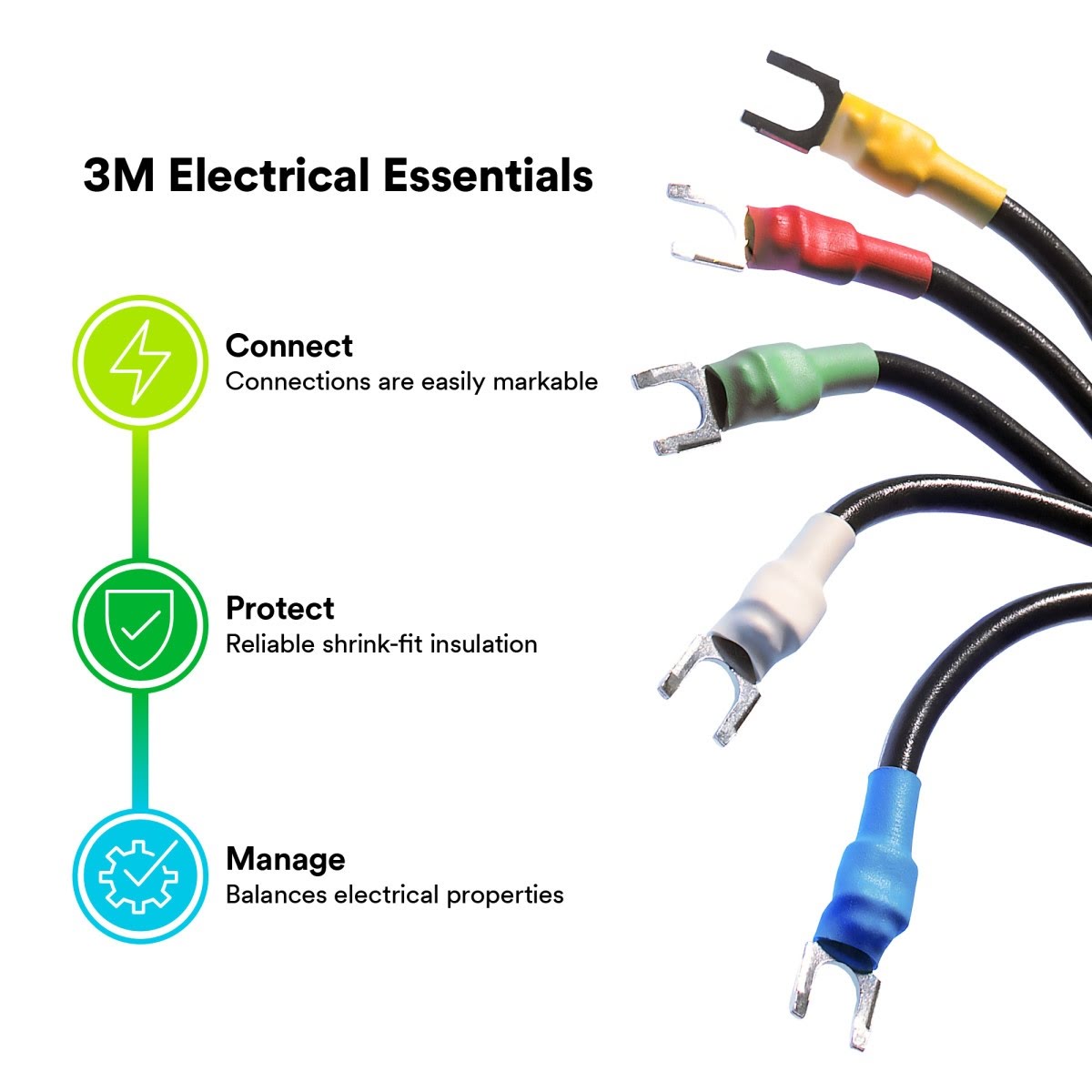

- Mechanically tough and easily markable
- Resists cold flow for durable long-term performance
- Operating temperature range from -67 Degree F to 275 Degree F (-55 Degree C to 135 Degree C)
- UL Listed (File E-39100) for recognized compliance
- Meets SAE AS23053/5 Class 1 requirements (all colors)
- CSA Certified
- RoHS 2011/65/EU compliant without exemption
- 200 ft spool length for continuous runs and consistent coverage
3M 7100020271 Specifications
| Product Type | Heat Shrink Thin-Wall Tubing |
| Series | FP-301 |
| Color | Red |
| Overall Length | 200 ft |

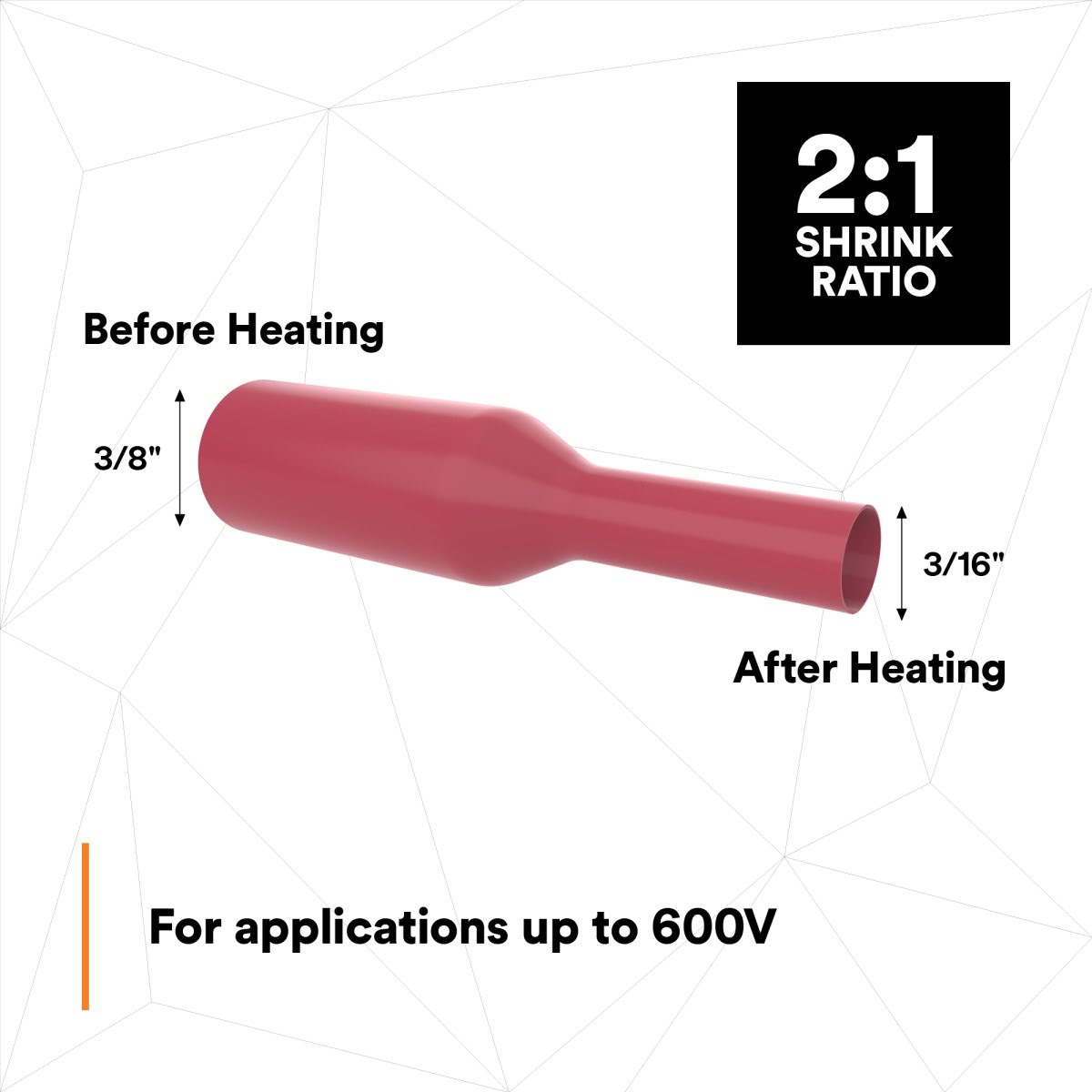

| Shrink Ratio | 2:1 |
| Tubing Type | Single Wall (Thin) |
| Material | Flexible Polyolefin |
| Expanded Inner Diameter | 0.375 in (9.5 mm) |
| Recovered Inner Diameter | 0.187 in (4.75 mm) |
| Voltage Rating | 600V |
| Flame Retardant | Yes |
| Maximum Operating Temperature | 275 Degree Fahrenheit (135 Degree Celsius) |
| Operating Temperature Range | -67 Degree Fahrenheit to 275 Degree Fahrenheit (-55 Degree Celsius to 135 Degree Celsius) |
| Elongation | 400 % |
| Tensile Strength | 2400 Pound-Force Per Square Inch |
| UL Approval | Yes |
| UL File Number | E-39100 |
| Mil Spec | AMS-DTL-23053/5, Class 1 |
| Non-Corrosive | Yes |
| RoHS Compliance | RoHS 2011/65/EU compliant |
