At a Glance
Length
1.03 in
Sub-Brand
Highland
Material
Copper
Application
Electrical
Description
Description
3M 7000133647 Description

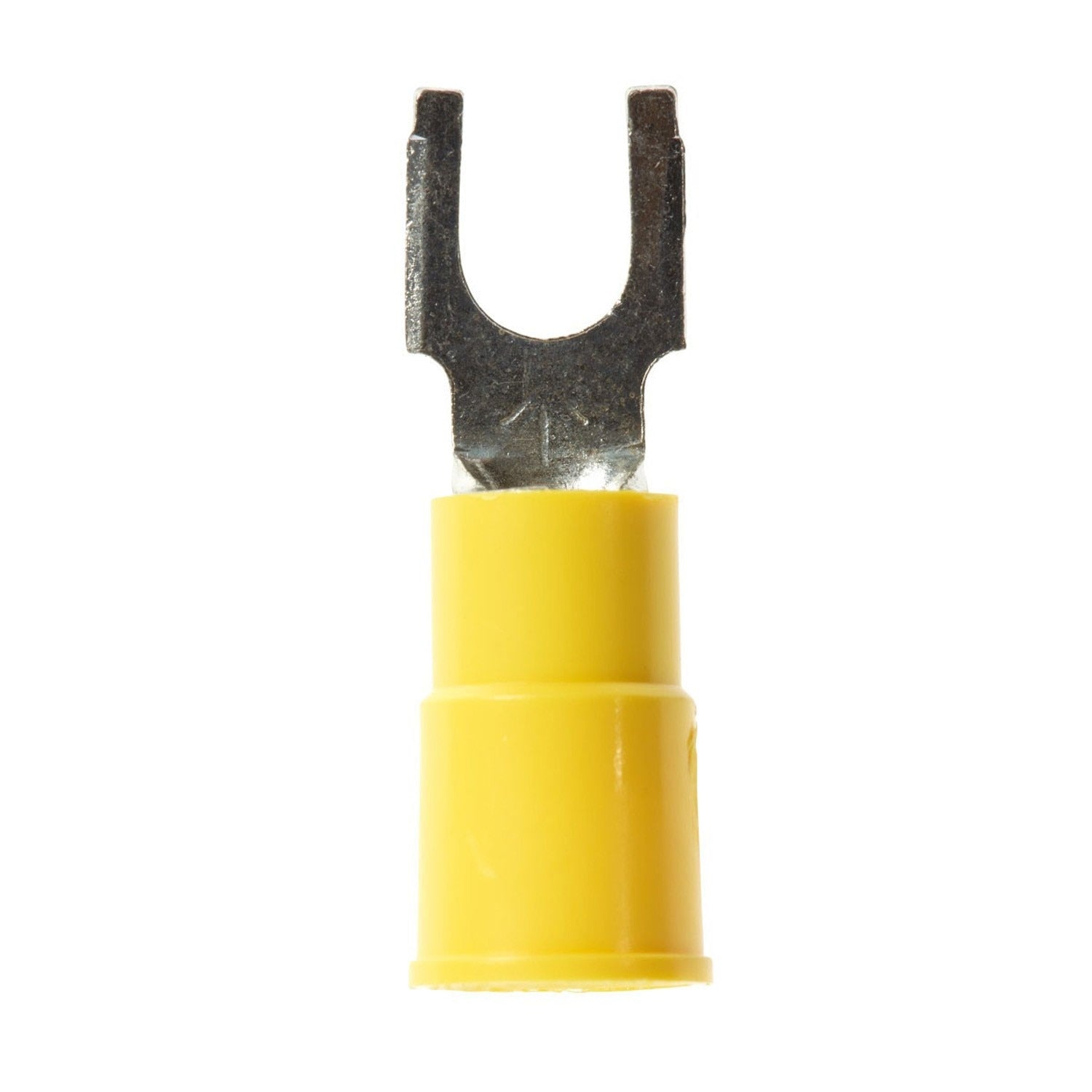

3M Highland BFV10-8Q vinyl insulated block fork terminal is designed for secure, reliable wire-to-terminal block connections. The butted-seam, vinyl-insulated barrel helps provide mechanical stress relief, while the electrolytic copper construction with tin plating offers good conductivity and corrosion resistance for AWG 12-10 applications.
3M 7000133647 Includes
- (250) - 3M 7000133647 Highland Vinyl Insulated Block Fork Terminal BFV10-8Q, AWG 12-10, 25/bag, suitable for use in a terminal block, Stud size:8
3M 7000133647 Features
- Vinyl-insulated, butted-seam barrel helps provide a secure fit and reliable performance
- Color-coded for quick wire-size identification
- Electrolytic copper construction for good conductivity
- Tin-plated finish helps resist corrosion
- Funnel-designed rigid PVC sleeve helps guide wire into position and provide stress relief
- Abrasion-resistant, flared vinyl sleeve insulation helps enable easy crimping
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
- Suitable for use in a terminal block (block fork style)

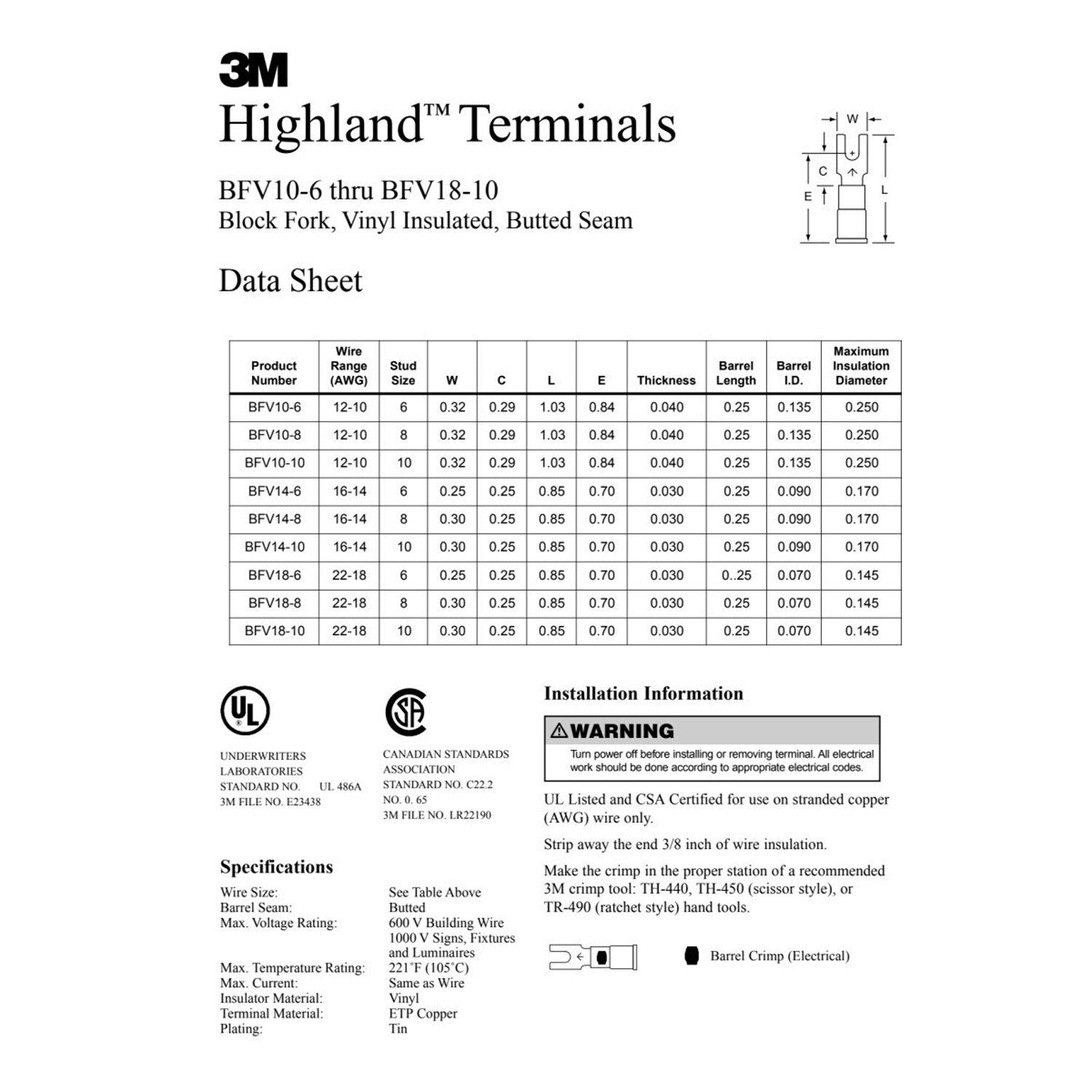

3M 7000133647 Specifications
| Brand | 3M Highland |
| Part Number | BFV10-8Q |
| Wire Range | 12-10 AWG |
| Stud Size | 8 |
| Terminal Type | Fork |
| Terminal Style | Block |
| Insulation Material | Vinyl |
| Maximum Operating Temperature | 105 Degree Celsius |
| Overall Length | 1.03 in |
| Overall Width | 0.32 in |
| Connection Width | 0.164 in |
| Terminal Material | Electrolytic copper |
| Plating | Tin |
Toolup Part # :
859670
