3M 7000133651 Description

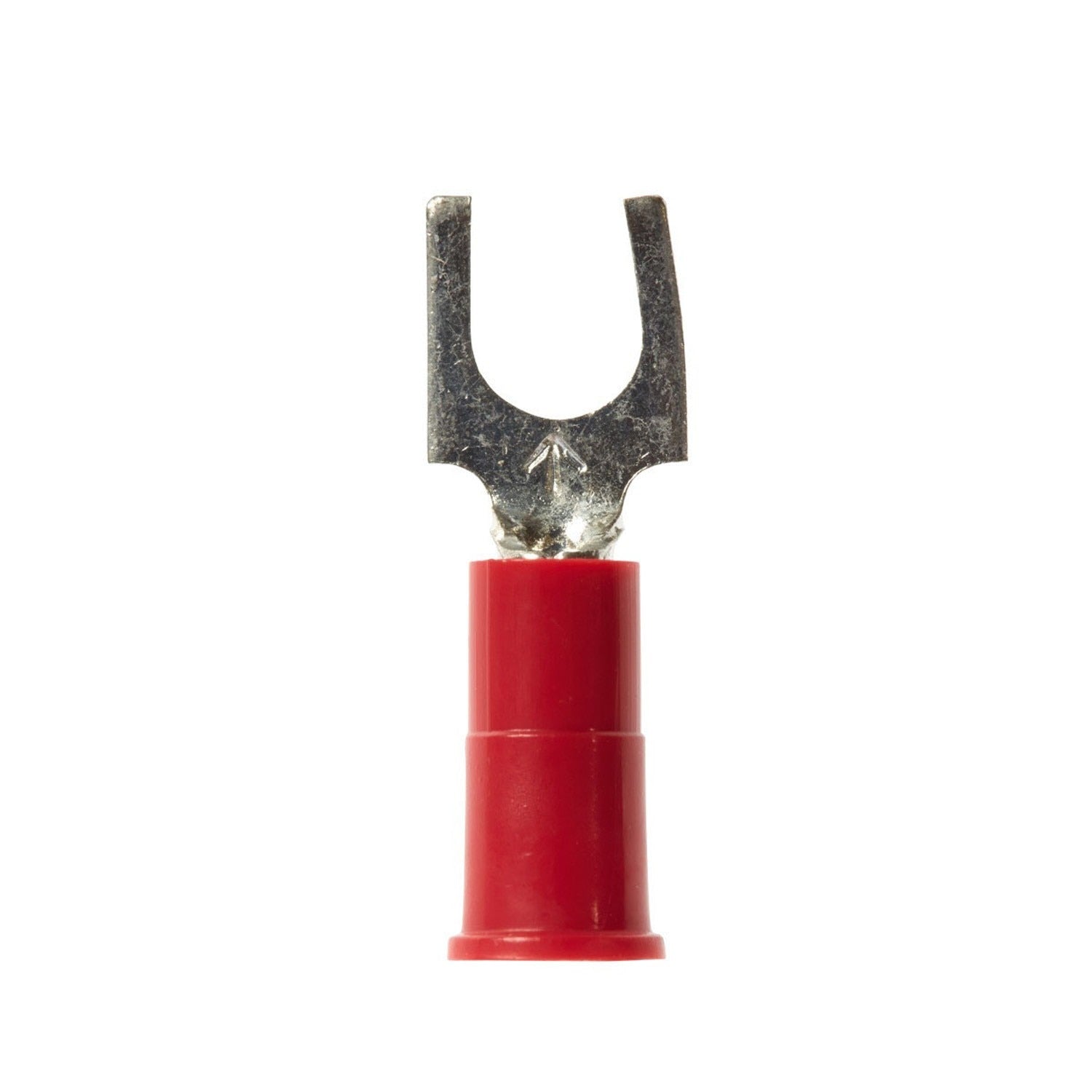

3M Highland BFV18-10Q vinyl insulated block fork terminals provide a reliable crimp connection for AWG 22-18 stranded copper wire. The butted-seam barrel with a rigid PVC sleeve helps guide wire placement, while electrolytic copper construction with a tin-plated finish supports conductivity and corrosion resistance.
3M 7000133651 Includes
- (250) - 3M 7000133651 Vinyl Insulated Block Fork Terminal BFV18-10Q, AWG 22-18
3M 7000133651 Features
- Vinyl-insulated, butted-seam barrel helps ensure a secure crimp connection
- Block fork terminal style for terminal block/electrical connection applications
- Fits wire range AWG 22-18
- Electrolytic copper construction for good conductivity
- Tin-plated finish helps resist corrosion
- Funnel-designed, rigid-molded PVC sleeve helps guide wire into position and provides stress relief
- Abrasion-resistant, flared vinyl sleeve insulation for easier crimping
- Rated to withstand temperatures from -40 to 221 degrees F (-40 to 105 degrees C)
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant

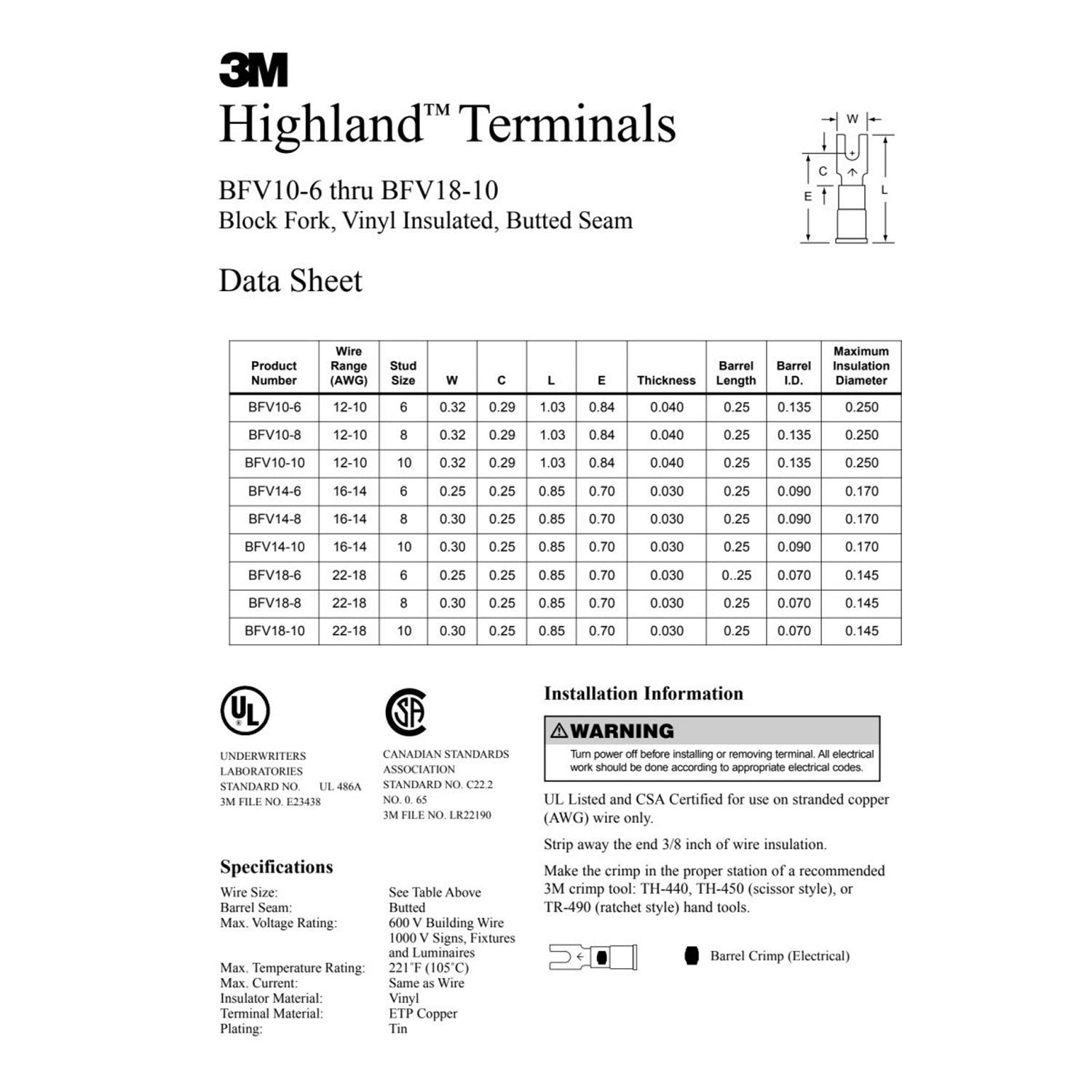

3M 7000133651 Specifications
| Brand | 3M Highland |
| Part Number | BFV18-10Q |
| Terminal Type | Fork |
| Terminal Style | Block |
| Wire Range | 22-18 AWG |
| Insulation Material | Vinyl |
| Maximum Operating Temperature | 105 Degree Celsius |
| Connection Width | 0.19 in |
| Overall Length | 0.85 in |
| Overall Width | 0.3 in |
| Terminal Material | Electrolytic Copper |
| Plating | Tin |
| Standards/Approvals | UL Listed; CSA Certified |
| Package Quantity | 25 per bag |
