3M 7000133655 Description

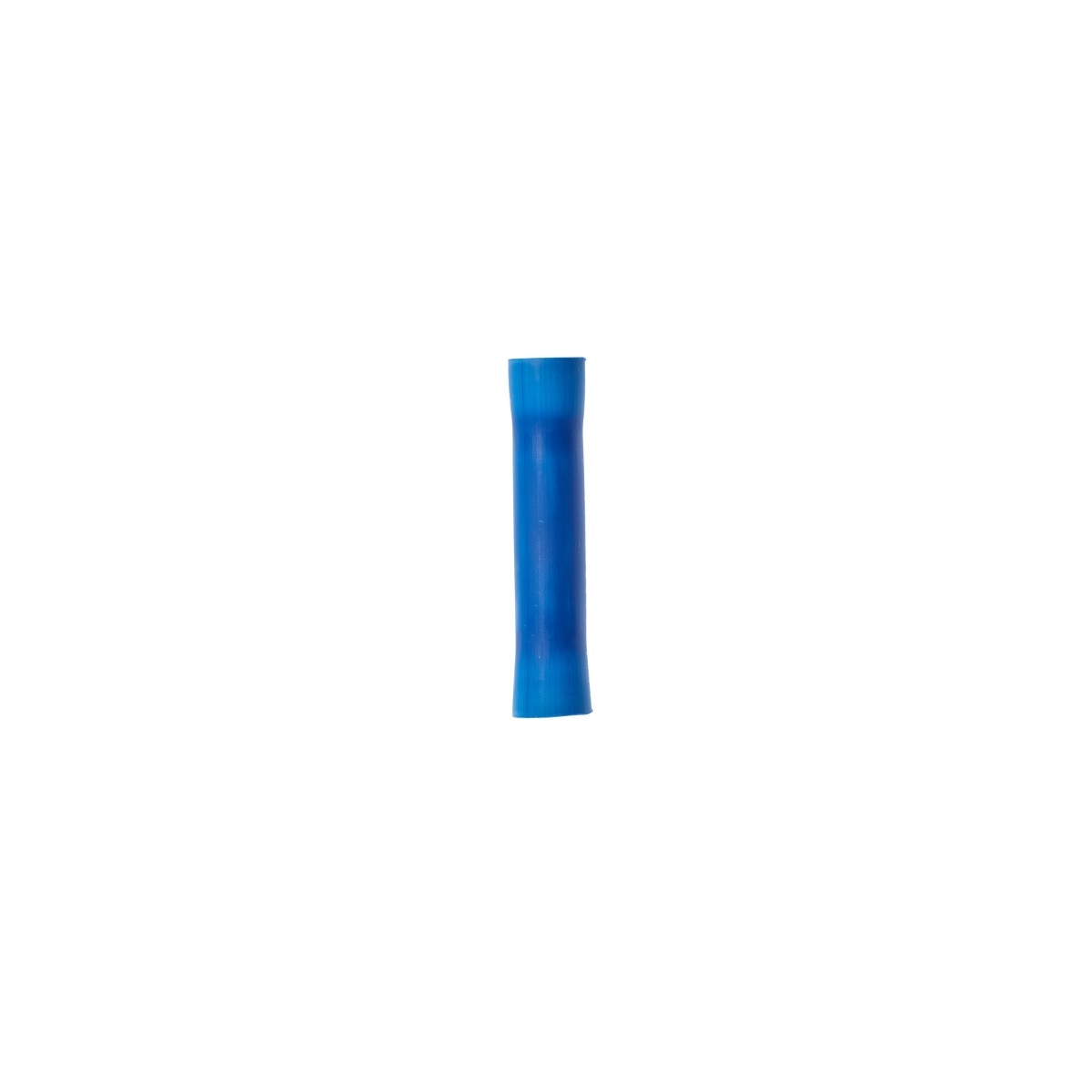

3M Highland BSV14Q vinyl insulated butt connector is a color coded crimp splice for 16 to 14 AWG wire. The electrolytic copper terminal is tin plated for corrosion resistance and the vinyl insulation supports easy wire insertion and crimping.
3M 7000133655 Includes
- (10) - 3M 7000133655 Highland Vinyl Insulated Butt Connector (Terminal) BSV14Q, AWG, 16-14
3M 7000133655 Features
- Color coded blue vinyl insulation for quick identification
- Butted seam barrel for secure crimp performance
- Funnel designed PVC sleeve helps guide wire into position
- Built in wire stop helps ensure correct wire placement
- Electrolytic copper terminal provides good conductivity
- Tin plated finish helps resist corrosion
- Temperature range -40 to 221 Degree Fahrenheit (-40 to 105 Degree Celsius)
- Voltage rating 600V for building wire and 1000V for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
3M 7000133655 Specifications
| Brand | Highland |
| Part Number | BSV14Q |
| Connector Type | Butt |
| Terminal Type | Butt Connectors |
| Conductor Size | 16 to 14 AWG |
| Insulation Material | Vinyl |
| Color | Blue |
| Body Material | Copper Alloy |
| Barrel Style | Butted |
| Barrel Inside Diameter | 0.17 Inch |
| Barrel Length | 0.25 Inch |
| Overall Length | 1.0 Inch |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
| Minimum Operating Temperature | -40 Degree Celsius |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
| Package Contents | 25 per bag |
Toolup Part # :
859660
