At a Glance
Length
1.26 in
Sub-Brand
Highland
Material
Copper
Application
Electrical
Description
Description
3M 7000133672 Description

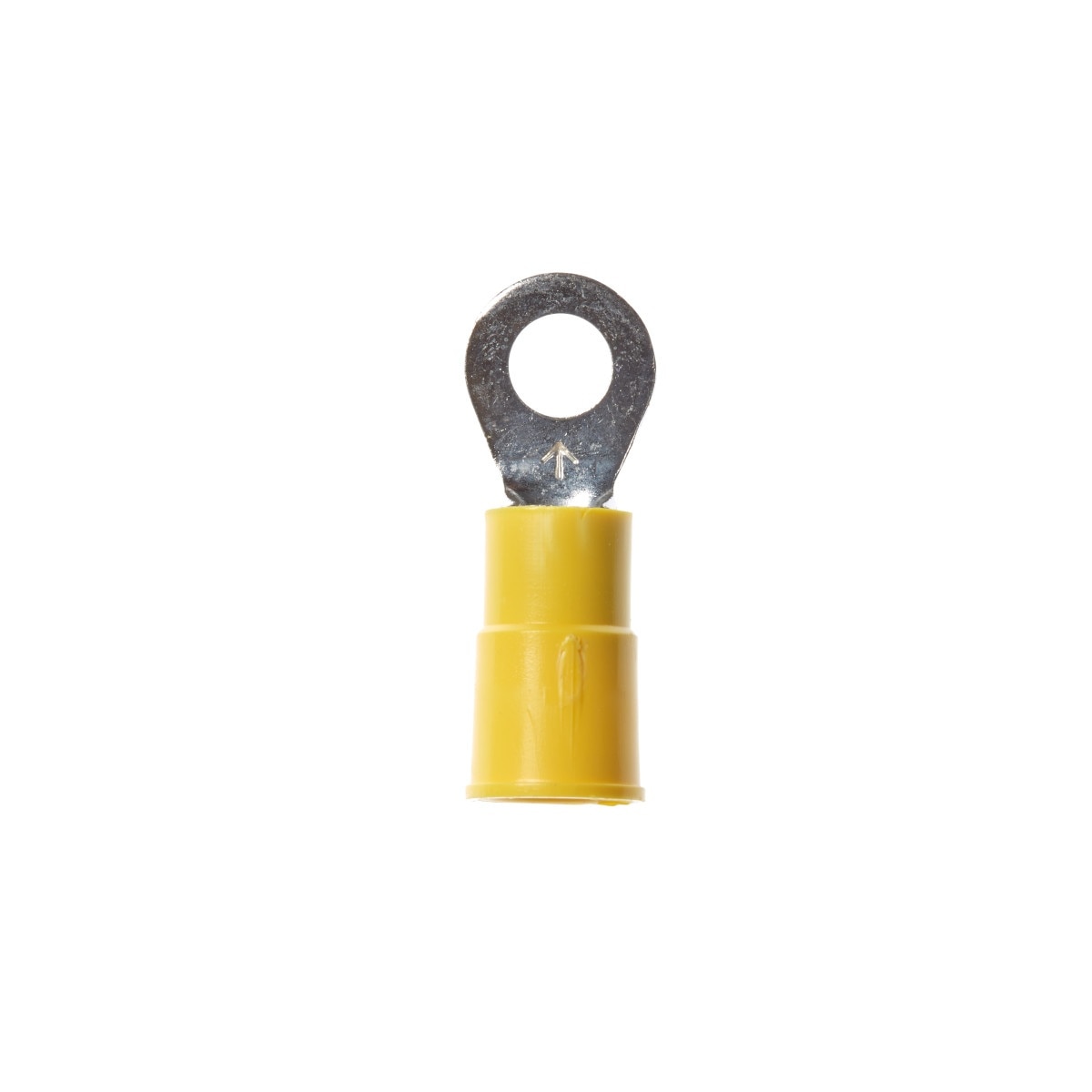

The 3M Highland RV10-14Q vinyl insulated ring terminal provides a secure, reliable crimp connection for 12 to 10 AWG wire. Its butted seam barrel and funnel design help support easy wire insertion, while electrolytic copper construction with tin plating helps resist corrosion.
3M 7000133672 Includes
- (250) - 3M 7000133672 Highland Vinyl Insulated Ring Terminal RV10-14Q AWG 12-10 Yellow
3M 7000133672 Features
- Vinyl insulated butted seam barrel helps ensure a secure fit and reliable performance
- Funnel designed polyvinyl chloride sleeve helps with easy wire insertion
- Standard style ring tongue fits around the stud
- Electrolytic copper construction provides good conductivity
- Tin plated finish helps resist corrosion
- Withstands a temperature range of -40 to 221 Degree F (-40 to 105 Degree C)
- 600V rated for building wire and 1000V rated for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
- 25 terminals per bag
3M 7000133672 Specifications
| Part Number | RV10-14Q |
| Terminal Type | Ring |
| Wire Size | 12 to 10 AWG |
| Stud Size | 1/4 Inch |
| Insulation Material | Vinyl |
| Barrel Style | Butted |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
| Overall Length | 1.26 in |
| Overall Width | 0.53 in |
| Color | Yellow |
| Quantity | 25 per bag |
