3M 7010348891 Description
3M Highland twist-on wire connectors provide reliable pigtail connections for 18â€"14 AWG solid or stranded copper wire, are UL Listed, rated up to 600V building wire, and withstand temperatures up to 221 Degree F.
3M 7010348891 Includes

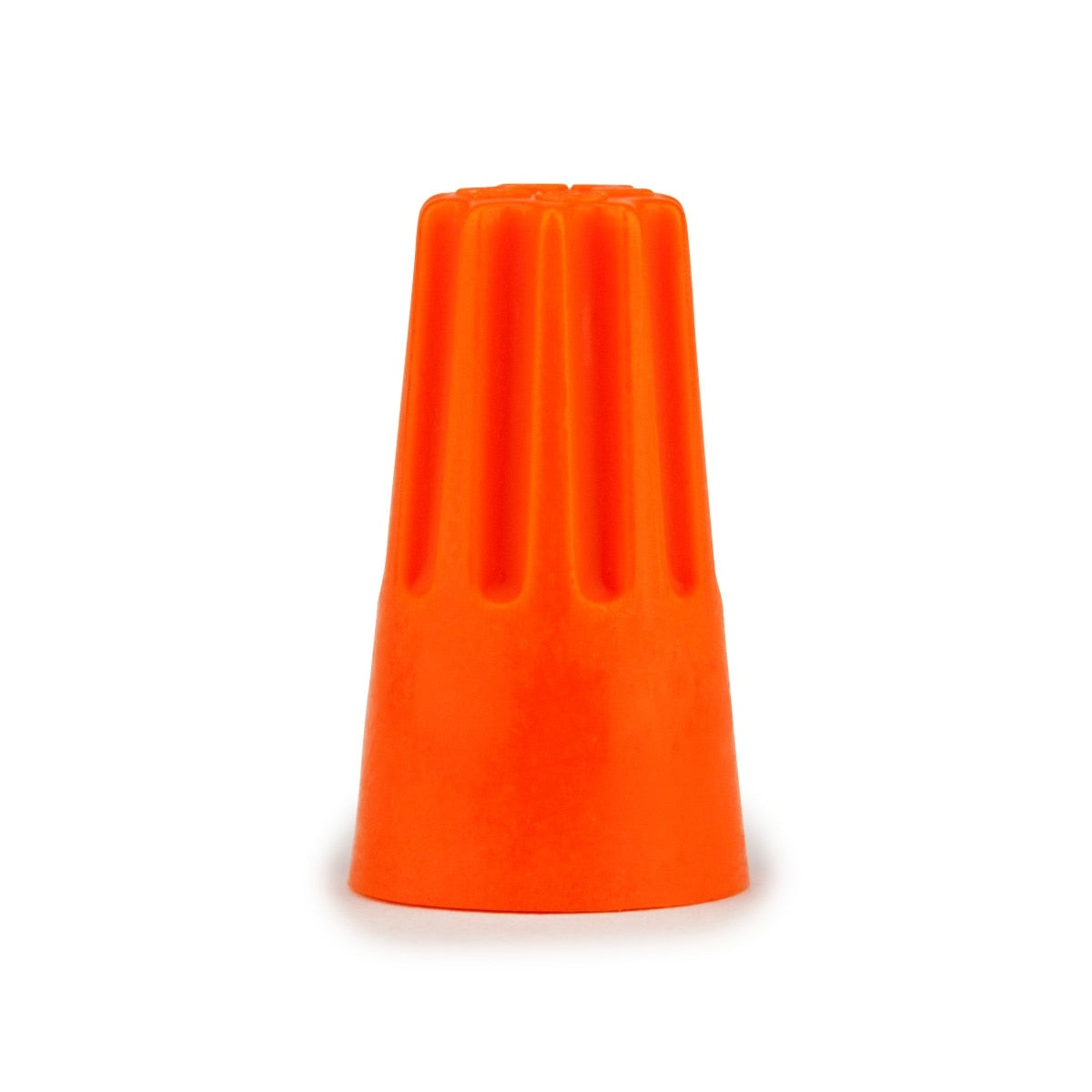

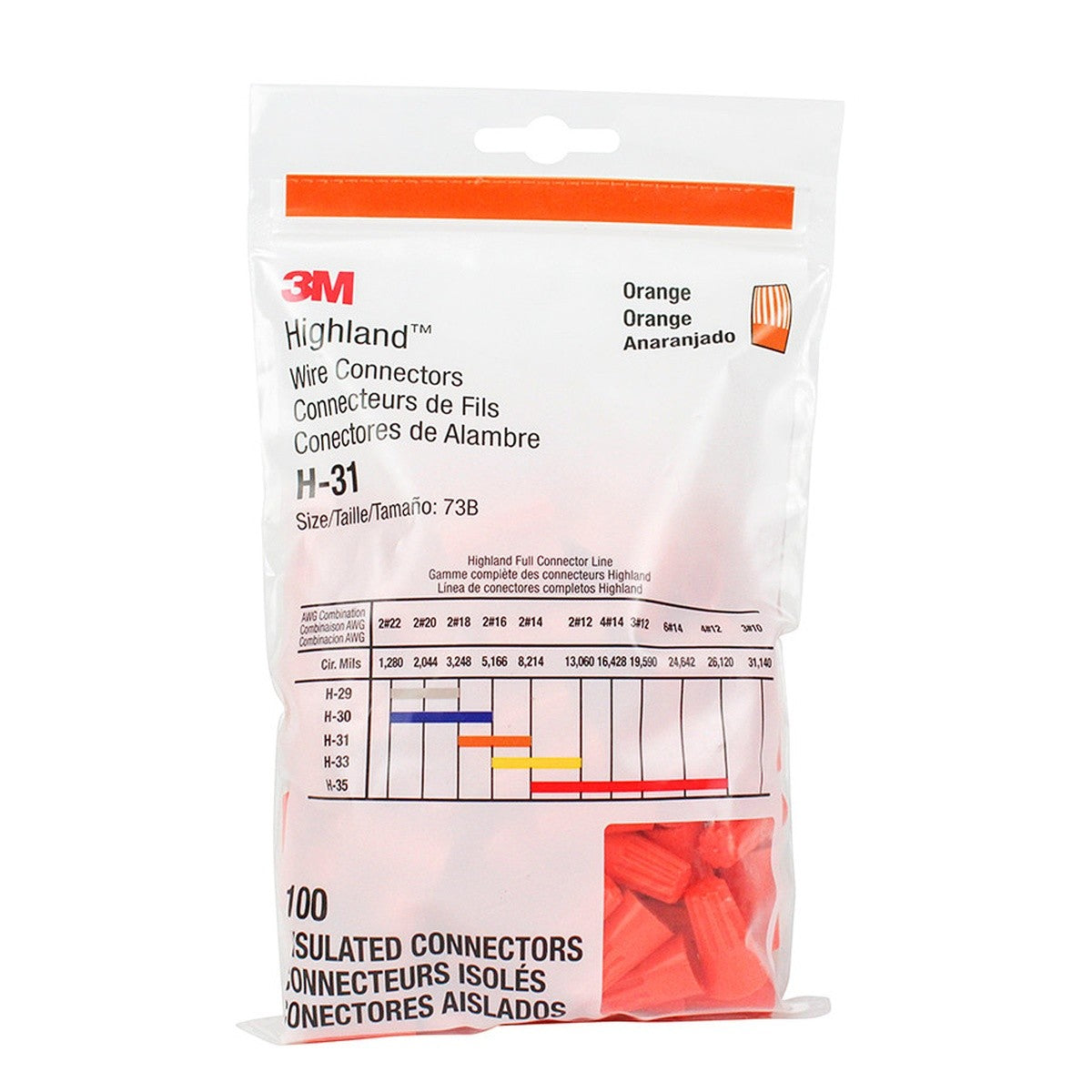

- (1000) - 3M 7010348891 Highland Wire Connector H-31-pouch, Orange, 18-14 AWG
3M 7010348891 Features
- Twist-on wire connector for pigtail connections
- Fits 18â€"14 AWG solid or stranded copper wire
- UL Listed; CSA Certified
- Rated 600V max for building wire; 1000V for signs/lighting
- Orange color for easy size identification
- Max operating temperature 221 Degree F (105 Degree C)
- Works with solid or stranded copper conductors
3M 7010348891 Specifications
| Sub-Brand | Highland |
| Connector Style | Twist On |
| Wire Range | 18â€"14 AWG |
| Product Color | Orange |
| Voltage Rating | 600 V (building wire); 1000 V (signs/lighting) |
| Maximum Operating Temperature | 221 Degree F (105 Degree C) |
| Minimum Conductor Size (Imperial) | 18 AWG |
| Maximum Conductor Size (Imperial) | 14 AWG |
| Unit of Measure | 100 per Pouch |
| Each Weight | 0.461 lbs |
| Each Dimensions (L x W x H) | 4.72 in x 1.5 in x 7.87 in |
Toolup Part # :
859586
