3M 7100006290 Description

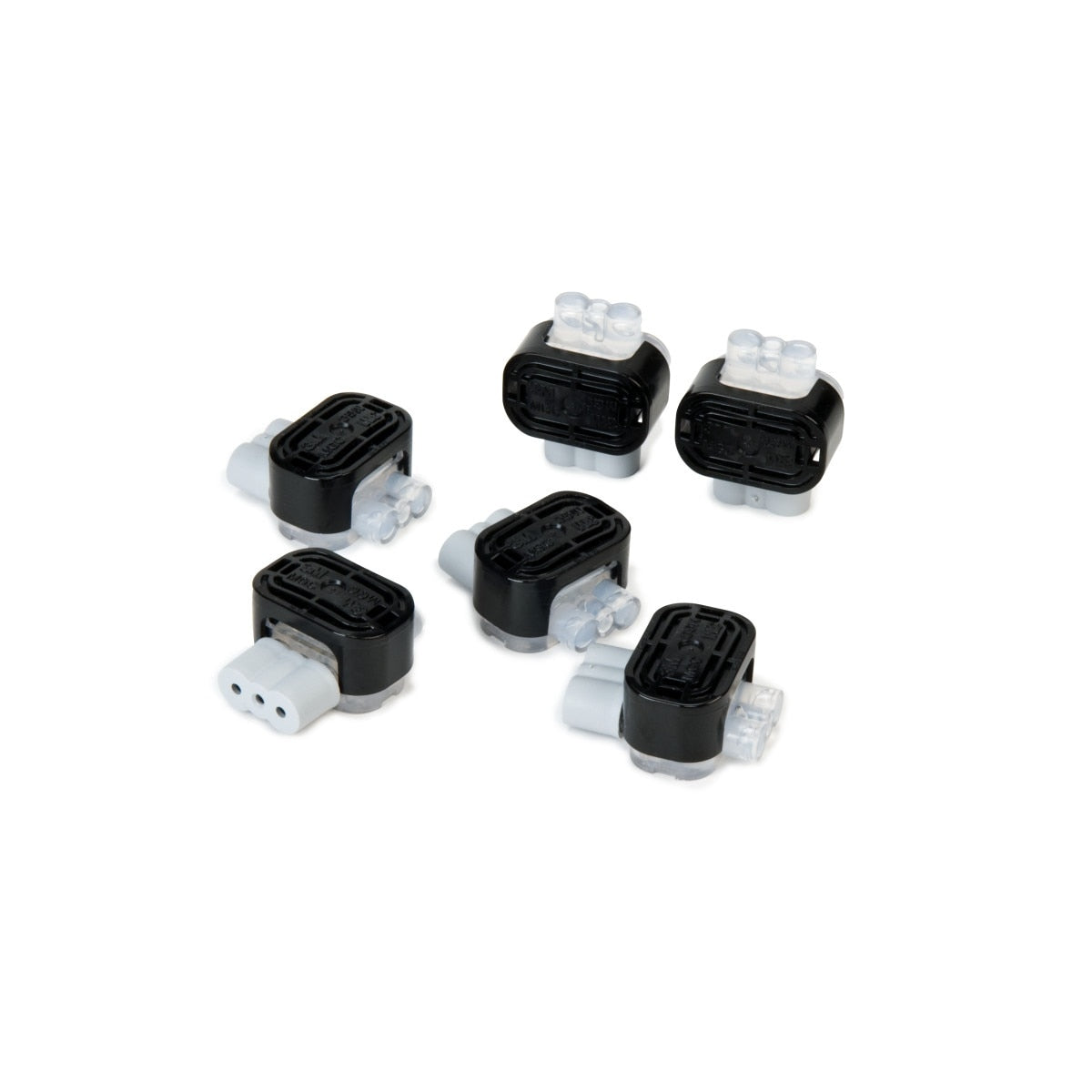

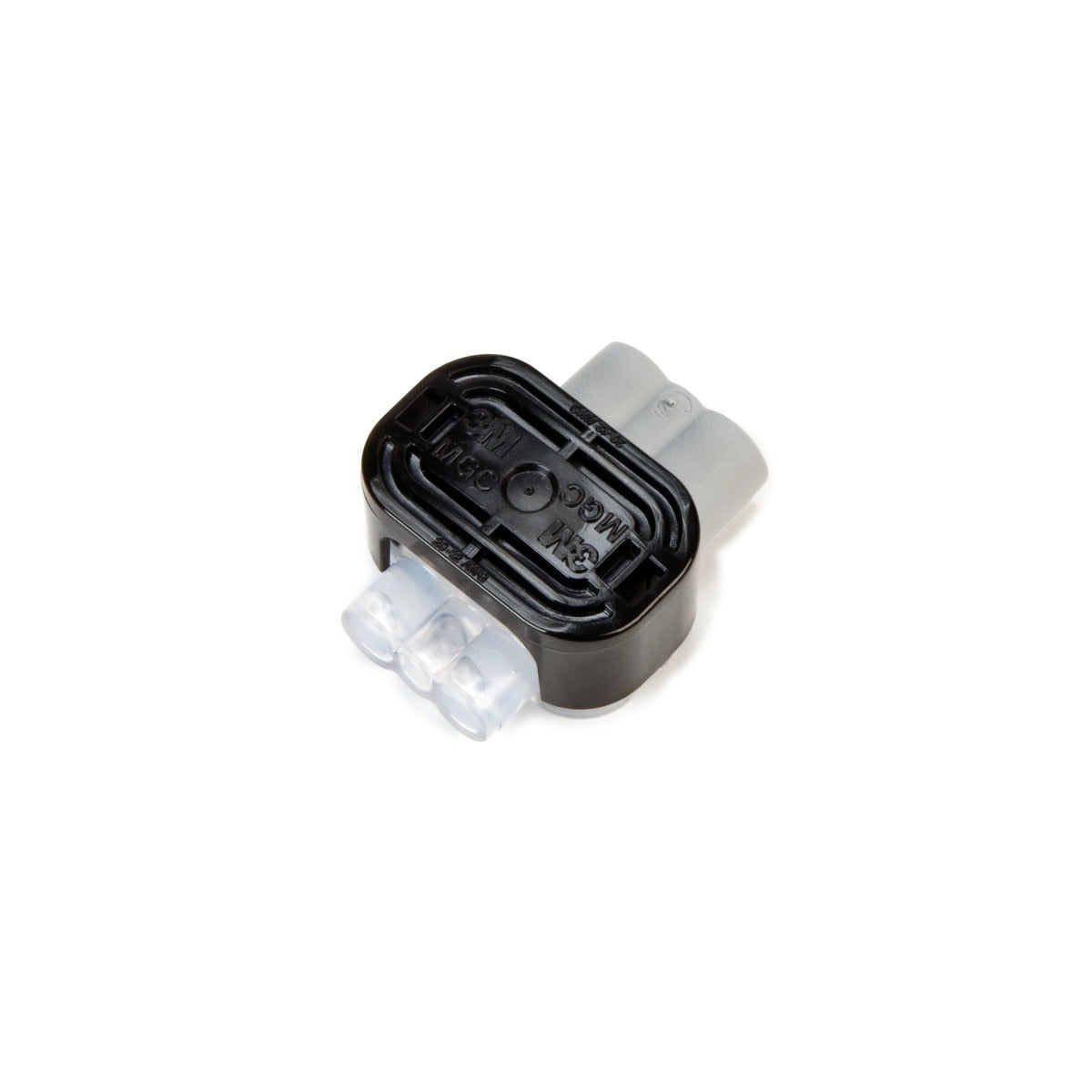

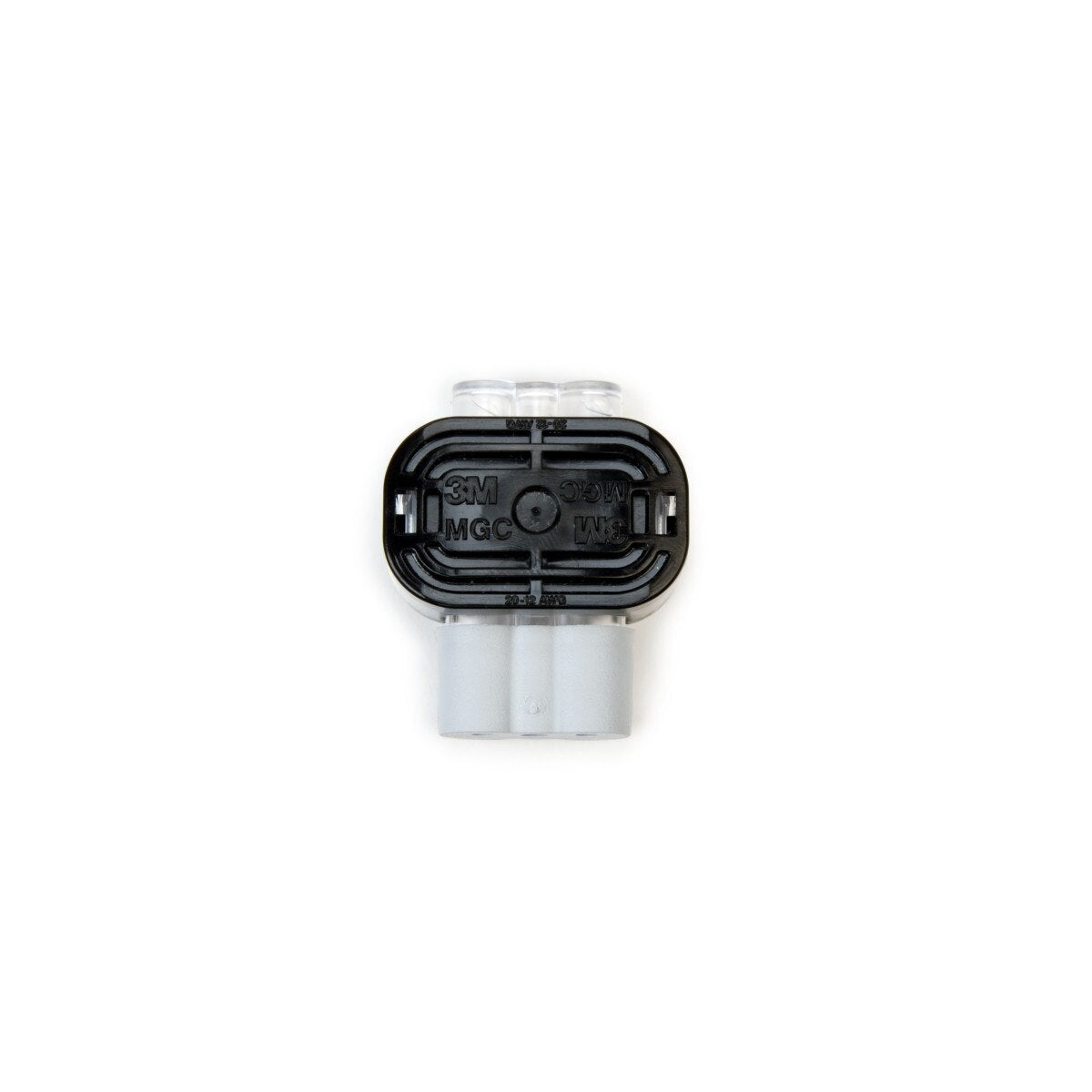

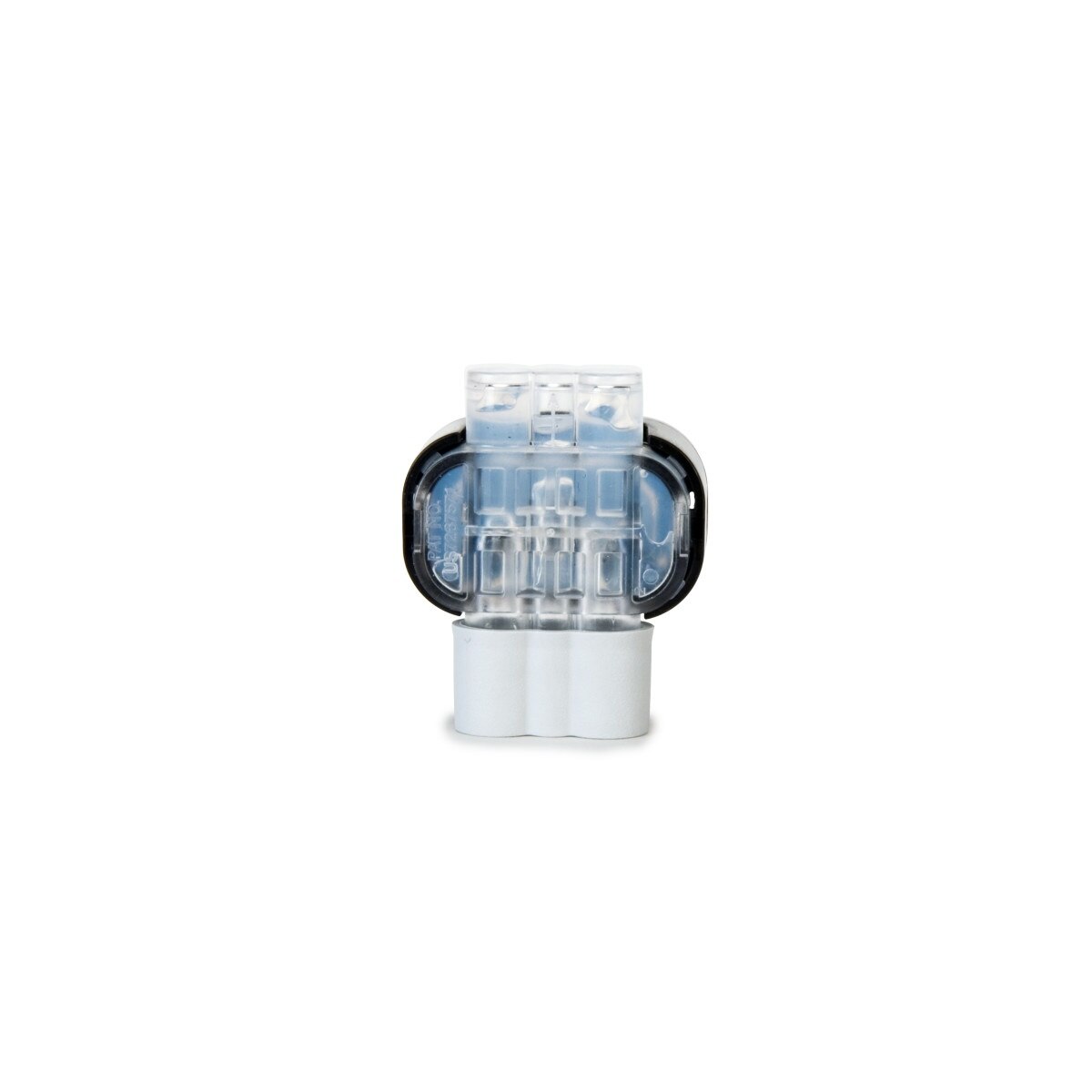

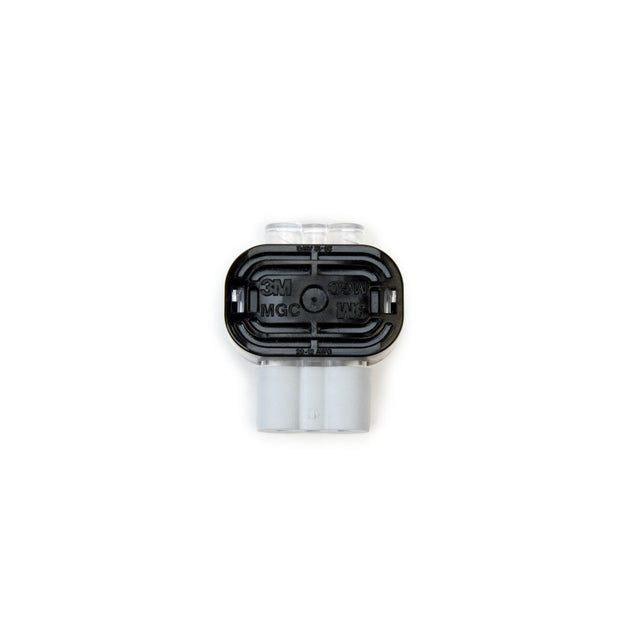

3M Scotchlok Moisture Guard Connector MGC provides a quick, reliable insulation displacement connection for irrigation and landscape lighting wiring. The mineral oil based grease helps protect against moisture, and the weather resistant polycarbonate body is designed for above ground use where UV and moisture protection are needed.
3M 7100006290 Includes

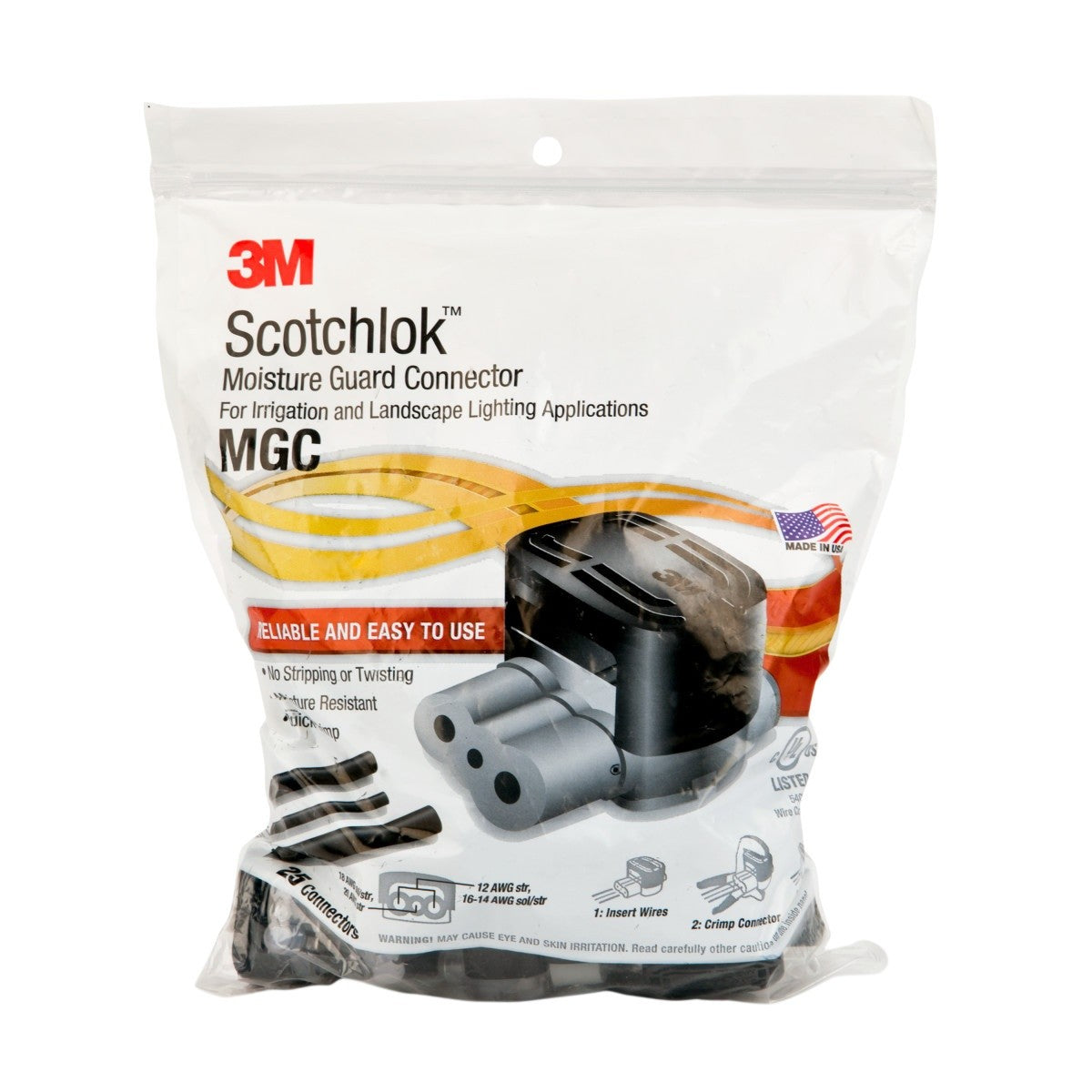

- (250) - 3M 7100006290 Scotchlok Moisture Guard Connector MSC, Weatherproof, UV-Resistant Connector for 2-3 Wires, 16-14 AWG (solid/stranded), For Irrigation and Landscape Lighting Applications (MGC-BAG)
3M 7100006290 Features
- Moisture guard connector for irrigation and landscape lighting applications
- Mineral oil based grease helps protect against moisture intrusion
- Weather resistant housing for above ground applications
- Accommodates 16 to 14 AWG solid/stranded conductors
- Also accommodates 12 AWG stranded (outer ports) and 18 AWG solid/stranded and 20 AWG stranded (inner port)
- Insulation displacement connector style for fast connections without stripping
- Flame retardant polycarbonate construction
- Rated up to 600 V for building wire and up to 1000 V for signs, fixtures and luminaires
- C UL Listed
- RoHS 2011/65/EU compliant
3M 7100006290 Specifications
| Product Type | Connector |
| Wire Connector Type | IDC Connectors |
| Connector Style | Insulation Displacement |
| Connection Type | Moisture Guard |
| Moisture Resistant | Yes |
| Material | Flame Retardant Polycarbonate |
| Insulation Material | Polycarbonate |
| Flame Retardant | UL-94 V-2 |
| Maximum Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| Minimum Conductor Size | 18 AWG |
| Maximum Conductor Size | 12 AWG (Stranded) |
| Maximum Insulation Diameter (Inside Port) | 0.15 in |
| Maximum Insulation Diameter (Outside Port) | 0.21 in |
| UL File Number | E23438 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
Toolup Part # :
860592
