3M 7000133381 Description

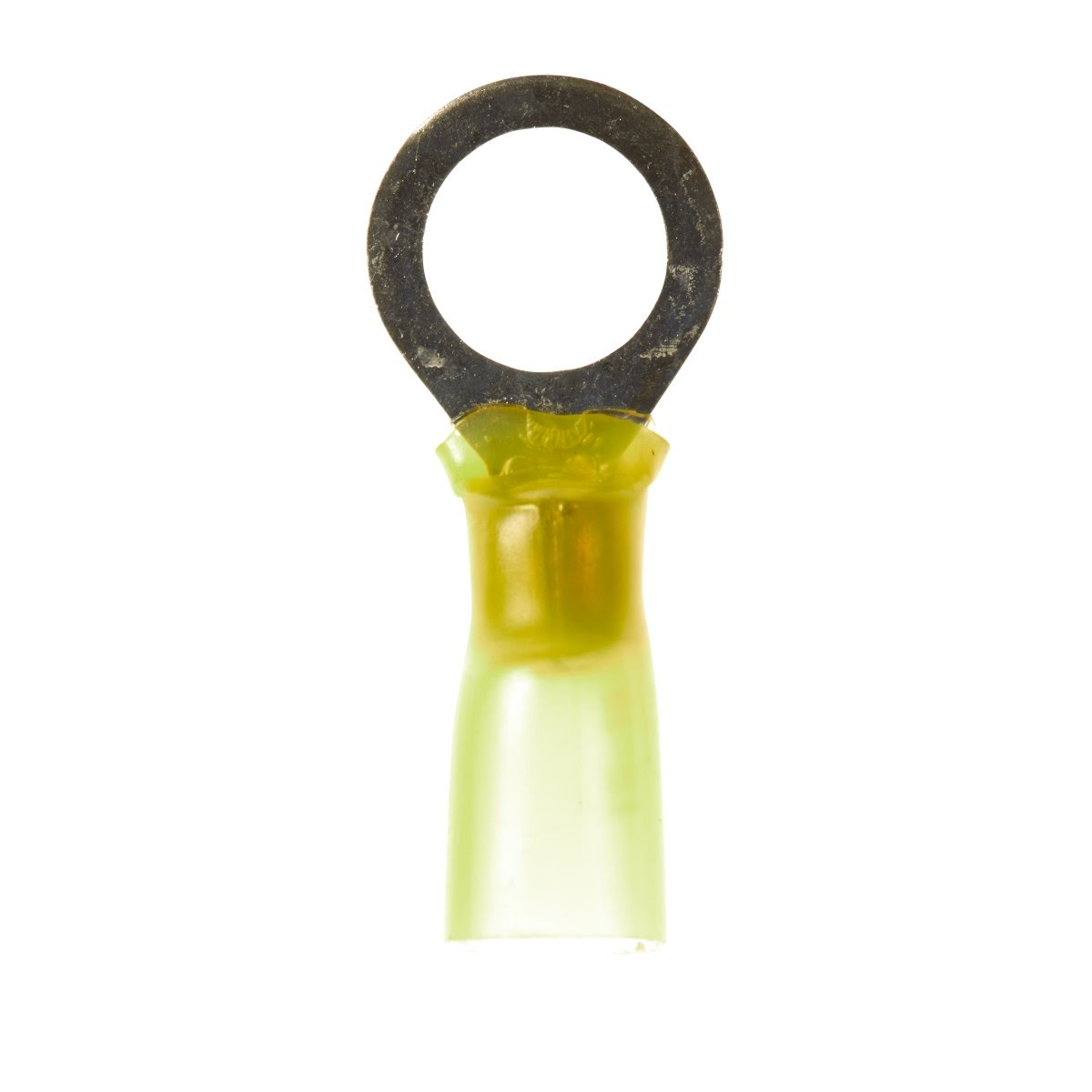

3M Scotchlok Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed seam barrel is covered by an adhesive lined polyolefin tubing to offer moisture seal protection. Electrolytic copper construction offers good conductivity and a tin plated finish resists corrosion. Withstands temperatures up to 221 degrees F (105 Degree Celsius).
3M 7000133381 Includes
- (125) Ring heatshrink ring tongue terminals (MH10-38RX)
3M 7000133381 Features
- Heat shrink brazed seam ring tongue terminal
- Adhesive lined polyolefin tubing provides moisture seal protection when crimped and shrunk
- Standard style ring tongue fits around the stud
- Electrolytic copper construction provides good conductivity
- Tin plated finish helps resist corrosion
- Color coded yellow for quick wire size identification
- Maximum operating temperature 105 Degree Celsius (221 degrees F)
- Rated 600V for building wire applications
- Rated 1000V for signs, fixtures, or luminaires
- Conductor range 12 to 10 AWG
3M 7000133381 Specifications
| Part Number | MH10-38RX |
| Terminal Type | Ring |
| Connection Type | Crimp |
| Insulation Material | Heat Shrink |
| Color | Yellow |
| Wire Range | 12 to 10 AWG |
| Connection Width | 0.375 in |
| Overall Length | 1.2 in |
| Overall Width | 0.59 in |
| Maximum Operating Temperature | 105 Degree Celsius |
| Case Quantity | 125 |
| Product Length | 9.37007874015748 in |
| Product Width | 3.622047244094488 in |
| Product Height | 5.118110236220472 in |
| Shipping Weight | 1.2389979134790121 lbs |
