Description
Description
3M 7000031843 Description

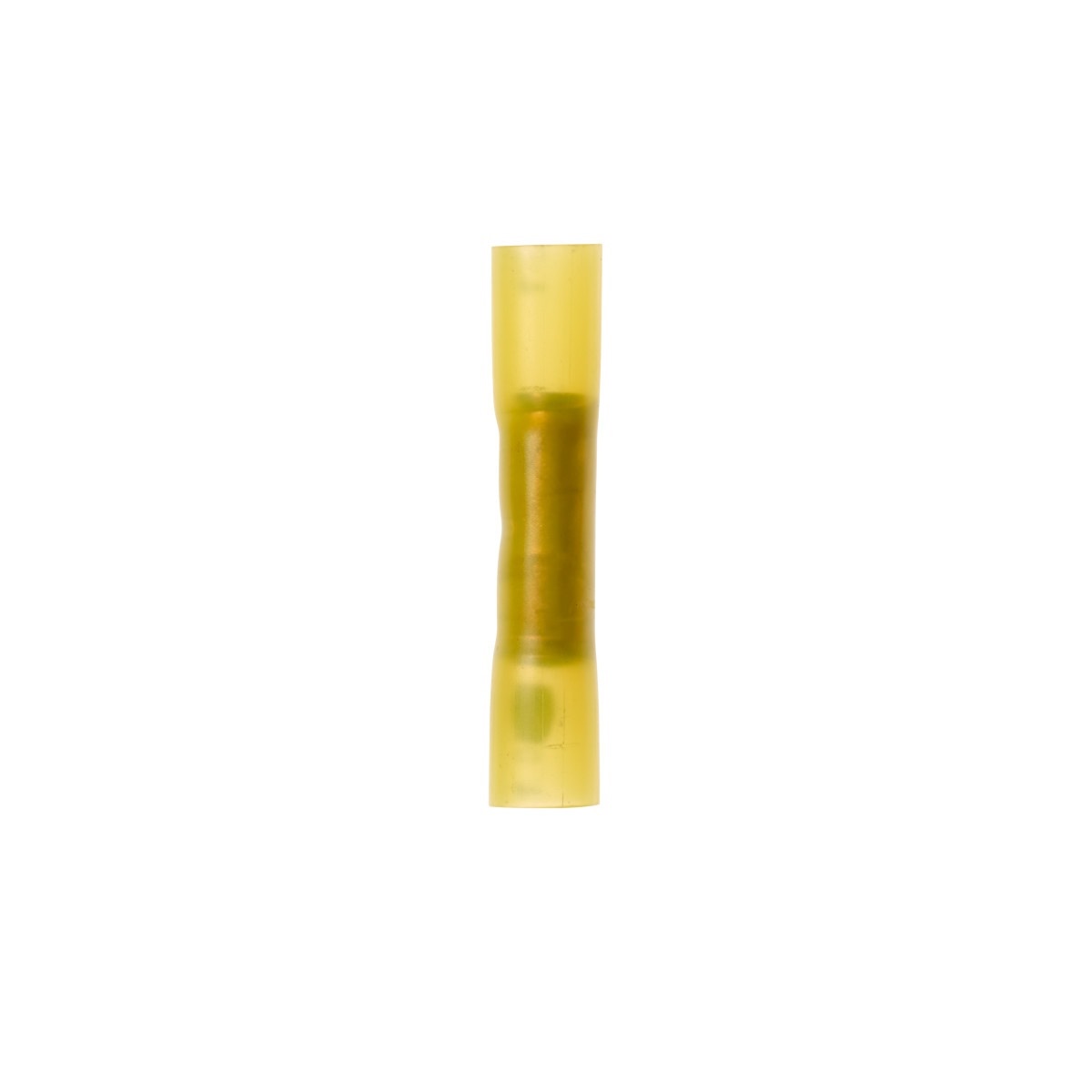

3M Scotchlok heat shrink butt connector ensures an ideal fit with great performance. Electrolytic copper construction offers good conductivity and a tin plated finish helps resist corrosion. The seamless barrel is covered by see through pre insulated transparent tubing to help provide seal resistance to water salt and other contaminants when crimped and shrunk.
3M 7000031843 Includes
- (125) 3M Scotchlok Heat Shrink Butt Connectors
3M 7000031843 Features
- Heat shrink insulated butt connector for sealed splices
- Built in wire stop helps ensure correct positioning
- Copper alloy construction with tin plating helps resist corrosion
- Transparent tubing helps provide resistance to water salt and contaminants
- Color coded yellow for 12 to 10 AWG wire range
- Withstands up to 105 Degree Celsius maximum operating temperature
3M 7000031843 Specifications
| Connector Type | Butt |
| Insulation Material | Heat Shrink |
| Color | Yellow |
| Body Material | Copper Alloy |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Maximum Operating Temperature | 105 Degree Celsius |
| Overall Length | 1.5 in |
| Barrel Inside Diameter | 0.142 in |
| RoHS | RoHS 2011/65 EU compliant without exemption |
| Case Quantity | 125 |
Toolup Part # :
855108
