3M 7000031494 Description

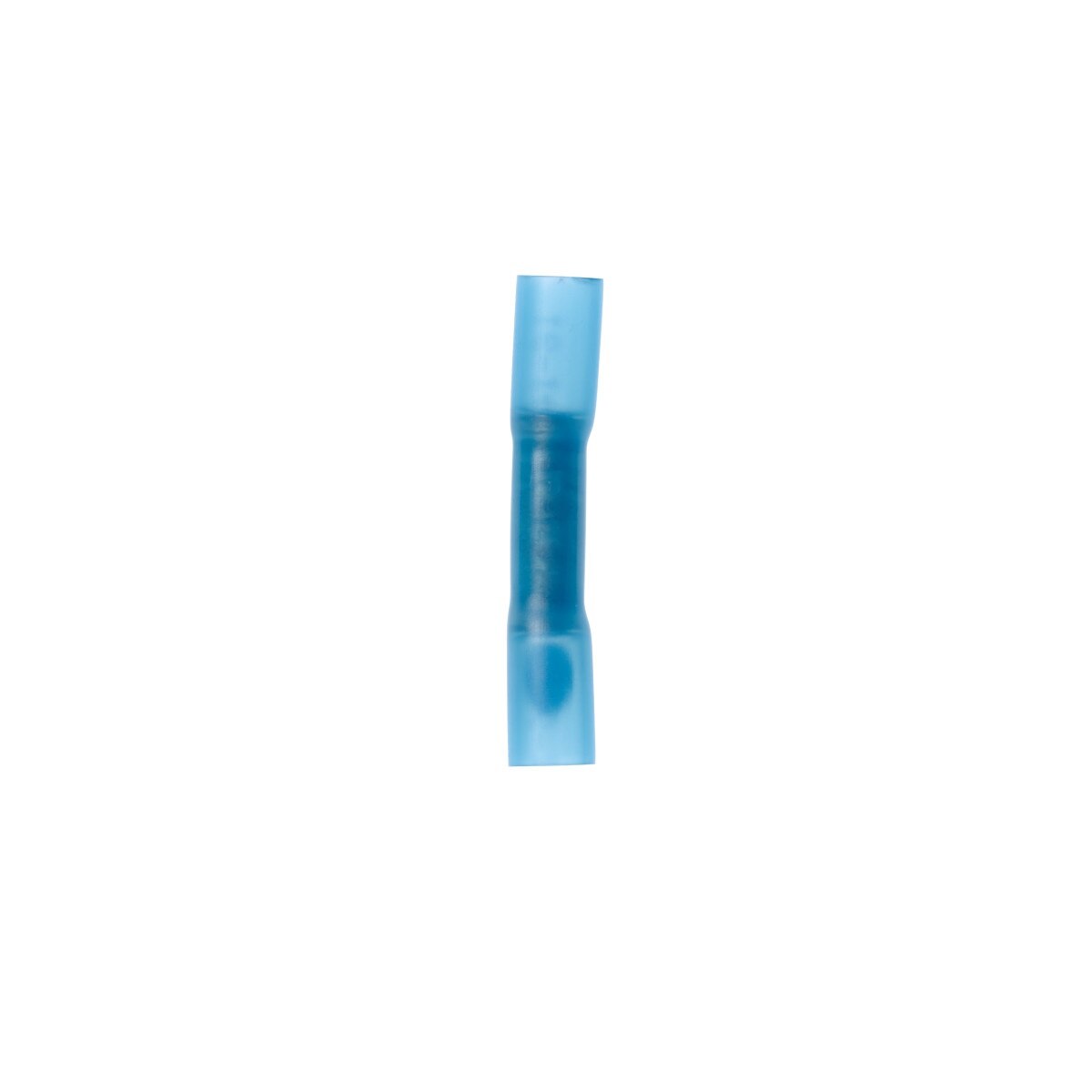

3M Scotchlok MH14BCK heat shrink seamless butt connectors provide a durable, corrosion-resistant crimp connection for 16-14 AWG wire. The transparent heat shrink insulation helps seal out water, salt, and contaminants while delivering added strain relief and pullout strength.
3M 7000031494 Includes
- (250) Heat Shrink Seamless Butt Connector
3M 7000031494 Features
- Heat shrink insulated seamless butt connector for 16-14 AWG wire
- Built-in wire stop for correct positioning
- Electrolytic copper construction for good conductivity
- Tin-plated finish helps resist corrosion
- Transparent tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk
- Heat shrink tubing provides strain relief and improved pullout strength
- Withstands maximum operating temperature of 105 Degree Celsius (221 Degree Fahrenheit)
- Color-coded for quick wire size identification
3M 7000031494 Specifications
| Connector Type | Butt |
| Wire Size Range | 16-14 AWG |
| Minimum Conductor Size (Metric) | 1.5 mm2 |
| Maximum Conductor Size (Metric) | 2.5 mm2 |
| Insulation Material | Heat Shrink |
| Body Material | Copper Alloy |
| Color | Blue |
| Maximum Operating Temperature | 105 Degree Celsius |
| Overall Length | 1.3 in |
| Package Quantity | 250 per Case |
Toolup Part # :
849531
