3M 7000058840 Description

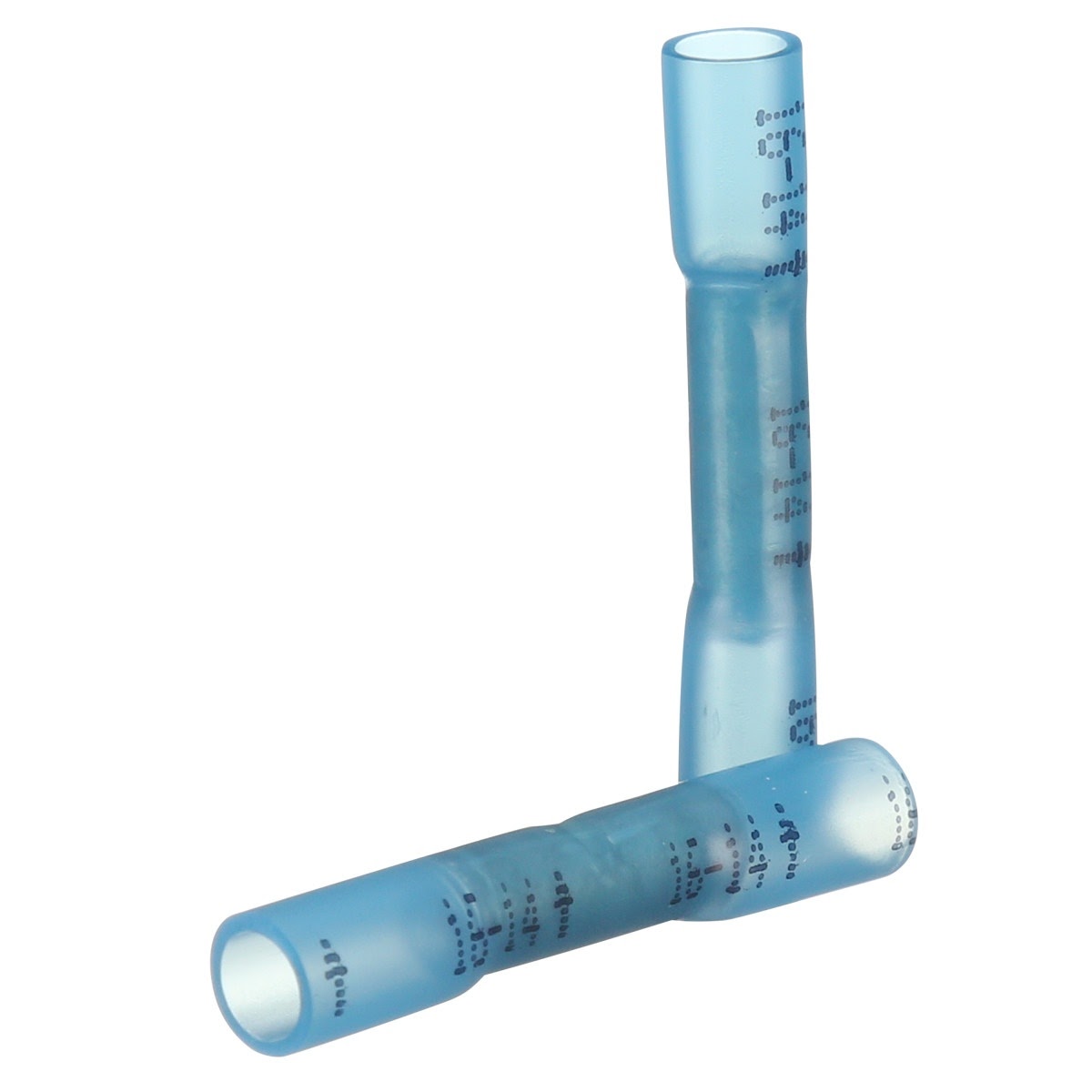

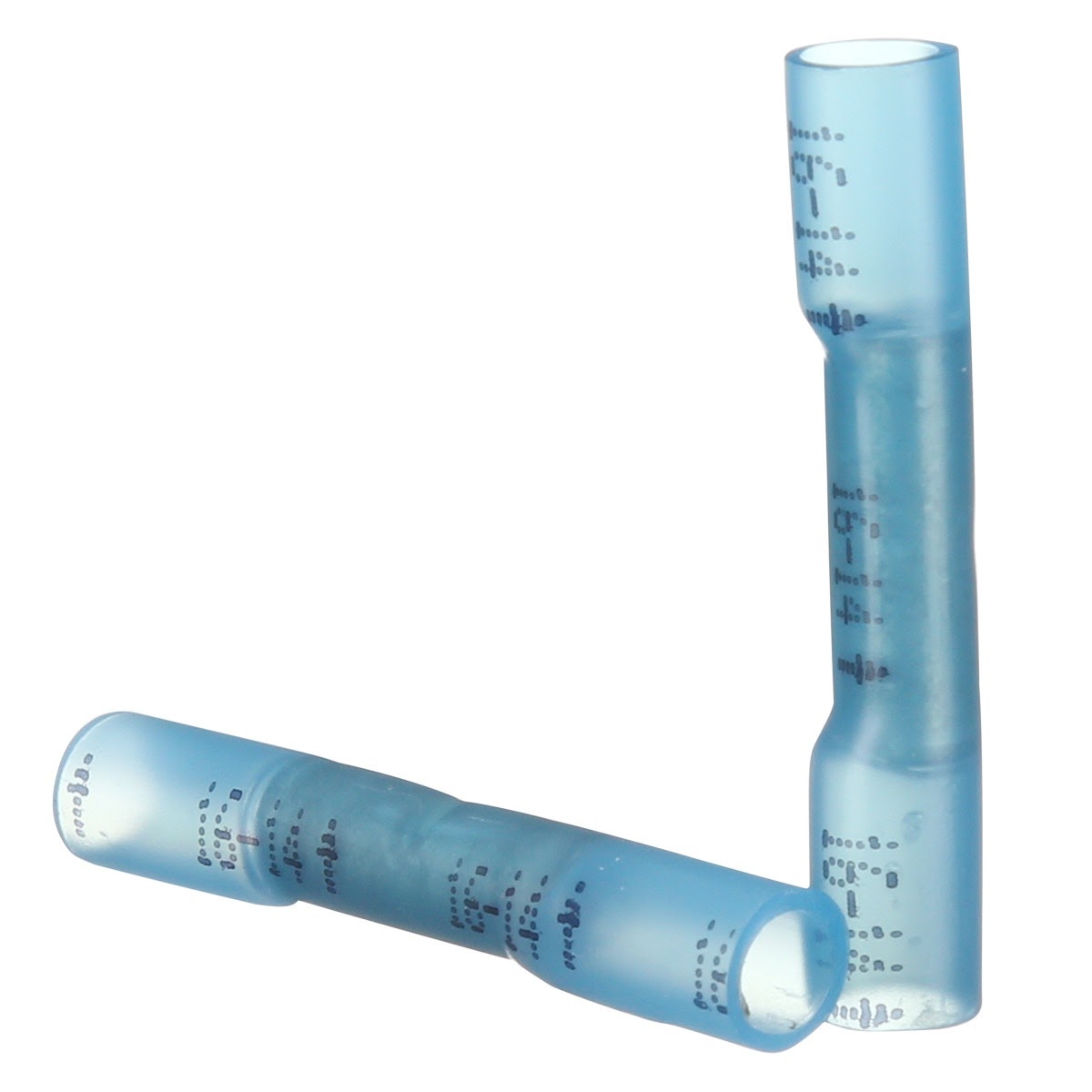

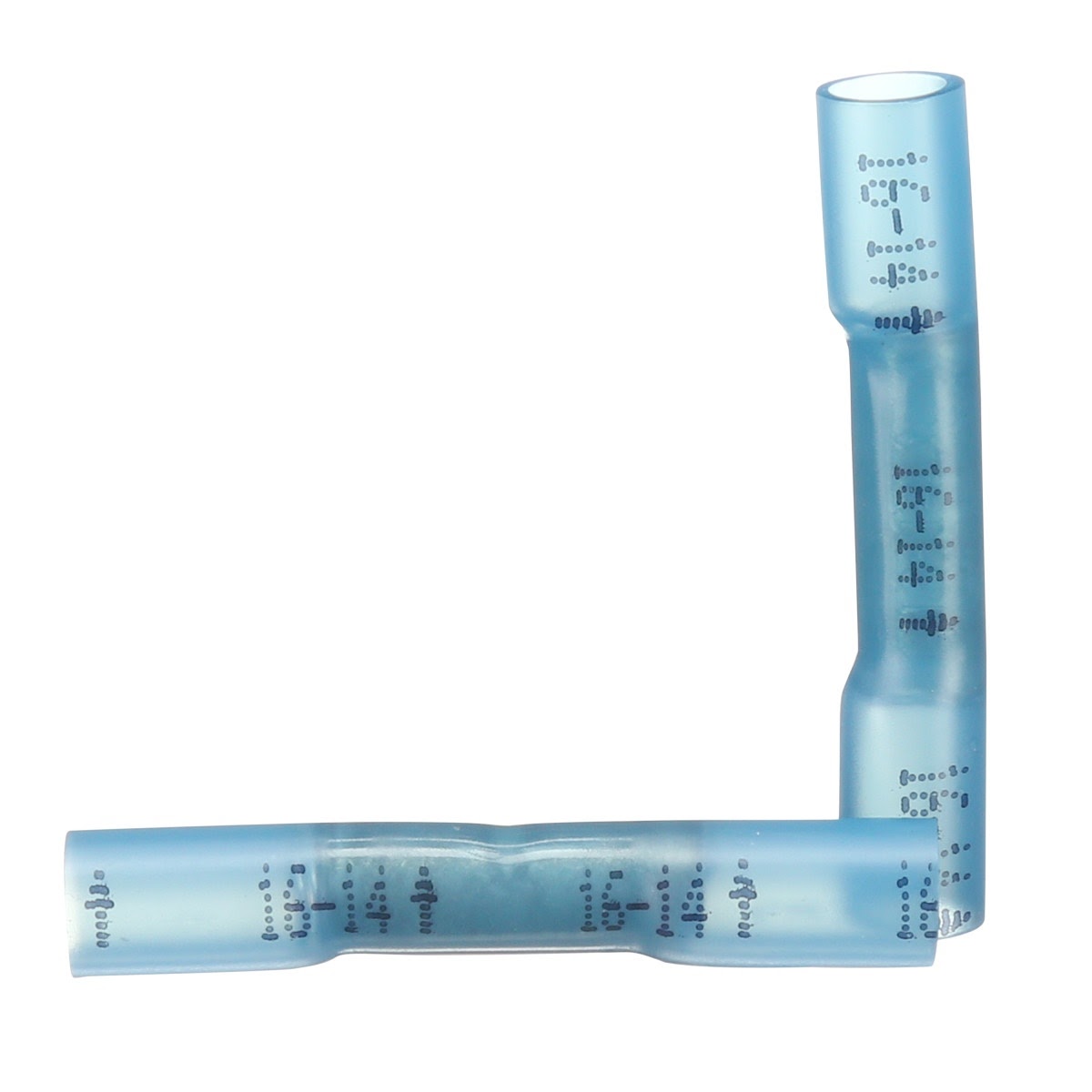

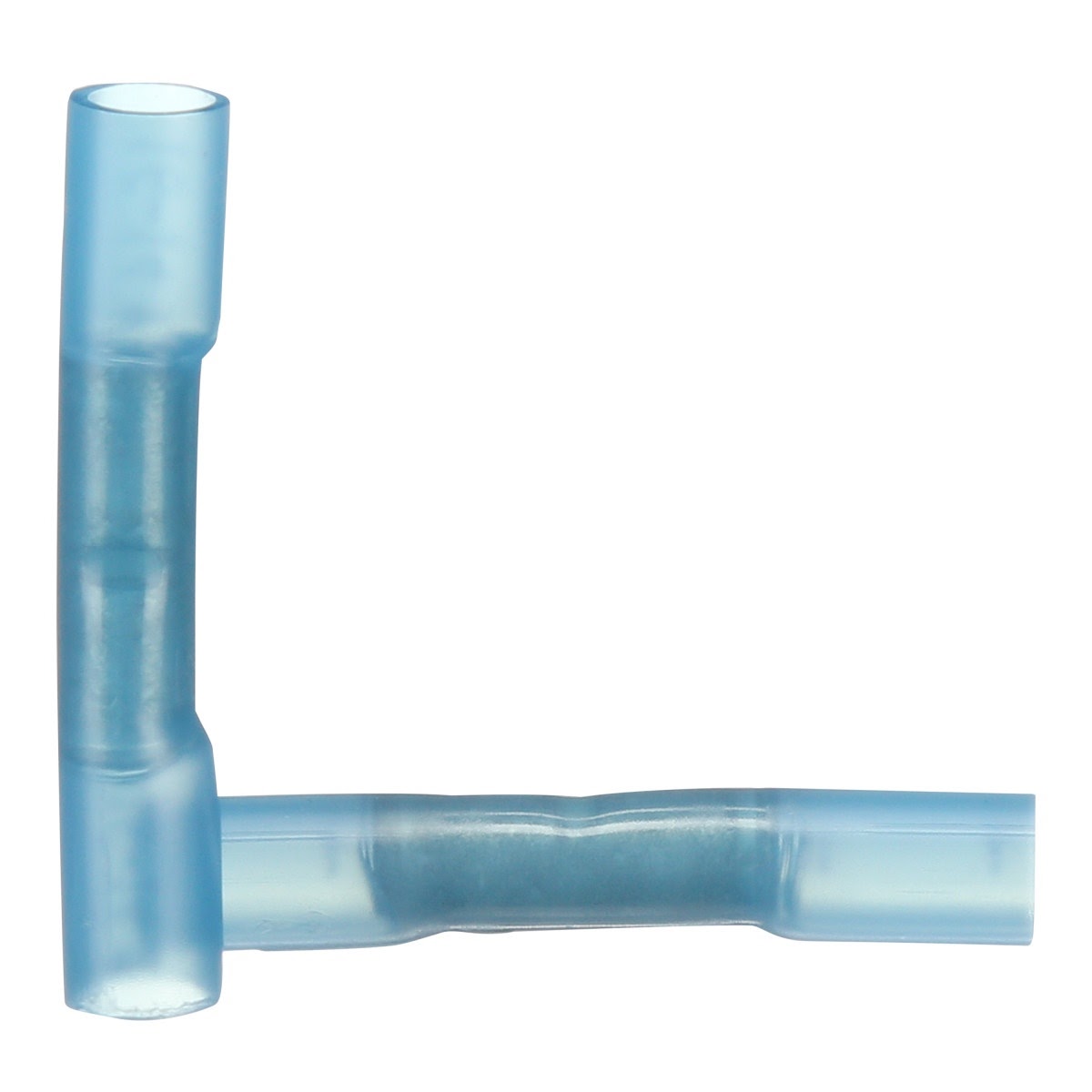

3M Scotchlok heat shrink butt connectors provide a secure moisture resistant wire splice with a built in wire stop for consistent positioning. The tin plated copper construction supports strong conductivity and corrosion resistance for reliable electrical connections.
3M 7000058840 Includes
- (125) 3M Scotchlok Butt Connector Heatshrink MH14BCX
3M 7000058840 Features

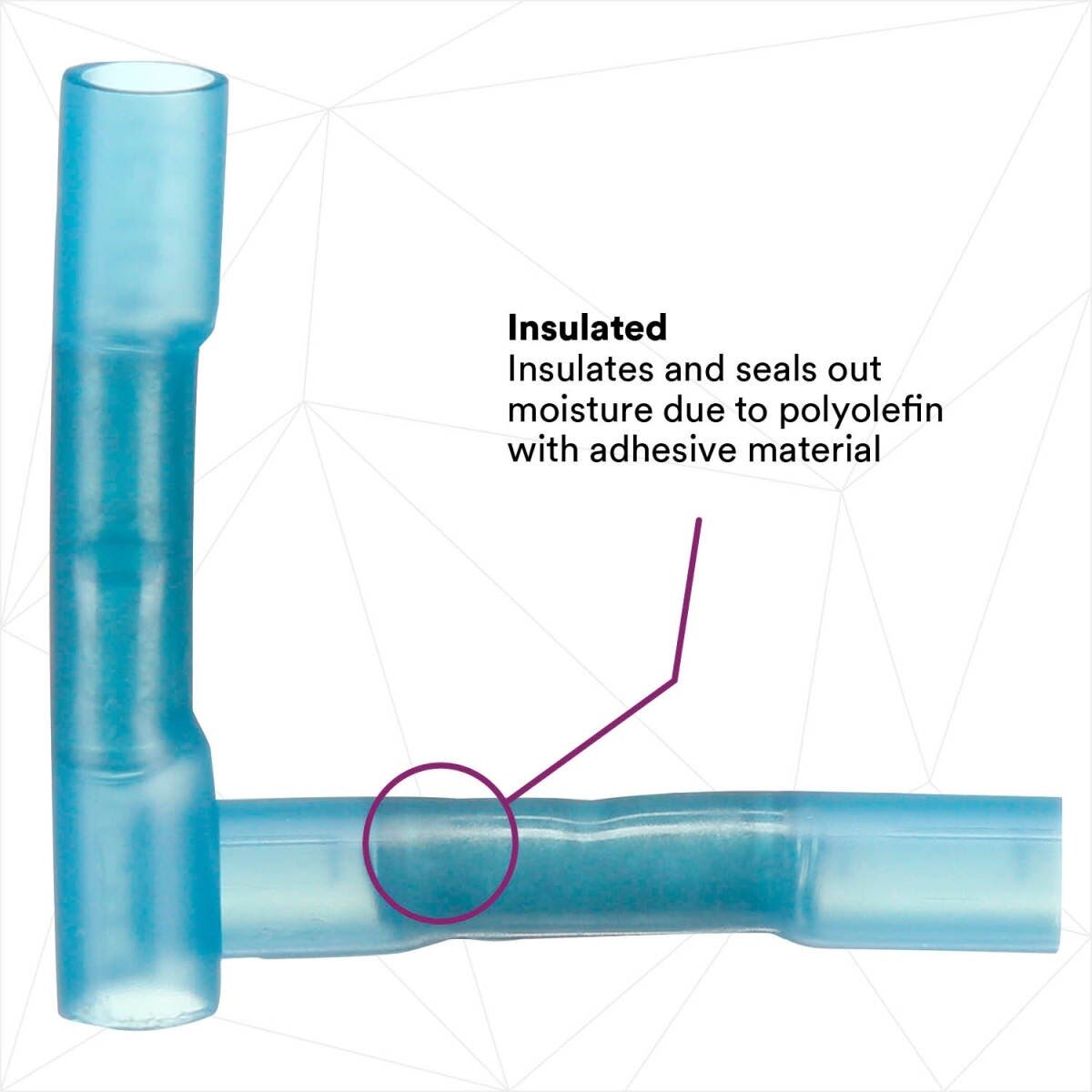

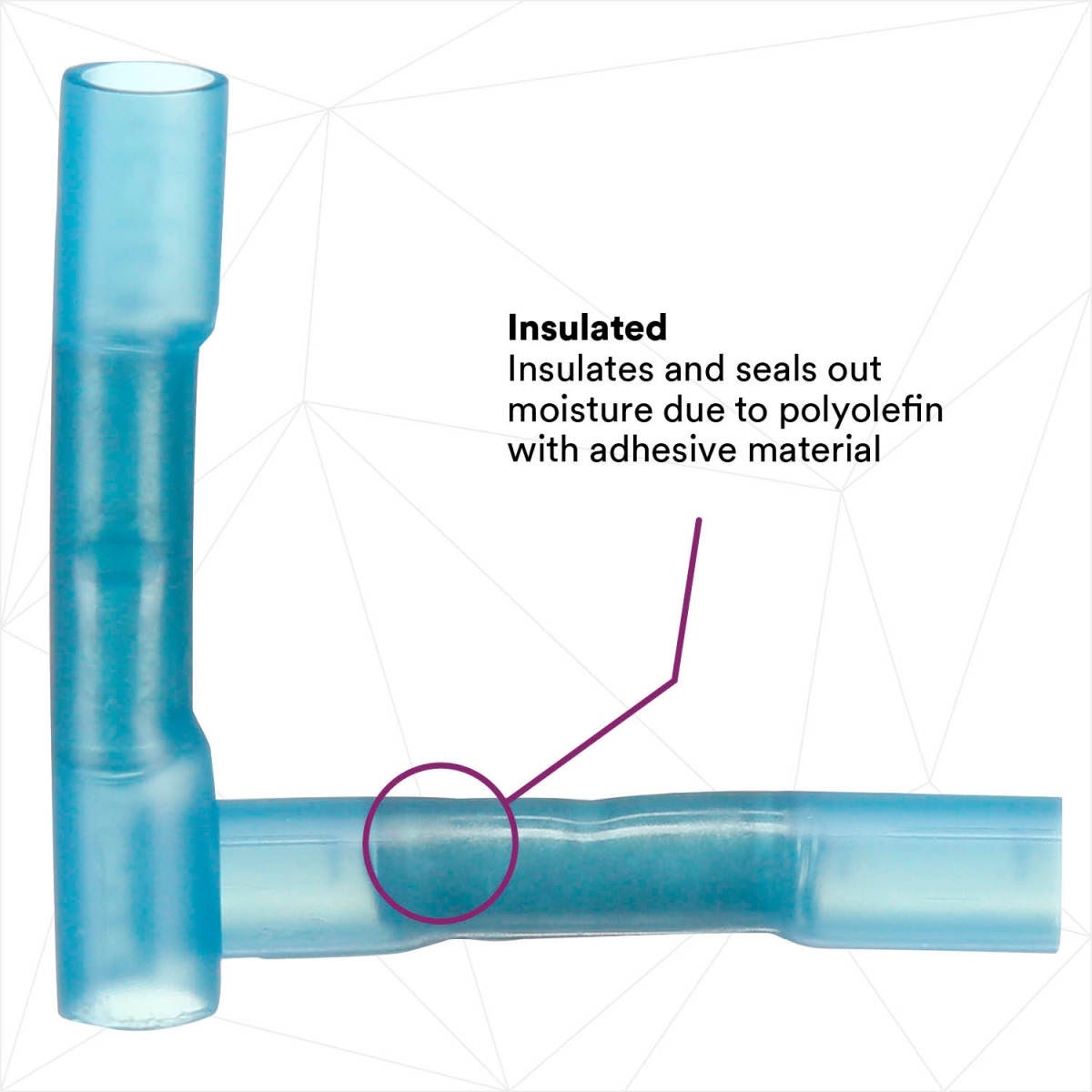

- Heat shrink insulation helps seal out moisture and contaminants

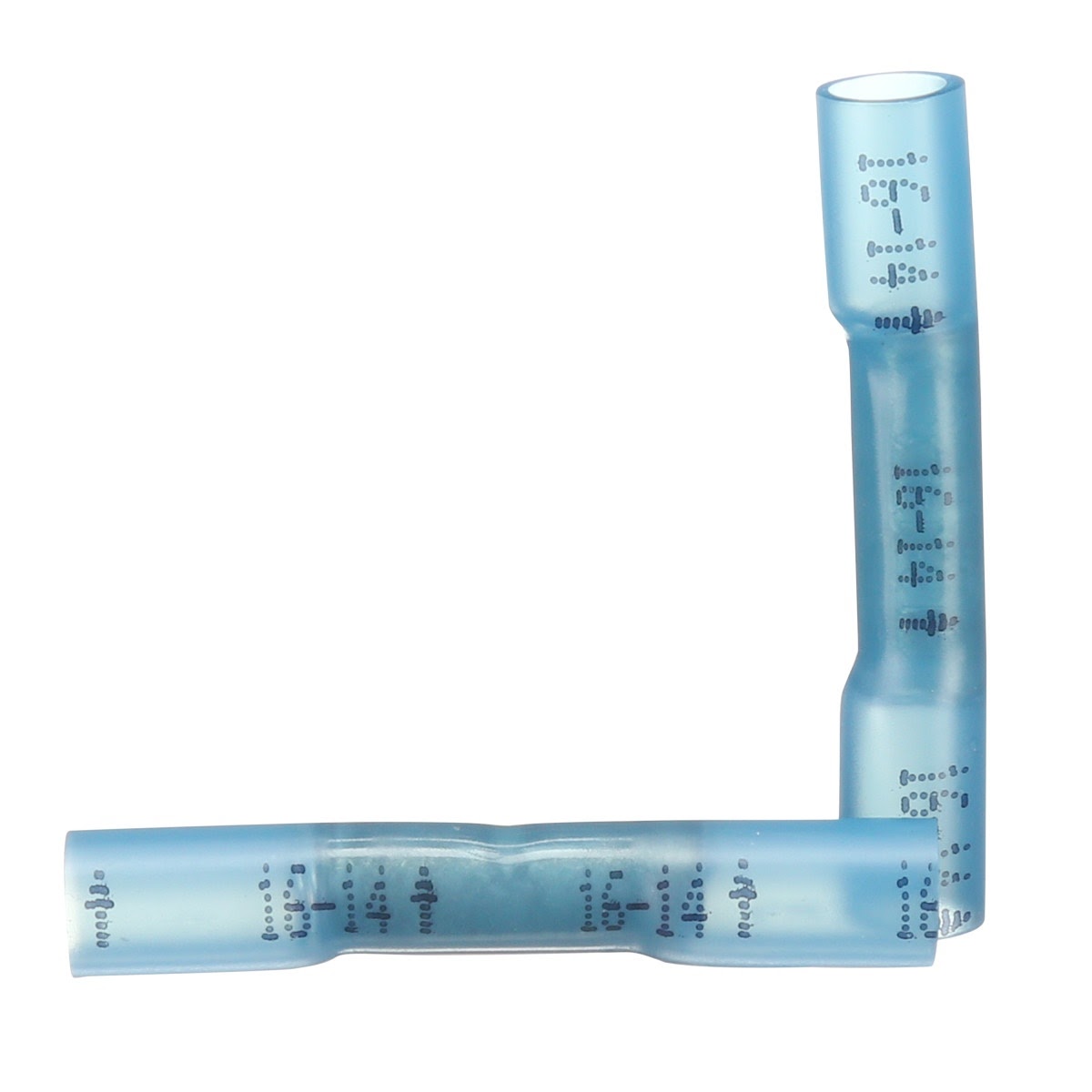

- Built in wire stop helps ensure correct wire positioning

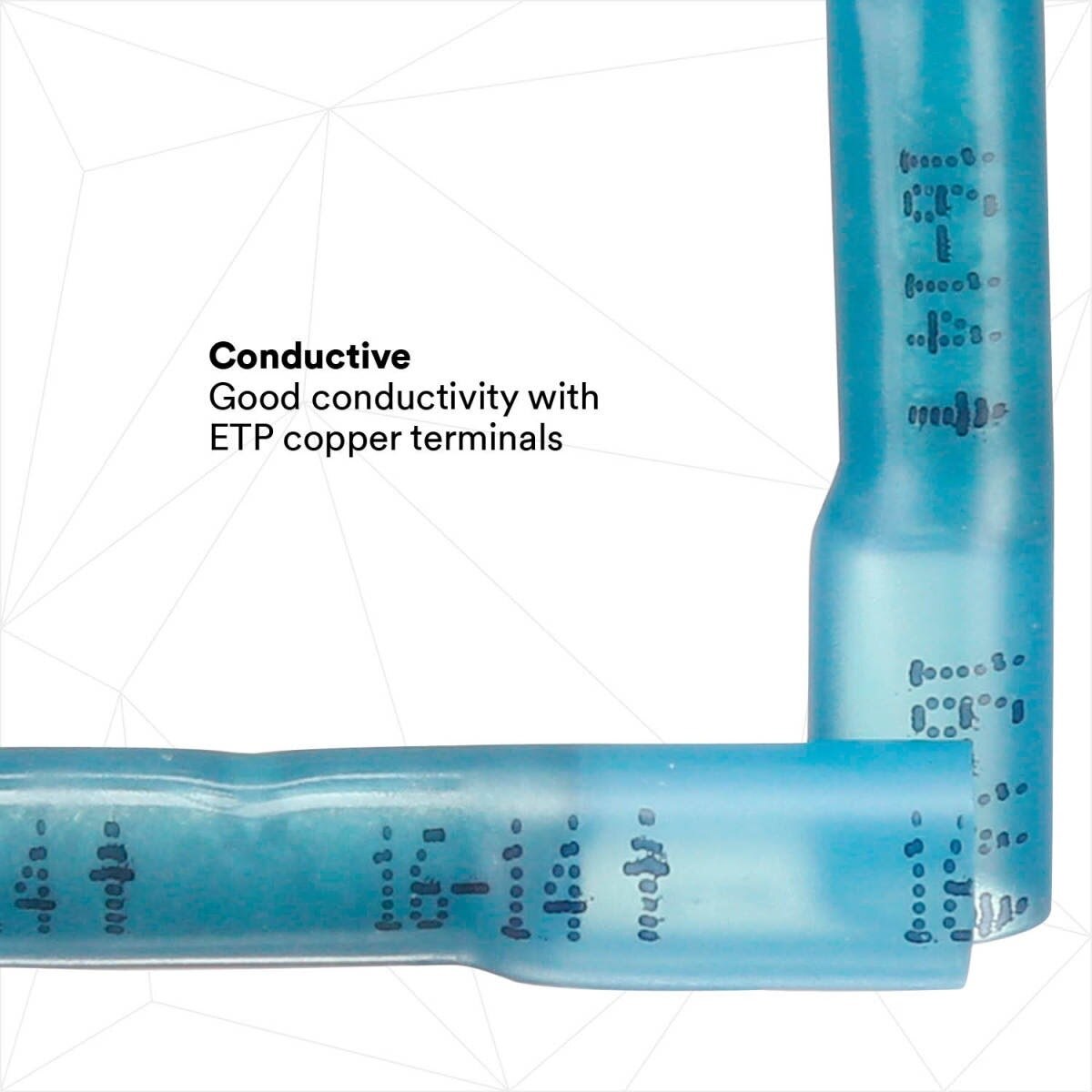

- Electrolytic copper construction provides good conductivity

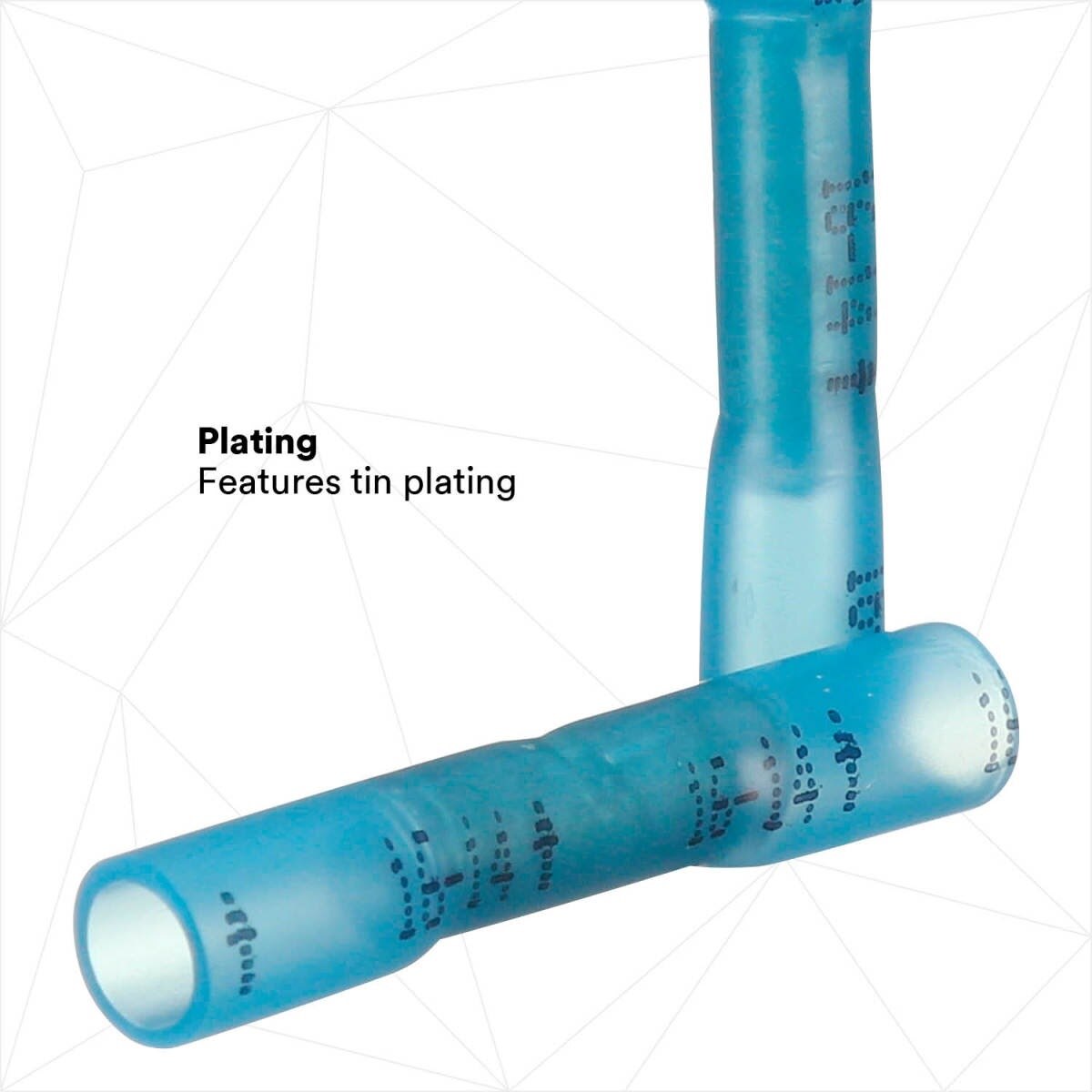

- Tin plating helps resist corrosion

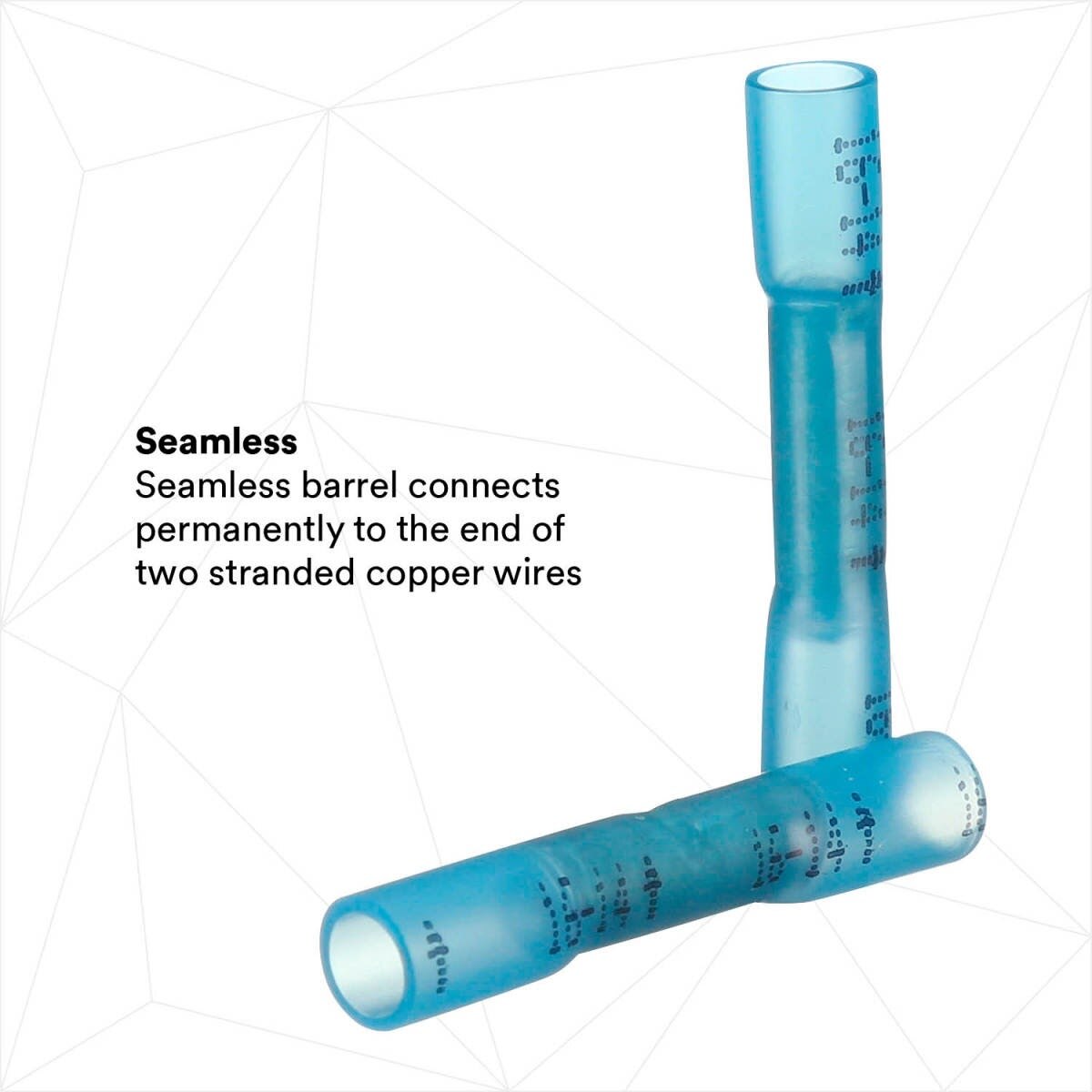

- Seamless barrel design for permanent connection of stranded copper wires
- Color coded blue for quick wire size identification
- Wire range 16 AWG to 14 AWG
- Withstands maximum operating temperature of 105 Degree Celsius 221 Degree Fahrenheit

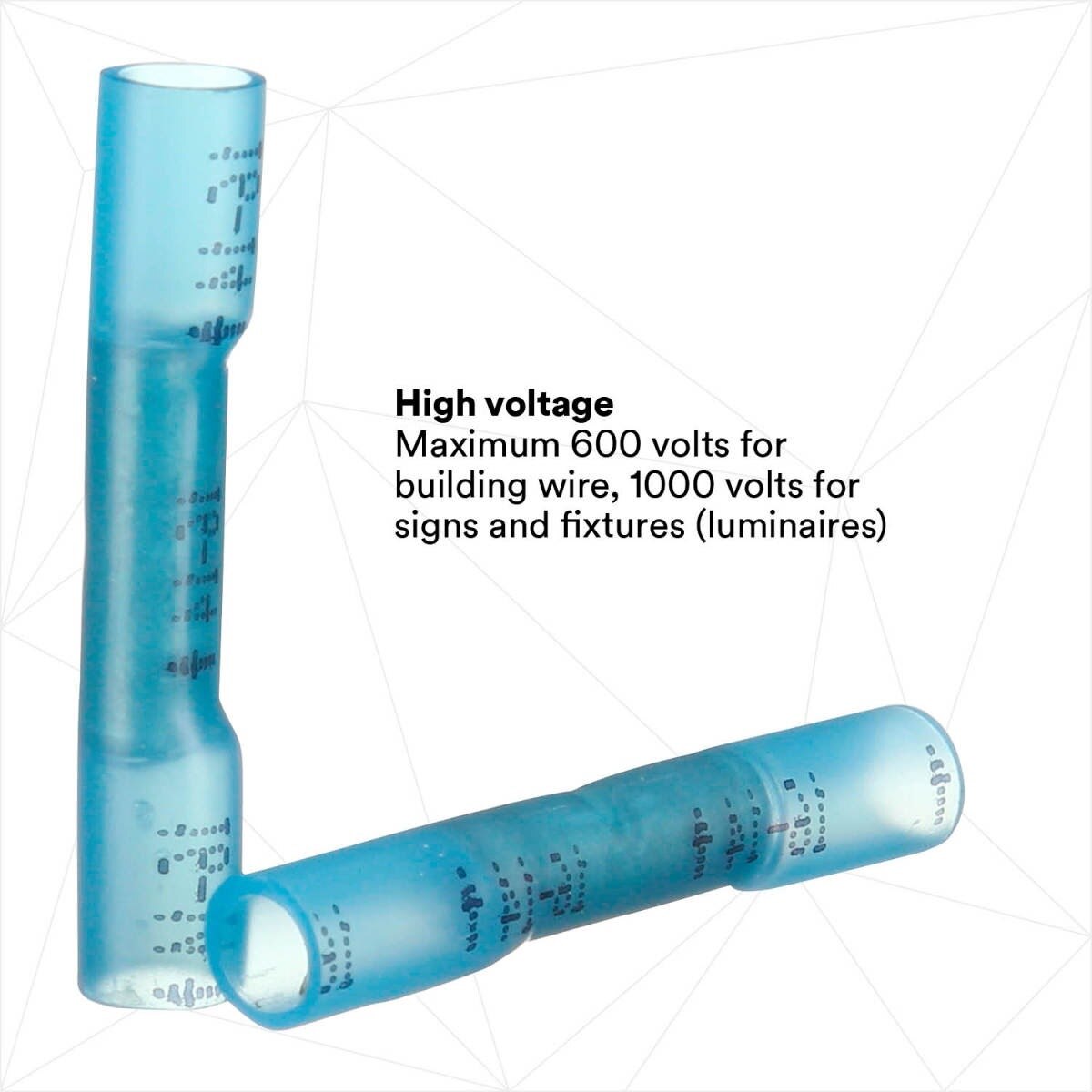

- Rated up to 600 volts for building wire applications
- Rated up to 1000 volts for signs and fixtures luminaires
- RoHS 2011 65 EU compliant without exemption
3M 7000058840 Specifications
| Part Number | MH14BCX |
| Connector Type | Butt |
| Terminal Type | Butt Connectors |
| Disconnect Type | Female |
| Color Family | Blue |
| Body Material | Copper Alloy |
| Insulation Material | Heat Shrink |
| Minimum Conductor Size | 16 AWG 1.5 mm2 |
| Maximum Conductor Size | 14 AWG 2.5 mm2 |

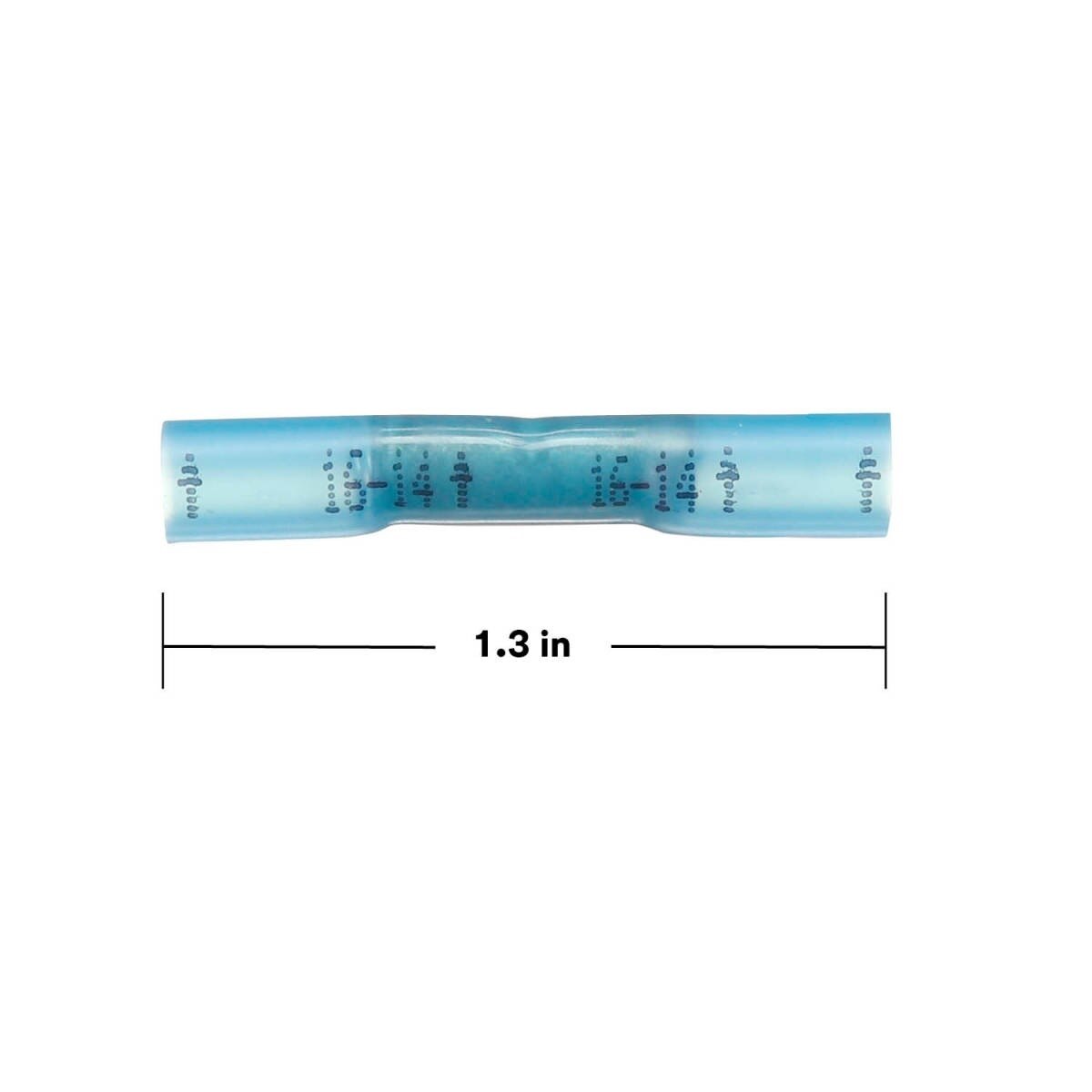

| Overall Length | 1.3 in 33.02 mm |
| Barrel Inside Diameter | 0.095 inch |
| Maximum Operating Temperature | 105 Degree Celsius |
| RoHS EU Comments | RoHS 2011 65 EU compliant without exemption |
| Pack Quantity | 125 per Case |
| Inner Pack Quantity | 25 per Bottle |
Toolup Part # :
854611
