3M 7010351307 Description

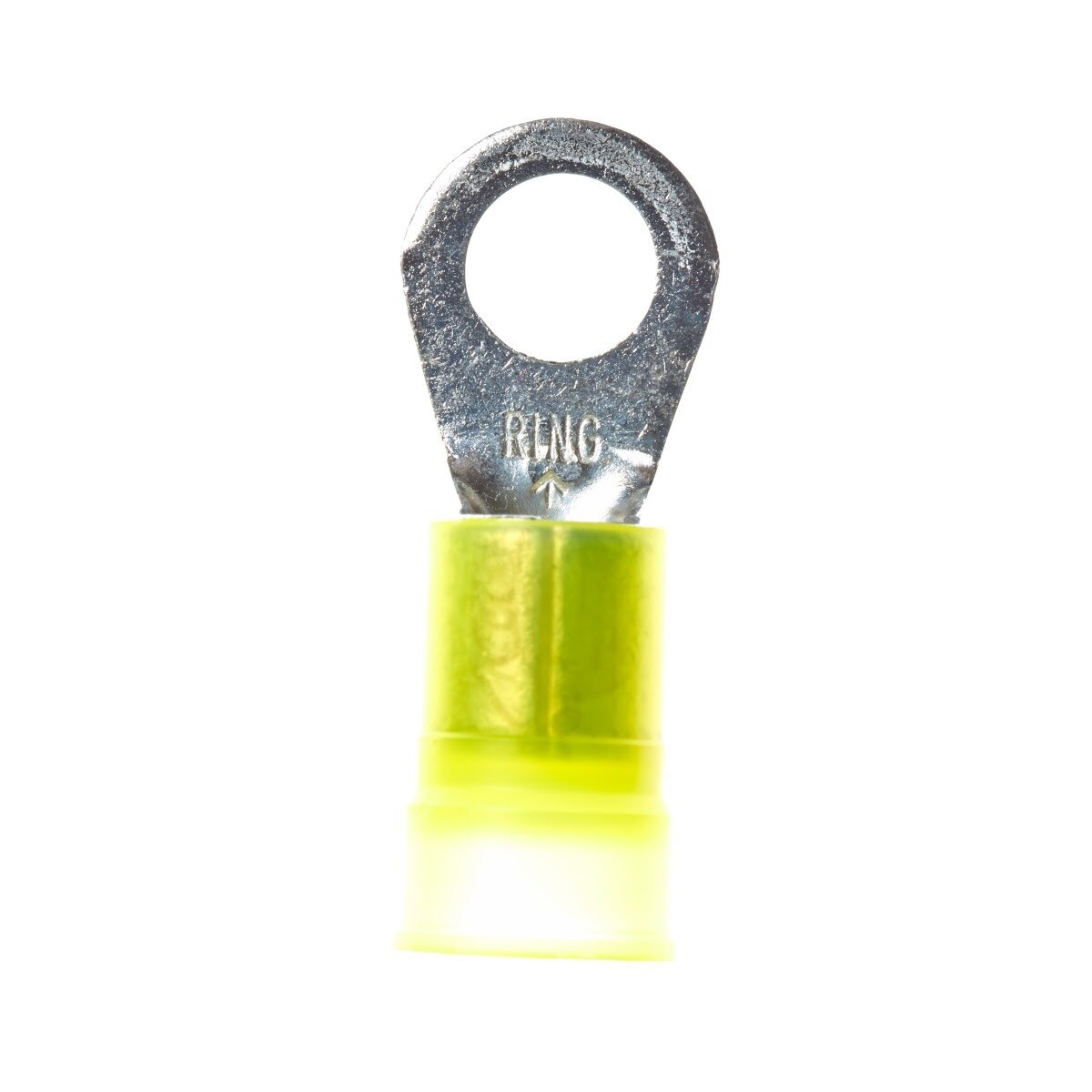

3M Scotchlok ring tongue terminals provide a reliable crimp connection for 4 AWG conductors. The nylon insulated brazed seam barrel supports secure electrical contact, while electrolytic copper with a tin plated finish helps resist corrosion. Designed to fit around a 3/8 in stud and withstand temperatures from -40 to 221 Degree F.
3M 7010351307 Includes
- (10) 3M Scotchlok Ring Tongue Terminal, MN4-38RX
3M 7010351307 Features
- Nylon insulated brazed seam barrel helps provide a secure crimp connection
- Flared nylon sleeve helps make wire insertion easier
- Standard style ring tongue fits around the stud for secure attachment
- Electrolytic copper construction supports good conductivity
- Tin plated finish helps resist corrosion
- Temperature range -40 to 221 Degree F (-40 to 105 Degree C)
3M 7010351307 Specifications
| Part Number | MN4-38RX |
| Terminal Type | Ring |
| Insulation Material | Nylon |
| Wire Size | 4 AWG |
| Stud Size | 0.375 in |
| Overall Length | 1.74 in |
| Overall Width | 0.68 in |
| Material | Electrolytic Copper |
| Finish | Tin Plated |
| Package Quantity | 10 |
Toolup Part # :
854055
