3M 7100011401 Description

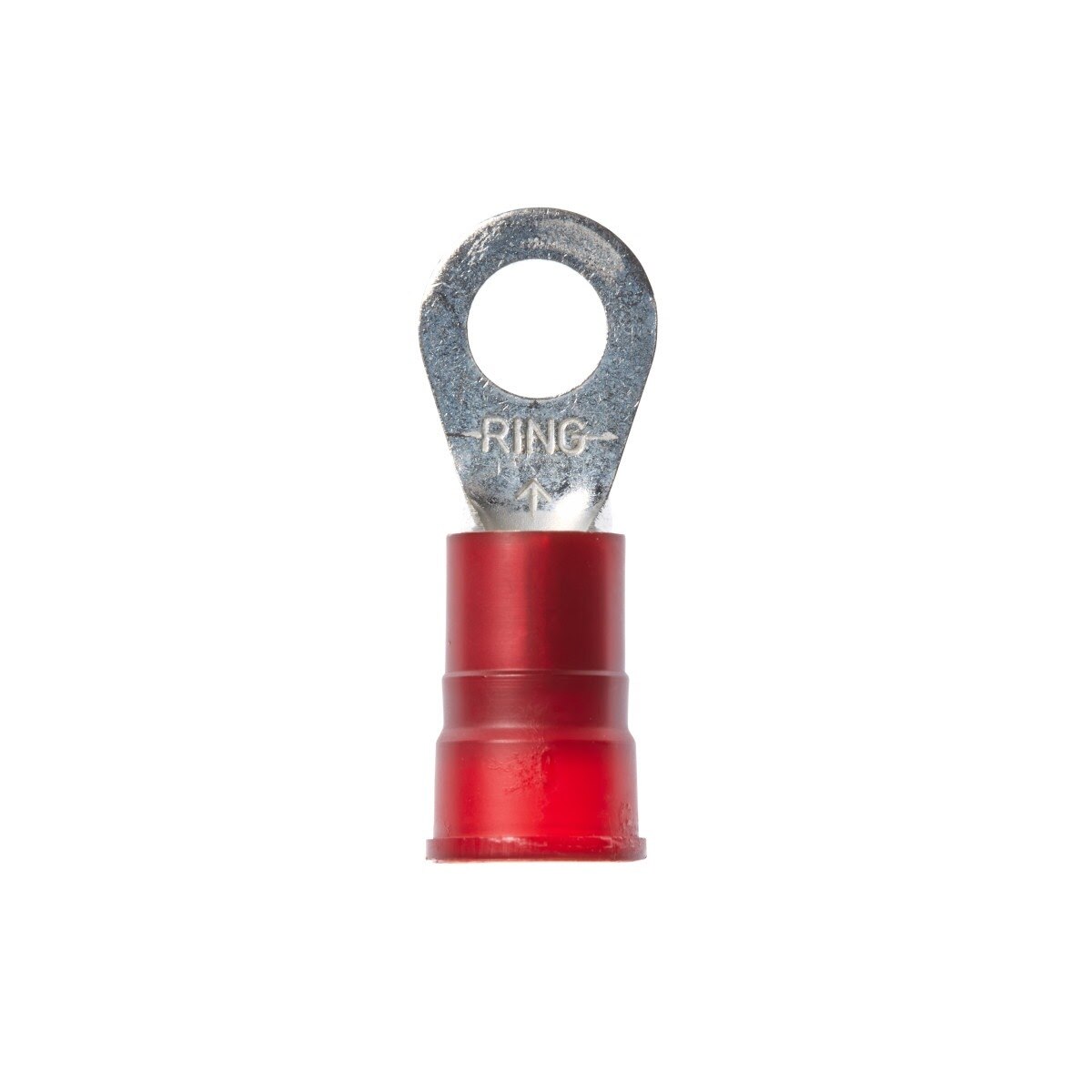

3M Scotchlok ring tongue terminals provide a secure crimp connection for 8 AWG wire, featuring a nylon insulated brazed seam barrel with a red sleeve and a standard style ring tongue designed to fit around a stud.
3M 7100011401 Includes
- (10) 3M Scotchlok Ring Tongue Terminal, MN8-14R/SX
3M 7100011401 Features
- Nylon insulated brazed seam barrel helps provide reliable electrical contact after crimping
- Flared nylon sleeve helps support easy wire insertion
- Standard style ring tongue fits around the stud
- Electrolytic copper construction supports good conductivity
- Tin plated finish helps resist corrosion
- Color coded sleeve helps identify wire size
- Abrasion resistant insulation with stepped design helps support mistake proof crimping
- Rated for -40 to 221 Degree F operating temperature range
3M 7100011401 Specifications
| Part Number | MN8-14R/SX |
| Terminal Type | Ring |
| Insulation Material | Nylon |
| Product Color | Red |
| Wire Size | 8 AWG |
| Connection Width | 0.25 in |
| Overall Length | 1.26 in |
| Overall Width | 0.47 in |
| Temperature Range | -40 to 221 Degree F |
| Material | Electrolytic copper |
| Finish | Tin plated |
| Package Quantity | 10 |
Toolup Part # :
854058
