3M 7000133282 Description

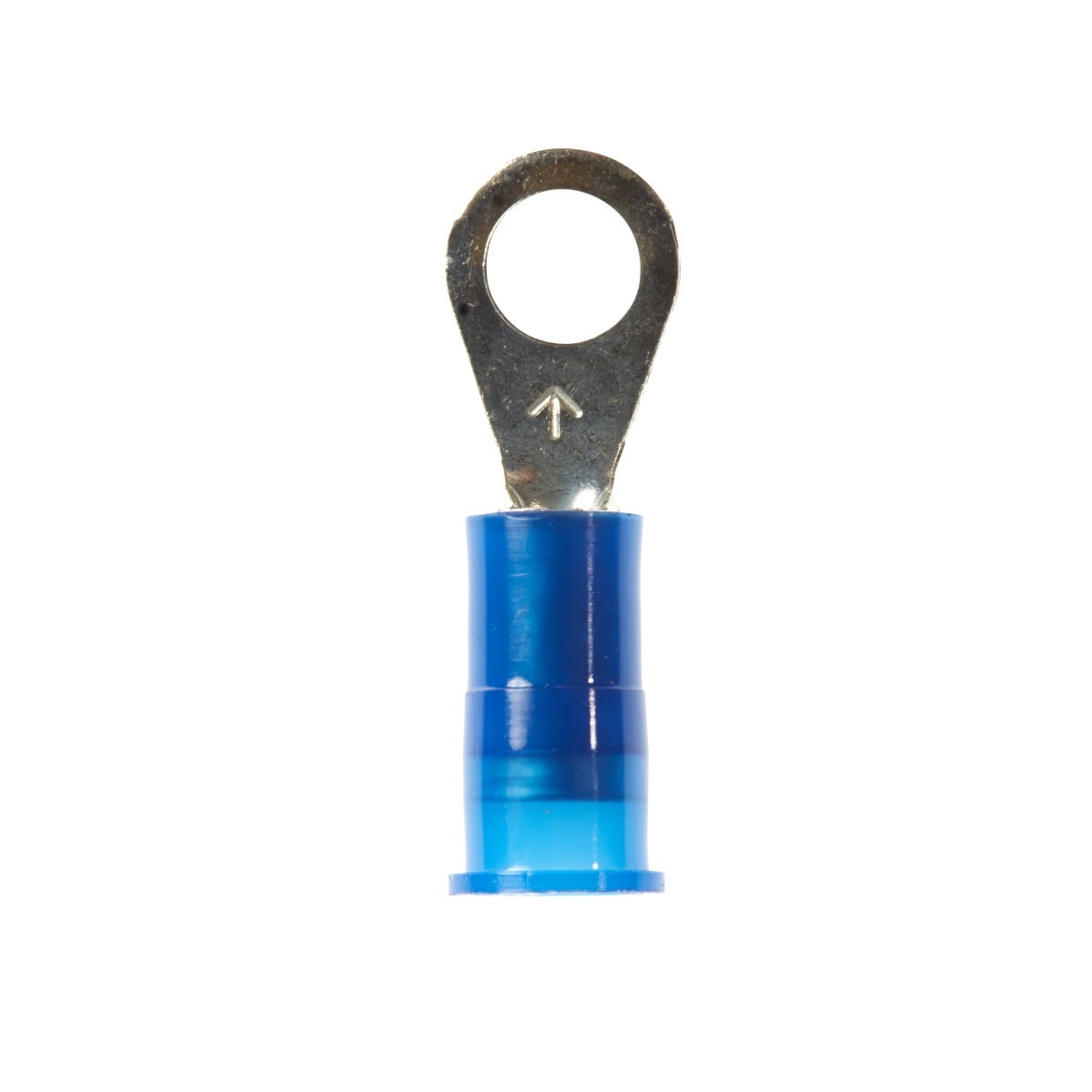

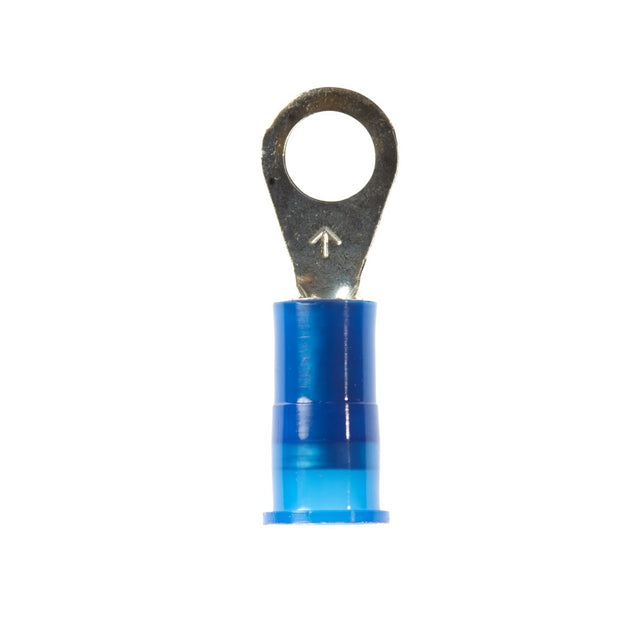

3M Scotchlok nylon insulated ring tongue terminals provide reliable electrical connections with a standard ring tongue for stud mounting. The butted seam barrel and funnel designed sleeve help guide wire insertion, while the tin plated electrolytic copper construction resists corrosion and supports good conductivity.
3M 7000133282 Includes
- (1) Bottle of 100 Nylon Insulated Ring Tongue Terminals
3M 7000133282 Features
- Standard style ring tongue fits around the stud
- Nylon insulated butted seam barrel for secure crimping
- Funnel designed seamless brass sleeve helps guide wire insertion
- Electrolytic copper construction for good conductivity
- Tin plated finish helps resist corrosion
- Rated 600V for building wire and 1000V for signs fixtures or luminaires
- Operating temperature range minus 40 Degree F to 221 Degree F
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133282 Specifications
| Part Number | MNG14-10R/LX |
| Terminal Type | Ring |
| Stud Size | #10 |
| Wire Range | 16 to 14 AWG |
| Insulation Material | Nylon |
| Insulation Color | Blue |
| Barrel Style | Butted |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
| Operating Temperature Range | -40 Degree F to 221 Degree F |
| Overall Length | 0.94 in |
| Overall Width | 0.31 in |
