3M 7100165186 Description

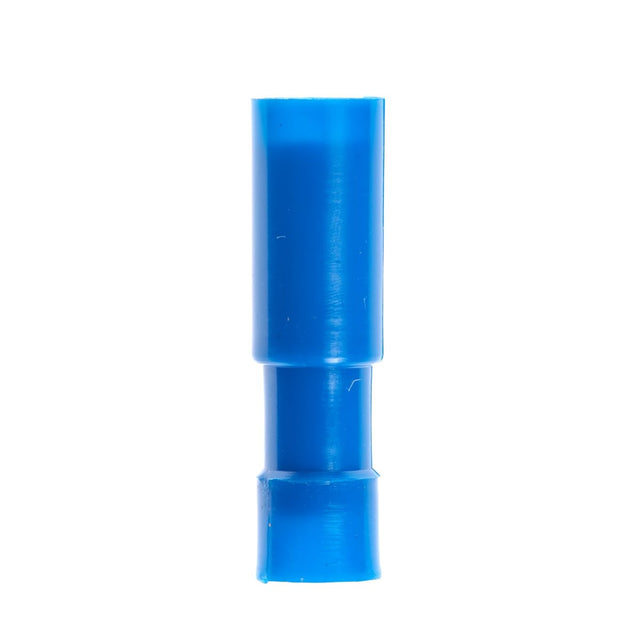

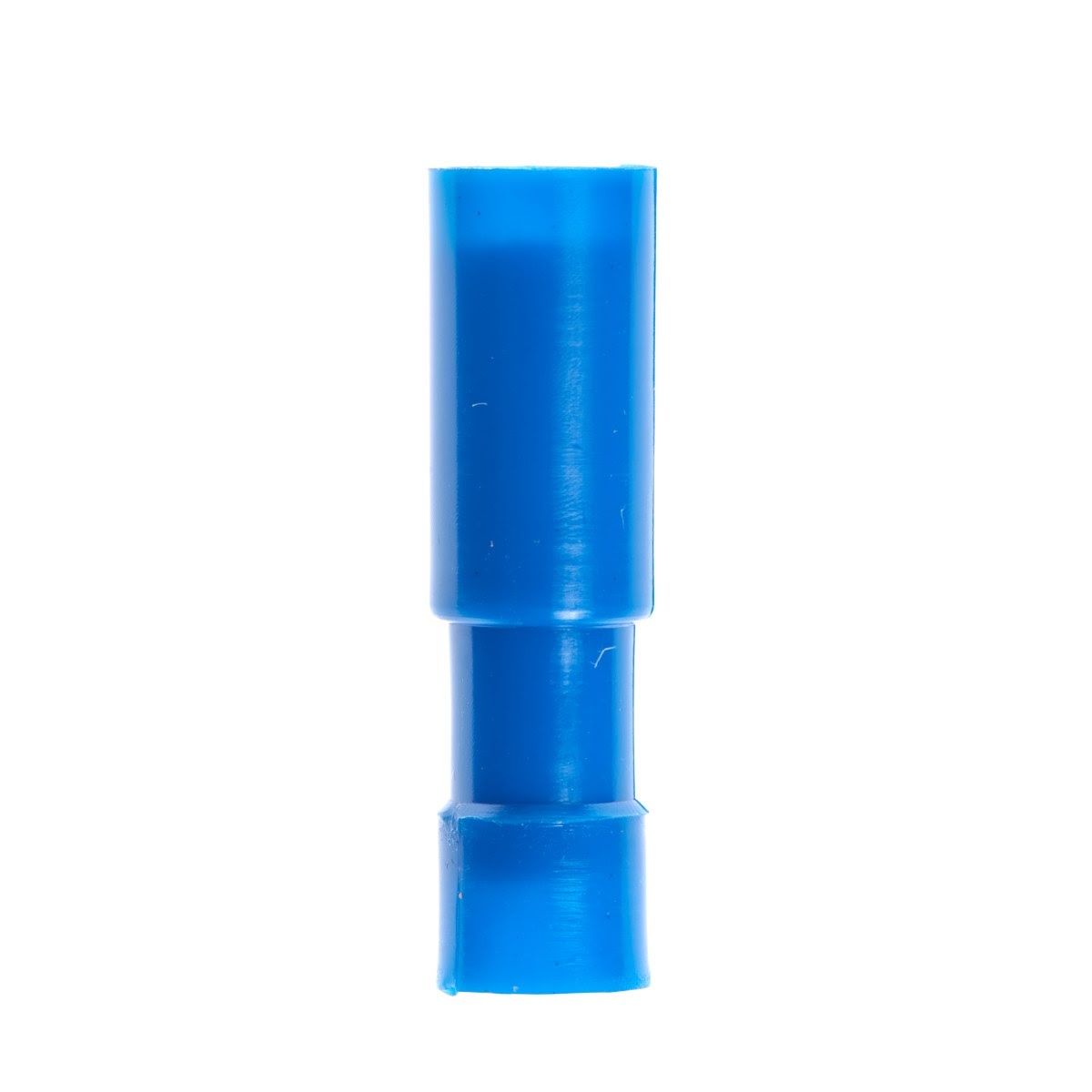

3M Scotchlok bullet style female disconnect terminals provide a secure, quick-disconnect electrical connection with nylon insulation and an insulation grip to help support the wire. Durable brass construction with a tin plated finish offers good conductivity and corrosion resistance.
3M 7100165186 Includes
- (1000) Female Disconnect Terminals
3M 7100165186 Features
- Bullet style female disconnect terminal for quick wire disconnect
- Nylon insulated with insulation grip for added wire support
- Dents and rolled edges help provide strong holding force
- Butted seam barrel with funnel designed sleeve to guide wire insertion
- Durable brass construction for good conductivity
- Tin plated finish helps resist corrosion
- Withstands temperatures from -40 Degree F to 221 Degree F
- Rated 600V for building wire and 1000V for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7100165186 Specifications
| Part Number | MNG14-180DFIK-A |
| Terminal Type | Disconnect |
| Disconnect Type | Female |
| Terminal Style | Bullet Snap Plug |
| Insulation Material | Nylon with Insulation Grip |
| Material | Brass |
| Finish | Tin Plated |
| Color | Red |
| Overall Length | 1.02 in |
| Barrel Length | 0.25 in |
| Barrel Inside Diameter | 0.115 in |
| Maximum Insulation Outer Diameter | 0.17 in |
| Tab Width | 0.187 in |
| Minimum Conductor Size | 16 AWG |
| Maximum Conductor Size | 14 AWG |
| Temperature Range | -40 Degree F to 221 Degree F |
| Voltage Rating | 600V building wire; 1000V signs fixtures or luminaires |
| Certifications | UL Listed; CSA Certified; RoHS 2011/65/EU Compliant |
