At a Glance
Length
0.81 in
Sub-Brand
Scotchlok
Material
Copper
For Use On
Metal
Application
Electrical
Description
Description
3M 7000133281 Description

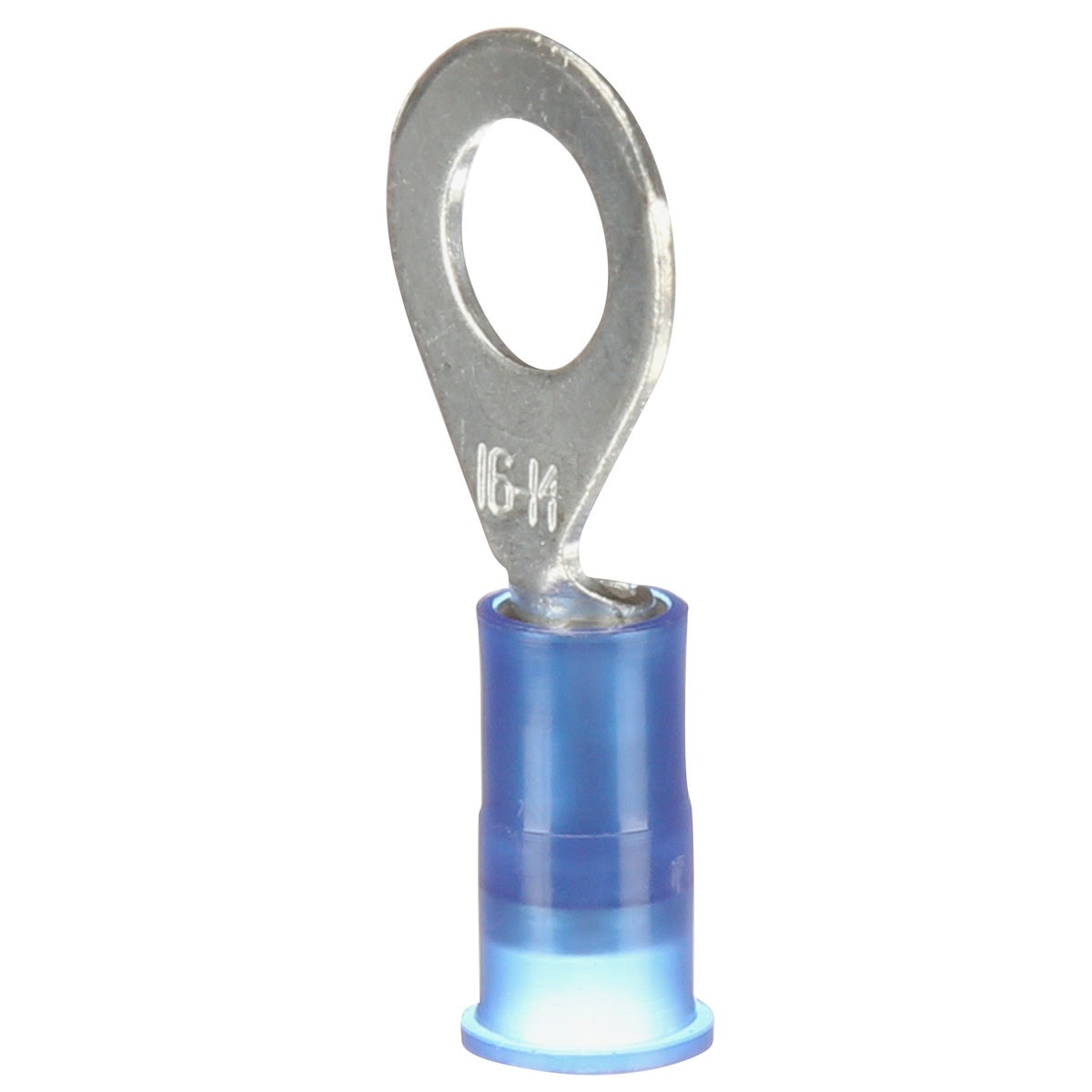

3M Scotchlok ring tongue terminals provide a secure nylon insulated connection for 16 to 14 AWG wire. The butted seam barrel and funnel designed sleeve help guide wire insertion, while the tin plated electrolytic copper construction offers good conductivity and corrosion resistance.
3M 7000133281 Includes
- (100) 3M Scotchlok Ring Tongue Terminal Nylon Insulated Blue MNG14-6R/SX
3M 7000133281 Features
- Nylon insulated butted seam barrel helps provide a secure crimp
- Funnel designed sleeve helps guide wire insertion
- Standard style ring tongue fits around the stud
- Electrolytic copper construction provides good conductivity
- Tin plating helps resist corrosion
- Temperature range -40 to 221 Degree F -40 to 105 Degree C
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS compliant
3M 7000133281 Specifications
| Terminal Type | Ring |
| Insulation Material | Nylon |
| Color | Blue |
| Wire Range | 16 to 14 AWG |
| Maximum Operating Temperature | 105.0 Degree Celsius |
| Overall Length | 0.81 in |
| Overall Width | 0.25 in |
| Connection Width | 0.138 in |
| Voltage Rating | 600V building wire 1000V signs fixtures luminaires |
| Compliance | UL Listed CSA Certified RoHS 2011 65 EU |
Toolup Part # :
854060
