3M 7000132280 Description

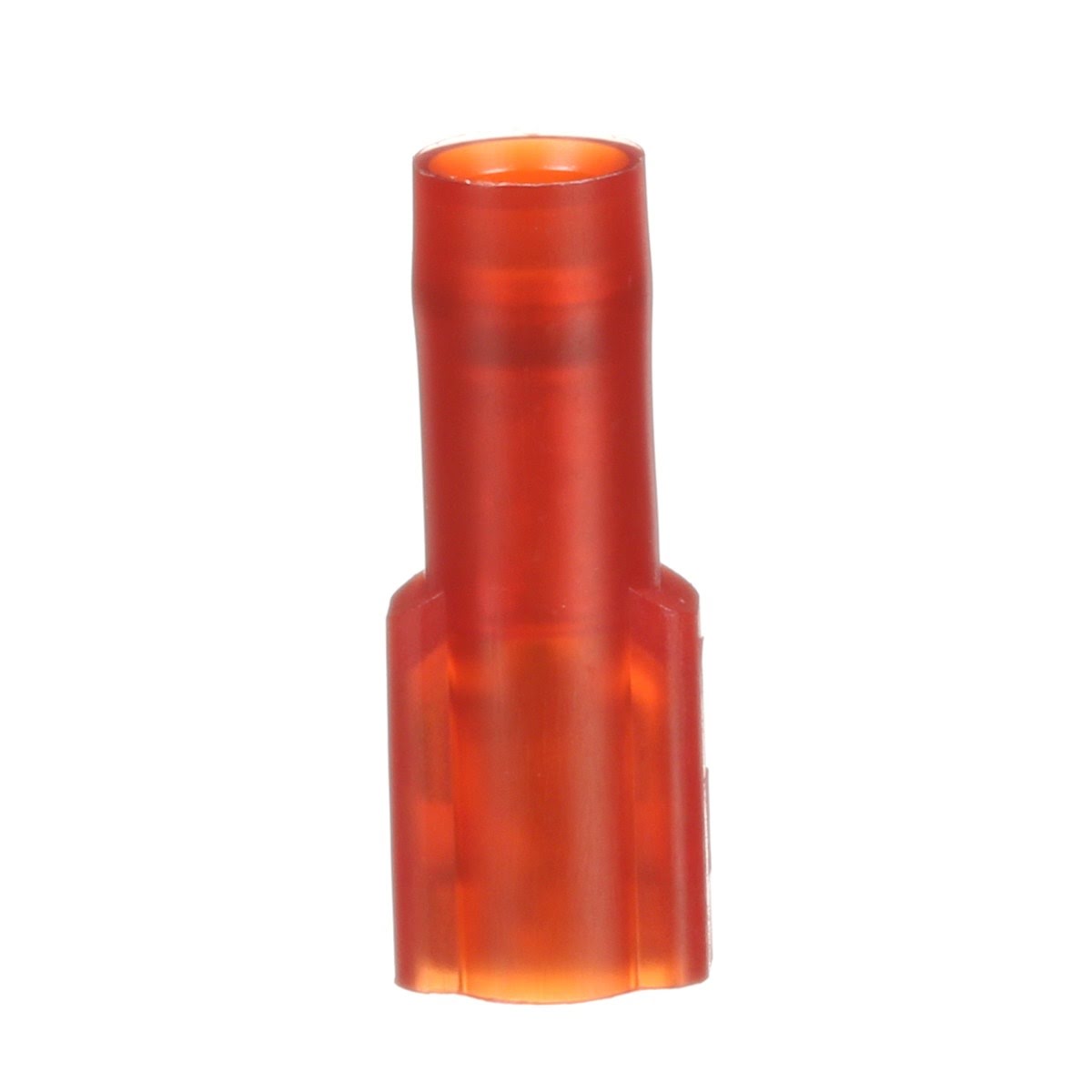

3M Scotchlok female disconnect terminal with nylon fully insulated insulation grip design for quick, reliable wire to tab connections. Fits 22 to 18 AWG wire and features durable brass construction with tin plating for good conductivity and corrosion resistance.
3M 7000132280 Includes
- (1000) Female disconnect terminals
3M 7000132280 Features
- Female disconnect terminal for quick and easy wire disconnect
- Nylon fully insulated with insulation grip
- Wire range 22-18 AWG
- Brass construction with corrosion resistant tin plating
- Butted seam barrel with funnel design sleeve for easy wire insertion
- Dents and rolled edges provide excellent holding force
- Rated 600V for building wire and 1000V for signs fixtures or luminaires
- Operating temperature range -40 to 221 Degree F
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000132280 Specifications
| Terminal Type | Disconnect |
| Disconnect Type | Female |
| Terminal Style | Fully Insulated |
| Insulation Material | Nylon with Insulation Grip |
| Wire Range | 22-18 AWG |
| Tab Width | 0.187 in |
| Product Color | Red |
| Barrel Inside Diameter | 0.085 in |
| Barrel Length | 0.25 in |
| Overall Length | 0.81 in |
| Overall Width | 0.3 in |
| Overall Diameter | 0.23 in |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
