At a Glance
Length
1.2 in
Sub-Brand
Scotchlok
Material
Copper
Application
Electrical
Description
Description
3M 7000133382 Description

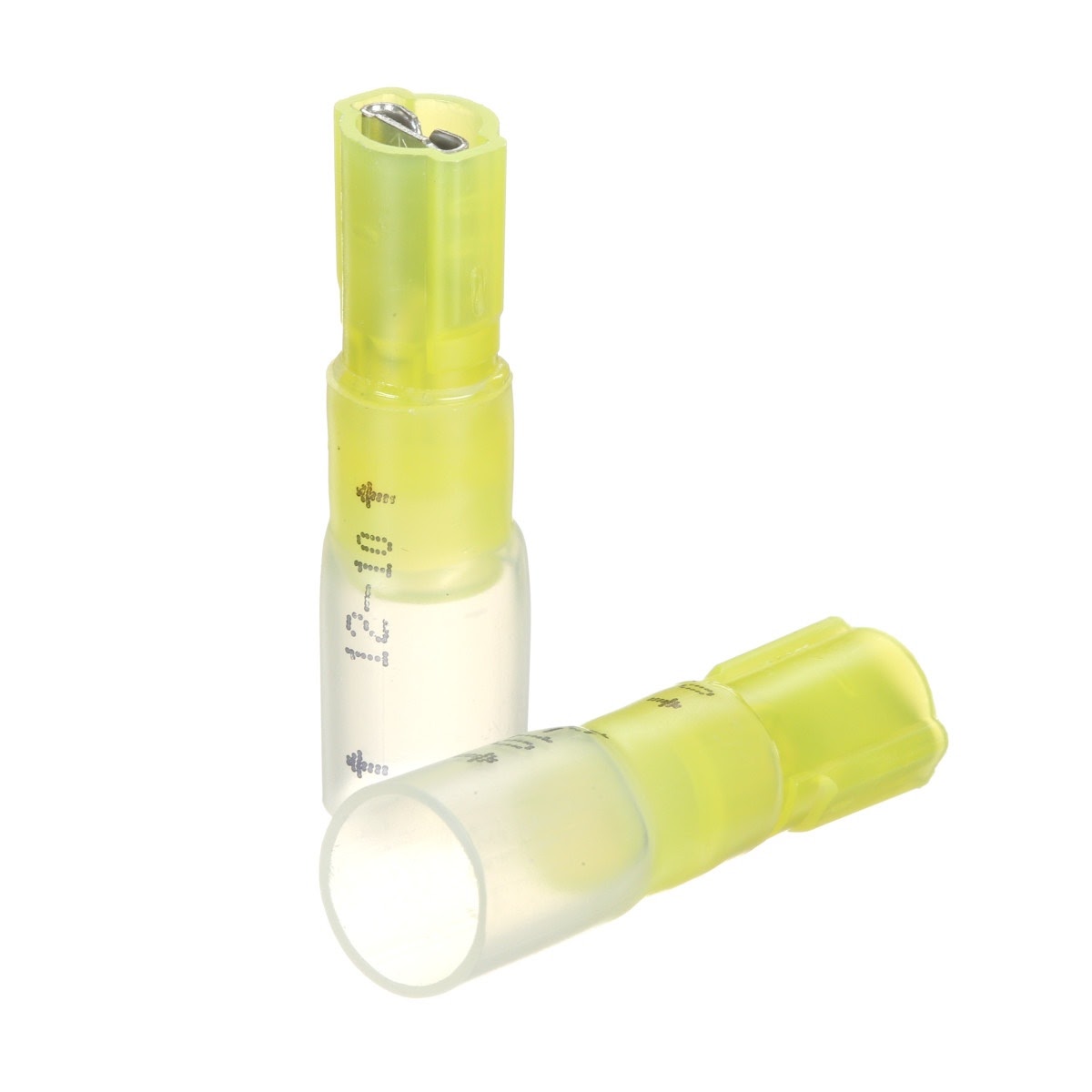

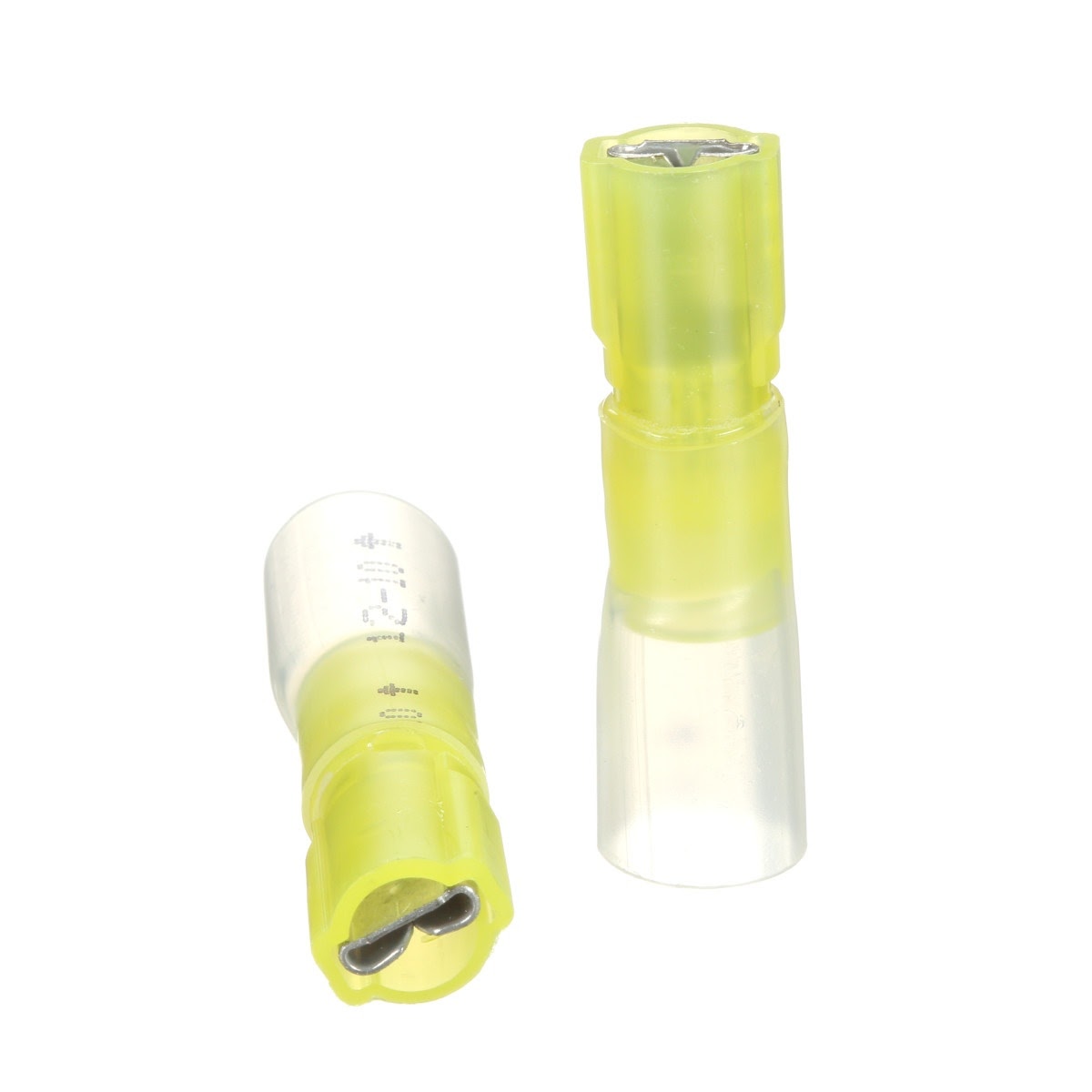

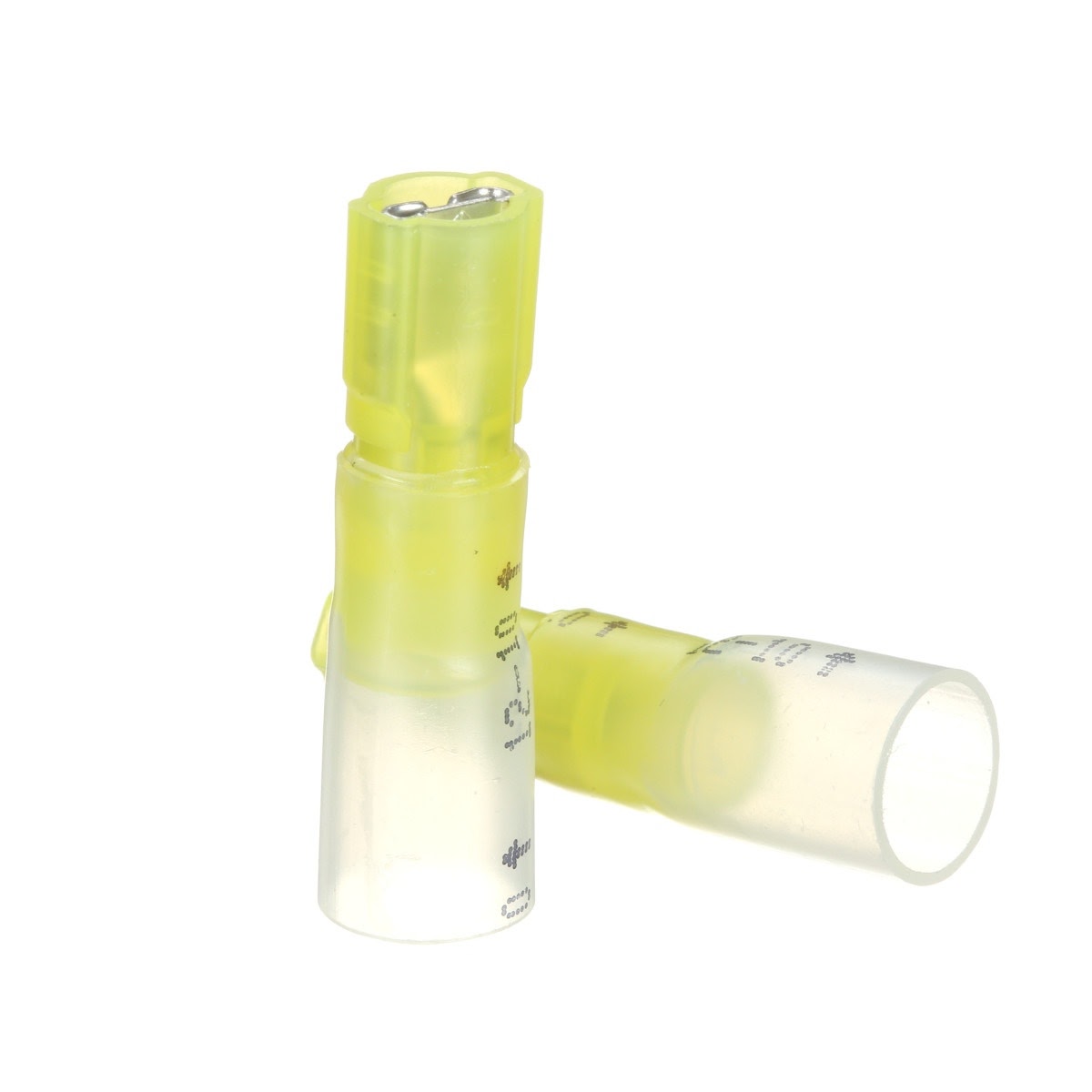

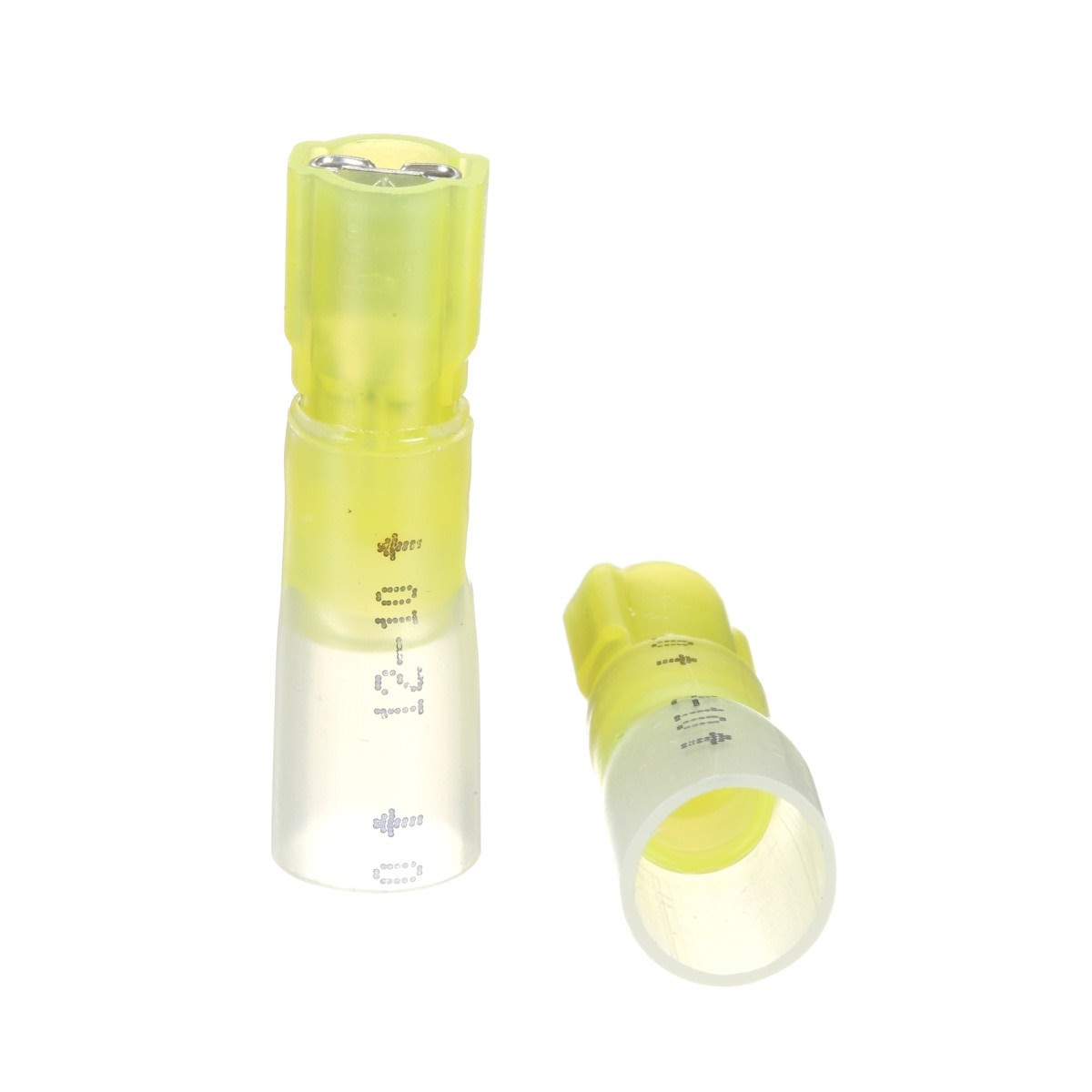

3M Scotchlok color coded heat shrink female disconnect terminal has dents and rolled edges for easy disconnect. The butted seam barrel is covered by an adhesive lined polyolefin tubing to offer moisture seal protection. It withstands a maximum temperature of 221 degrees F 105 degrees C and its durable brass construction offers good conductivity and a tin plated finish resists corrosion.
3M 7000133382 Includes

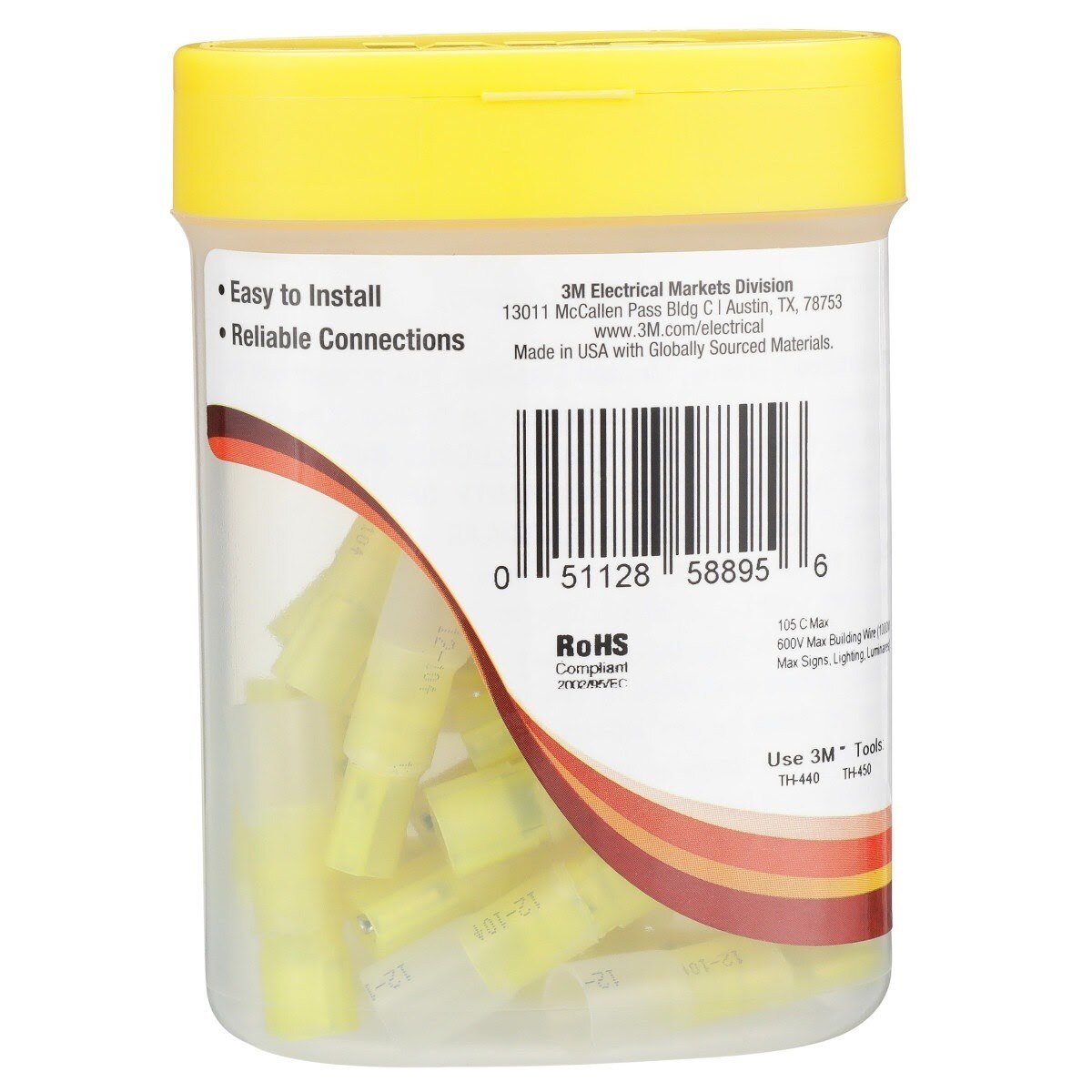

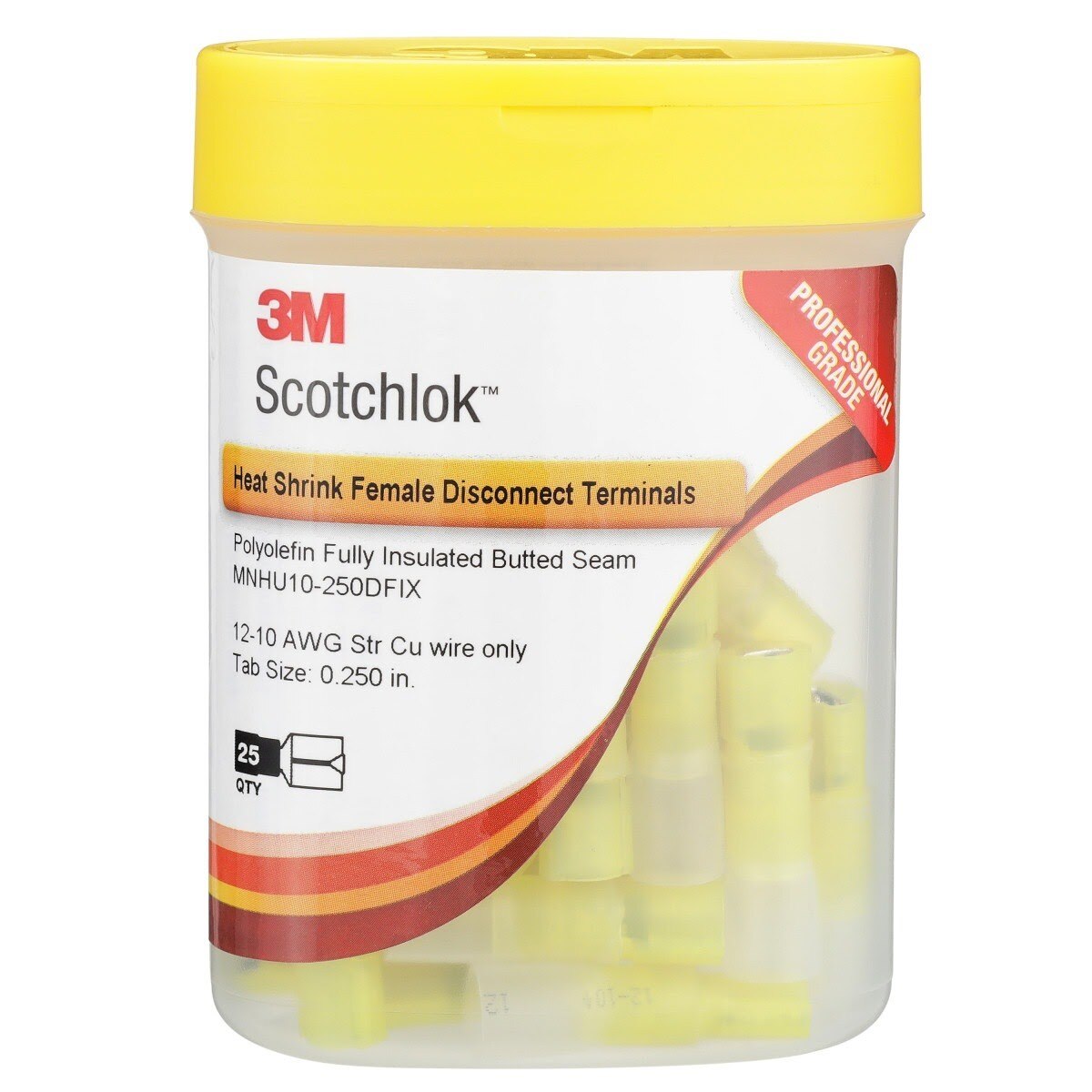

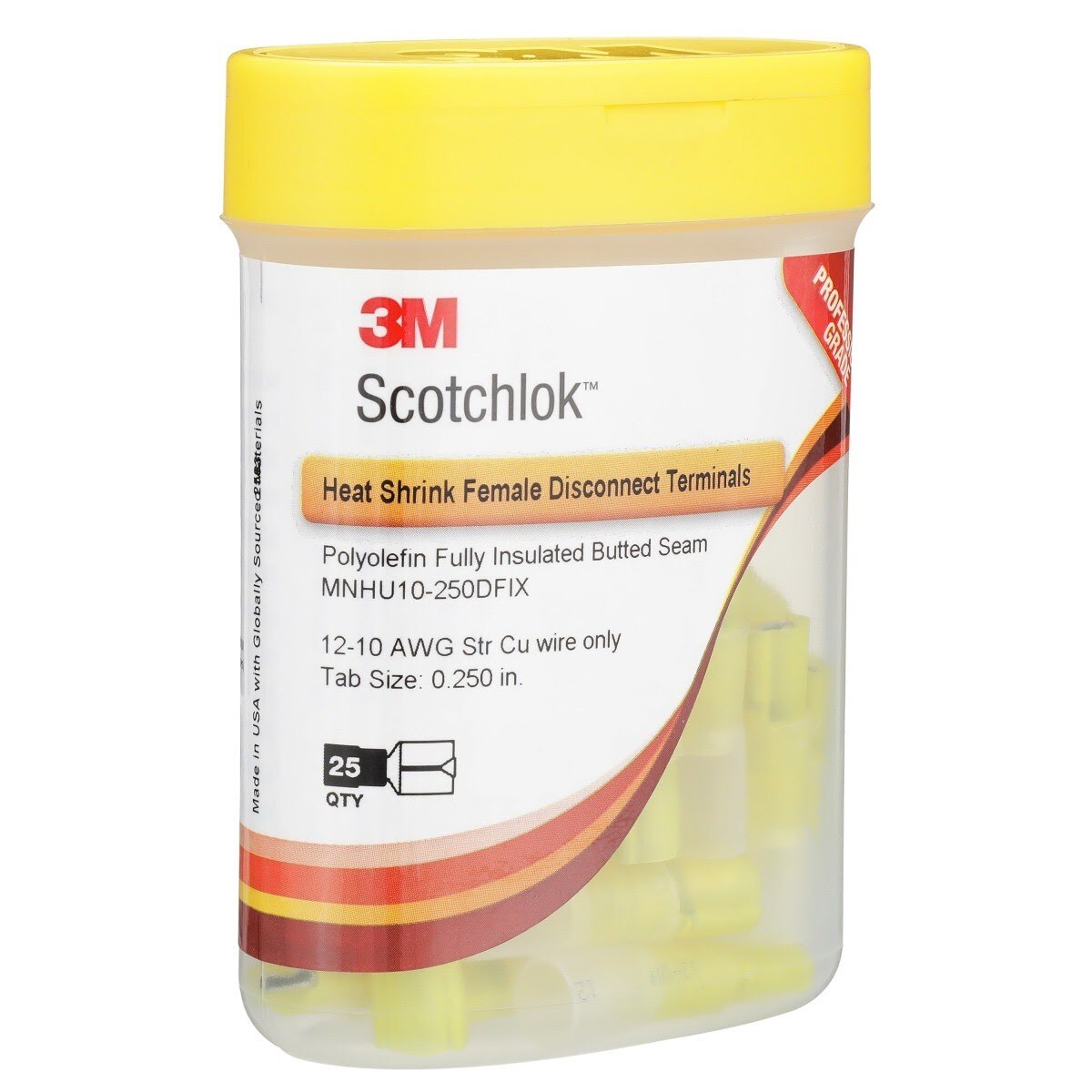

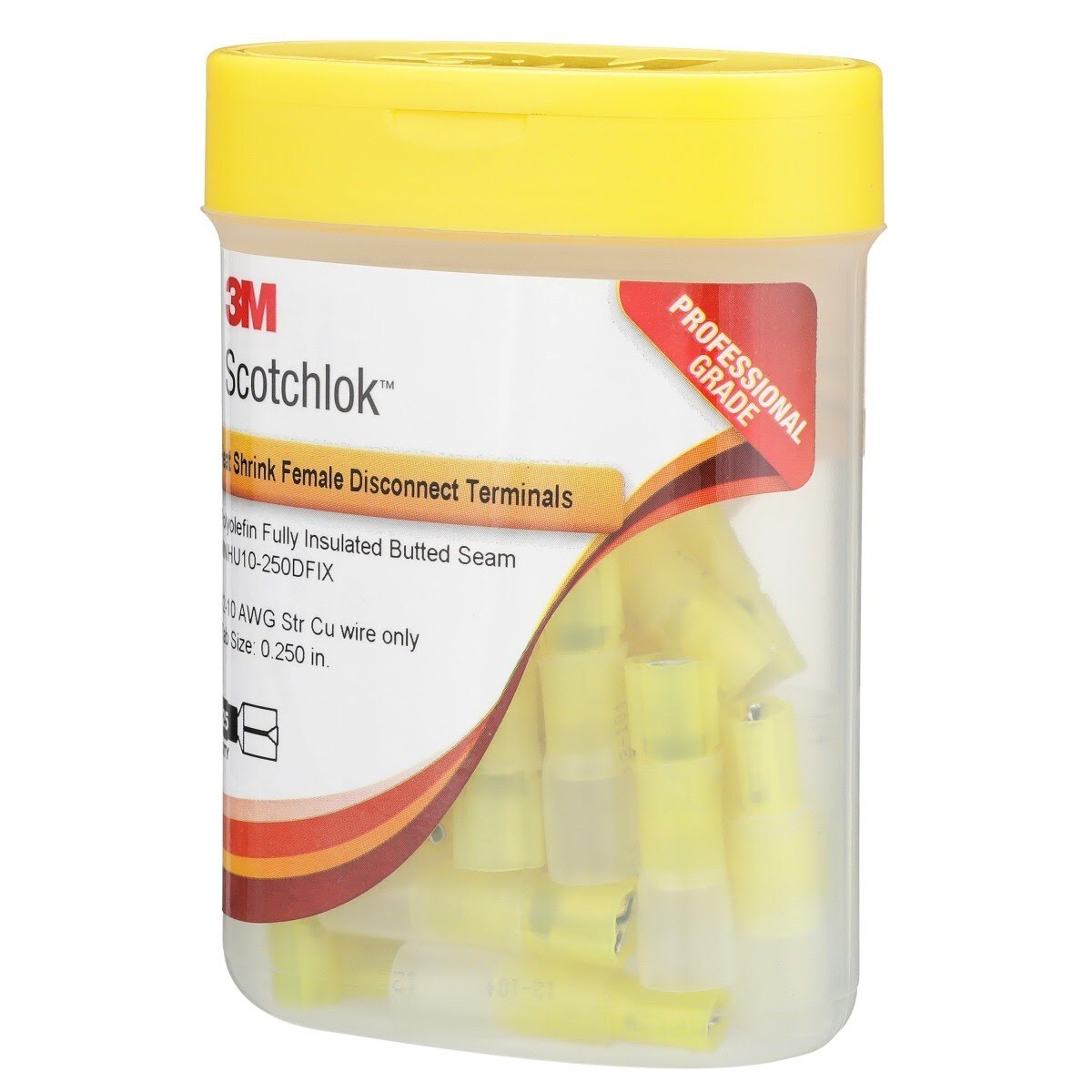

- (125) Scotchlok Heat Shrink Female Disconnect Terminal
3M 7000133382 Features
- Heat shrink nylon fully insulated female disconnect terminal for quick disconnect wiring
- Dents and rolled edges provide excellent holding force while allowing easy disconnect
- Adhesive lined polyolefin heat shrink tubing helps seal against water and salt contamination
- Mates with 0.25 in wide male tab
- Fits 12 to 10 AWG stranded copper wire
- Durable brass construction with corrosion resistant tin plating for good conductivity
- Rated 600 V for building wire and 1000 V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS compliant
3M 7000133382 Specifications
| Disconnect Type | Female |
| Terminal Type | Disconnect |
| Terminal Style | Fully Insulated |
| Insulation Material | Heat Shrink |
| Insulation Color | Yellow |
| Connection Width | 0.25 in |
| Wire Range | 12 to 10 AWG |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
Toolup Part # :
855228
