At a Glance
Length
1.2 in
Sub-Brand
Scotchlok
Material
Brass
Application
Electrical
Description
Description
3M 7010320786 Description

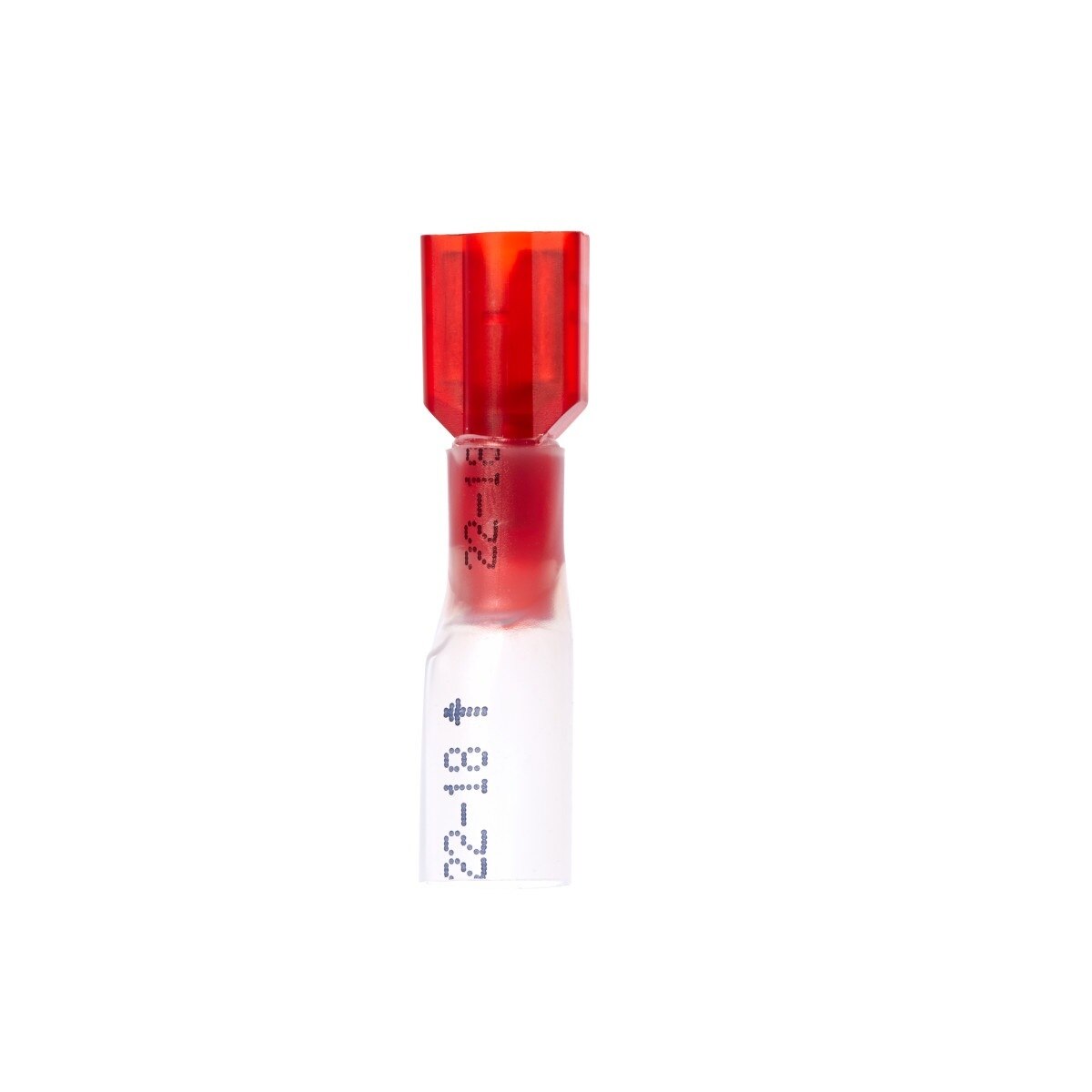

3M Scotchlok heat shrink female disconnect terminals provide a secure quick disconnect connection with moisture seal protection. The brass construction with corrosion resistant tin plating supports reliable conductivity, and the adhesive lined heat shrink insulation helps protect electrical connections from water and contaminants.
3M 7010320786 Includes
- (25) 3M Scotchlok Female Disconnect Heatshrink Nylon Insulated Terminal (MNHU18-250DFIX)
3M 7010320786 Features
- Heat shrink fully insulated female disconnect terminal
- Adhesive lined polyolefin tubing provides moisture seal protection when crimped and shrunk
- Mates with 0.25 in wide male tab
- Dents and rolled edges provide strong holding force and easy disconnect
- Durable brass construction with corrosion resistant tin plating
- Rated 600V for building wire and 1000V for signs fixtures or luminaires
- Withstands up to 221 Degree F 105 Degree C
- UL Listed CSA Certified and RoHS compliant
3M 7010320786 Specifications
| Part Number | MNHU18-250DFIX |
| Disconnect Type | Female |
| Terminal Type | Disconnect |
| Terminal Style | Fully Insulated |
| Insulation Material | Heat Shrink |
| Connection Width | 0.25 in (6.35 mm) |
| Wire Range | 22 to 18 AWG (0.34 to 1 mm2) |
| Maximum Temperature | 221 Degree F (105 Degree C) |
| Voltage Rating | 600V building wire; 1000V signs fixtures or luminaires |
| Material | Brass |
| Finish | Tin plated |
| Overall Length | 1.2 in |
| Overall Width | 0.37 in |
| Overall Diameter | 0.23 in |
| Barrel Style | Butted |
| Barrel Inside Diameter | 0.080 in |
| Compliance | UL Listed; CSA Certified; RoHS 2011/65/EU compliant |
Toolup Part # :
855226
