3M 7000133350 Description
This 3M Scotchlok female disconnect terminal features nylon insulation and a butted seam barrel for easy wire insertion and quick, reliable disconnects in electrical connections.
3M 7000133350 Includes
- (100) 3M Scotchlok female disconnect nylon insulated terminals
3M 7000133350 Features

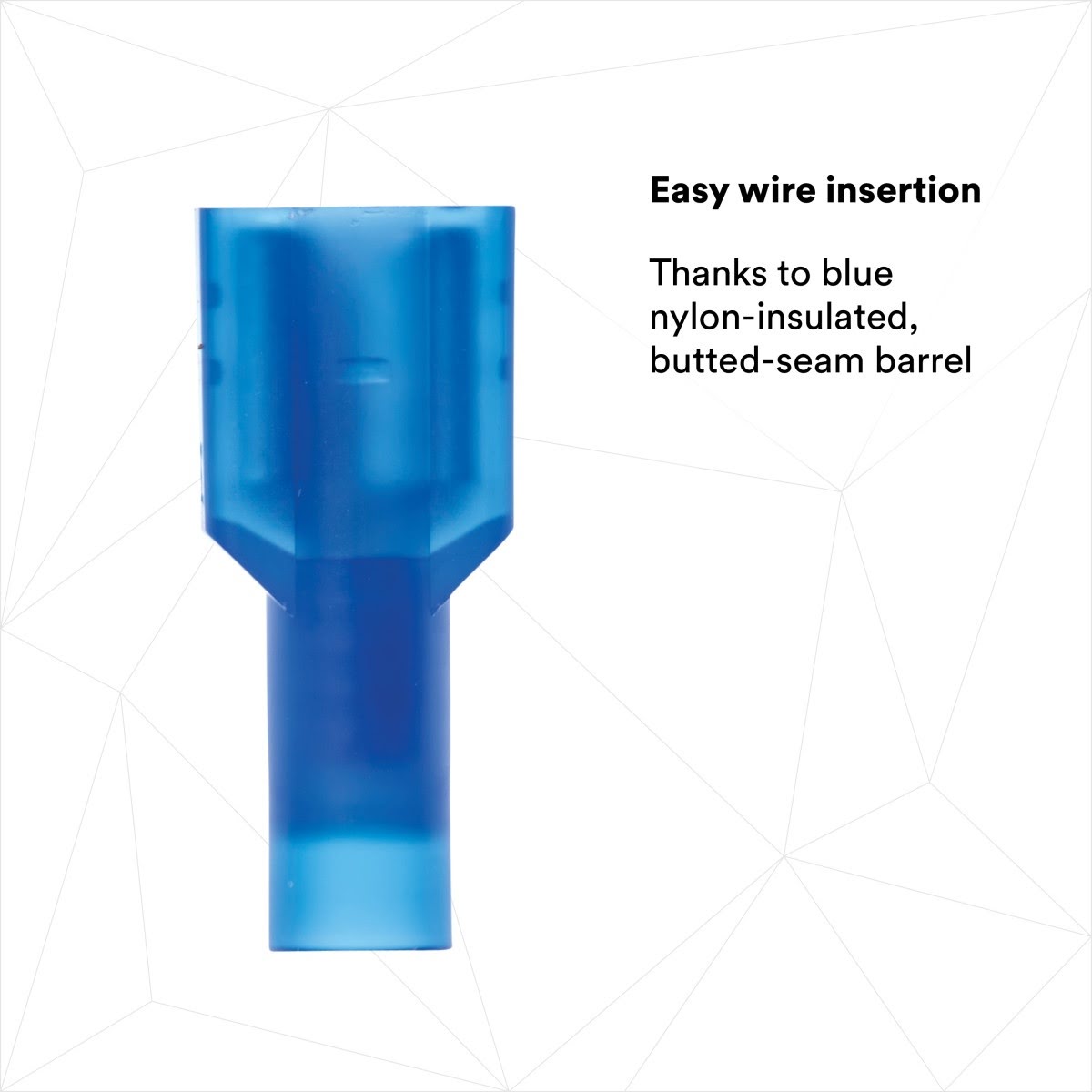

- Nylon insulated butted seam barrel for easy wire insertion
- Dents and rolled edges provide excellent holding force while allowing quick disconnect
- Rated up to 600V for building wire

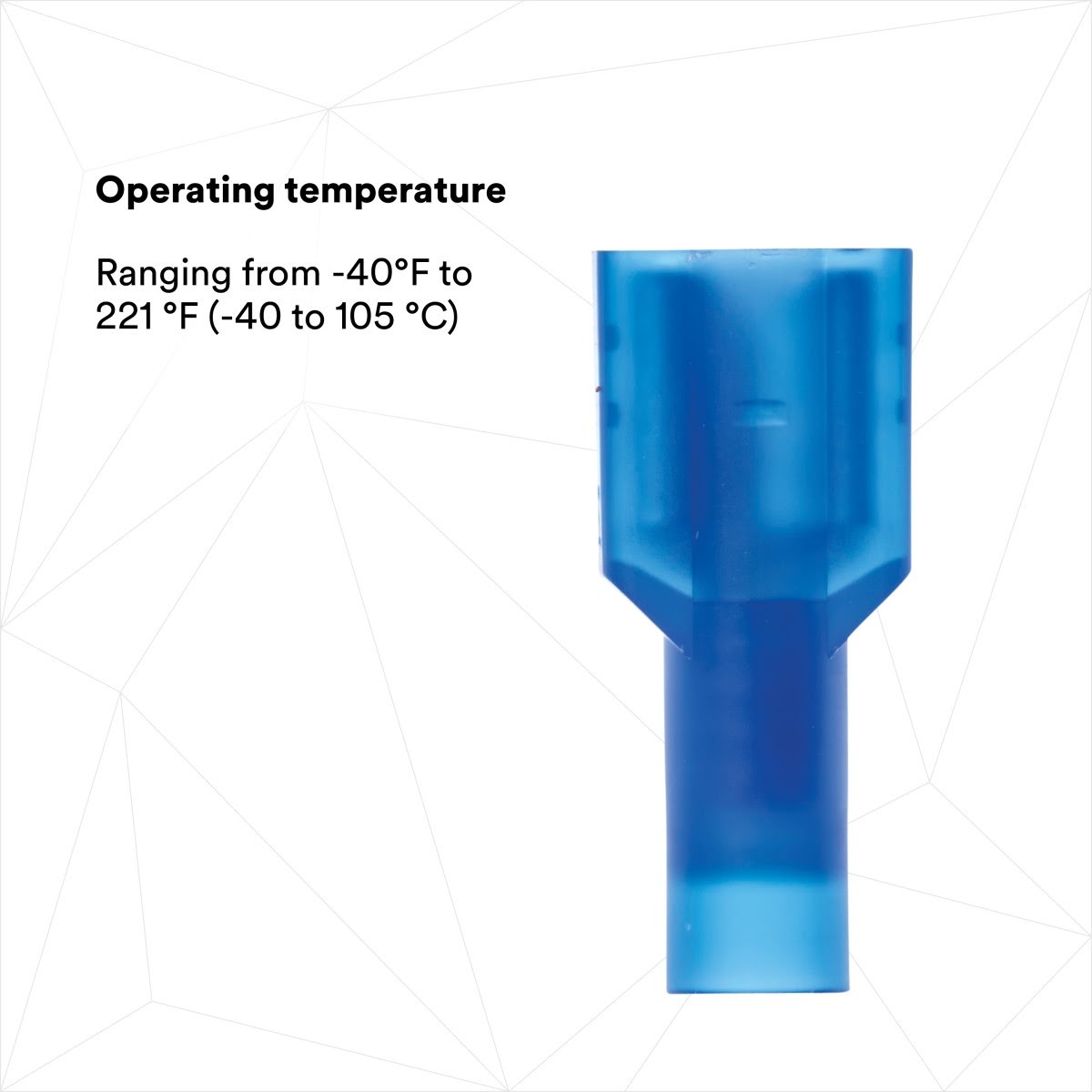

- Withstands operating temperatures from -40 Degree F to 221 Degree F (-40 Degree C to 105 Degree C)
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133350 Specifications
| Disconnect Type | Female |
| Wire Range | 16-14 AWG |
| Connection Width | 0.25 in |
| Insulation Material | Nylon |
| Insulation Color | Blue |
| Terminal Style | Fully Insulated |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| Minimum Operating Temperature | -40 Degree Fahrenheit |
| Overall Length | 0.87 in |
| Overall Width | 0.37 in |
| Overall Diameter | 0.23 in |
| Barrel Style | Butted |
| Material | ETP Copper |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
Toolup Part # :
849946
