3M 7000133346 Description

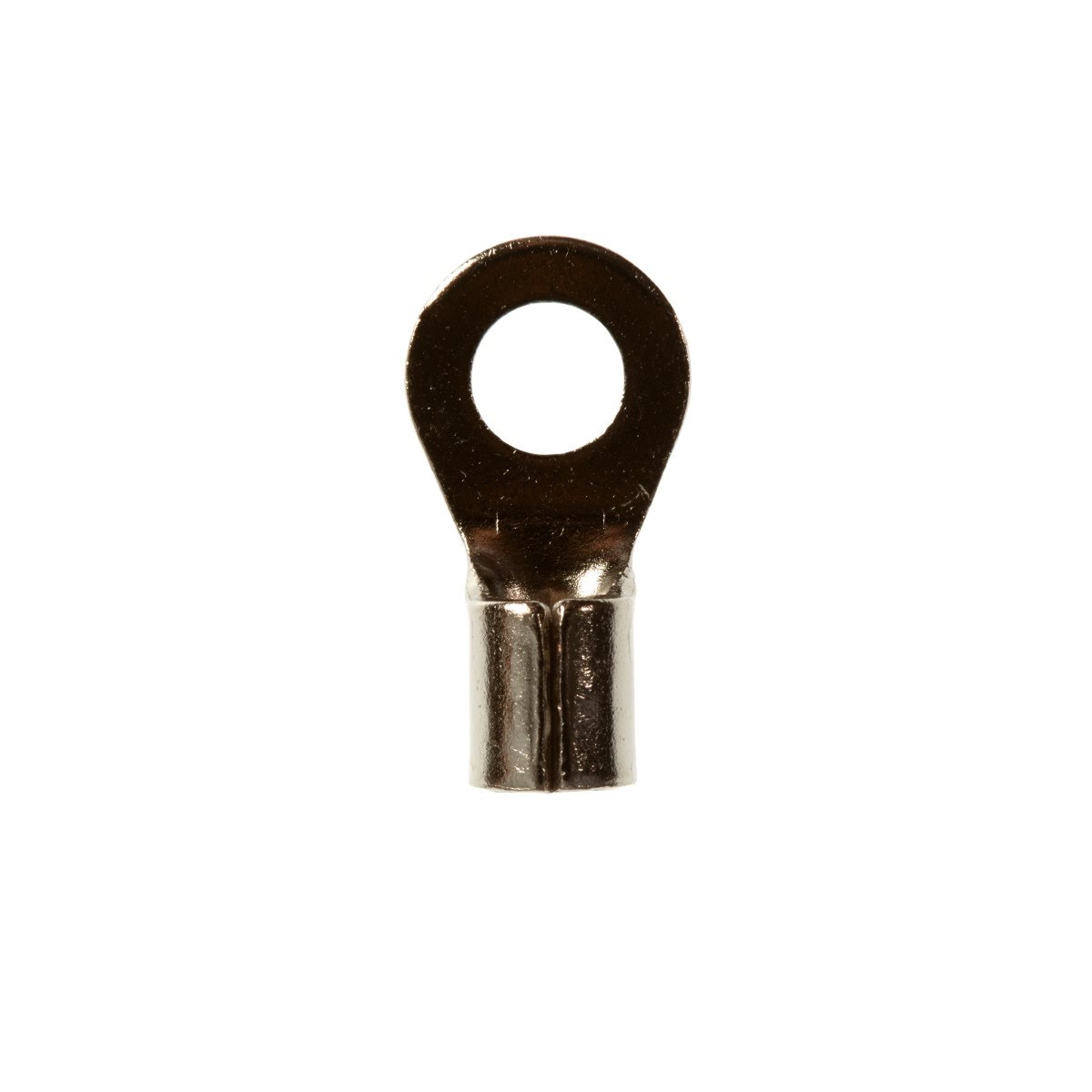

3M Scotchlok high temperature non-insulated ring terminal provides a secure, reliable connection for demanding electrical applications. The butted-seam steel barrel features a beveled mouth for easier wire insertion, and the nickel-plated finish helps resist corrosion in high-temperature environments.
3M 7000133346 Includes
- (50) 3M Scotchlok High Temperature Ring Terminal
3M 7000133346 Features
- Non-insulated butted-seam barrel helps provide a secure fit
- Beveled mouth helps guide wire into position for easier insertion
- Designed for high temperature applications up to 900 Degree F (482 Degree Celsius)
- Durable steel construction
- Nickel-plated finish helps resist corrosion
- Suitable for use in ovens, motors, light fixtures and other high heat applications
- Wire range 12 to 10 AWG
3M 7000133346 Specifications
| Terminal Type | Ring |
| Insulation Material | Non-insulated |
| Material | Steel |
| Finish | Nickel-plated |
| Maximum Operating Temperature | 482 Degree Celsius |
| Maximum Operating Temperature | 900 Degree F |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Connection Width | 0.19 in |
| Overall Length | 0.73 in |
| Overall Width | 0.38 in |
| Product Color | Metal |
| Package Quantity | 50 per bottle |
Toolup Part # :
852980
