3M 7010320789 Description

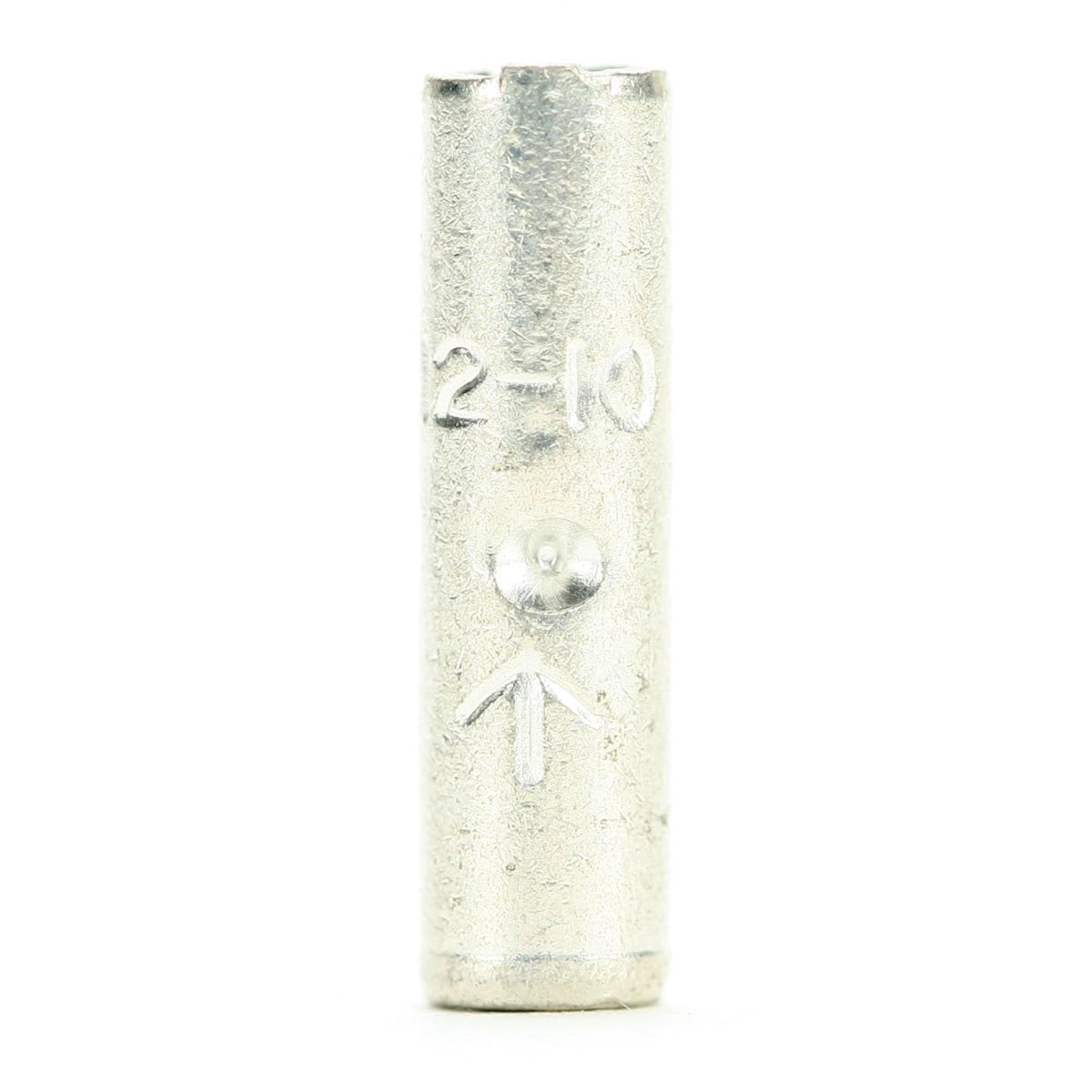

3M Scotchlok MU10BCX non-insulated brazed seam butt connectors provide a secure crimp connection for 10 to 12 AWG conductors. The beveled mouth and built-in wire stop help guide wire insertion and positioning, while the tin-plated copper alloy construction helps resist corrosion.
3M 7010320789 Includes
- (50) Butt connector
3M 7010320789 Features
- Non-insulated brazed seam barrel helps provide a secure, reliable crimp connection
- Beveled mouth helps guide wire insertion
- Built-in wire stop helps ensure correct positioning
- Copper alloy body with tin plating helps provide conductivity and corrosion resistance
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- Withstands up to 347 Degree F (175 Degree C) for bare terminals
- UL Listed, CSA Certified, and RoHS compliant
3M 7010320789 Specifications
| Brand | Scotchlok |
| Part Number | MU10BCX |
| Connector Type | Butt |
| Insulation Material | Non-insulated |
| Body Material | Copper Alloy |
| Minimum Conductor Size | 12 AWG (4 mm2) |
| Maximum Conductor Size | 10 AWG (6 mm2) |
| Overall Length | 0.56 in |
| Maximum Temperature | 347 Degree F (175 Degree C) |
| Voltage Rating | 600V building wire; 1000V signs, fixtures or luminaires |
| Certifications | UL Listed; CSA Certified |
| Compliance | RoHS 2011/65/EU Compliant |
Toolup Part # :
852653
