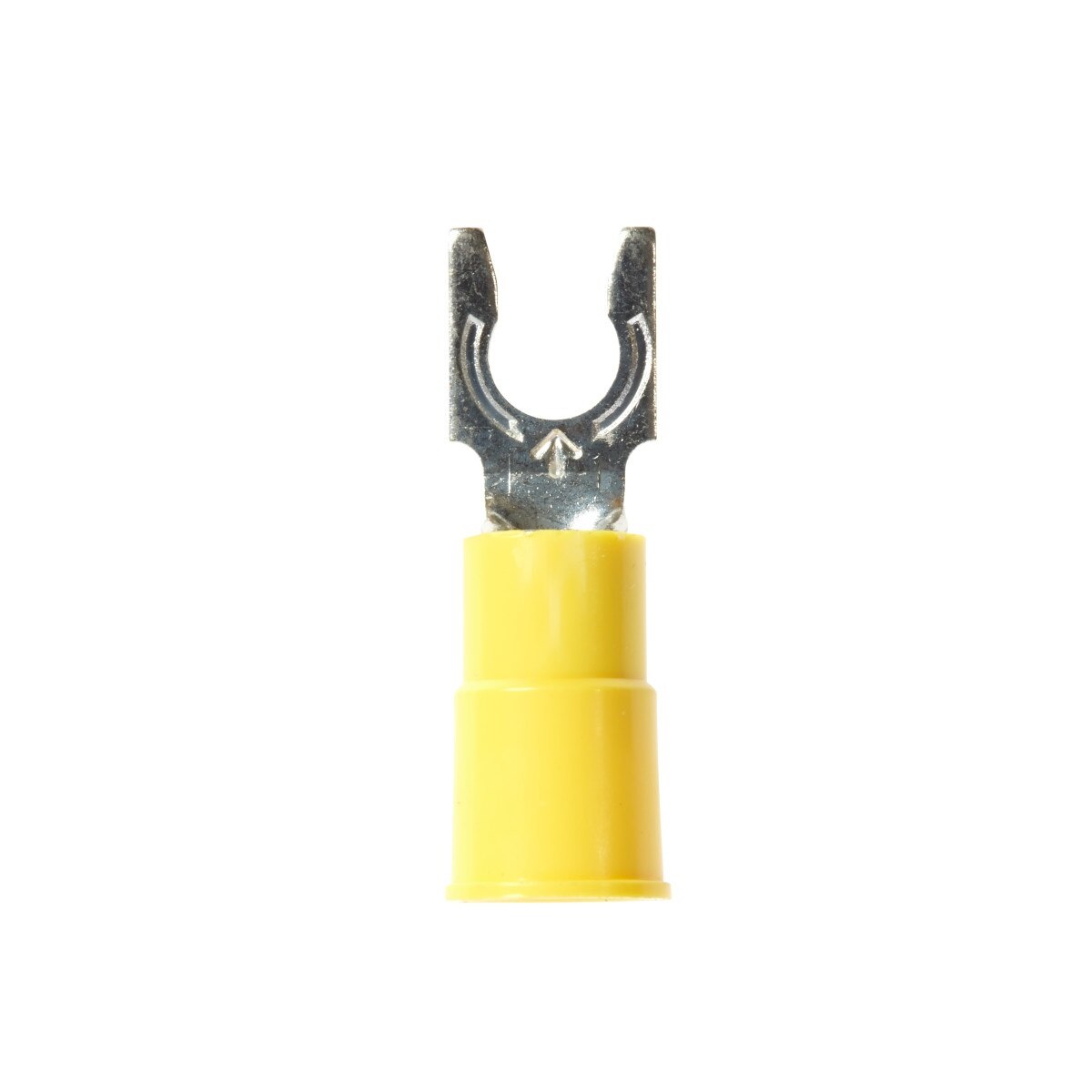

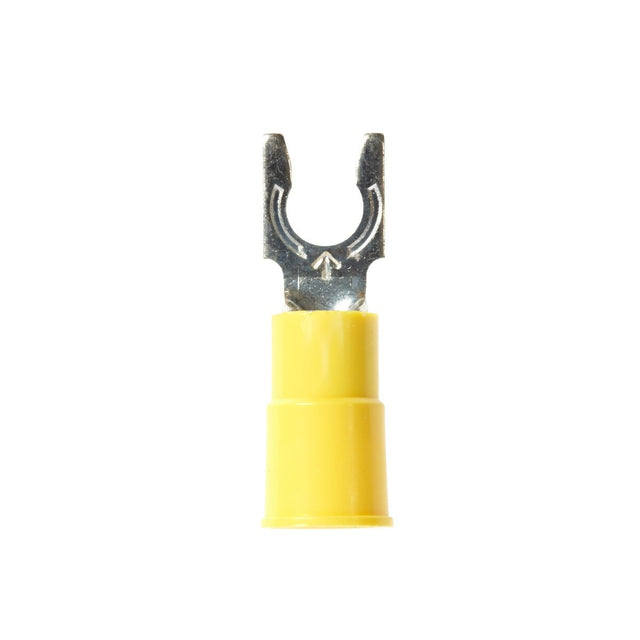

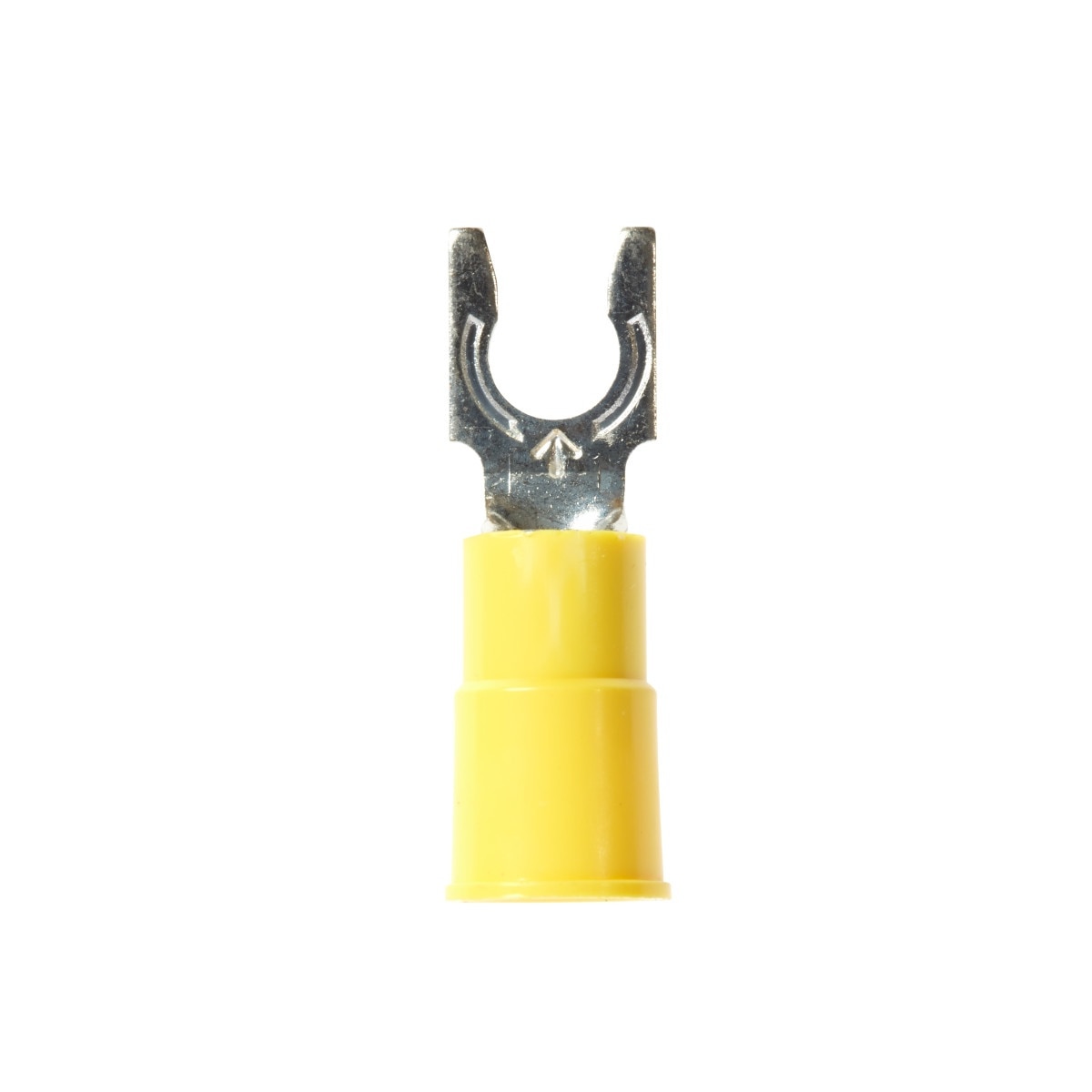

3M 7000133340 Description
3M Scotchlok vinyl insulated standard fork terminal with a wider tongue for use on free standing studs. Electrolytic copper construction with a tin plated finish provides good conductivity and corrosion resistance.
3M 7000133340 Includes
- (50) Scotchlok Fork Terminal, Vinyl Insulated, MV10-10FX
3M 7000133340 Features
- Vinyl insulated brazed seam barrel helps provide a secure fit
- Funnel designed PVC sleeve helps guide wire insertion
- Wider tongue design for use on free standing studs
- Electrolytic copper construction for good conductivity
- Tin plated finish helps resist corrosion
- Temperature range -40 to 221 Degree Fahrenheit
- Rated 600V for building wire and 1000V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS compliant
3M 7000133340 Specifications
| Terminal Type | Fork |
| Terminal Style | Standard |
| Fork Type | Standard |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Product Color | Yellow |
| Material | ETP Copper |
| Barrel Style | Brazed |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| Overall Length | 1.03 in |
| Overall Width | 0.38 in |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
Toolup Part # :
848844
