3M 7000133338 Description

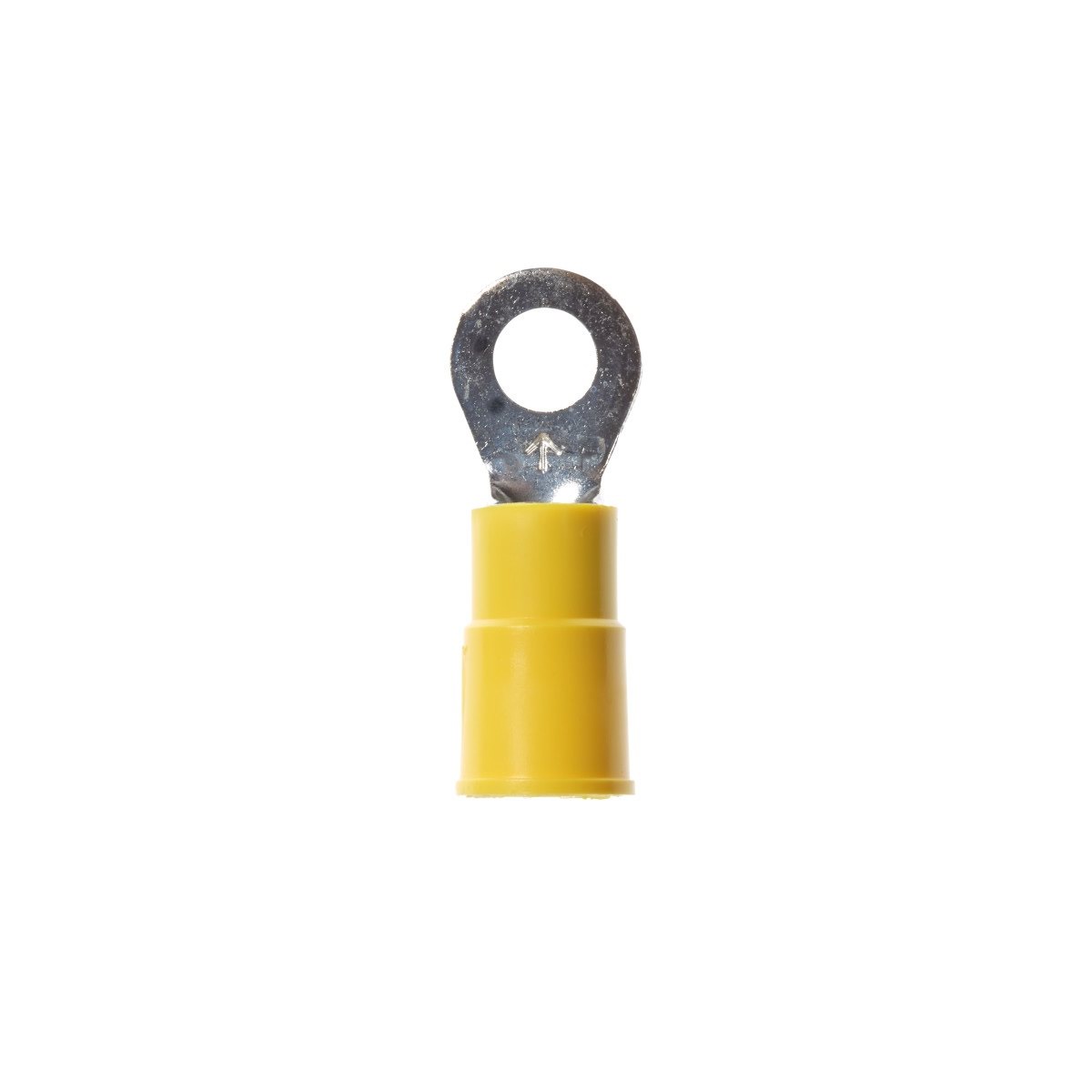

3M Scotchlok MV10-10RX vinyl insulated ring tongue terminals provide a secure, reliable connection for 12 AWG to 10 AWG conductors. The brazed seam barrel with a funnel designed PVC sleeve helps guide wire insertion, while electrolytic copper with a tin plated finish supports conductivity and corrosion resistance. Rated 600V for building wire and 1000V for signs, fixtures, or luminaires, these terminals operate from -40 to 221 Degree F (-40 to 105 Degree C).
3M 7000133338 Includes
- (10) Bottles, each with (50) 3M Scotchlok MV10-10RX vinyl insulated ring terminals
3M 7000133338 Features
- Standard style ring tongue fits around the stud for a secure connection
- Vinyl insulated brazed seam barrel for reliable performance
- Funnel designed PVC sleeve helps ease wire insertion
- Electrolytic copper construction supports good conductivity
- Tin plated finish helps resist corrosion
- Withstands temperatures from -40 to 221 Degree F (-40 to 105 Degree C)
- Rated 600V for building wire and 1000V for signs, fixtures, or luminaires
- UL Listed, CSA Certified, and RoHS 2011/65/EU compliant
3M 7000133338 Specifications
| Part Number | MV10-10RX |
| Terminal Type | Ring |
| Insulation Material | Vinyl |
| Product Color | Yellow |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Connection Width | 0.19 in |
| Overall Length | 1.03 in |
| Overall Width | 0.38 in |
| Maximum Operating Temperature | 105 Degree Celsius |
| Case Quantity | 500 |
| Bottle Quantity | 50 |
