3M 7100017418 Description

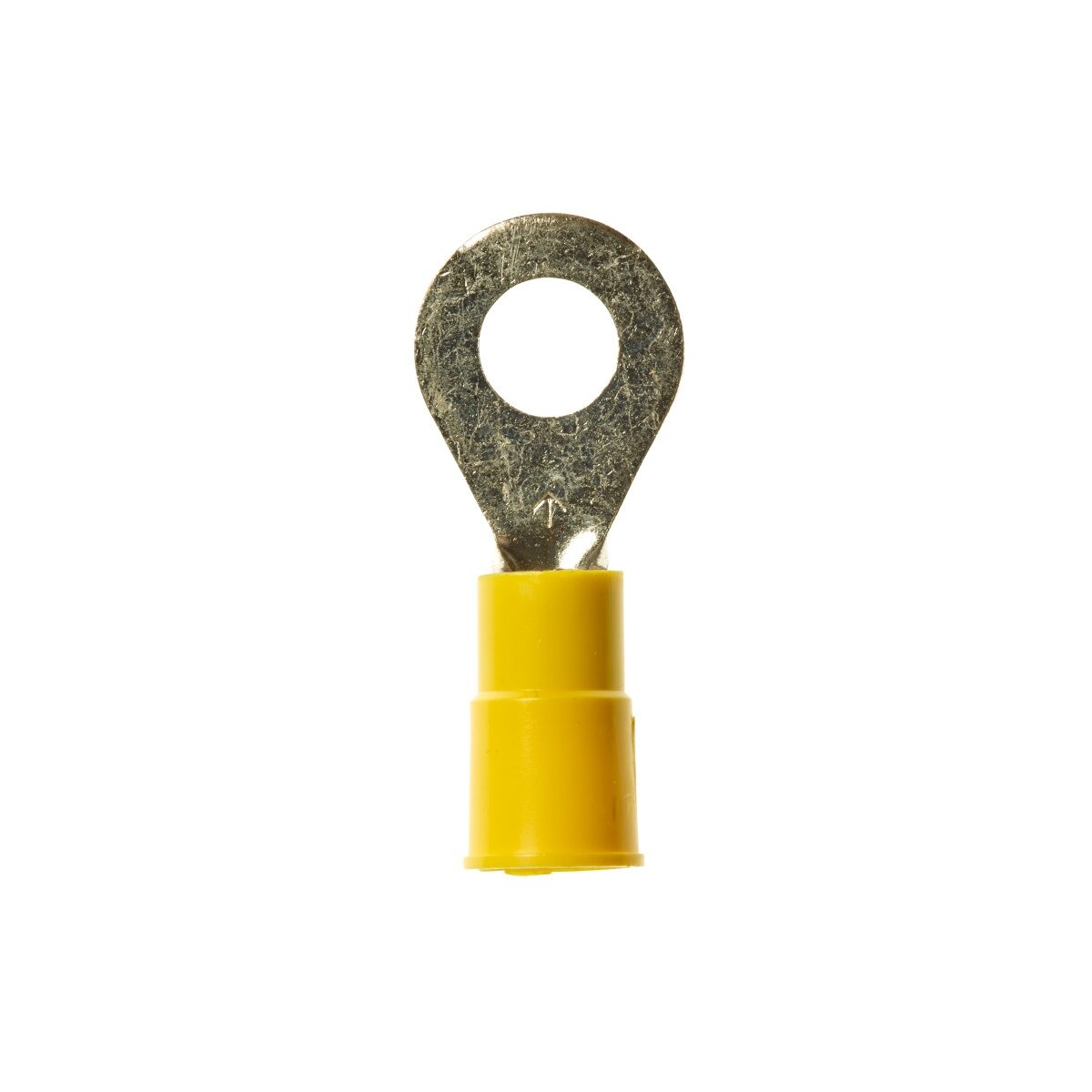

3M Scotchlok vinyl insulated brazed seam ring tongue terminal provides a secure ring connection that fits around the stud. Electrolytic copper construction delivers good conductivity and the tin plated finish helps resist corrosion while the PVC sleeve supports easy wire insertion.
3M 7100017418 Includes
- (1) Bottle of 50 3M Scotchlok Vinyl Insulated Brazed Seam Ring Tongue Terminals MV10-14R/SX
3M 7100017418 Features
- Vinyl insulated brazed seam barrel
- Standard style ring tongue fits around the stud
- Electrolytic copper for good conductivity
- Tin plated finish resists corrosion
- Funnel designed PVC sleeve for easy wire insertion
- Withstands temperatures from -40 to 221 Degree F (-40 to 105 Degree C)
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7100017418 Specifications
| Brand | Scotchlok |
| Terminal Type | Ring |
| Insulation Material | Vinyl |
| Product Color | Yellow |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Connection Width | 0.25 in |
| Overall Length | 1.26 in |
| Overall Width | 0.53 in |
| Maximum Operating Temperature | 105 Degree Celsius |
| Voltage Rating | 600V building wire; 1000V signs fixtures or luminaires |
Toolup Part # :
848849
