At a Glance
Length
1 in
Sub-Brand
Scotchlok
Material
Copper
Application
Electrical
Description
Description
3M 7000133337 Description

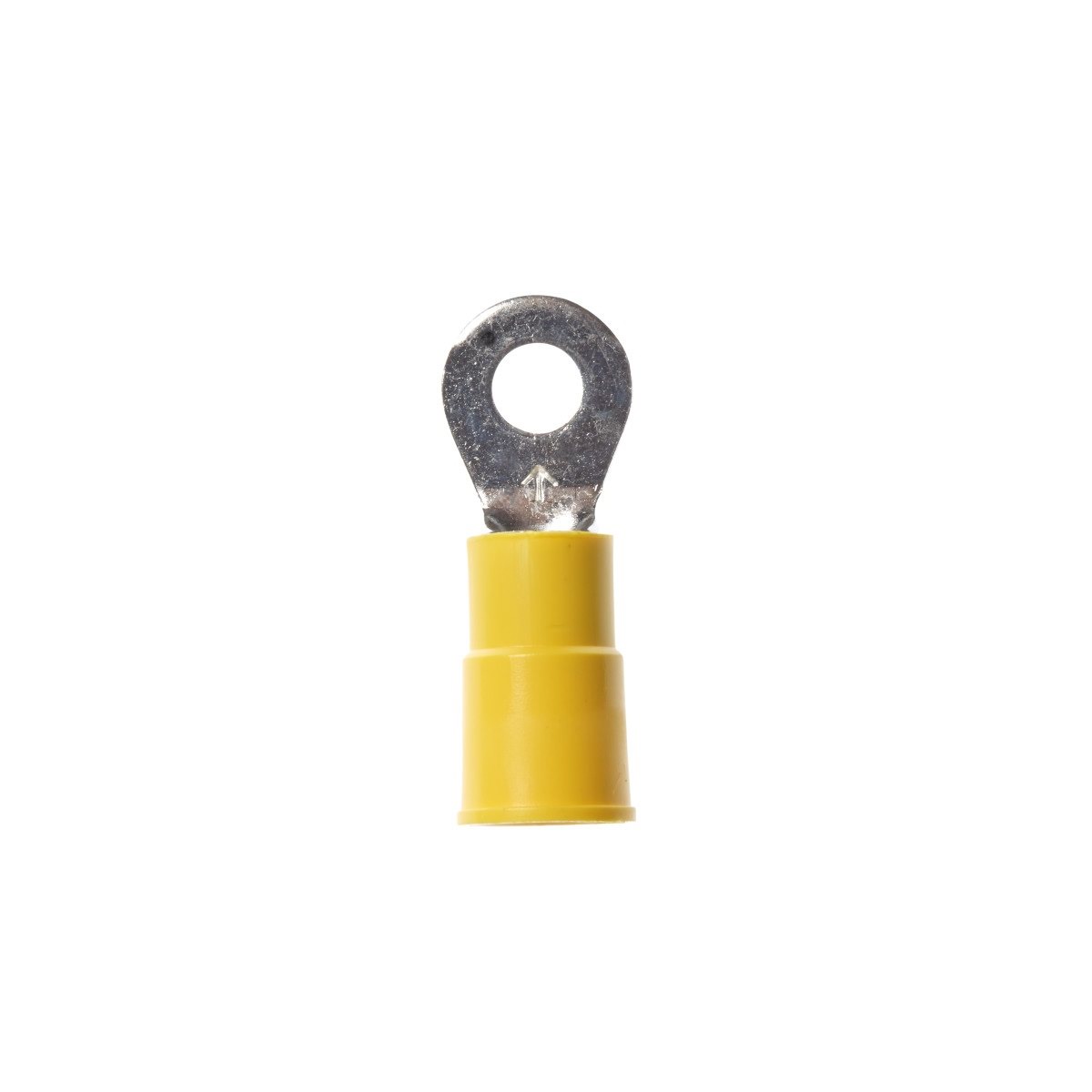

3M Scotchlok MV10-8RX vinyl insulated brazed seam ring tongue terminals provide a secure stud connection for 12 to 10 AWG conductors. Electrolytic copper construction with tin plating helps deliver good conductivity and corrosion resistance, while the funnel shaped PVC sleeve supports easy wire insertion.
3M 7000133337 Includes
- (500) 3M Scotchlok Vinyl Insulated Brazed Seam Ring Tongue Terminals, MV10-8RX
3M 7000133337 Features
- Standard style ring tongue fits around the stud
- Vinyl insulated brazed seam barrel
- Funnel designed PVC sleeve for easy wire insertion
- Electrolytic copper construction for good conductivity
- Tin plated finish resists corrosion
- Temperature range -40 to 221 Degree F
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133337 Specifications
| Terminal Type | Ring |
| Insulation Material | Vinyl |
| Product Color | Yellow |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Connection Width | 0.164 in |
| Overall Length | 1.03 in |
| Overall Width | 0.38 in |
| Maximum Operating Temperature | 105.0 Degree Celsius |
| Case Quantity | 500 Each |
| Bottle Quantity | 50 Each |
| Voltage Rating | 600V building wire 1000V signs fixtures or luminaires |
