3M 7010351287 Description

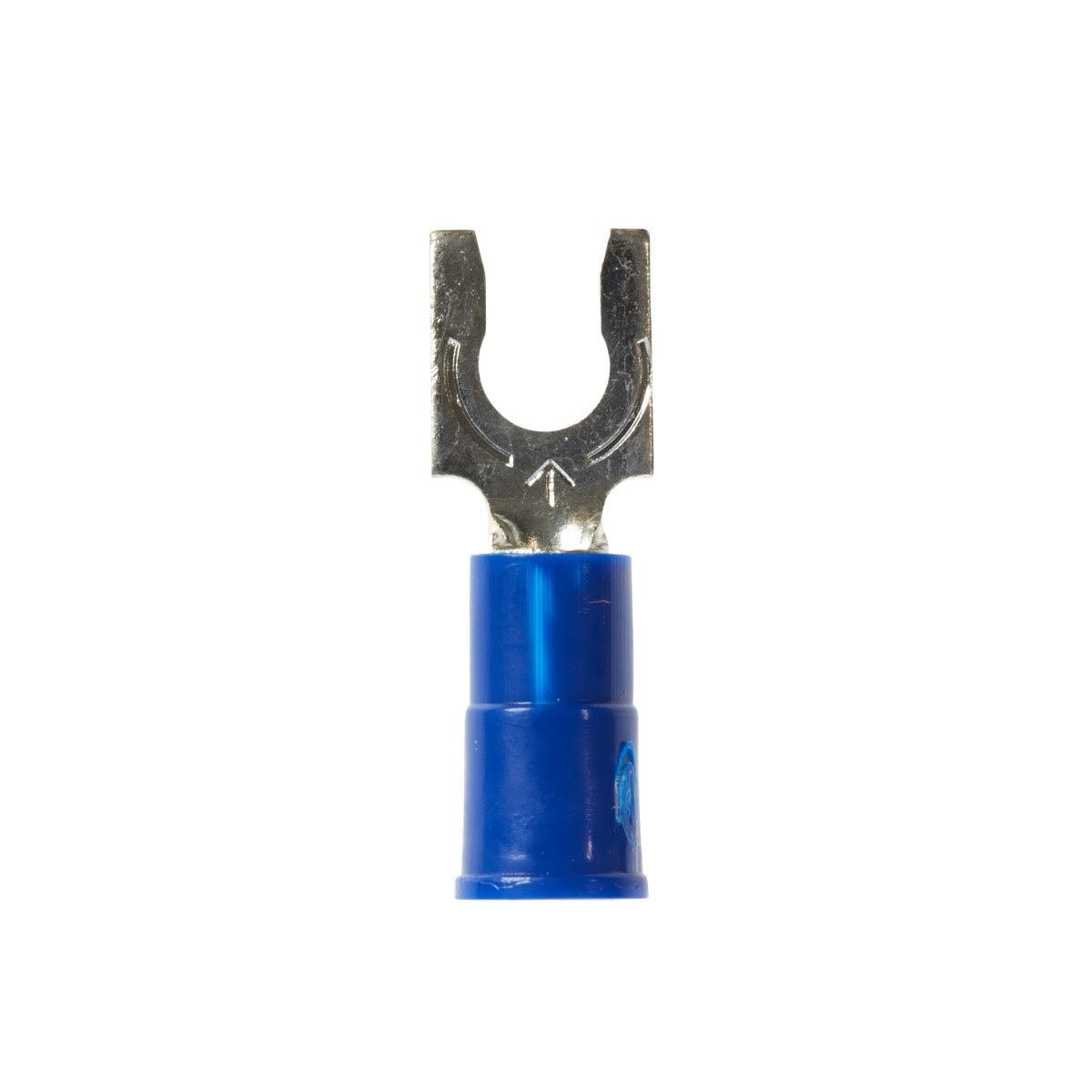

3M Scotchlok MV14-8FLX locking fork terminal provides a secure, color coded connection for 16 to 14 AWG conductors. The spring like tongue locks around a number 8 stud, and the vinyl insulated brazed seam barrel helps deliver reliable electrical contact and strain relief.
3M 7010351287 Includes
- (100) 3M Scotchlok Locking Fork Vinyl Insulated Terminals, MV14-8FLX
- (1) Canister
3M 7010351287 Features
- Locking fork terminal with spring like tongue to fit securely around the stud
- Vinyl insulated brazed seam barrel for secure fit and reliable performance
- Funnel designed polyvinyl chloride sleeve for easy wire insertion
- Electrolytic copper construction for good conductivity
- Tin plated finish resists corrosion
- Withstands temperatures from minus 40 to 221 Degree F
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS compliant
3M 7010351287 Specifications
| Terminal Type | Fork |
| Terminal Style | Locking |
| Fork Type | Locking |
| Stud Size | #8 |
| Conductor Size Range | 16 to 14 AWG |
| Insulation Material | Vinyl |
| Barrel Style | Brazed |
| Barrel Inside Diameter | 0.090 Inch |
| Maximum Insulation Outer Diameter | 0.17 in |
| Overall Length | 0.88 in |
| Overall Width | 0.3 in |
| Temperature Range | minus 40 to 221 Degree F |
| Voltage Rating | 600V building wire 1000V signs fixtures luminaires |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
| Package Quantity | 100 per bottle |
| Color | Blue |
Toolup Part # :
855124
