3M 7000133316 Description

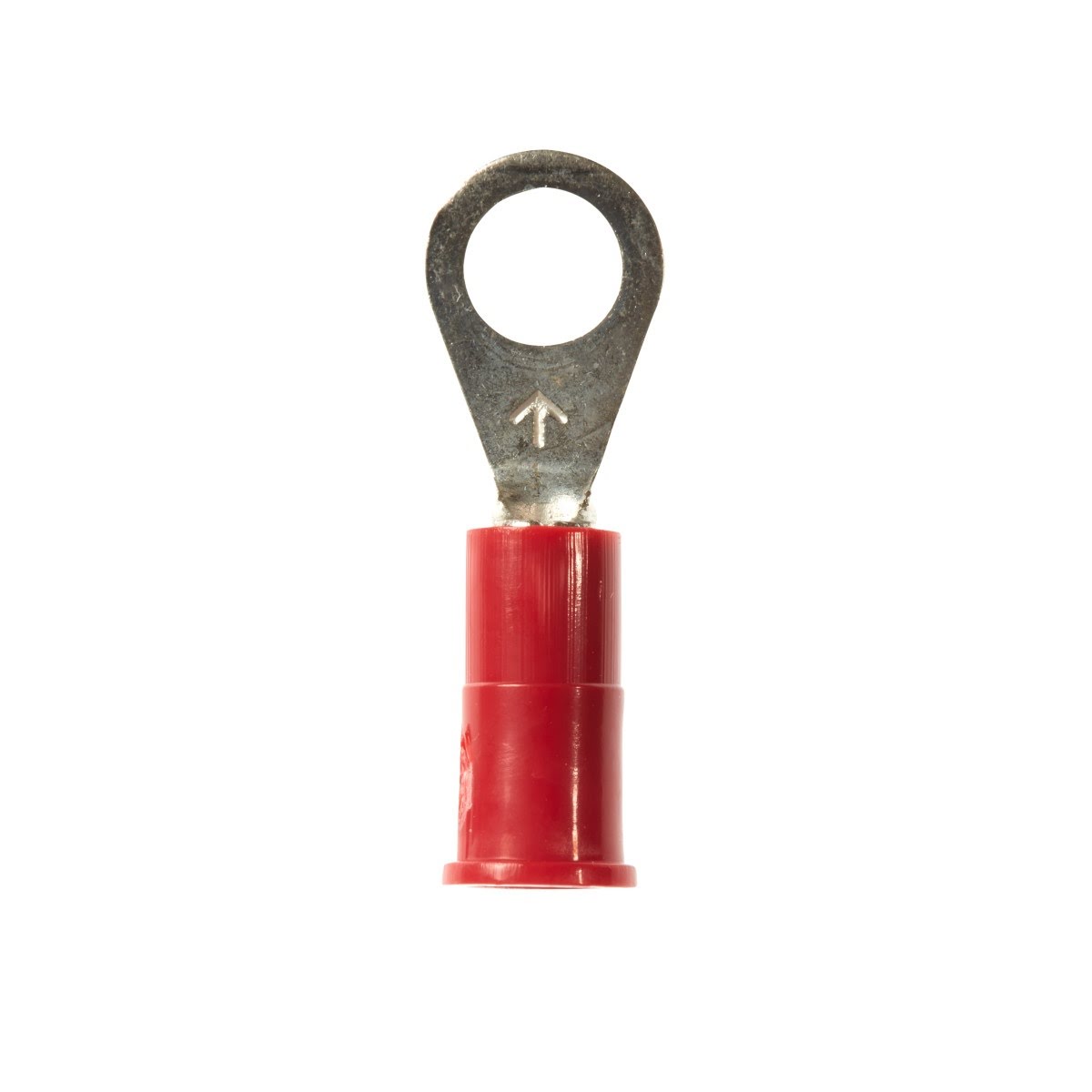

3M Scotchlok vinyl insulated brazed seam ring tongue terminal provides reliable electrical connections with easy wire insertion, corrosion resistance, and a standard ring tongue that fits around a stud.
3M 7000133316 Includes
- (500) 3M Scotchlok vinyl insulated ring tongue terminals, MV18-10R/LX
3M 7000133316 Features
- Vinyl insulated brazed seam barrel for reliable and safe performance
- Funnel designed polyvinyl chloride sleeve helps provide easy wire insertion
- Standard style ring tongue fits around the stud for secure mounting
- Electrolytic copper construction helps provide good conductivity
- Tin plated finish helps resist corrosion
- Temperature range -40 to 221 Degree F (-40 to 105 Degree C)
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133316 Specifications
| Terminal Type | Ring |
| Insulation Material | Vinyl |
| Product Color | Red |
| Minimum Conductor Size | 22 AWG |
| Maximum Conductor Size | 18 AWG |
| Maximum Operating Temperature | 105 Degree Celsius |
| Overall Length | 0.93 in |
| Overall Width | 0.31 in |
| Connection Width | 0.19 in |
| Material | Electrolytic copper |
| Finish | Tin plated |
| Voltage Rating | 600V building wire 1000V signs fixtures or luminaires |
| Certifications | UL Listed CSA Certified |
| Compliance | RoHS 2011/65/EU |
Toolup Part # :
852822
