At a Glance
Length
0.85 in
Sub-Brand
Scotchlok
Material
Copper
Application
Electrical
Description
Description
3M 7000133322 Description

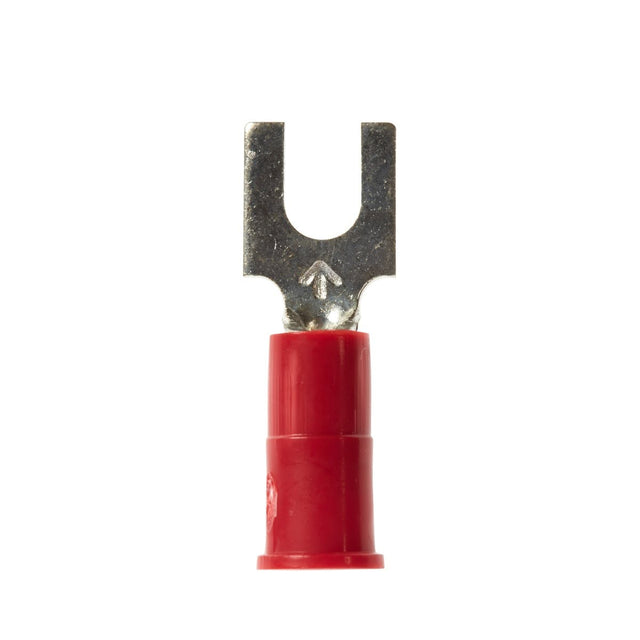

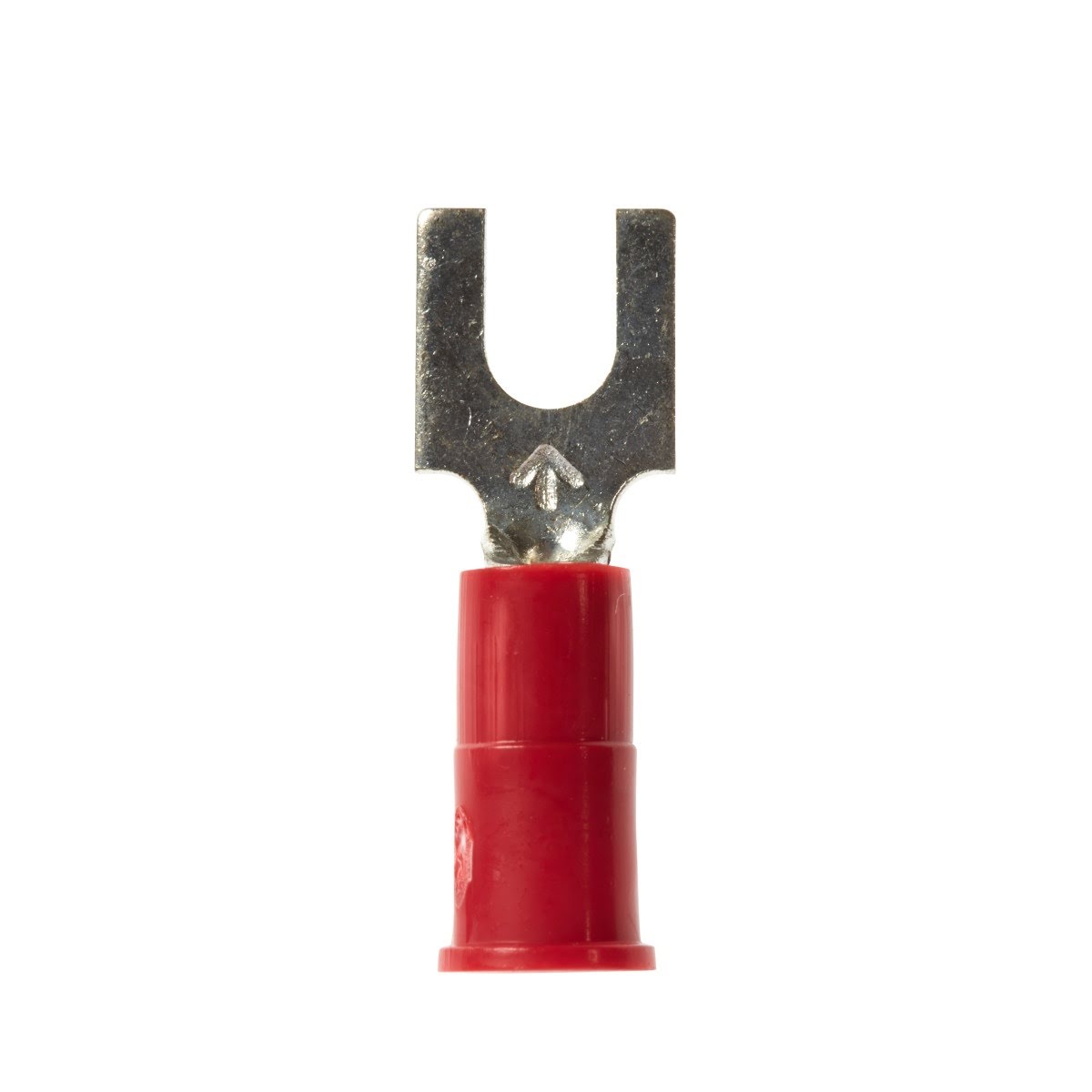

3M Scotchlok Block Fork vinyl insulated terminals provide a reliable lug connection for use in terminal blocks. The vinyl insulated brazed seam barrel and funnel designed PVC sleeve help guide wires into position for secure, consistent crimps.
3M 7000133322 Includes

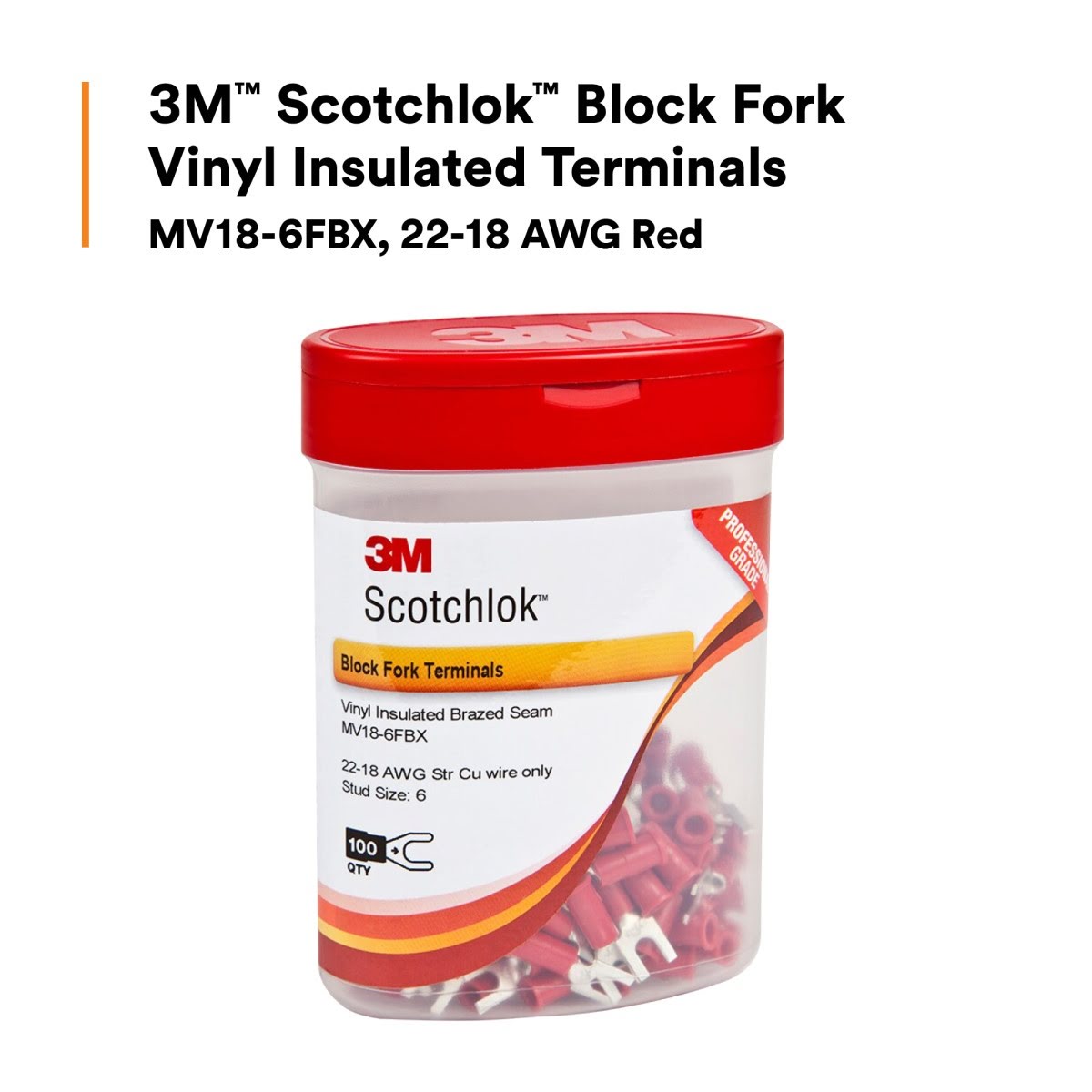

- (5) Bottles of 100 3M Scotchlok Block Fork Vinyl Insulated Terminals, MV18-6FBX (500 total)
3M 7000133322 Features
- Block fork terminal suitable for use in a terminal block

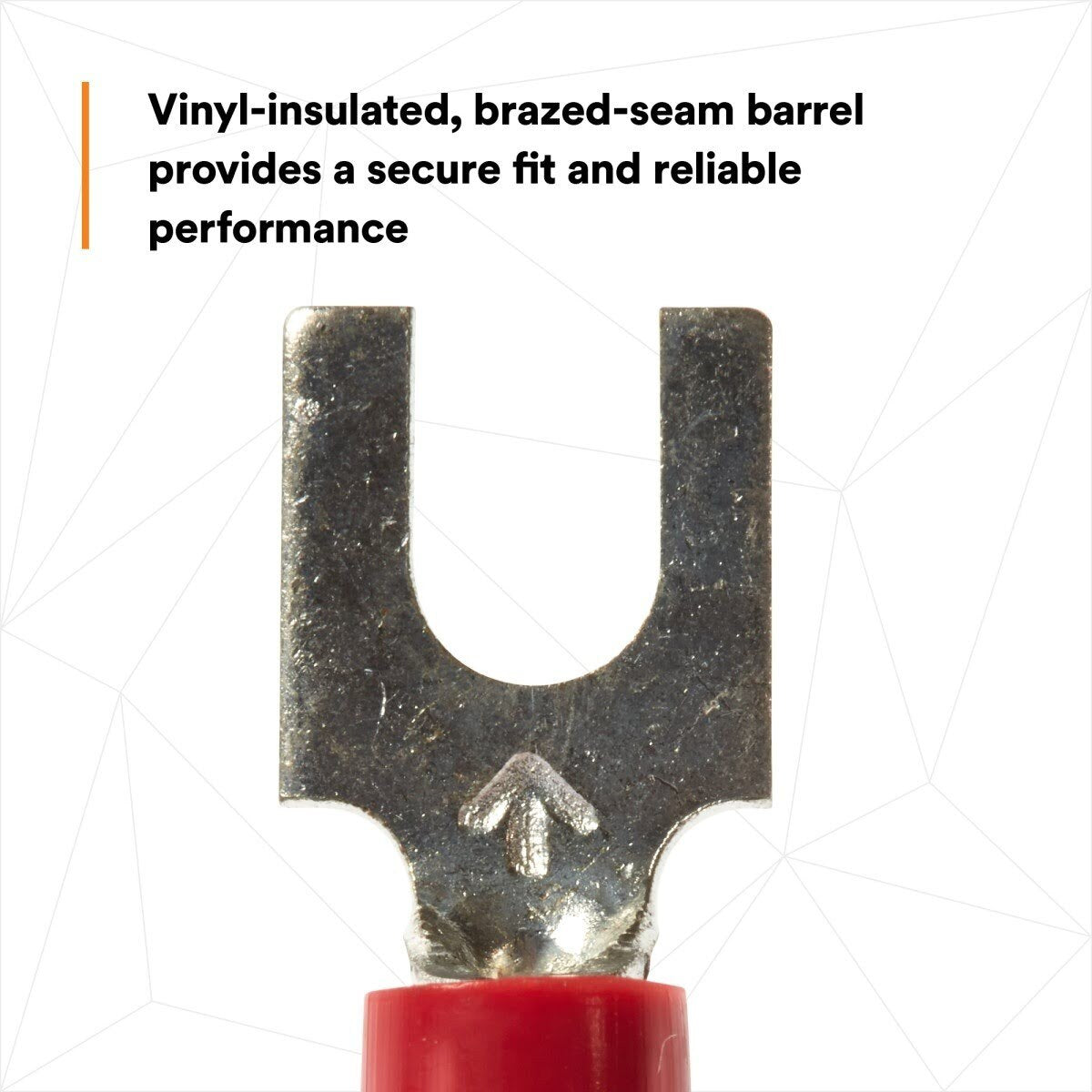

- Vinyl insulated brazed seam barrel for secure fit and reliable performance

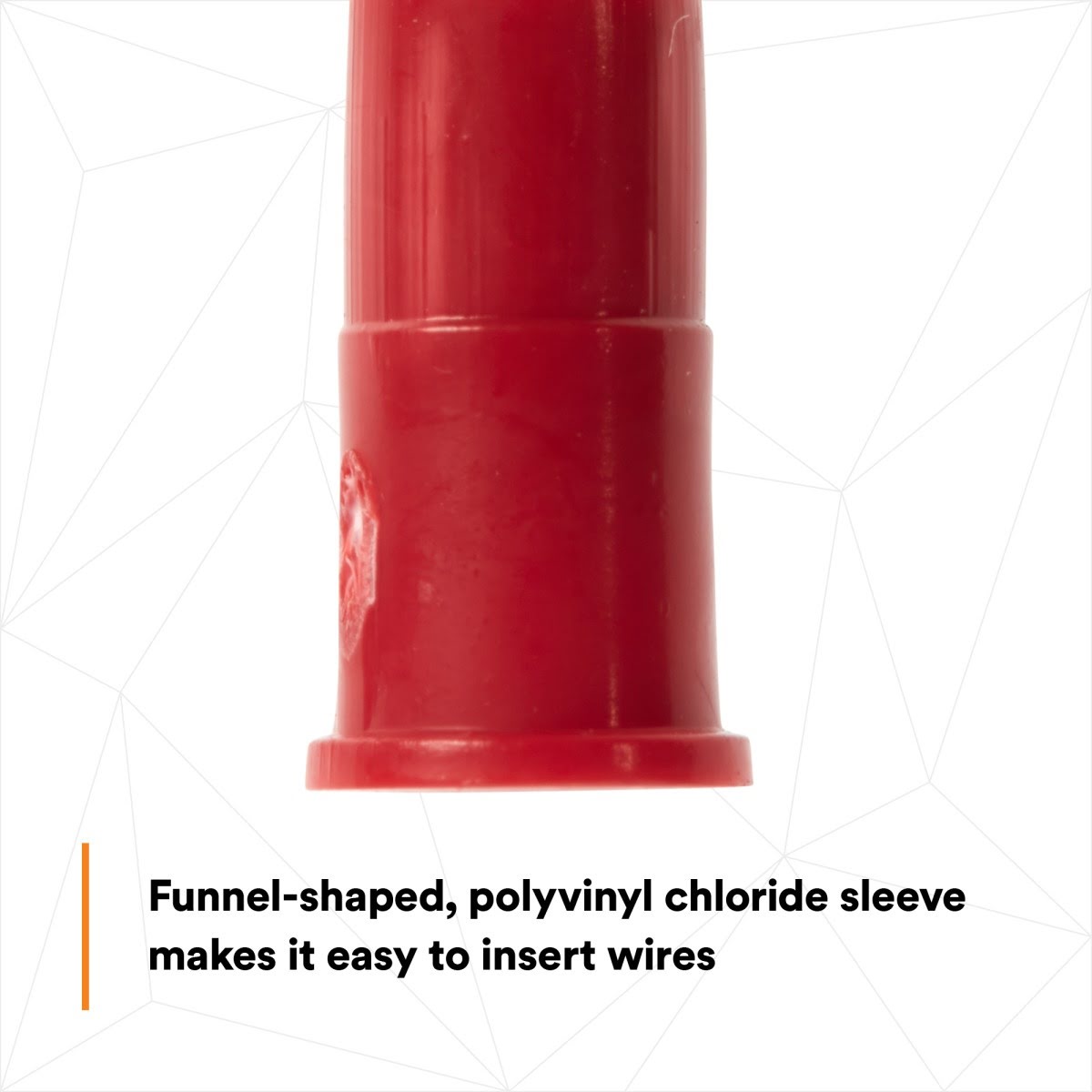

- Funnel designed rigid molded PVC sleeve helps guide wire into position

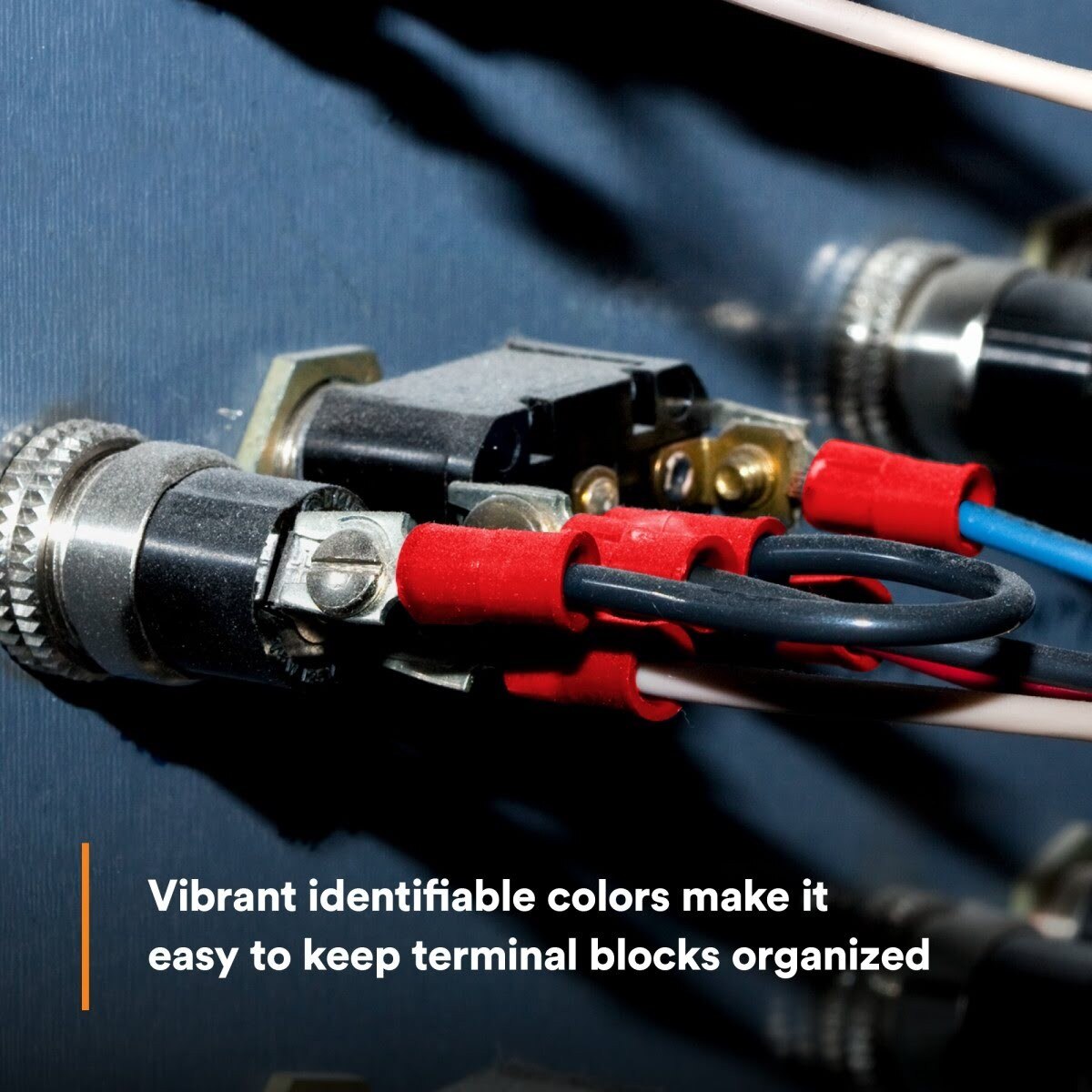

- Color coded red insulation for quick wire size identification
- ETP copper construction with tin plated finish for good conductivity and corrosion resistance
- Supports 22 to 18 AWG conductors
- Stud size 6
- Maximum recommended voltage rating 600 V
- Operating temperature range -40 to 221 Degree Fahrenheit
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
3M 7000133322 Specifications
| Part Number | MV18-6FBX |
| Terminal Type | Fork |
| Terminal Style | Block |
| Color | Red |
| Insulation Material | Vinyl |
| Material | ETP Copper |
| Barrel Style | Brazed |
| Wire Size | 22 to 18 AWG |
| Stud Size | 6 |
| Maximum Recommended Voltage Rating | 600 V |

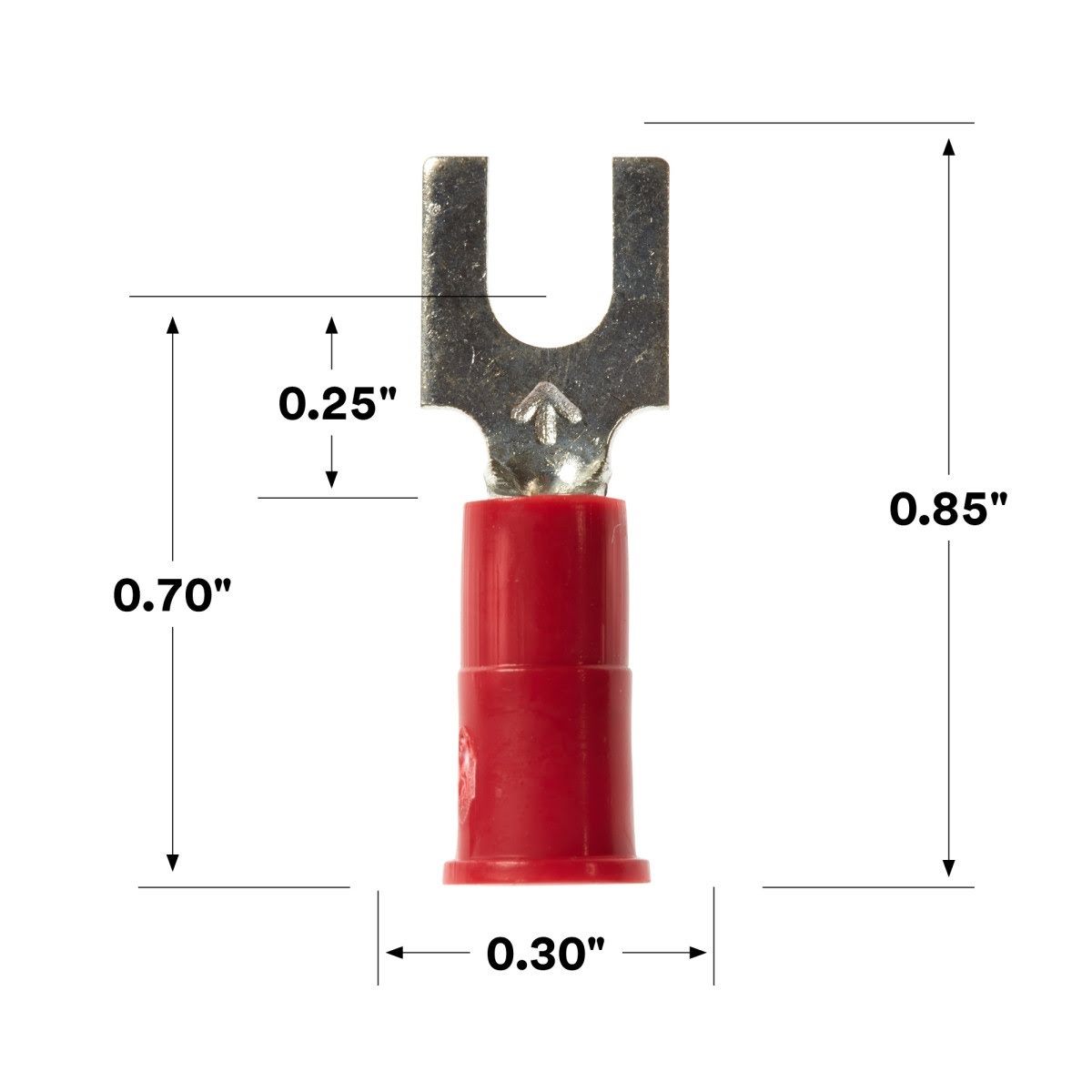

| Overall Length | 0.85 in |
| Overall Width | 0.3 in |
Toolup Part # :
852636
