3M 7000133323 Description

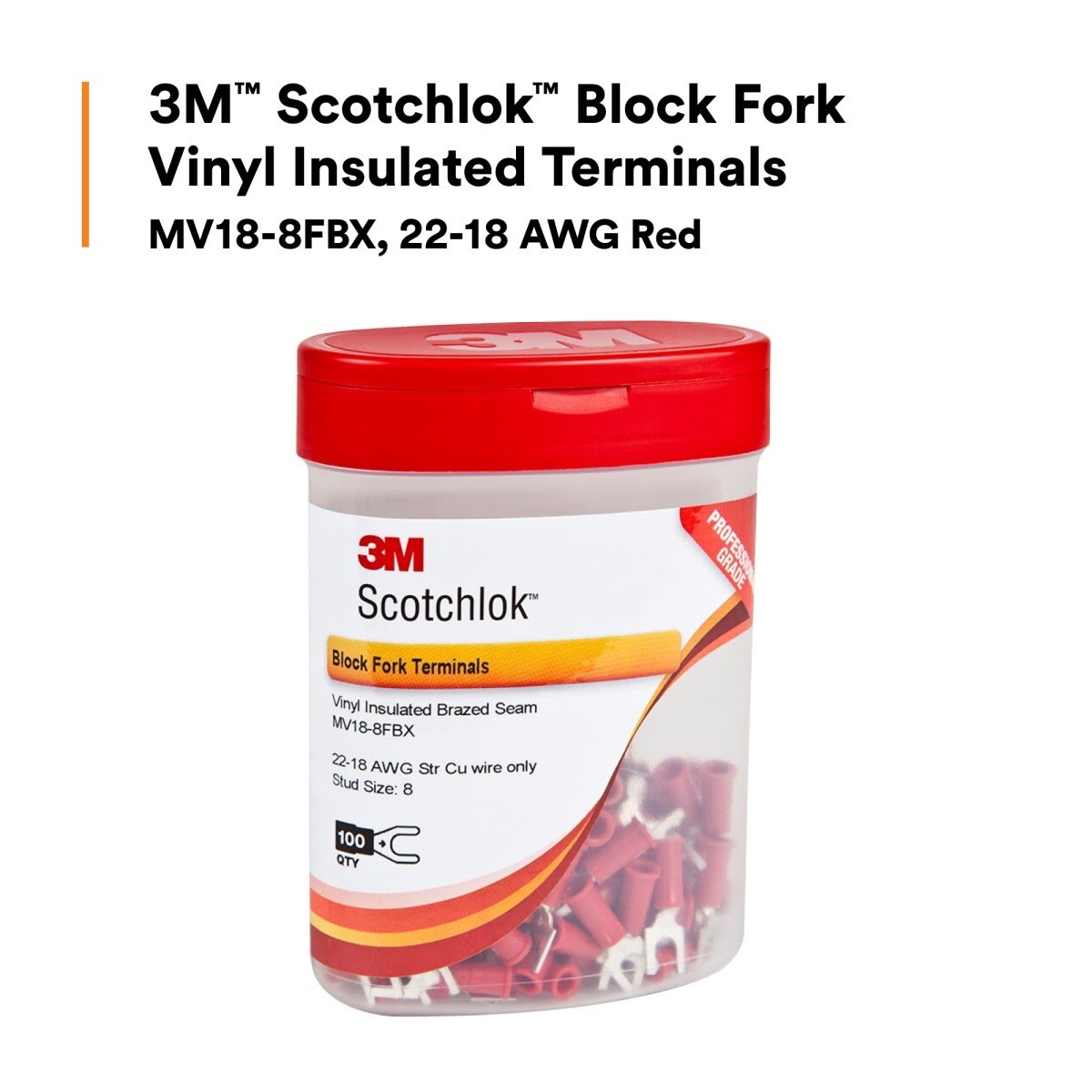

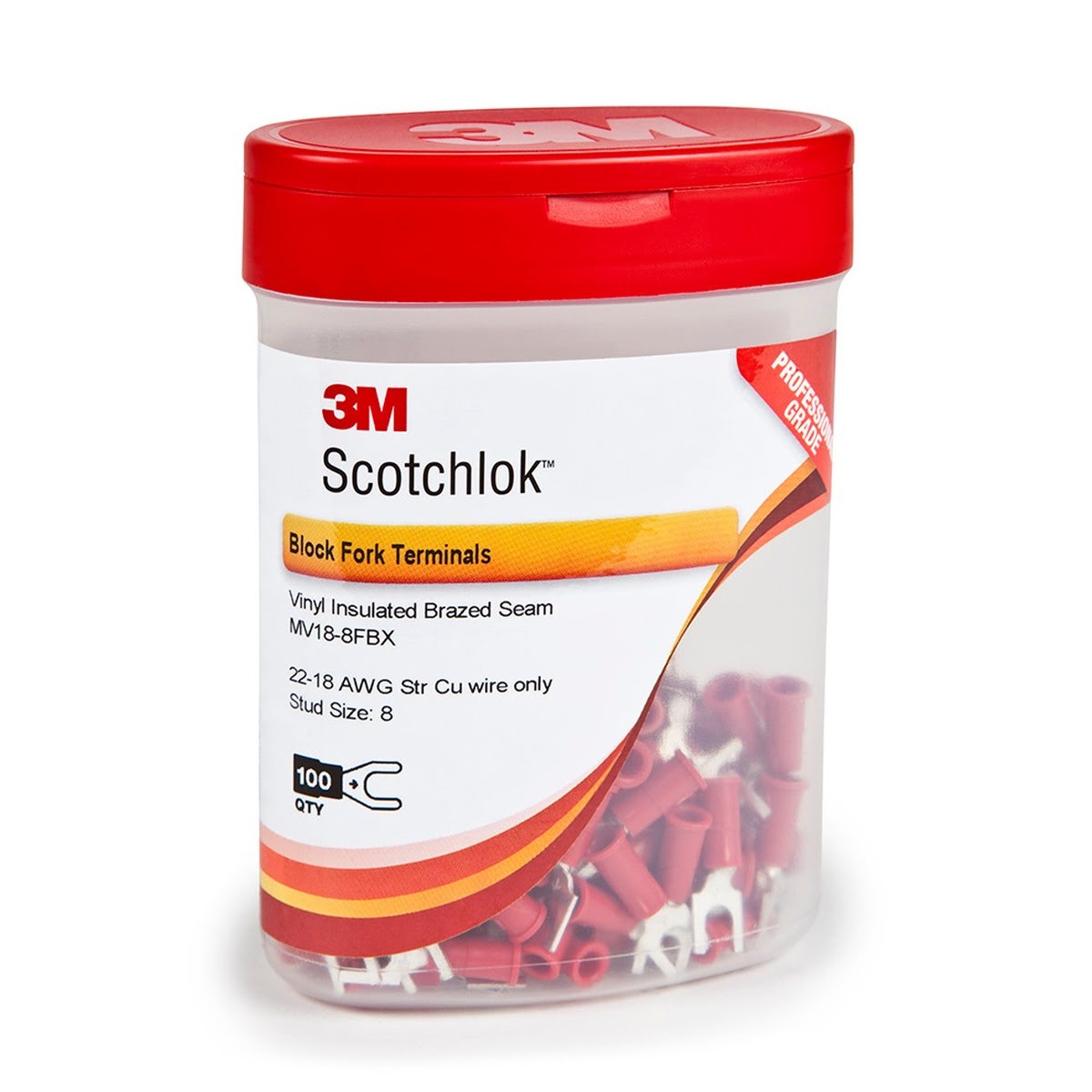

3M Scotchlok MV18-8FBX block fork terminals provide a secure, color coded connection for terminal blocks. The vinyl insulated brazed seam barrel and ETP copper construction with tin plated finish help deliver reliable conductivity and corrosion resistance for 22 to 18 AWG wire applications.
3M 7000133323 Includes
- (500) Scotchlok block fork vinyl insulated terminals
3M 7000133323 Features
- Vinyl insulated brazed seam barrel for a secure crimp connection
- Color coded red insulation for quick wire size identification
- Funnel designed PVC sleeve helps guide wire insertion and provides stress relief

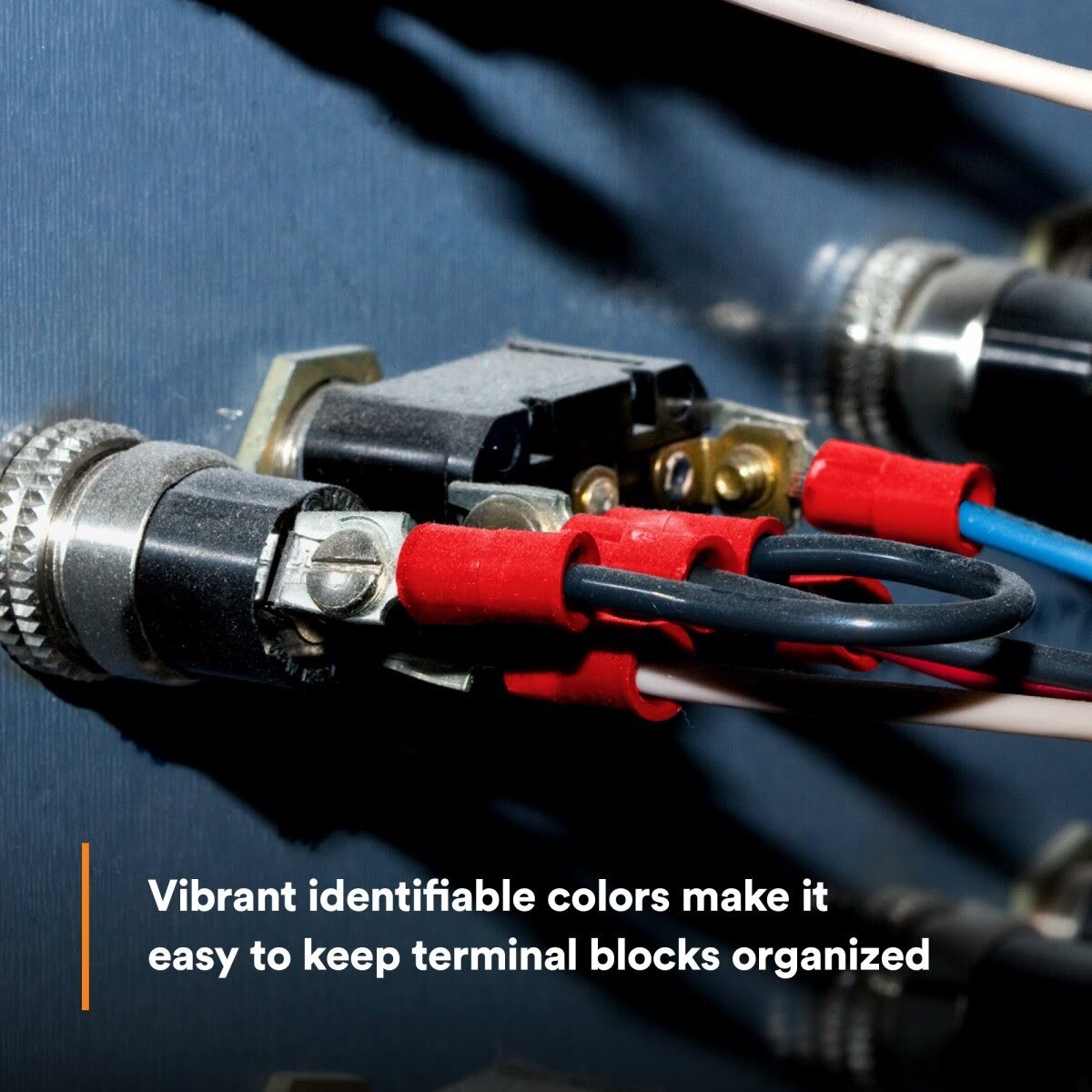

- Suitable for use in a terminal block
- ETP copper construction for good conductivity
- Tin plated finish helps resist corrosion
- Wire range 22 to 18 AWG
- Stud size 8 block fork design
- Rated up to 600 V
- Operating temperature range -40 Degree F to 221 Degree F
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133323 Specifications
| Part Number | MV18-8FBX |
| Product Type | Fork Terminal |
| Terminal Type | Fork |
| Fork Type | Block |
| Terminal Style | Block |
| Color | Red |
| Insulation Material | Vinyl |
| Wire Size Range | 22 AWG to 18 AWG |
| Stud Size | #8 |
| Material | ETP Copper |
| Barrel Style | Brazed |
| Barrel Inside Diameter | 0.070 Inch |
| Overall Length | 0.85 in |
| Overall Width | 0.3 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
