3M 7000133403 Description

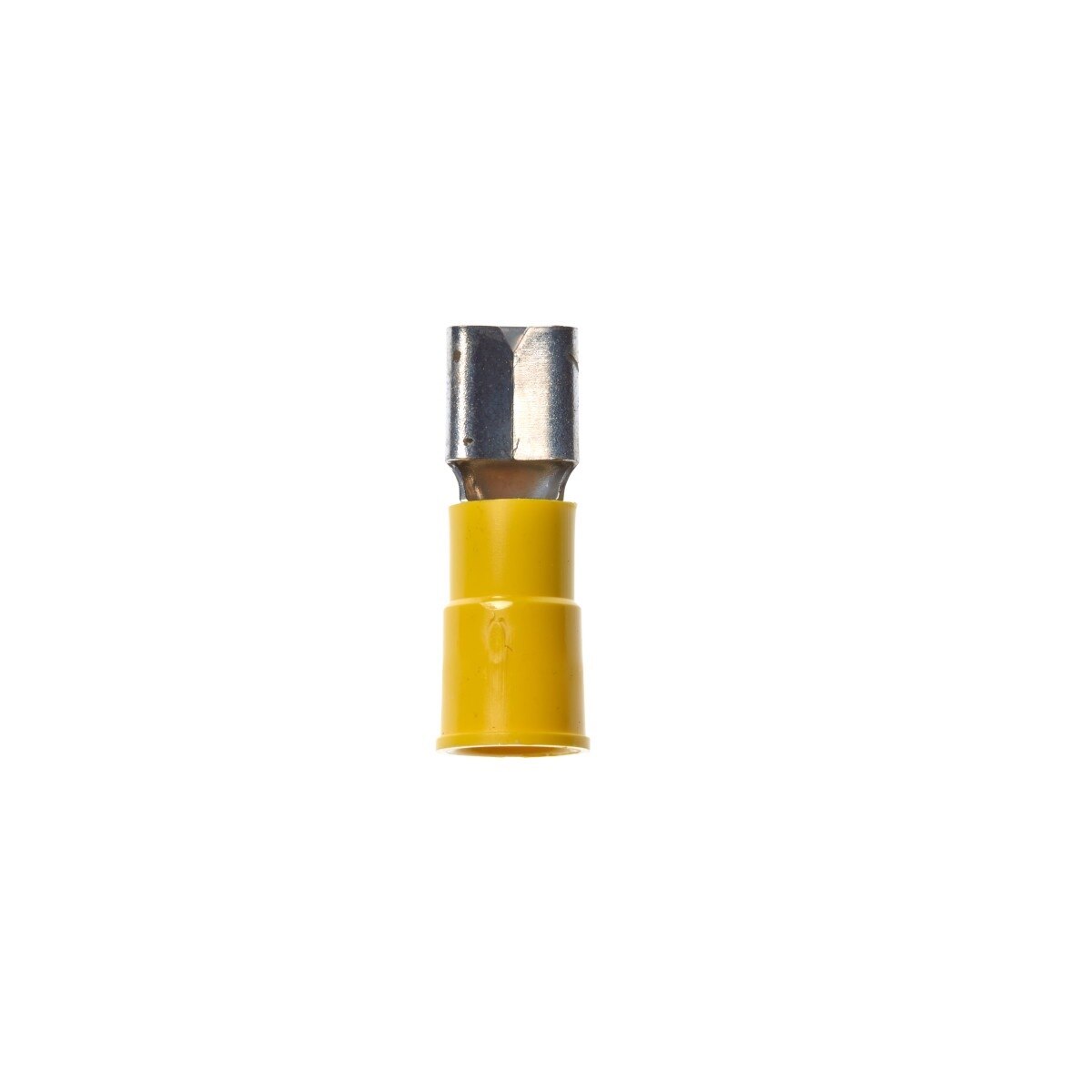

3M Scotchlok MVI10-250DFX vinyl insulated female disconnect terminals provide a secure quick disconnect connection to a 0.25 in male tab. Built with an interlocking barrel and vinyl sleeve for easy wire insertion they are UL Listed CSA Certified and RoHS compliant.
3M 7000133403 Includes
- (500) 3M Scotchlok Female Disconnect Vinyl Insulated Terminal MVI10-250DFX
3M 7000133403 Features
- Female disconnect terminal for quick and easy disconnect of wires
- Vinyl insulated sleeve helps with easy wire insertion
- Interlocking barrel with dents and rolled edges provides strong holding force
- Mates with 0.25 in wide male tab
- Durable brass construction with corrosion resistant tin plating
- Temperature range: -40 to 221 Degree Fahrenheit (-40 to 105 Degree Celsius)
- Rated 600V for building wire and 1000V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS 2011/65/EU compliant
3M 7000133403 Specifications
| Part Number | MVI10-250DFX |
| Disconnect Type | Female |
| Insulation Material | Vinyl |
| Product Color | Yellow |
| Barrel Style | Interlocking Barrel |
| Connection Width | 0.25 in |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
| Overall Length | 0.95 in |
| Overall Width | 0.37 in |
| Overall Diameter | 0.23 in |
Toolup Part # :
854953
