3M 7010318948 Description

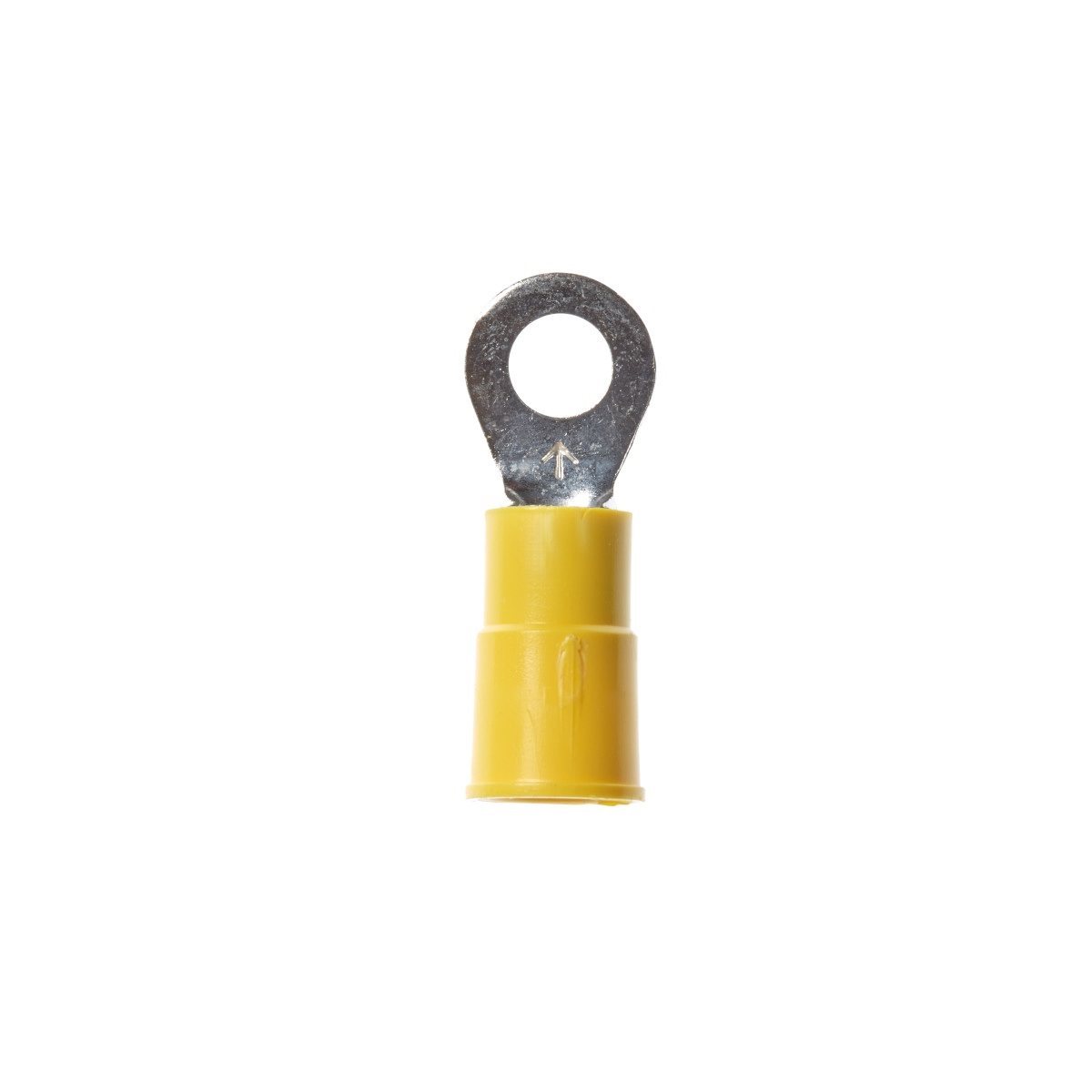

3M Scotchlok MVU10-10RK ring tongue terminals provide a secure crimp connection for 12 to 10 AWG wire and stud size 10 applications. The vinyl insulated butted seam barrel and funnel designed sleeve help guide wire insertion, while electrolytic copper with tin plating delivers strong conductivity and corrosion resistance.
3M 7010318948 Includes
- (500) 3M Scotchlok Ring Tongue Terminal, MVU10-10RK
3M 7010318948 Features
- Vinyl insulated butted seam barrel helps provide a secure crimp connection
- Funnel designed PVC sleeve helps guide wires into position for easier insertion
- Standard ring tongue fits around stud size 10
- Electrolytic copper construction supports good conductivity
- Tin plated finish helps resist corrosion
- Temperature range of -40 to 221 Degree F (-40 to 105 Degree C)
- Rated 600V for building wire and 1000V for signs, fixtures, or luminaires
- UL Listed, CSA Certified, and RoHS compliant
3M 7010318948 Specifications
| Part Number | MVU10-10RK |
| Terminal Type | Ring |
| Stud Size | 10 |
| Insulation Material | Vinyl |
| Wire Range | 12 to 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Overall Length | 1.03 in |
| Overall Width | 0.38 in |
| Connection Width | 0.19 in |
| Voltage Rating | 600V building wire, 1000V signs fixtures luminaires |
| Temperature Range | -40 to 221 Degree F (-40 to 105 Degree C) |
| Material | Electrolytic copper |
| Finish | Tin plated |
| Certifications | UL Listed, CSA Certified |
| RoHS | 2011/65/EU Compliant |
