3M 7010297503 Description

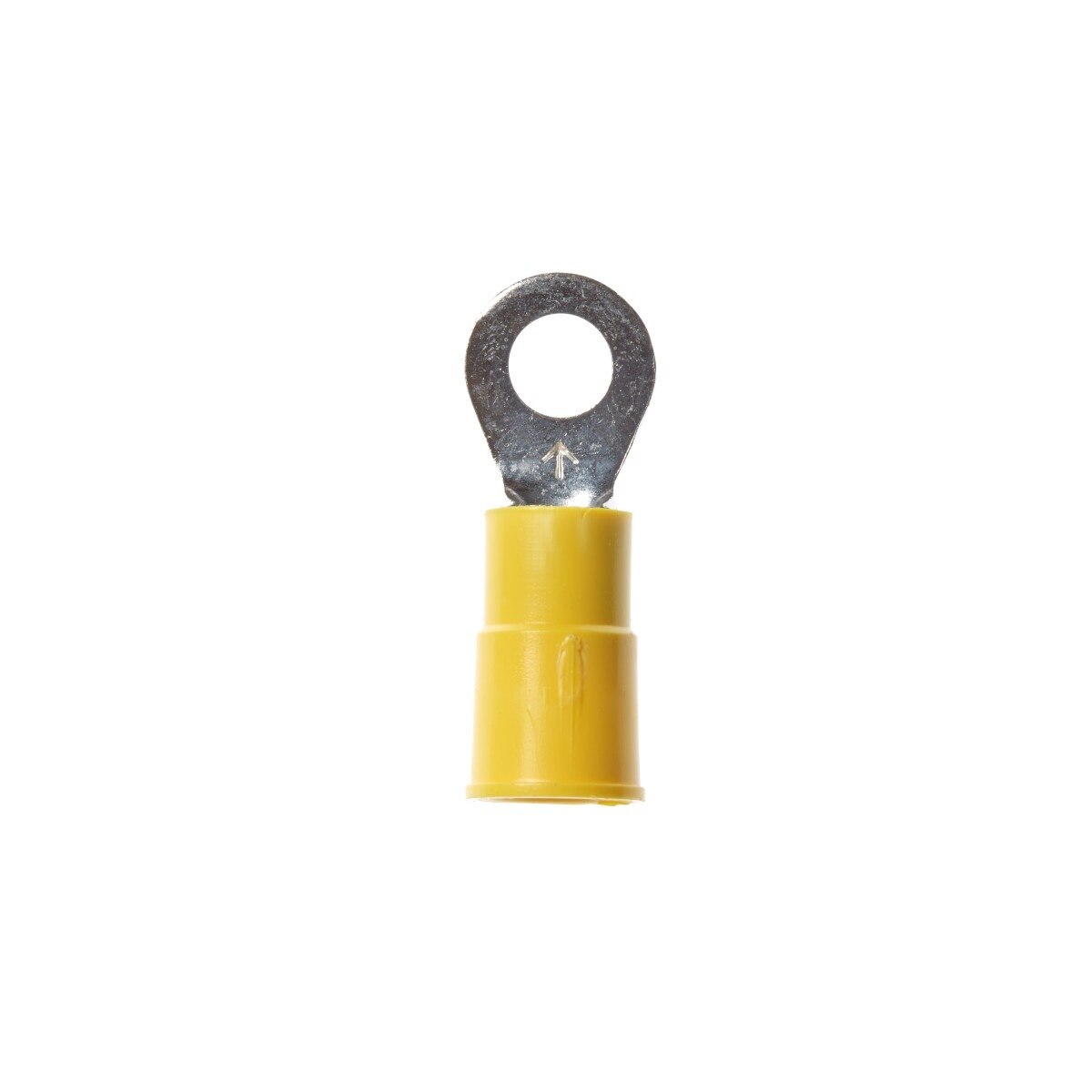

3M Scotchlok MVU10-10RX ring tongue terminals provide a secure, vinyl insulated crimp connection for 12 AWG to 10 AWG wire. Built with electrolytic copper and a tin plated finish for good conductivity and corrosion resistance, they are suitable for demanding electrical applications.
3M 7010297503 Includes
- (50) 3M Scotchlok Ring Tongue Terminal (MVU10-10RX)
3M 7010297503 Features
- Vinyl insulated, butted seam barrel helps ensure a secure fit and reliable performance
- Funnel designed polyvinyl chloride sleeve helps guide wire into position for easy insertion
- Standard style ring tongue fits around a stud connection
- Electrolytic copper construction with tin plating for conductivity and corrosion resistance
- Temperature range -40 to 221 Degree F -40 to 105 Degree C
- Rated 600V for building wire and 1000V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS 2011 65 EU compliant
- Color coded for quick wire size identification
3M 7010297503 Specifications
| Part Number | MVU10-10RX |
| Terminal Type | Ring |
| Insulation Material | Vinyl |
| Wire Size Range | 12 AWG to 10 AWG |
| Connection Width | 0.19 in |
| Overall Length | 1.03 in |
| Overall Width | 0.38 in |
| Temperature Range | -40 to 221 Degree F (-40 to 105 Degree C) |
| Voltage Rating | 600V building wire; 1000V signs, fixtures or luminaires |
| Material | Electrolytic copper |
| Finish | Tin plated |
Toolup Part # :
855145
