3M 7000133366 Description

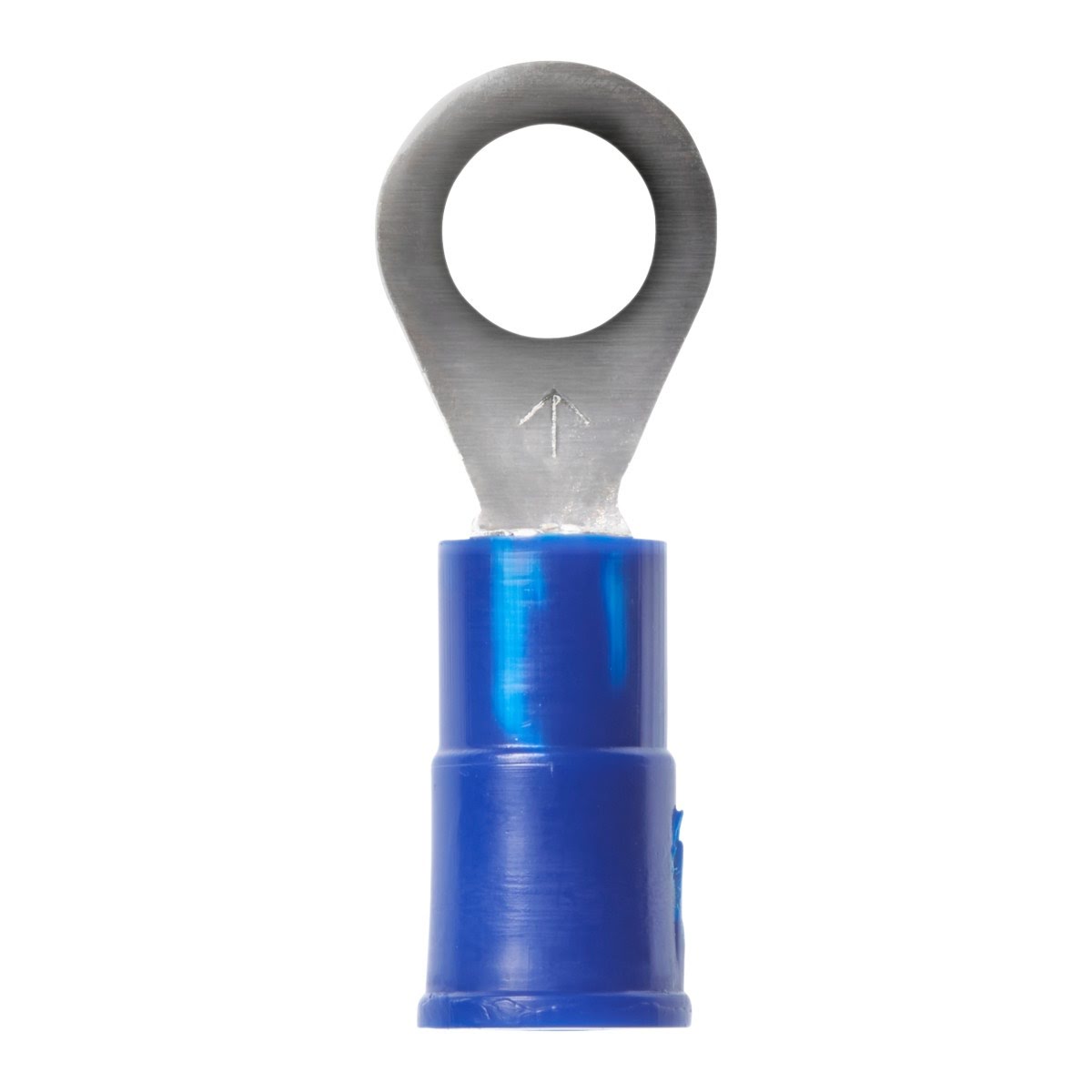

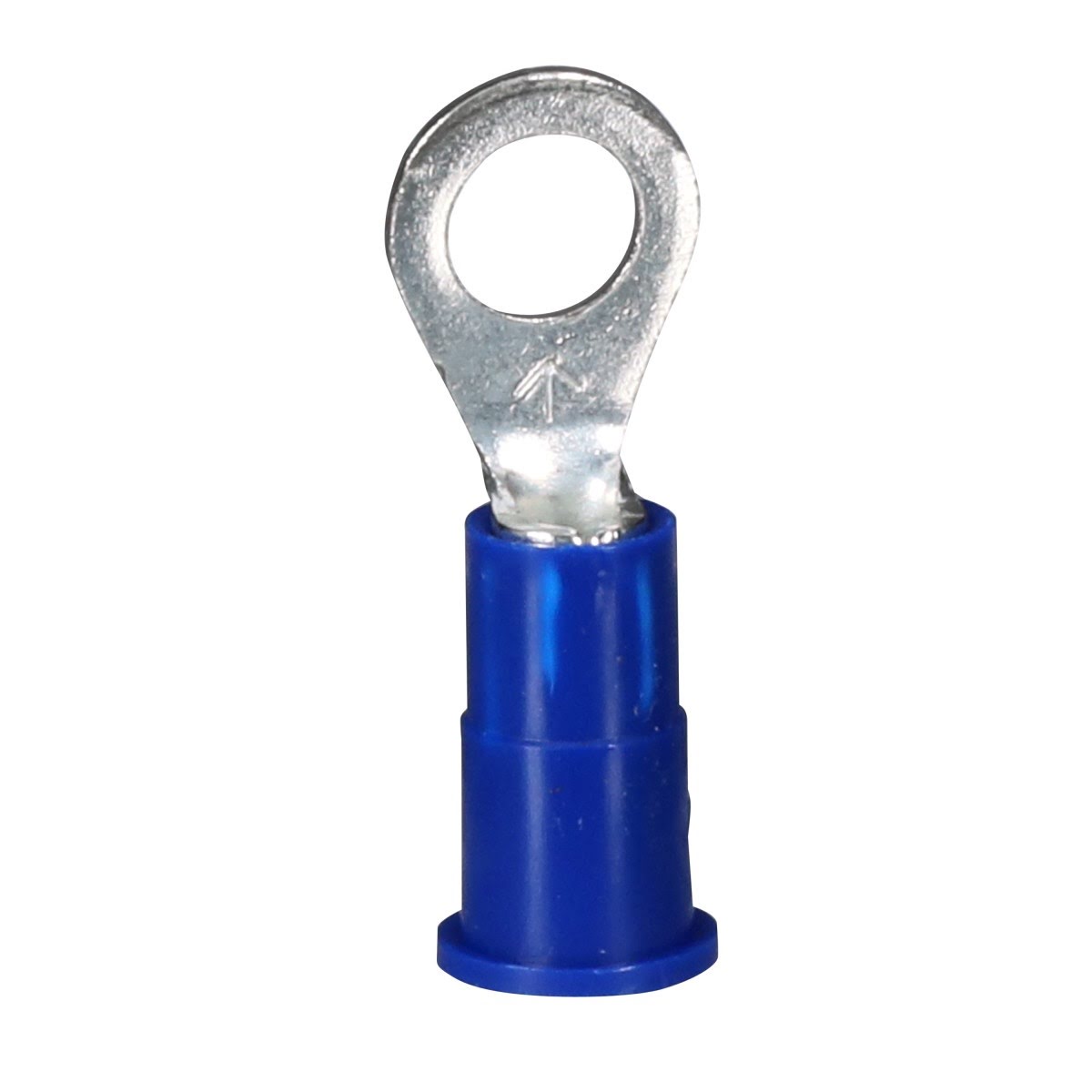

3M Scotchlok MVU14-10RX ring tongue terminals provide a secure crimp connection for 16 to 14 AWG stranded copper wire. The vinyl insulated butted seam barrel and tin plated electrolytic copper construction help deliver reliable conductivity and corrosion resistance for electrical terminations.
3M 7000133366 Includes

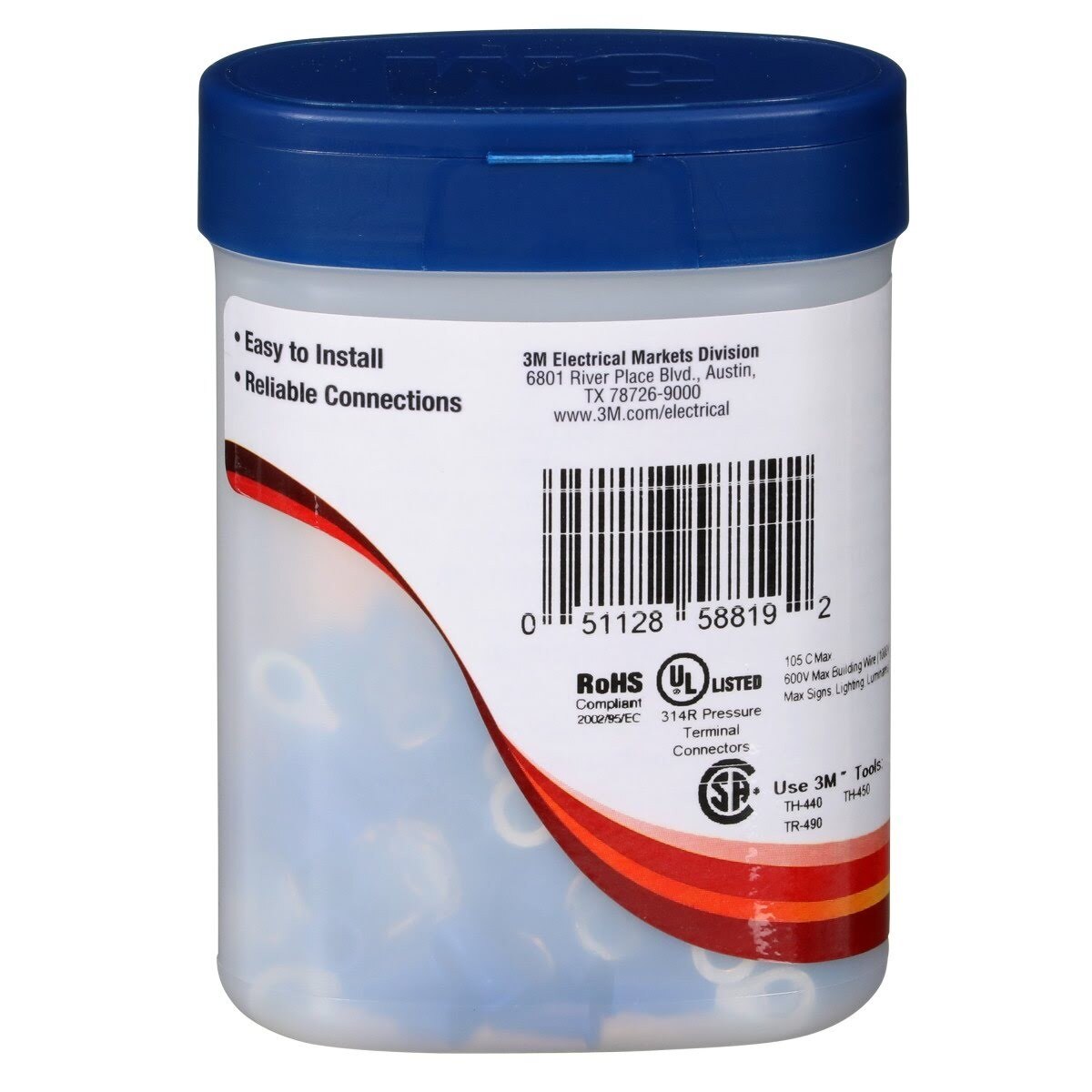

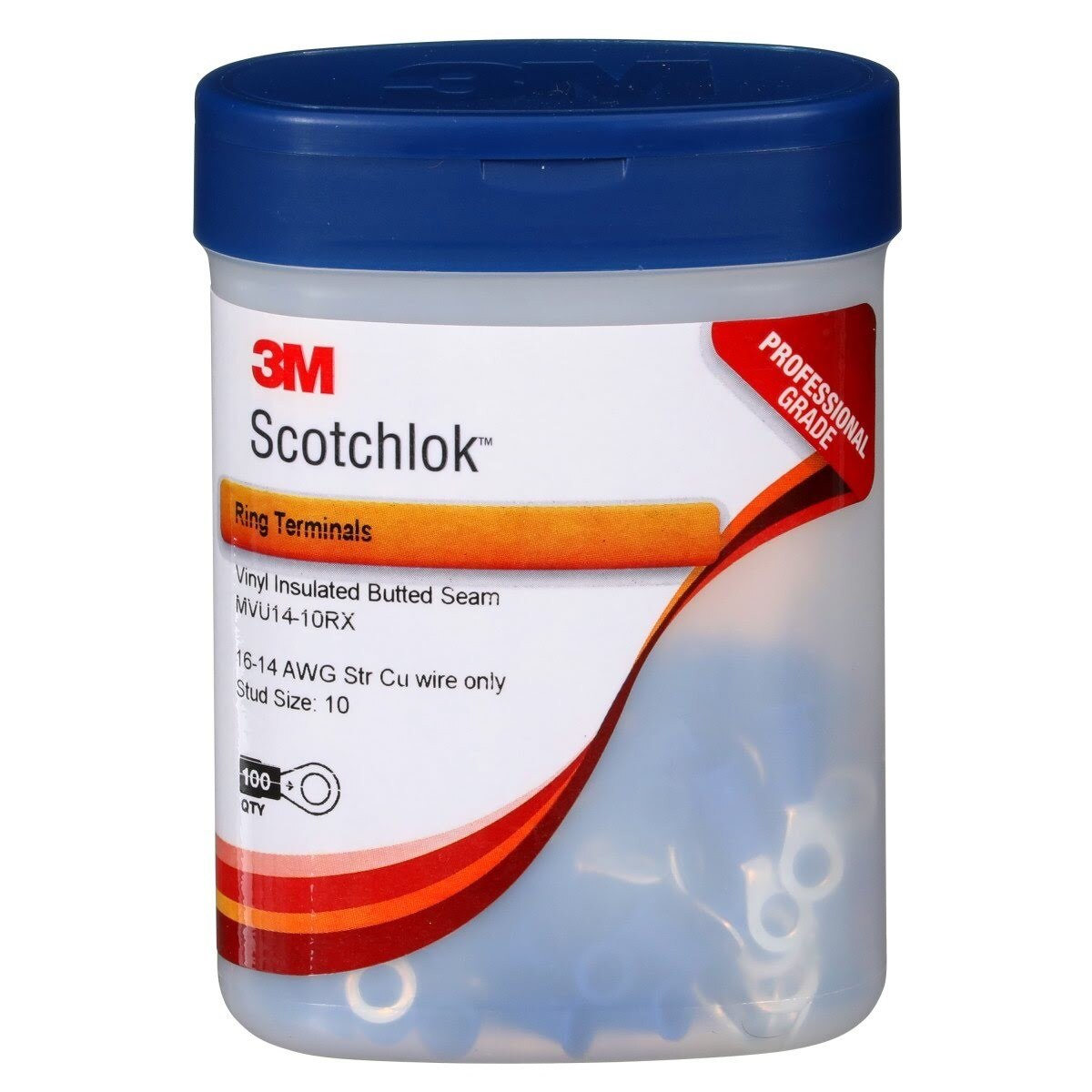

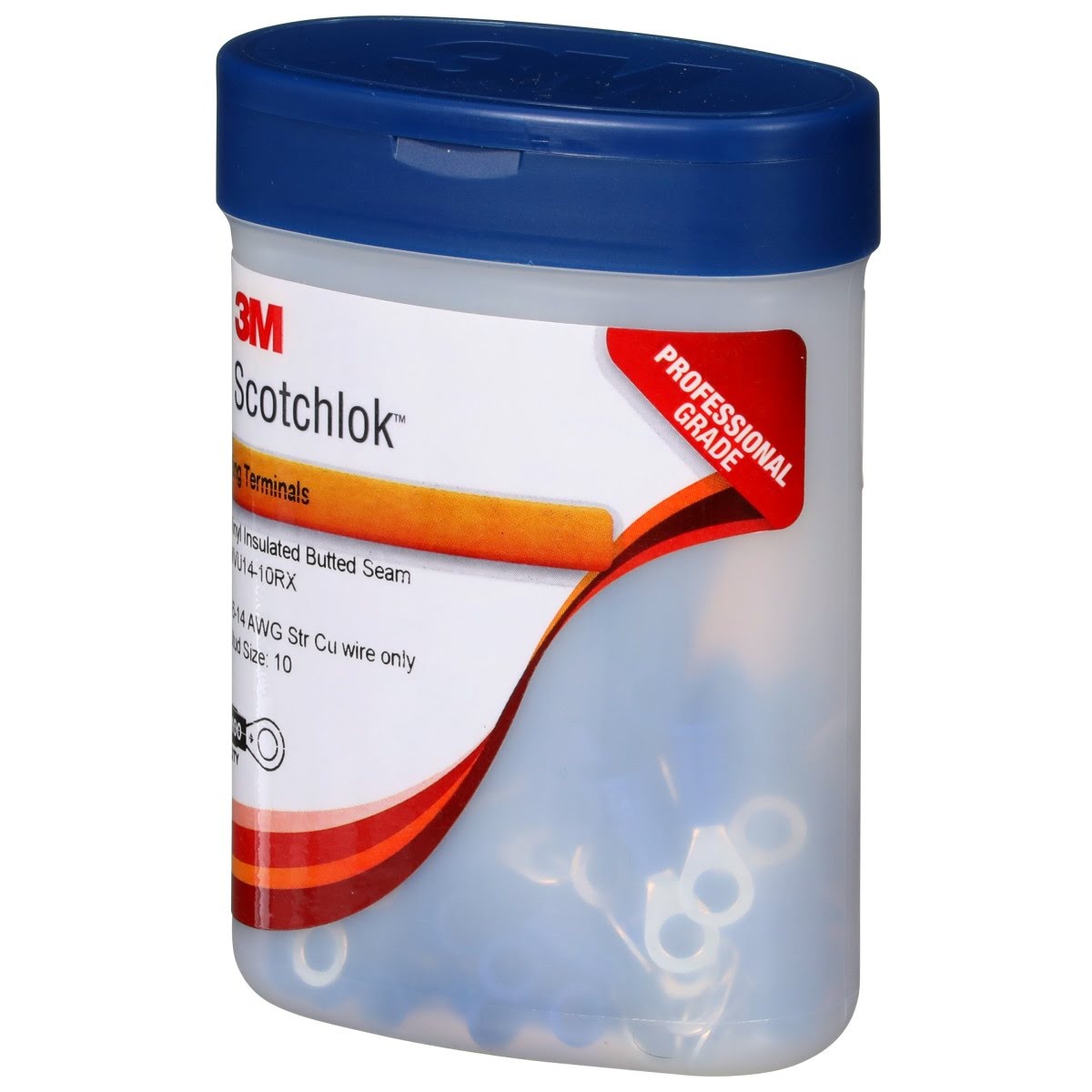

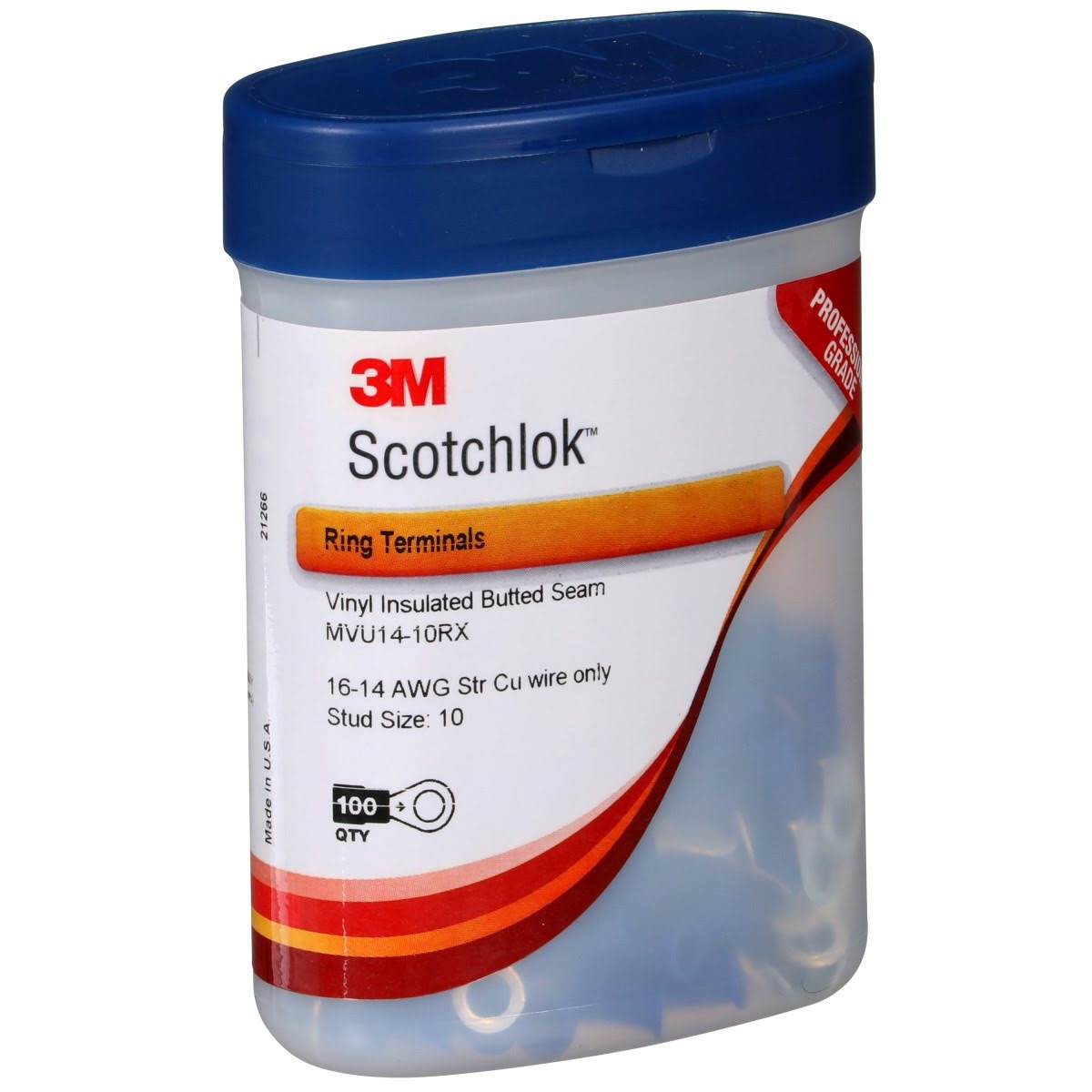

- (100) Ring Tongue Terminals
3M 7000133366 Features

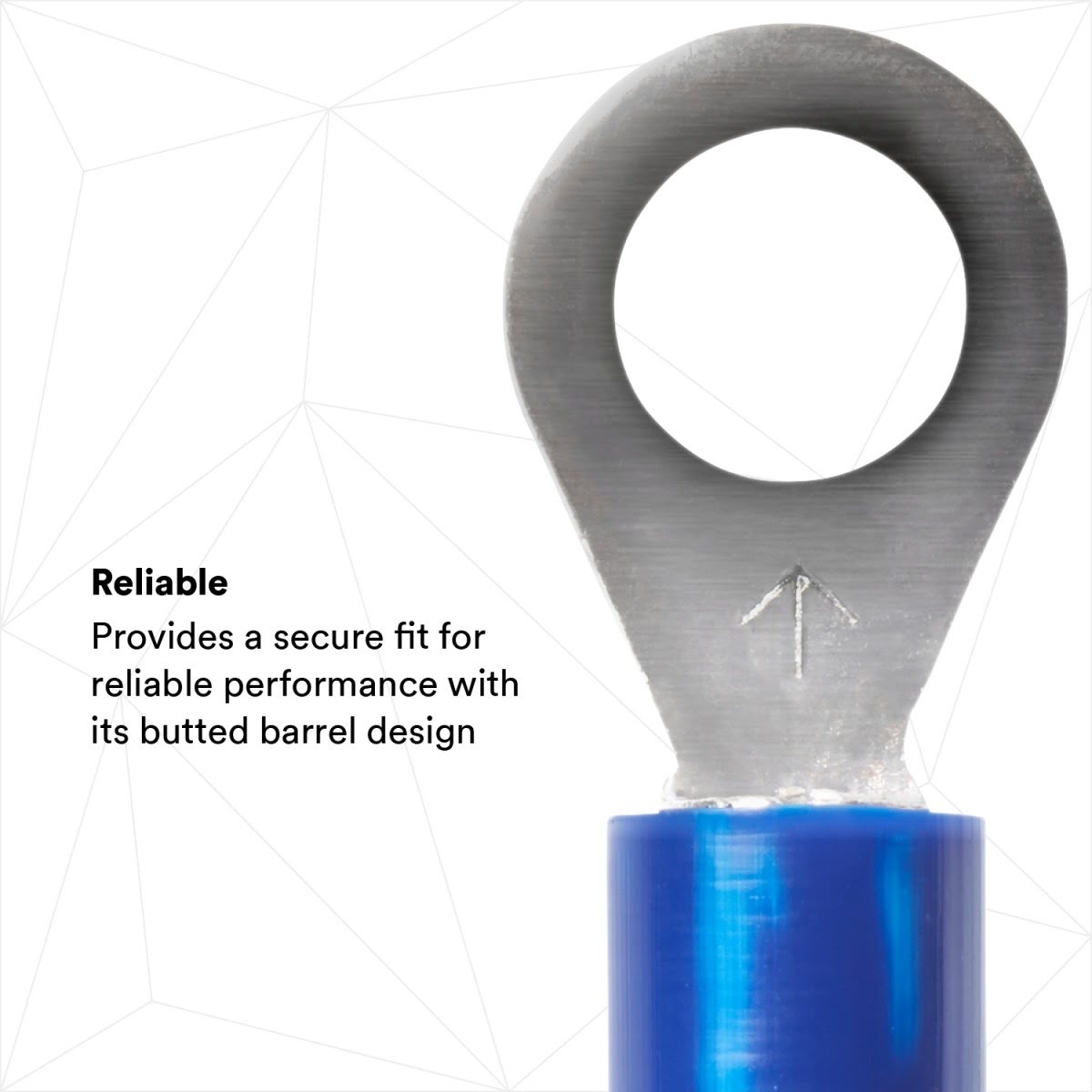

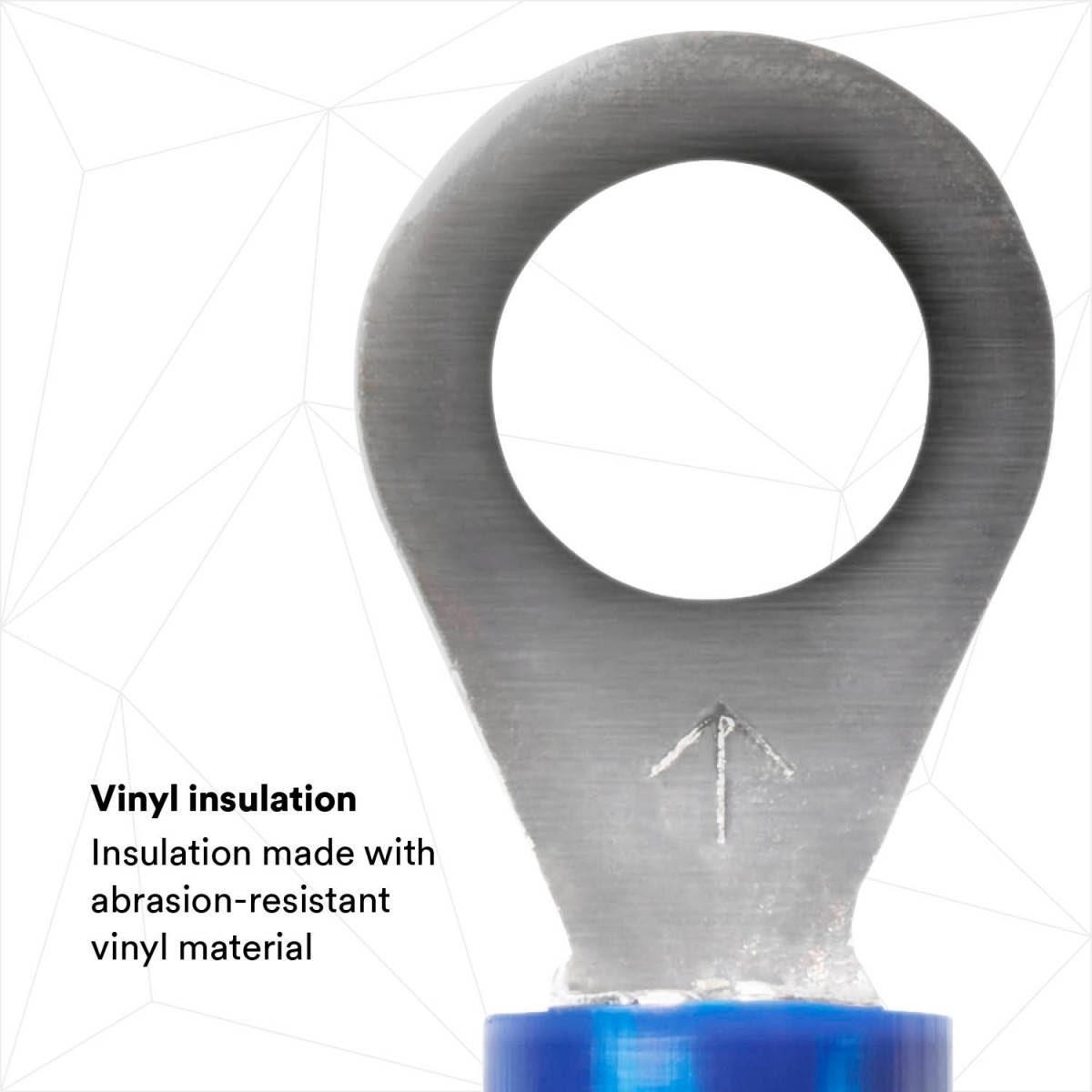

- Vinyl insulated butted seam barrel helps provide a secure crimp
- Funnel designed PVC sleeve helps guide wire insertion
- Standard style ring tongue fits around the stud
- Electrolytic copper construction helps provide good conductivity
- Tin plated finish helps resist corrosion

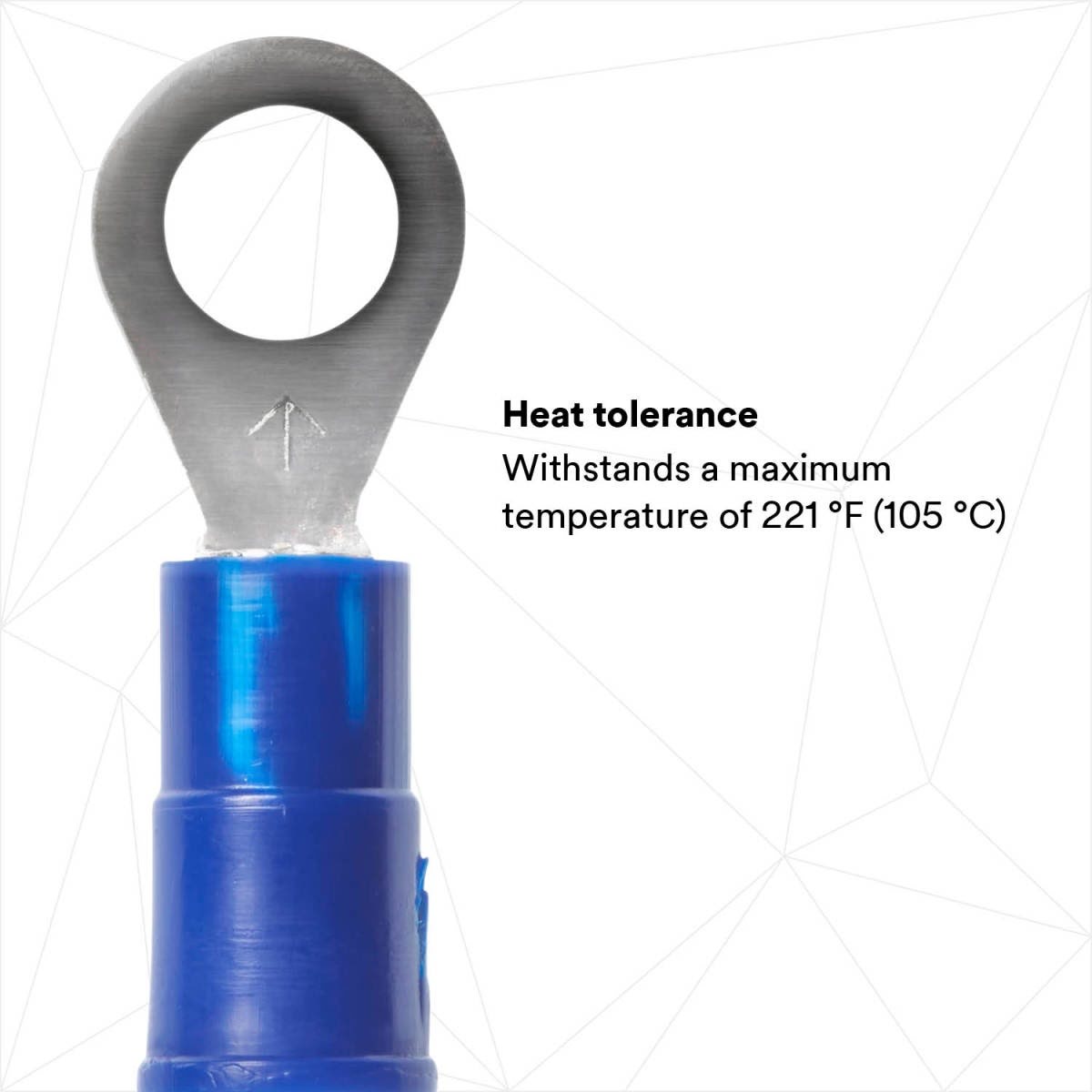

- Operating temperature range minus 40 to 221 degrees F minus 40 to 105 degrees C
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133366 Specifications
| Part Number | MVU14-10RX |
| Terminal Type | Ring |
| Insulation Material | Vinyl |
| Product Color | Blue |

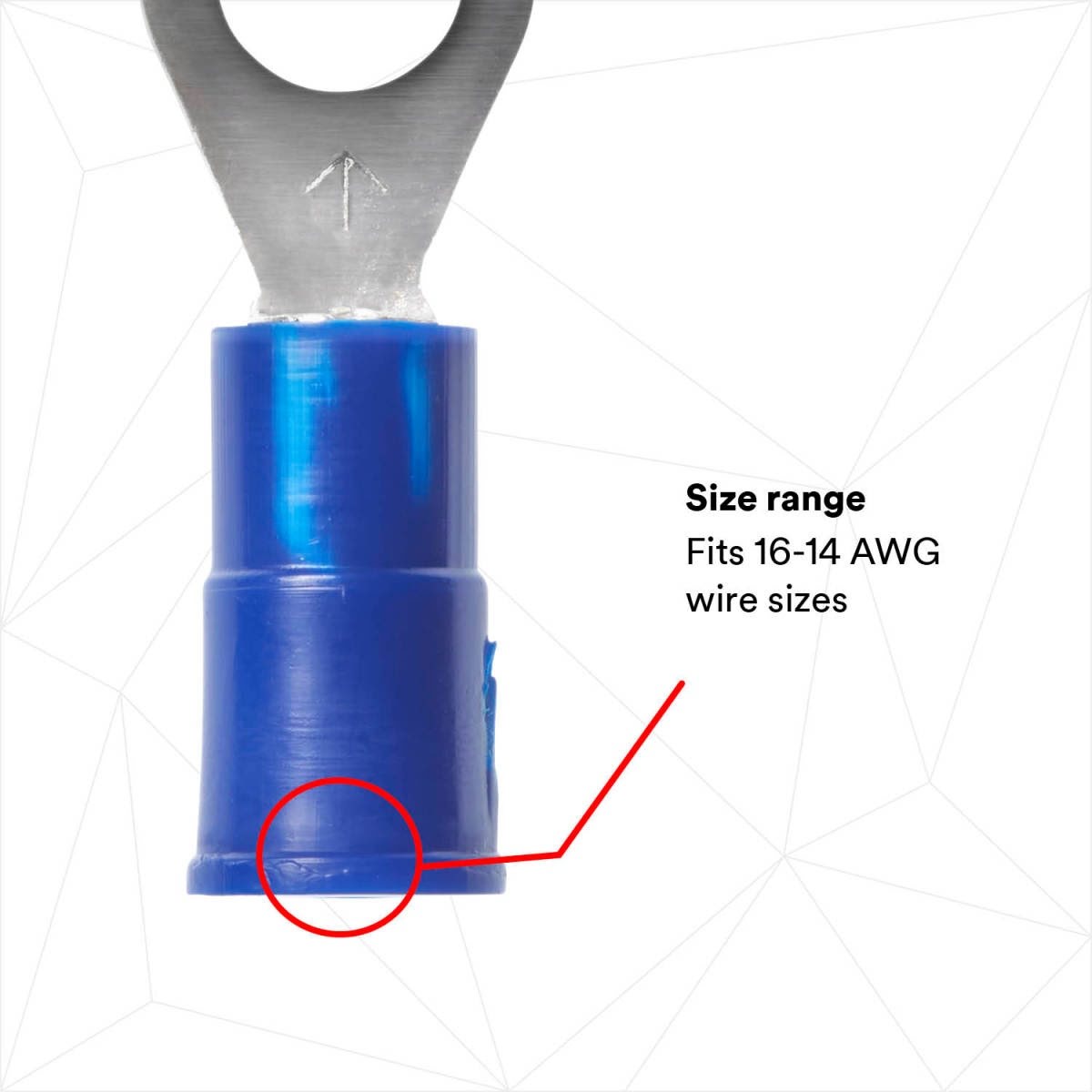

| Wire Range | 16 to 14 AWG |
| Stud Size | 10 |
| Maximum Operating Temperature | 105 Degree Celsius |
| Overall Length | 0.9 in |
| Overall Width | 0.33 in |
| Connection Width | 0.19 in |
| Voltage Rating | 600V building wire 1000V signs fixtures or luminaires |
| Material | Electrolytic copper |
| Plating | Tin |
| Certifications | UL Listed CSA Certified RoHS compliant |
Toolup Part # :
850748
