3M 7000133667 Description

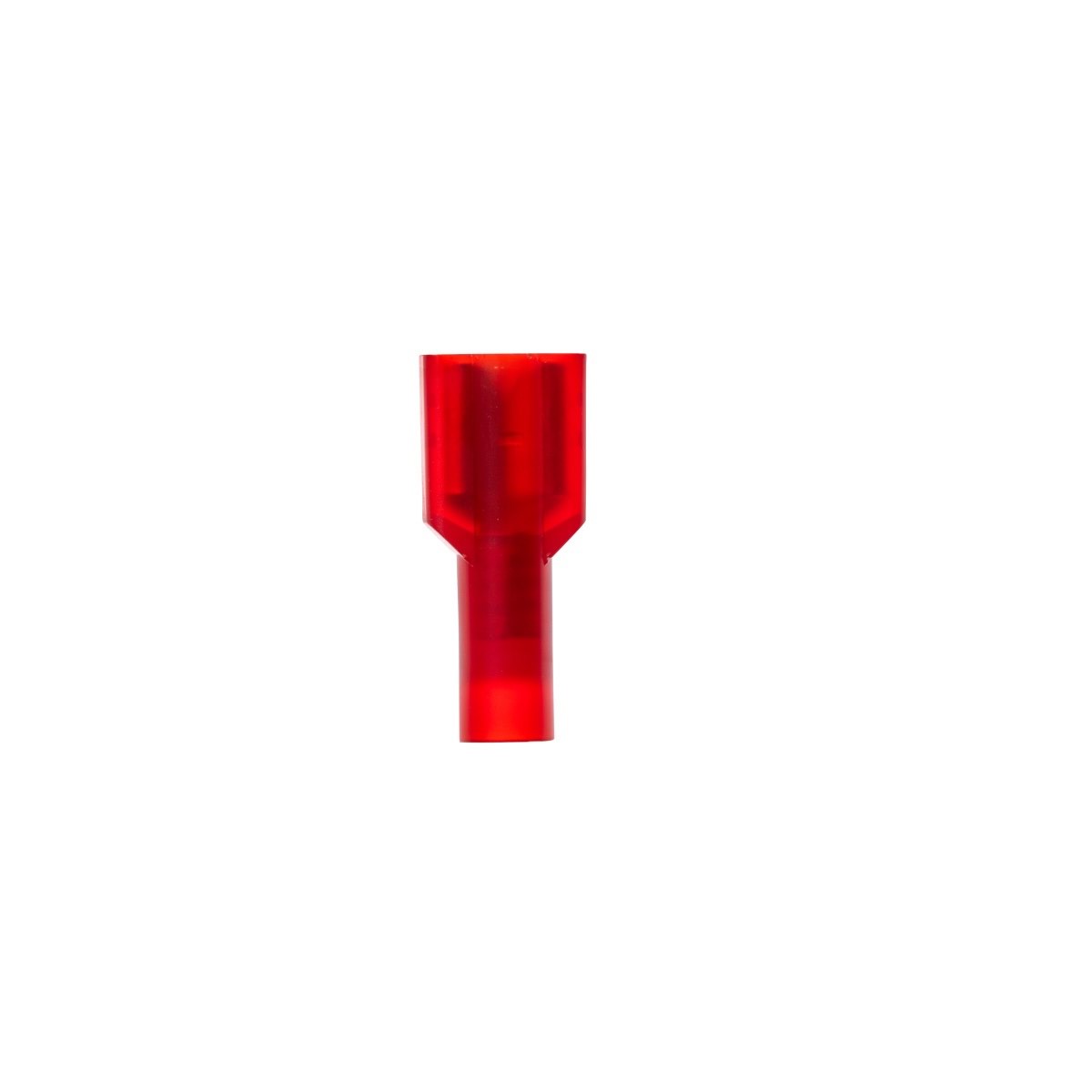

3M Highland MTI10-250Q nylon fully insulated male disconnect terminals provide strong holding force with quick connect and disconnect performance. The electrolytic copper, tin plated terminal resists corrosion and is designed for 12 to 10 AWG wire with a 0.25 in tab width connection.
3M 7000133667 Includes
- (250) - 3M 7000133667 C3SD Nylon Fully Insulated Male Disconnect Terminal MTI10-250Q, AWG 12-10
3M 7000133667 Features
- Nylon fully insulated male disconnect terminal for quick connect and disconnect applications
- Wire range 12 to 10 AWG
- Butted seam barrel provides electrical contact after crimping
- Flared nylon sleeve is abrasion resistant and helps guide proper crimping
- Electrolytic copper construction for good conductivity
- Tin plated finish helps resist corrosion
- Mates with 0.25 in tab width connections
- Temperature range minus 40 to 221 DegreeF minus 40 to 105 DegreeC
- UL Listed and CSA Certified
- RoHS 2011 65 EU compliant without exemption
3M 7000133667 Specifications
| Manufacturer | 3M |
| Brand | Highland |
| Part Number | MTI10-250Q |
| Disconnect Type | Male |
| Terminal Style | Fully Insulated |
| Wire Range | 12-10 AWG |
| Insulation Material | Nylon |
| Barrel Style | Butted |
| Tab Width | 0.25 in |
| Barrel Inside Diameter | 0.15 in |
| Barrel Length | 0.25 in |
| Overall Length | 1.05 in |
| Overall Width | 0.47 in |
| Overall Diameter | 0.39 in |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Temperature Rating | 221 DegreeF 105 DegreeC |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
Toolup Part # :
859667
